Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

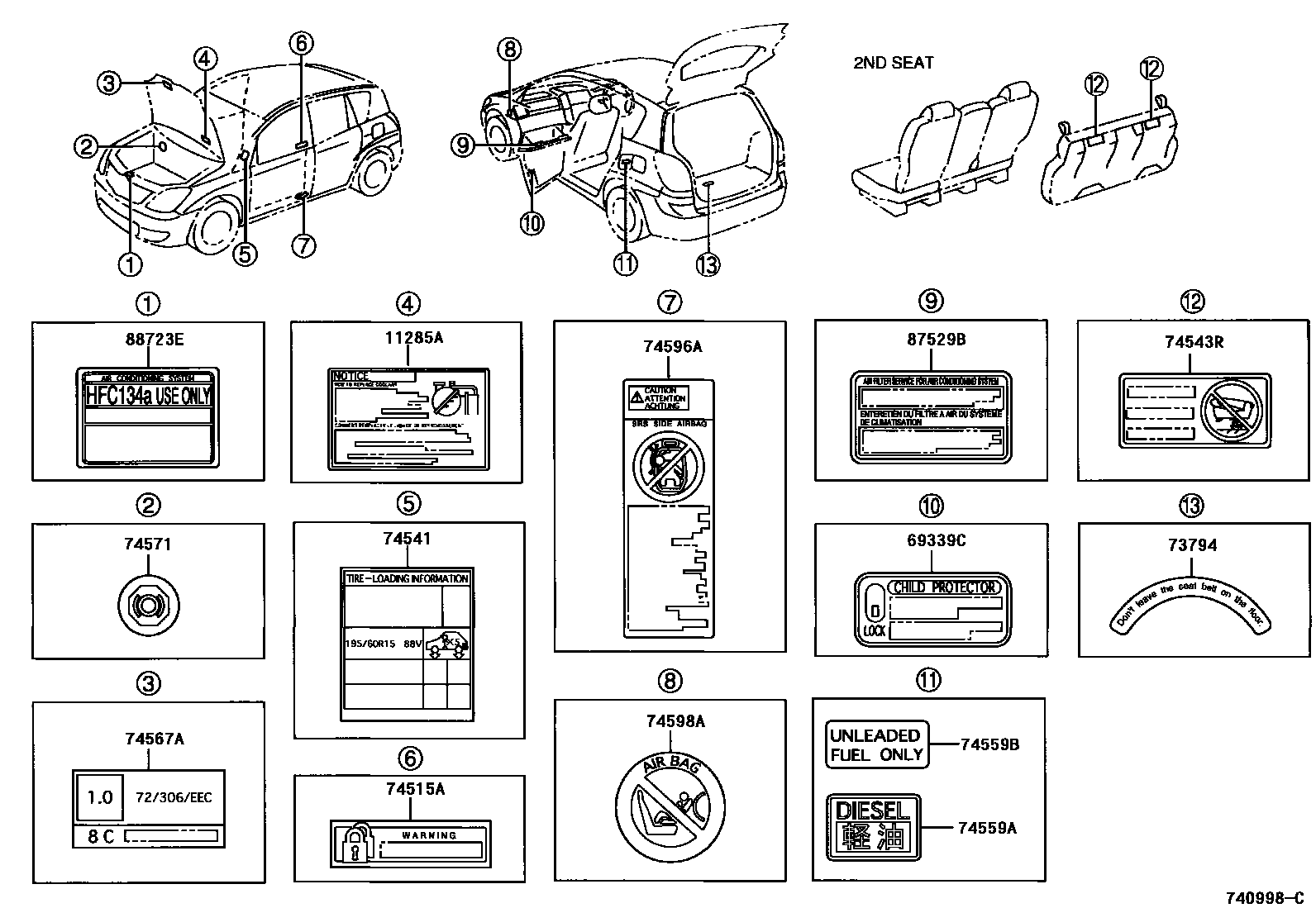

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-27030 |
| 69339C | Child Restraint Information Label | 69339-12010 |
| 73794 | Rear seat belt caution label | 73794-13030 |
| 74515A | Anti-theft warning nameplate | 74515-20010 |
| 74541 | tire pressure warning plate | 42661-13180 |
| 74543R | rear seat warning label | 74543-13240 |
| 74559A | Fuel warning plate | 74559-14030 |
| 74559B | fuel information label | 74559-14050 |
| 74567A | E.C.E approval number plate | 74567-20261 |
| 74571 | Brake fluid warning plate | 47287-12010 |
| 74596A | Side air bag warning label | 74596-12020 |
| 74598A | Passenger air bag warning label | 74598-20010 · 74598-30040 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-28220 |
