Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

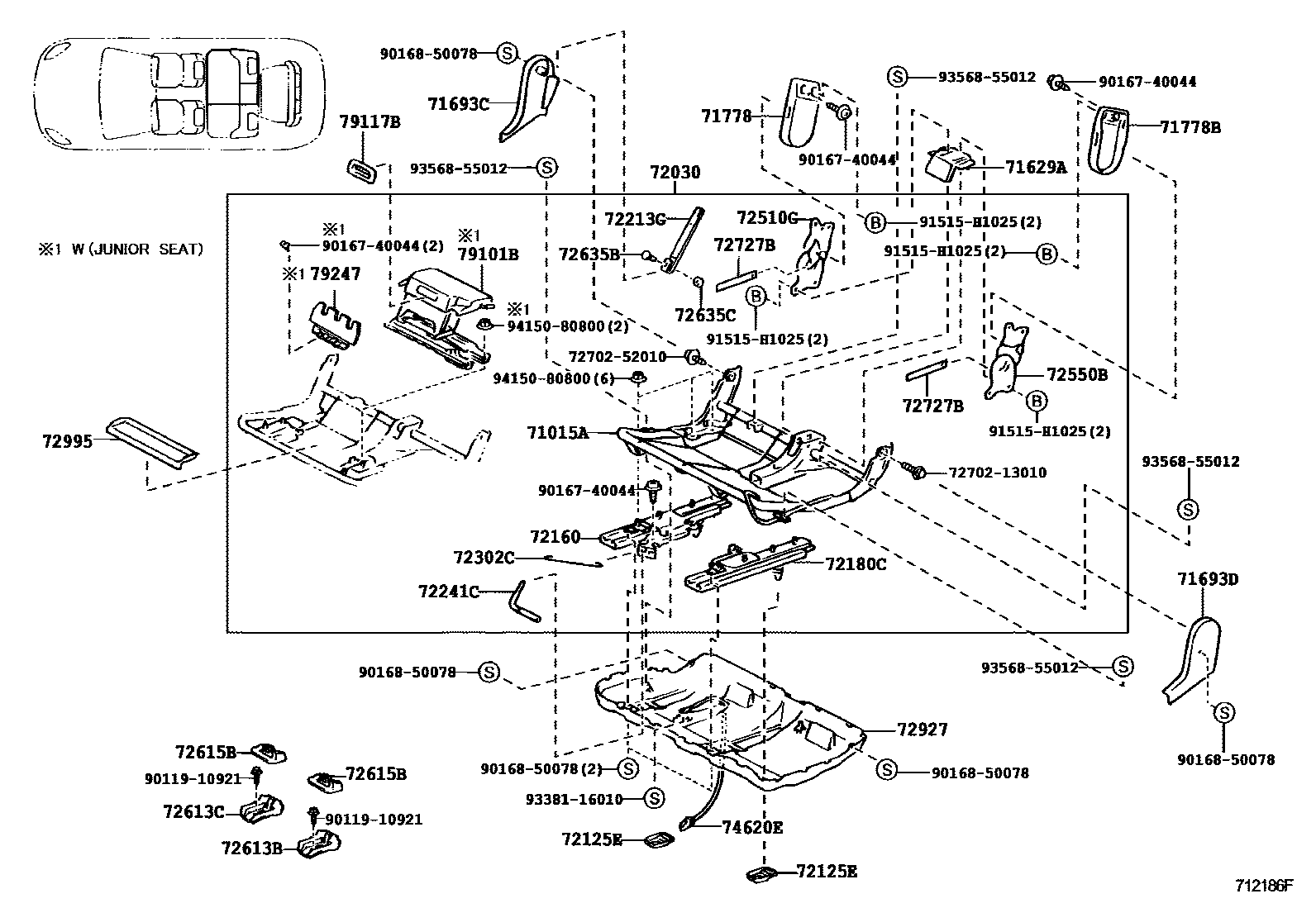

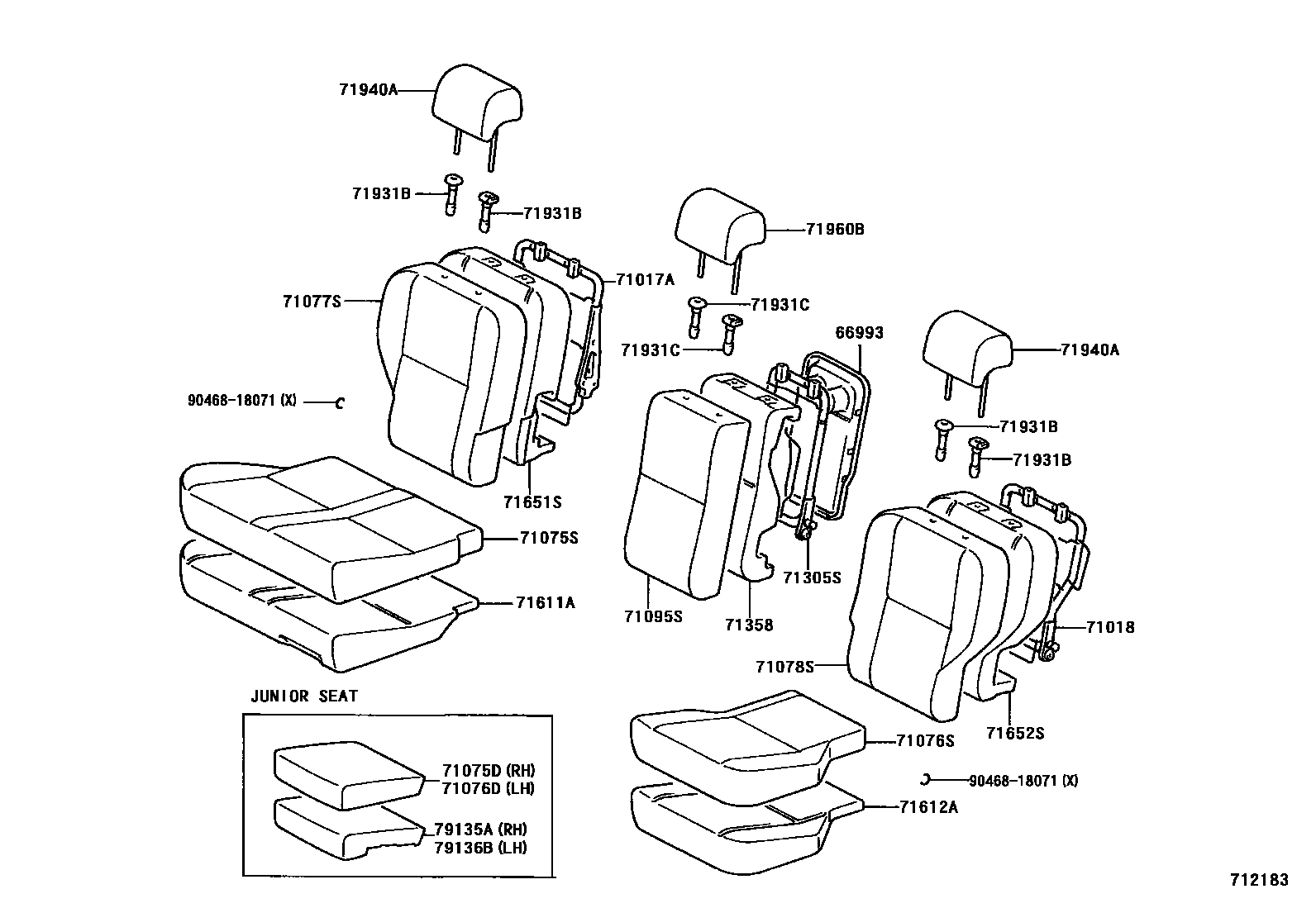

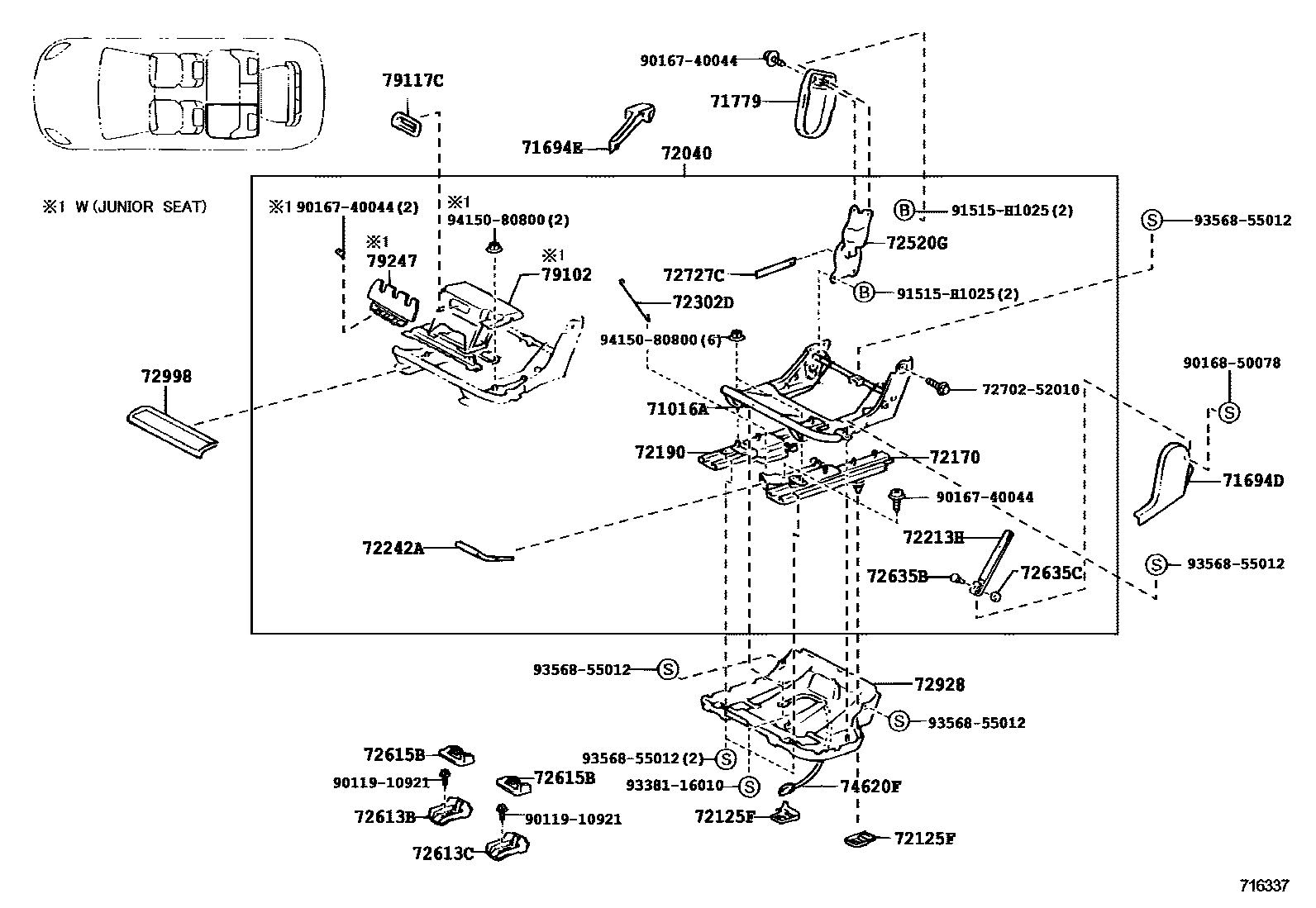

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-13080 · 71015-13090 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13050 · 71016-13060 |
| 71017A | Rear seat back frame sub-assembly | 71017-13260 |
| 71018 | Rear left seat back frame sub-assembly | 71018-13110 |
| 71078S | Rear left seat back cover (for split seats) | 71078-13820 |
| 71305S | Center seat back frame sub-assembly | 71305-13030 |
| 71358 | Center seat back cushion | 71365-13020 |
| 71611A | Rear right seat cushion | 71611-13310 · 71611-13320 |
| 71612A | Rear left seat cushion | 71612-13170 · 71612-13180 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-13300 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-13180 |
| 72125E | Slide rail cover on right rear seat | 72125-13020 |
| 72125F | Slide rail cover on left rear seat | 72125-13020 · 72125-13050 |
| 72160 | Rear right seat outer slide rail assembly | 72160-13030 · 72160-13040 |
| 72170 | Rear left seat outer slide rail assembly | 72170-13030 · 72170-13040 |
| 72180C | Rear right seat inner slide rail assembly | 72180-13010 · 72180-13020 |
| 72190 | Rear left seat inner slide rail assembly | 72190-13010 · 72190-13020 |
| 72241C | Right seat outer slide rail locking lever | 72241-13010 |
| 72242A | Left seat outer slide rail locking lever | 72242-13010 |
| 72302C | Rear right seat slide rail balance harness sub-assembly | 72302-13010 |
| 72302D | Rear left seat slide rail balance harness sub-assembly | 72302-13020 |
| 72510G | Rear right seat backrest inclination outer adjuster assembly | 72510-13040 |
| 72520G | Rear left seat backrest tilt outer adjuster assembly | 72520-13040 |
| 72550B | Right center seat backrest angle adjuster assembly | 72550-13010 |
| 72613B | Rear seat lock | 72613-13110 |
| 72613C | Rear seat lock | 72613-13120 |
| 74620E | Right auxiliary handle assembly | 74620-13010 |
| 74620F | Left auxiliary handle assembly | 74620-13010 |
| 79135A | Right seat No. 1 seat cushion cushion | 79235-13010 |
| 79136B | Seat cushion, seat No. 1, left | 79235-13010 |
| 79247 | A Junior Seat Cushion Face Protective Cushion | 79247-13010 |
