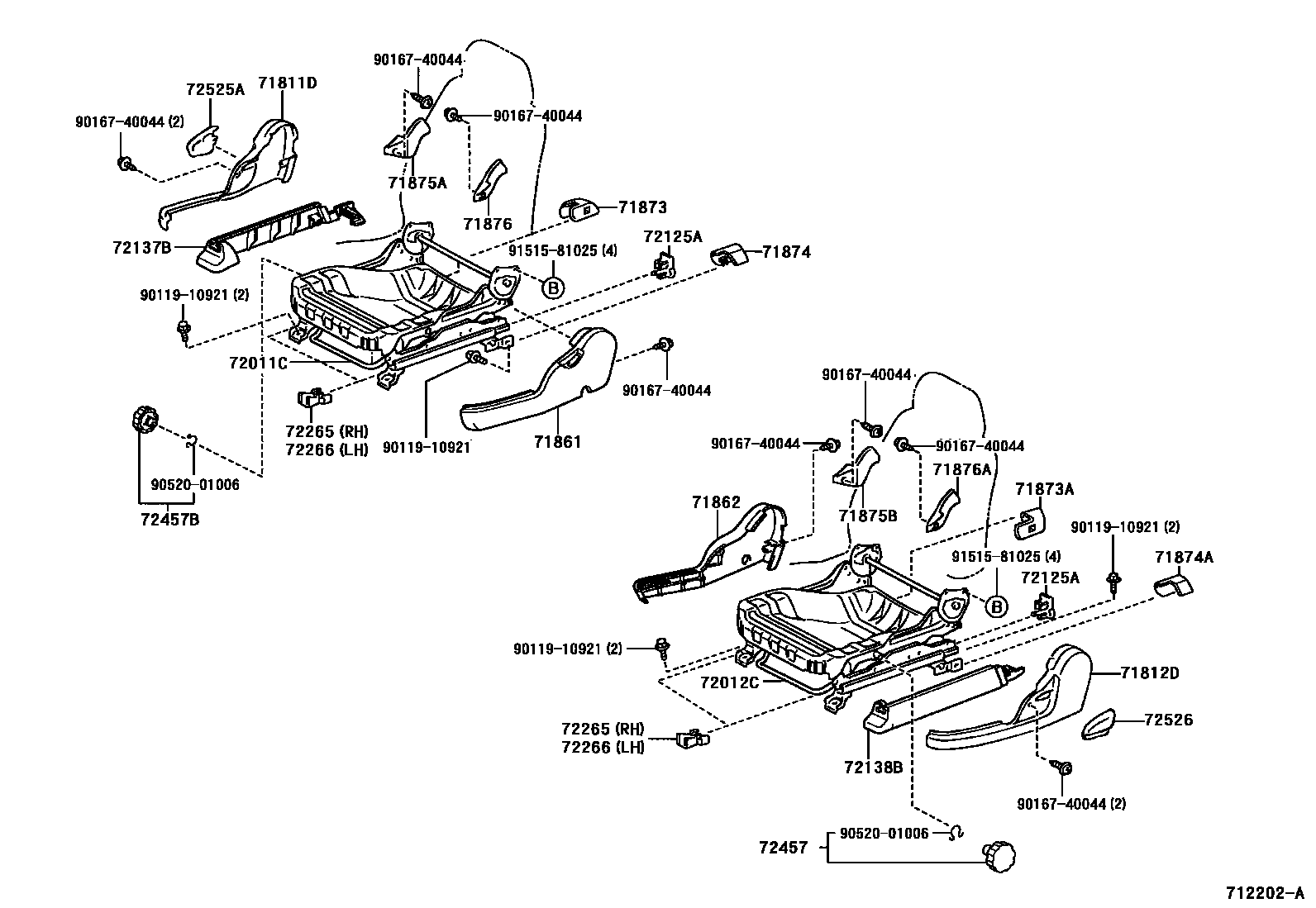

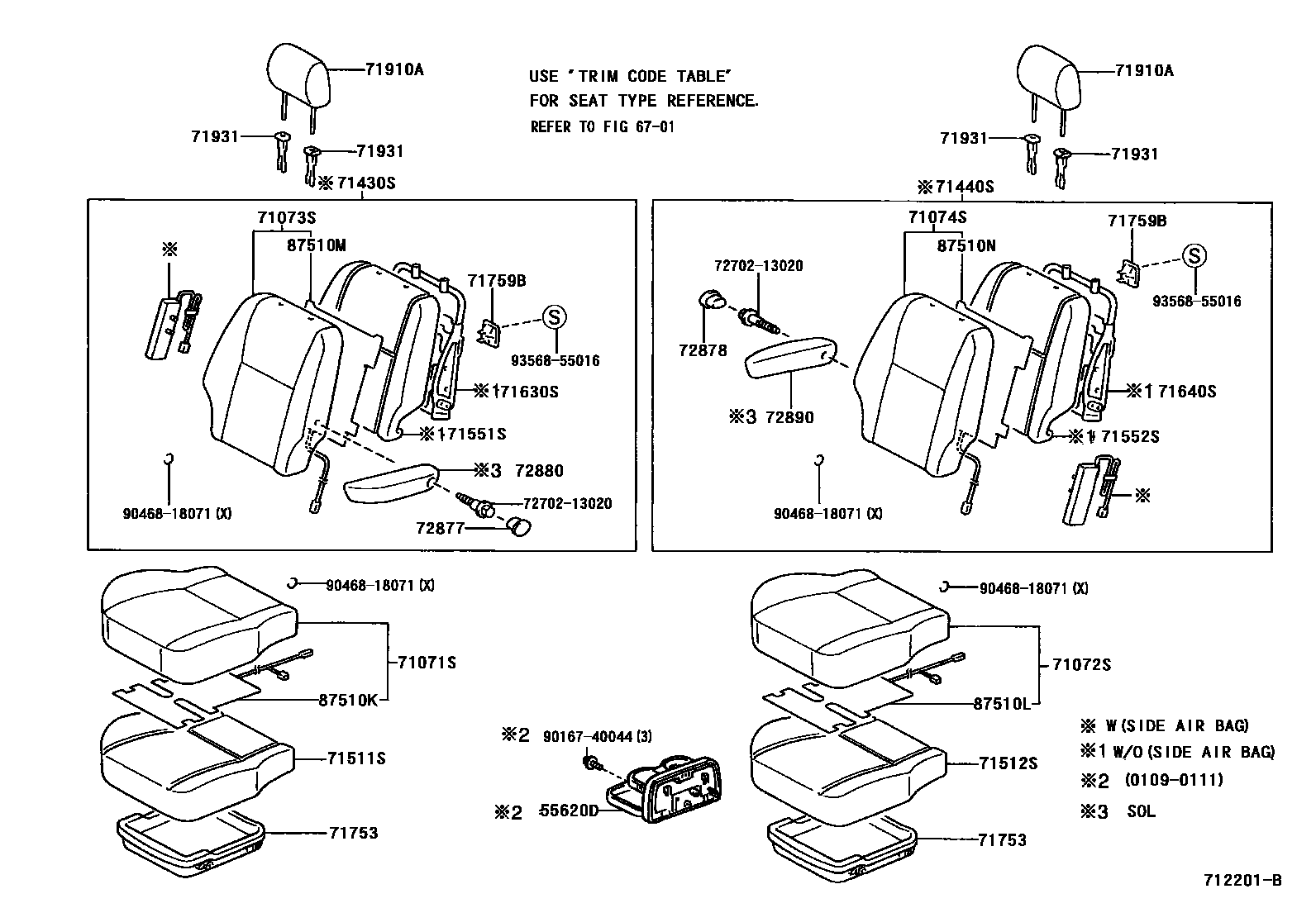

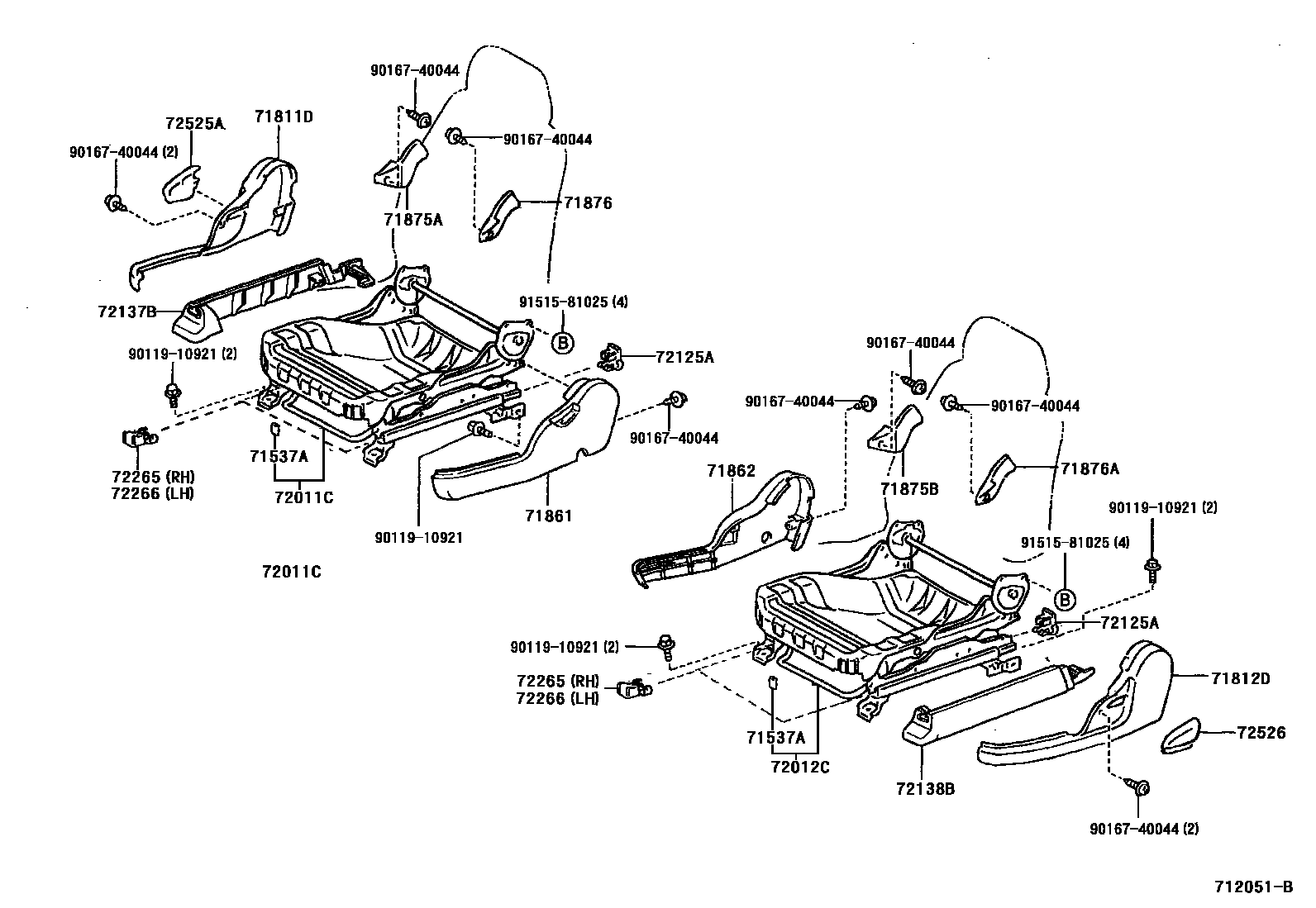

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-63020 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-63020 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-13160 · 71551-13170 |
| 71552S | Front left seat back cushion (for split seats) | 71551-13160 · 71552-13100 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-13050 · 71630-13060 · 71630-63021 · 71630-63030 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-63030 · 71640-13040 · 71640-13060 · 71640-13080 |
| 71753 | Front seat bottom bracket | 71753-52010 |
| 72011C | Front right seat adjuster sub-assembly | 72010-13040 · 72010-13050 · 72010-13070 |
| 72012C | Front left seat adjuster sub-assembly | 72020-13090 · 72020-13110 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
| 87510K | Front right seat cushion heater assembly | 87510-13040 |
| 87510L | Front left seat cushion heater assembly | 87510-13010 |
| 87510M | Front right seat back heater assembly | 87510-13020 |
| 87510N | Front left seat back heater assembly | 87510-13020 |
