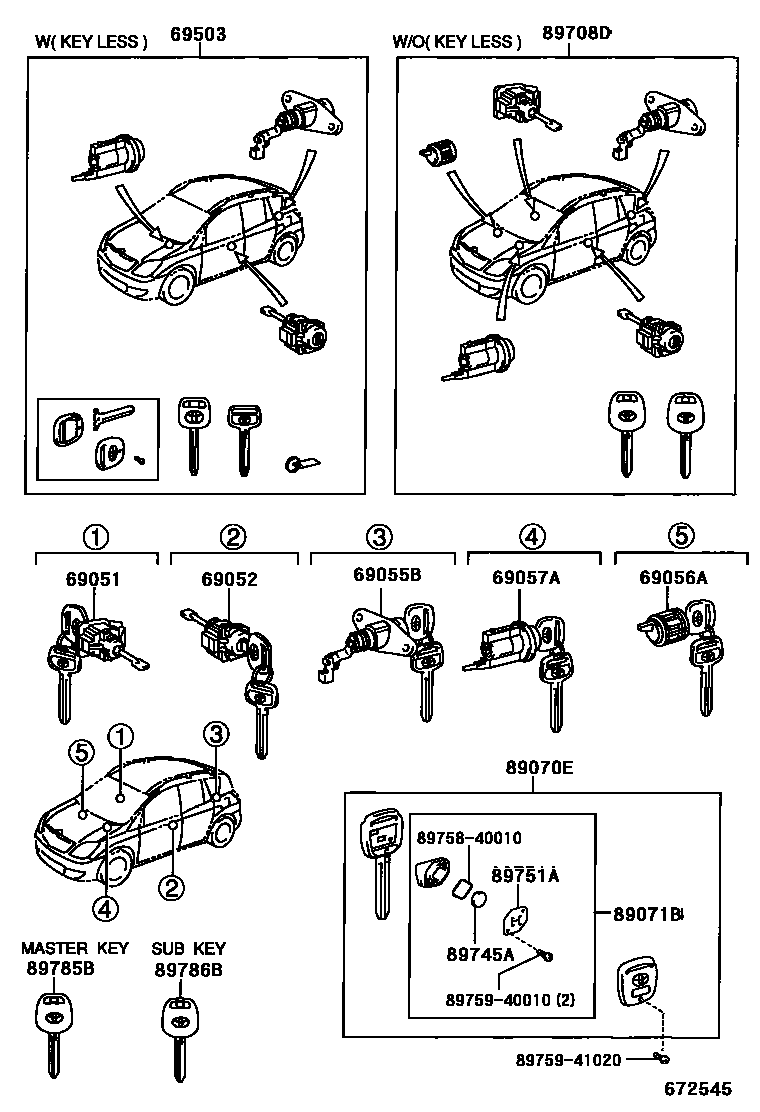

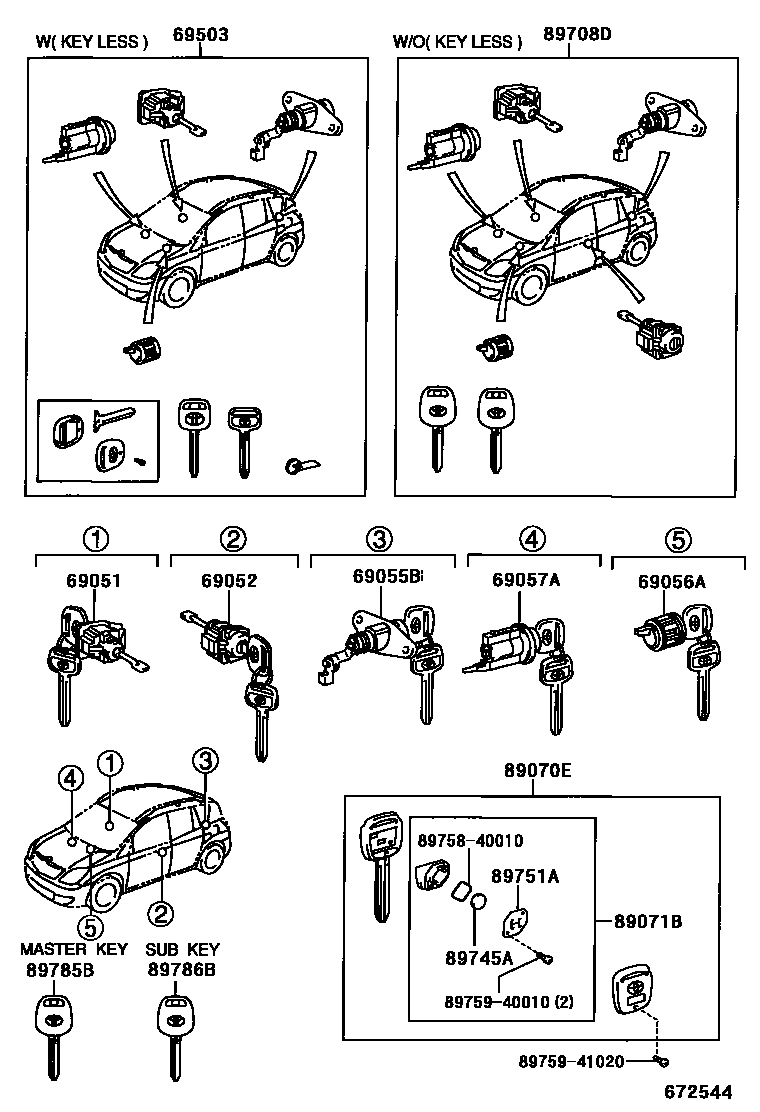

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-13230 · 69051-13240 |
| 69052 | Left door lock cylinder and key assembly | 69052-12600 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13290 |
| 69056A | Glove box lock cylinder and key assembly | 69056-44010 |
| 69057A | Ignition switch lock cylinder and key assembly | 89073-13010 · 89073-13020 · 89708-13040 |
| 69503 | Door lock cylinder components | 89073-13040 · 89073-13050 · 89073-13060 |
| 89070E | Remote key assembly | 89070-13030 · 89070-44090 |
| 89071B | Remote key sub-assembly module assembly | 89071-33070 · 89071-60081 |
| 89708D | Key lock cylinder assembly with transceiver transmitter | 89708-13030 |
| 89745A | Transmitter battery | 89745-40010 |
| 89751A | Transmitter housing cover | 89751-13010 |
| 89785B | transceiver key master transmitter | 89785-26020 |
| 89786B | transceiver key secondary transmitter | 89786-60050 |
