Toyota COROLLA 背门板和背门玻璃 — Figure 6708

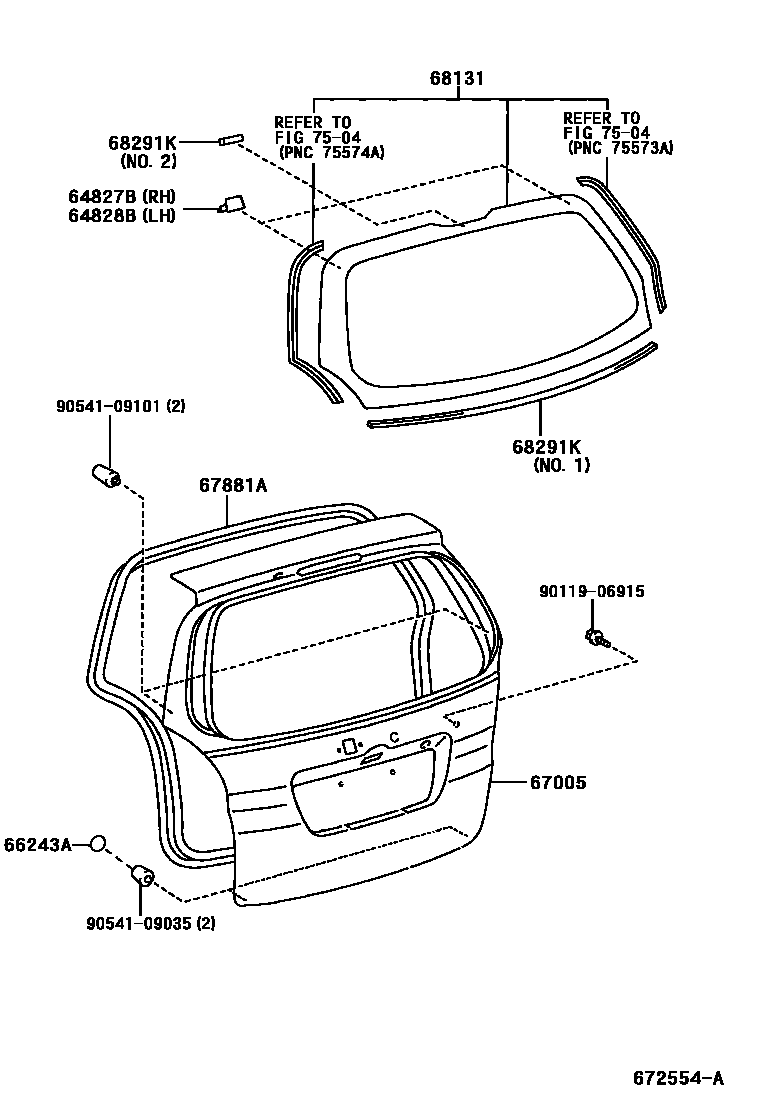

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64827B | Catch on the right side of the back window glass | 64827-13010 |
| 64828B | Catch on the left side of the back window glass | 64828-13010 |
| 66243A | Rear body protection piece No. 1 | 66243-13010 |
| 67005 | Rear door panel sub-assembly | 67005-13A20 · 67005-13A30 · 67005-13A60 · 67005-1F750 · 67005-1F751 · 67005-1F760 · 67005-1F761 · 67005-1F770 · 67005-1F771 |
| 67881A | Back door seal | 67881-13250 · 67881-13251 |
| 68131 | back door glass | 68105-13140 · 68105-13141 · 68105-13210 · 68105-13211 |
| 68291K | Back window glass sealing strip assembly | 56117-13030 · 64814-13010 |
