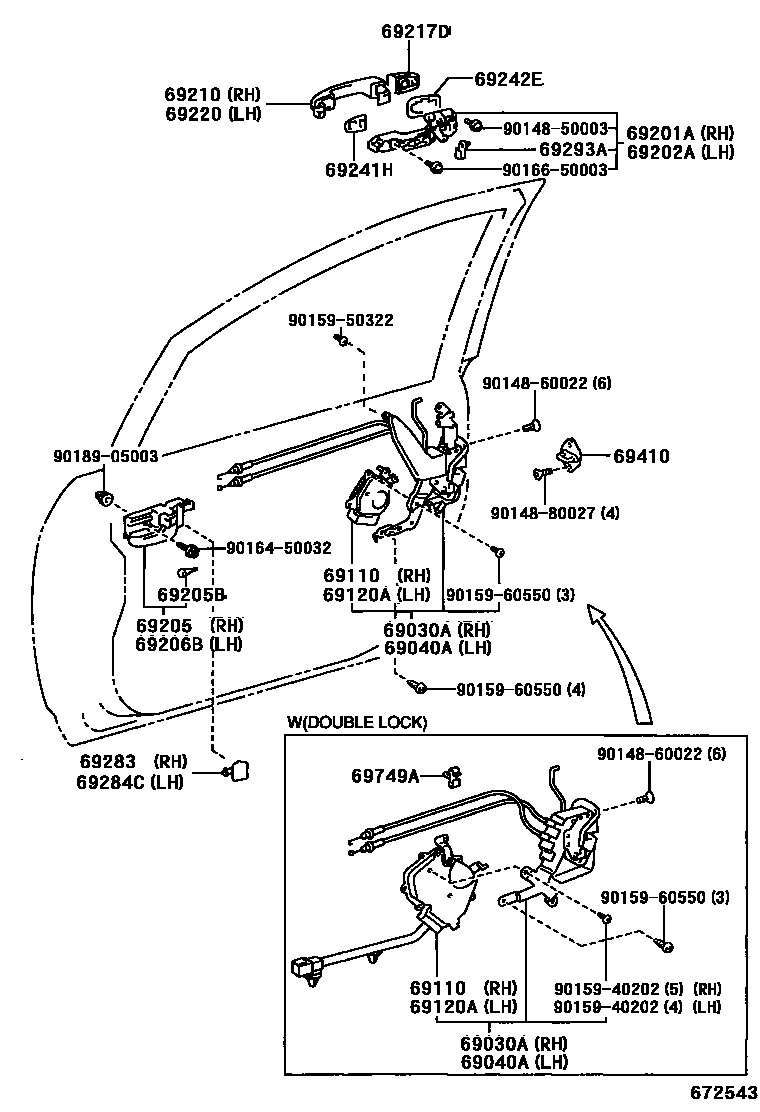

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-12460 · 69030-12510 · 69030-12520 · 69030-13050 |
| 69040A | Left front door door lock assembly with motor | 69040-12510 · 69040-12530 · 69040-12540 · 69040-13040 |
| 69110 | Right front door lock actuator assembly | 69110-12070 · 69110-12080 · 69110-12090 · 69110-13030 |
| 69120A | Left front door lock actuator assembly | 69120-12070 · 69120-12080 · 69120-12090 · 69120-13020 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-12020 · 69201-12030 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-12020 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69241H | Front door exterior handle pad | 69241-42020 |
| 69242E | Front door rear outer handle pad | 69242-42010 |
| 69293A | Front door outer handle buckle | 69293-10010 · 69293-10020 · 69293-12030 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69749A | Front door lock No. 1 link clamp | 69749-32040 |
