Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

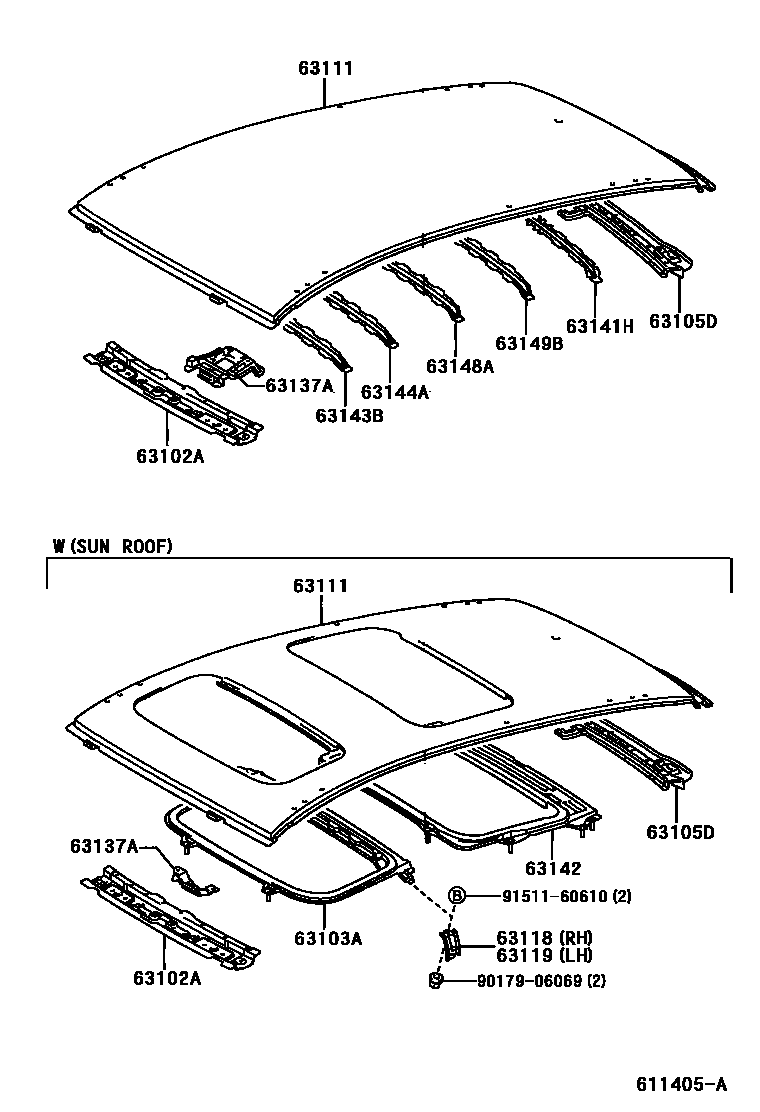

| 63102A | Windshield roof sub-assembly | 63132-13060 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-13020 |
| 63105D | Rear window upper frame sub-assembly | 63105-13180 |
| 63111 | roof panel | 63111-13320 · 63111-13330 · 63111-13340 · 63111-13350 · 63111-13360 · 63111-13370 · 63111-13380 · 63111-13390 |
| 63118 | Right roof panel bracket | 63118-13020 |
| 63119 | Left roof panel bracket | 63118-13020 |
| 63137A | No. 1 ceiling light bracket | 63137-13050 · 63137-13060 |
| 63141H | Center roof panel reinforcement | 63141-13100 |
| 63142 | No. 2 roof panel reinforcement | 63142-13090 |
| 63143B | No. 3 roof panel reinforcement | 63143-13060 |
| 63144A | No. 4 roof panel reinforcement | 63144-13040 |
| 63148A | No. 7 roof panel reinforcement | 63148-13040 |
| 63149B | No. 1 rear roof panel reinforcement | 63149-13030 |

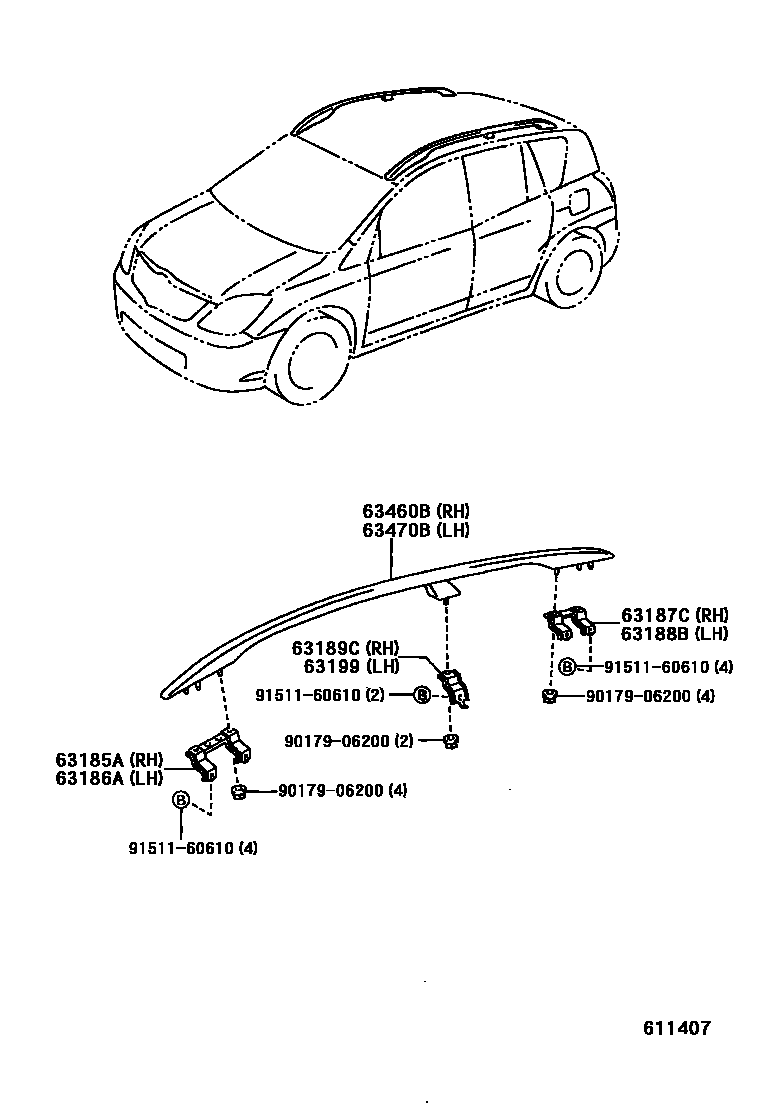

| 63185A | Right front roof rack bracket | 63185-13080 |
| 63186A | Left front roof rack bracket | 63186-13090 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-13030 |
| 63188B | Left rear roof rack No. 1 bracket | 63187-13030 |
| 63189C | Right center roof rack bracket | 63189-13070 |
| 63199 | Left center roof rack bracket | 63189-13070 |

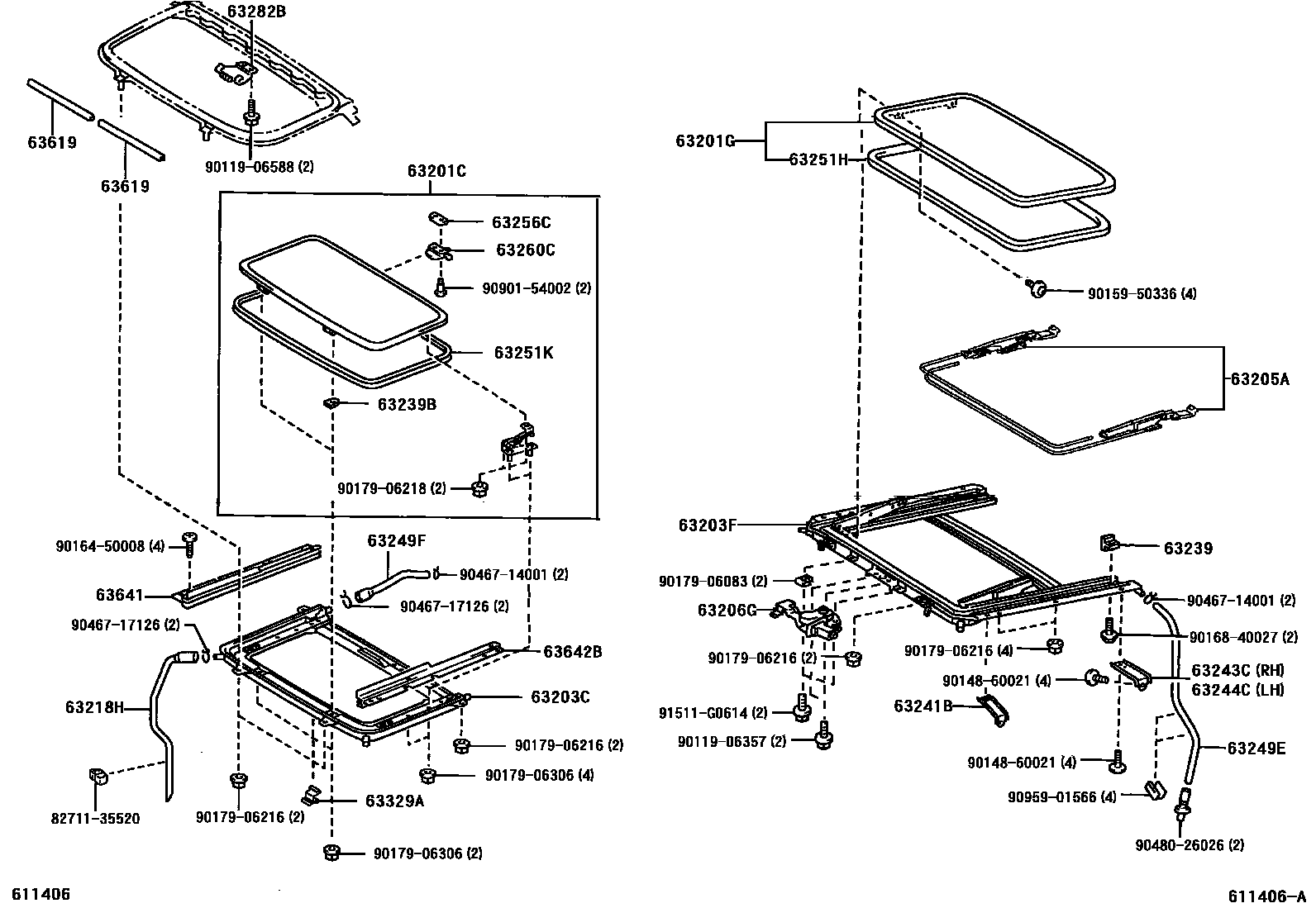

| 63201C | Tiltable skylight glass sub-assembly | 63201-13030 · 63201-13031 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-13040 · 63201-13041 |
| 63203C | Tiltable skylight frame sub-assembly | 63203-44020 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-13040 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-12150 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-13040 |
| 63218H | Sliding skylight drain hose | 63249-13070 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63239B | Tilt skylight glass liner | 63239-26020 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-13020 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-52020 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63243-52020 |
| 63249E | Sliding skylight drain hose | 63249-13080 |
| 63249F | Sliding skylight drain hose | 63249-13090 |
| 63251H | Sliding skylight seal | 63251-12160 · 63251-12161 |
| 63251K | Tiltable skylight seal | 63251-44010 |
| 63256C | Tilt sunroof glass seal | 63256-44010 |
| 63260C | Tiltable sunroof lock handle assembly | 63260-26030 |
| 63282B | Tilt sunroof lock | 63282-13010 · 63282-44010 |
| 63329A | Sunshade lock stop | 63329-44030 |
| 63619 | Tilt skylight cover | 63619-44010 |
| 63641 | No. 1 right front sunshade slide rail | 63641-13010 |
| 63642B | No. 1 left front sunshade slide rail | 63642-13010 |
