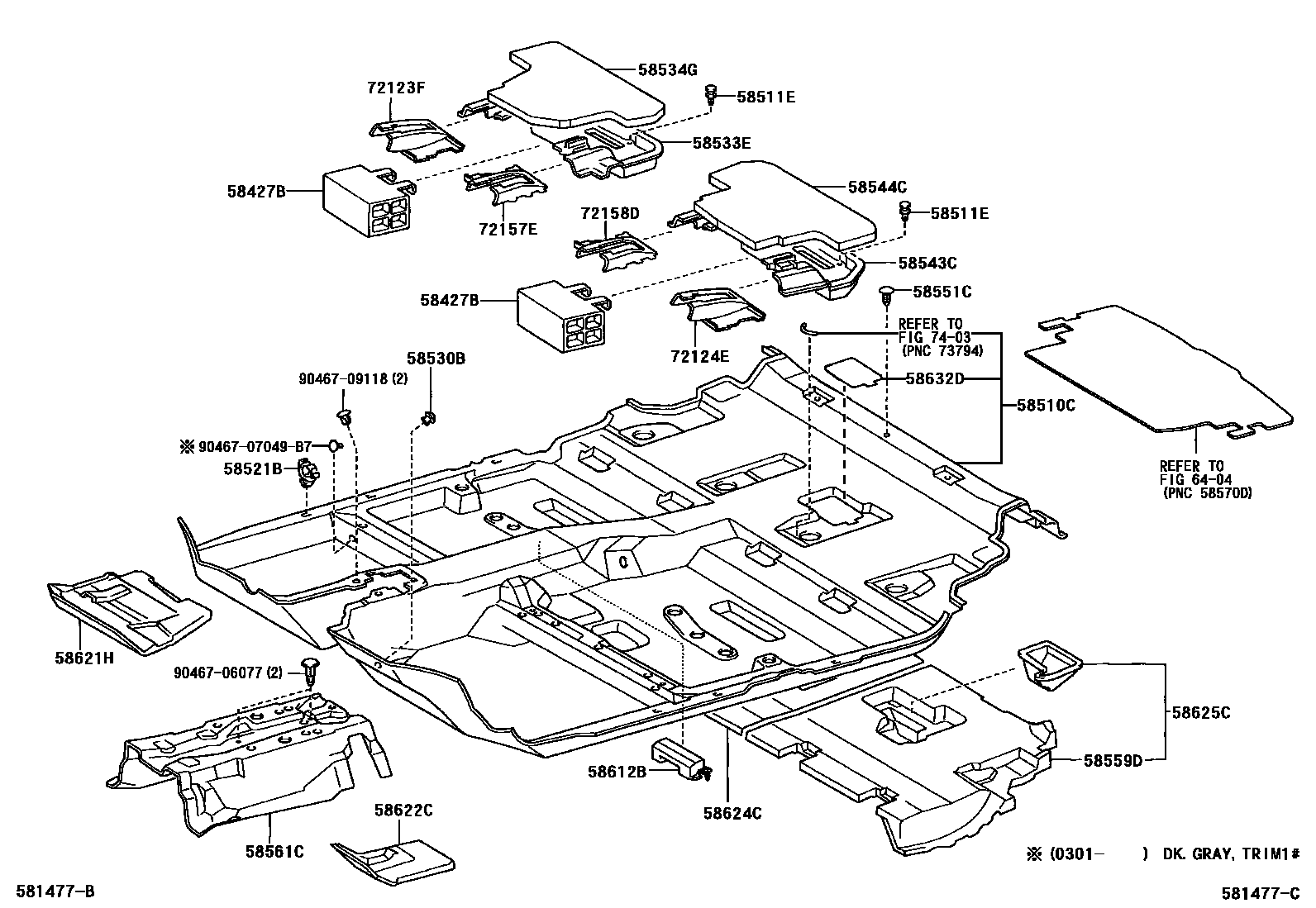

Toyota COROLLA 地板垫和地毯 — Figure 5804
Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58427B | rear floor spacer | 58427-13040 |
| 58511E | Clip (for front floor mat) | 90467-08188 |
| 58521B | carpet hook | 58521-13030 |
| 58533E | Front floor mat No. 1 center right panel | 58533-13010 |
| 58543C | Front floor mat No. 1 center left panel | 58543-13010 |
| 58559D | Rear seat belt anchor cover felt pad | 58559-13050 |
| 58561C | Front floor silencer No. 1 | 58561-13070 |
| 58612B | No. 2 pad fixing plate | 58612-13080 |
| 58621H | Front floor sound absorbing mat | 58621-13030 |
| 58622C | Front floor left muffler pad | 58622-13010 |
| 58624C | Center floor right muffler pad | 58624-13030 |
| 58625C | Center floor left silencer pad | 58625-13020 |
