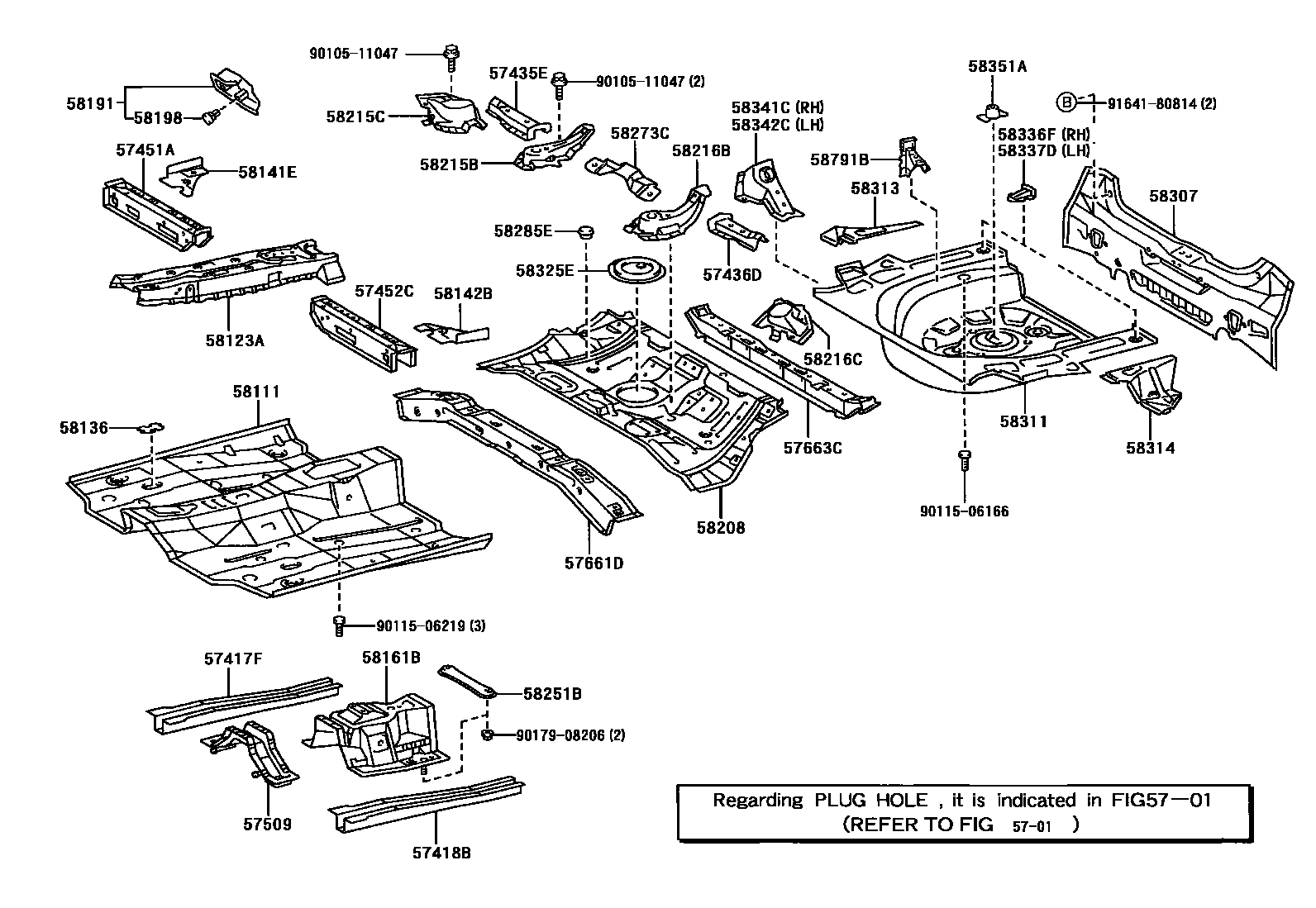

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57417F | Front floor lower right reinforcement | 57417-13020 |
| 57418B | Front floor lower left reinforcement | 57418-13020 |
| 57435E | Center floor right longitudinal beam | 57435-13020 |
| 57436D | Center floor left longitudinal beam | 57436-13010 |
| 57451A | Front floor right cross member | 57451-12191 · 57451-12192 |
| 57452C | Front floor left cross member | 57452-12021 · 57452-12031 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-12050 |
| 57661D | rear floor front cross member | 57407-13120 |
| 57663C | Rear floor center cross member | 57663-13020 |
| 58111 | front floor pan | 58111-13900 |
| 58123A | shift lever bracket | 58013-12040 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-13040 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-13020 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-12120 |
| 58191 | Front floor footrest | 58191-13020 · 58192-13010 |
| 58198 | Footrest clip | 58198-13020 |
| 58208 | central floor base | 58211-13300 |
| 58215B | Rear right seat mounting bracket | 57805-13040 |
| 58215C | Center floor No. 2 right reinforcement | 57806-13040 |
| 58216B | Rear left seat mounting bracket | 57807-13010 |
| 58216C | Center floor No. 2 left reinforcement | 57808-13010 |
| 58251B | front floor bracket | 58251-12030 |
| 58273C | Seat belt anchors to center floor reinforcement | 58273-13020 |
| 58285E | Center floor hole cover | 58285-13040 |
| 58307 | Body lower back panel sub-assembly | 58307-13170 |
| 58311 | rear floor pan | 58311-13909 |
| 58313 | Rear floor right panel | 58313-13190 |
| 58314 | rear floor left panel | 58314-13160 |
| 58325E | Rear floor access hole cover | 58325-12110 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-13060 |
| 58337D | Rear floor bottom left reinforcement | 58336-13060 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-13040 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-13040 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58791B | jack bracket | 58791-13090 |
