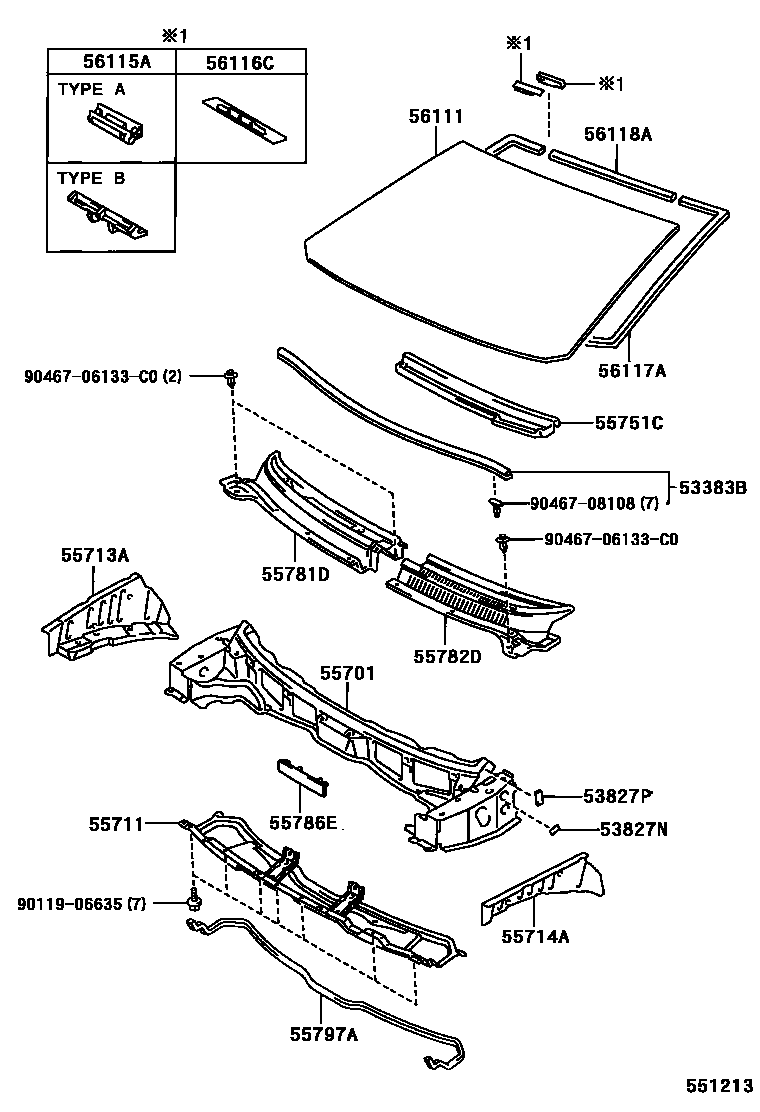

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-13020 |
| 53827N | No. 1 front fender side panel protector | 53878-28050 |
| 53827P | No. 2 front fender side panel protector | 53878-28070 |
| 55701 | Front apron sub-assembly | 55700-13020 · 55700-13030 |
| 55711 | Front outer panel | 55701-13020 · 55701-13030 · 55701-13040 · 55701-13050 |
| 55713A | Right front wall upper side panel | 55713-13020 |
| 55714A | Left front wall upper side panel | 55714-13020 |
| 55751C | Front ventilator splash guard | 55751-13010 · 55751-13020 |
| 55781D | Ventilation grille on right front apron | 55708-13030 · 55708-13031 · 55708-13040 · 55708-13050 |
| 55782D | Ventilation grille on left front apron | 55709-13010 · 55709-13011 · 55709-13020 · 55709-13021 · 55709-13030 |
| 55786E | Ventilation grille connection plate on front apron | 55786-13020 |
| 55797A | Front wall pumping device seal | 55797-13010 · 55797-13020 |
| 56111 | windshield | 56111-13020 |
| 56115A | Windshield block No. 1 | 56115-22010 · 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-13030 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-13020 |
