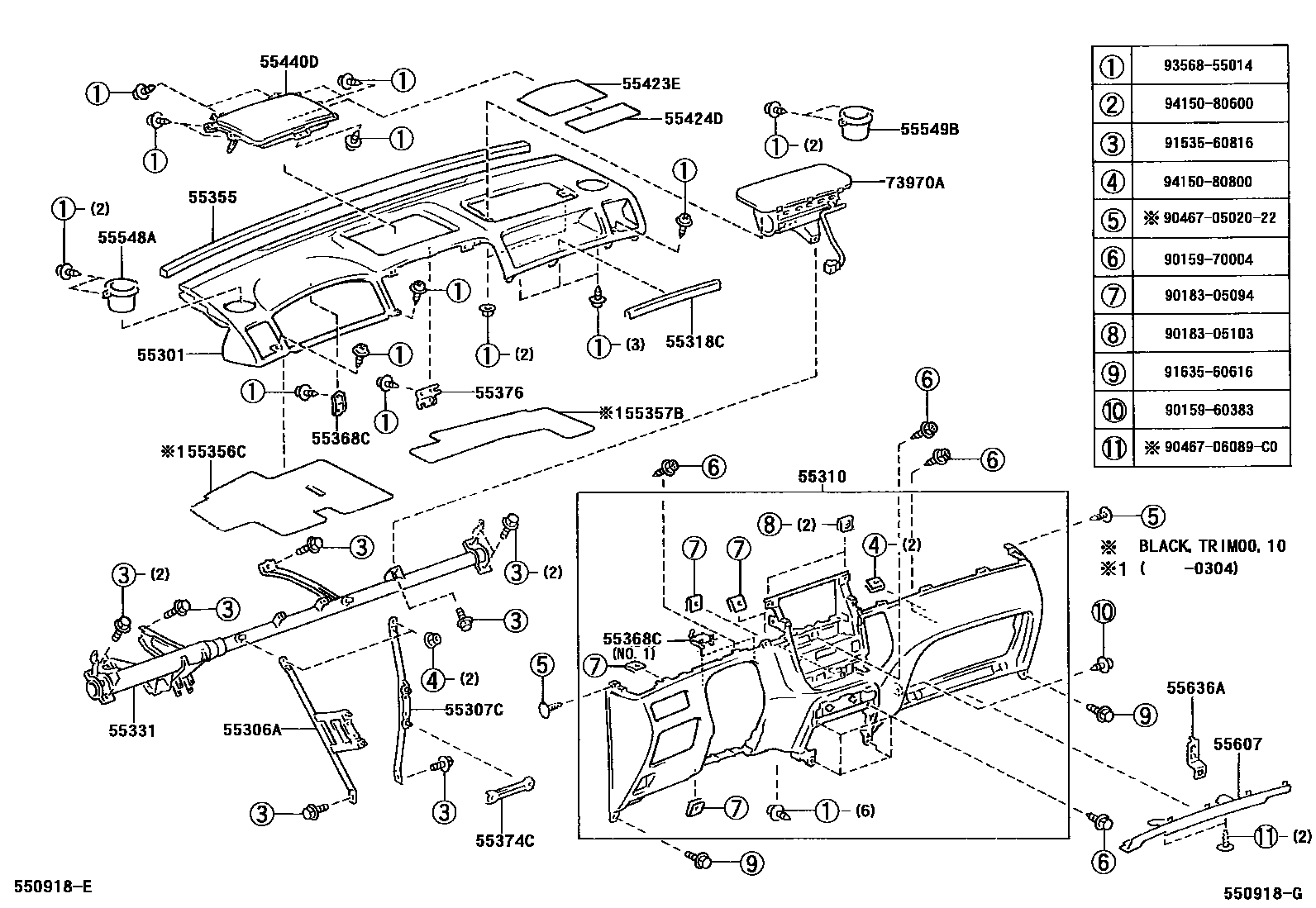

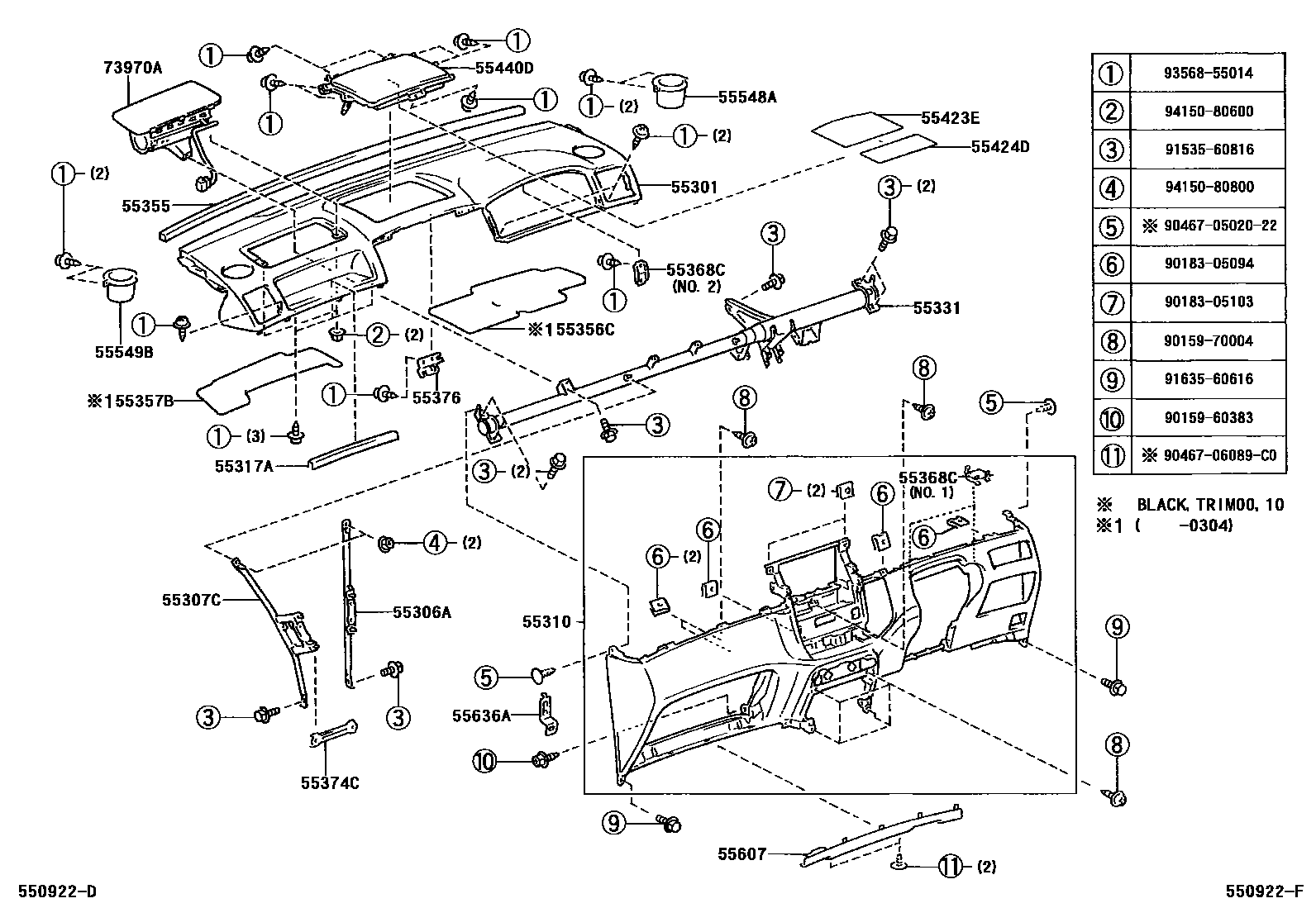

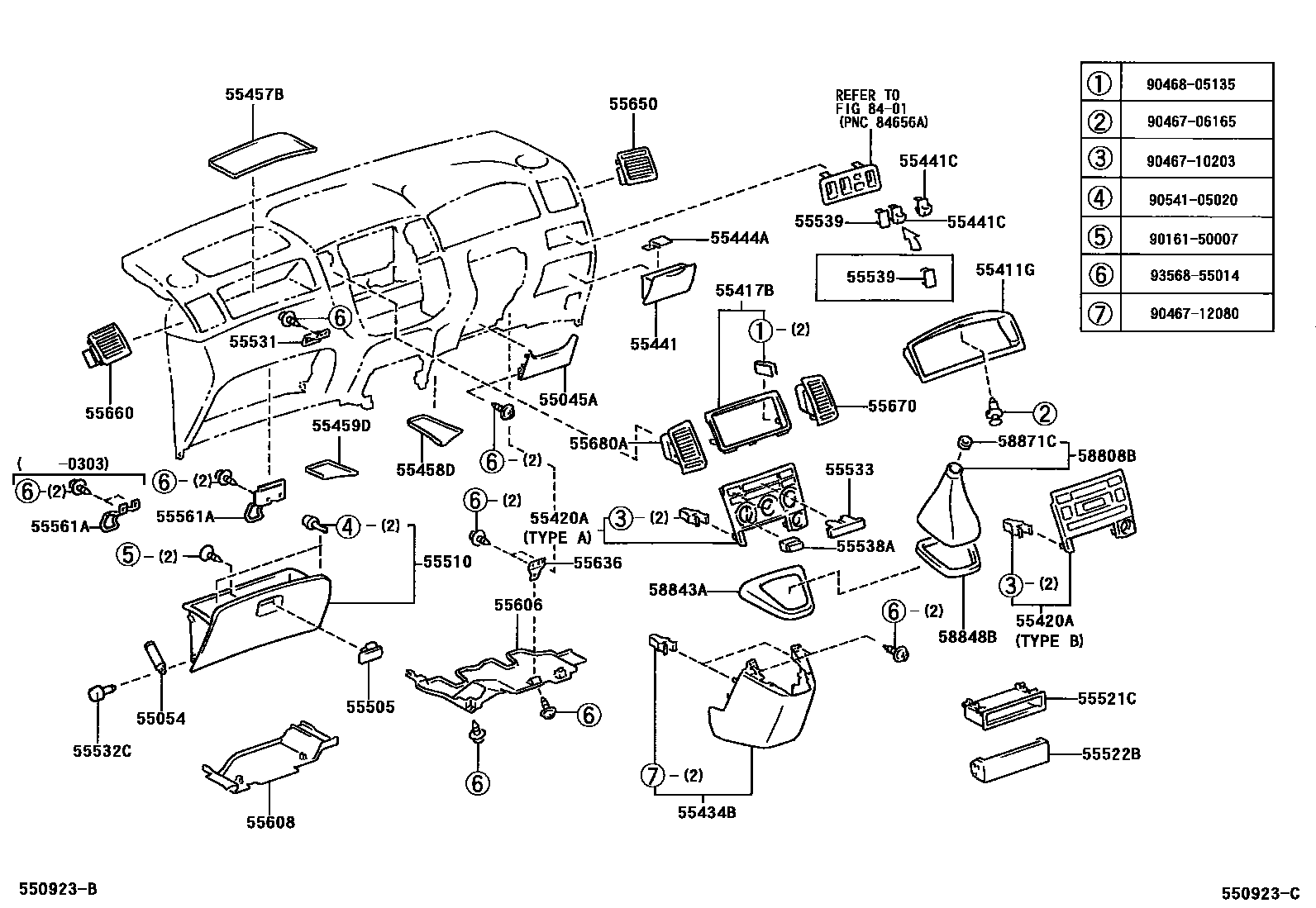

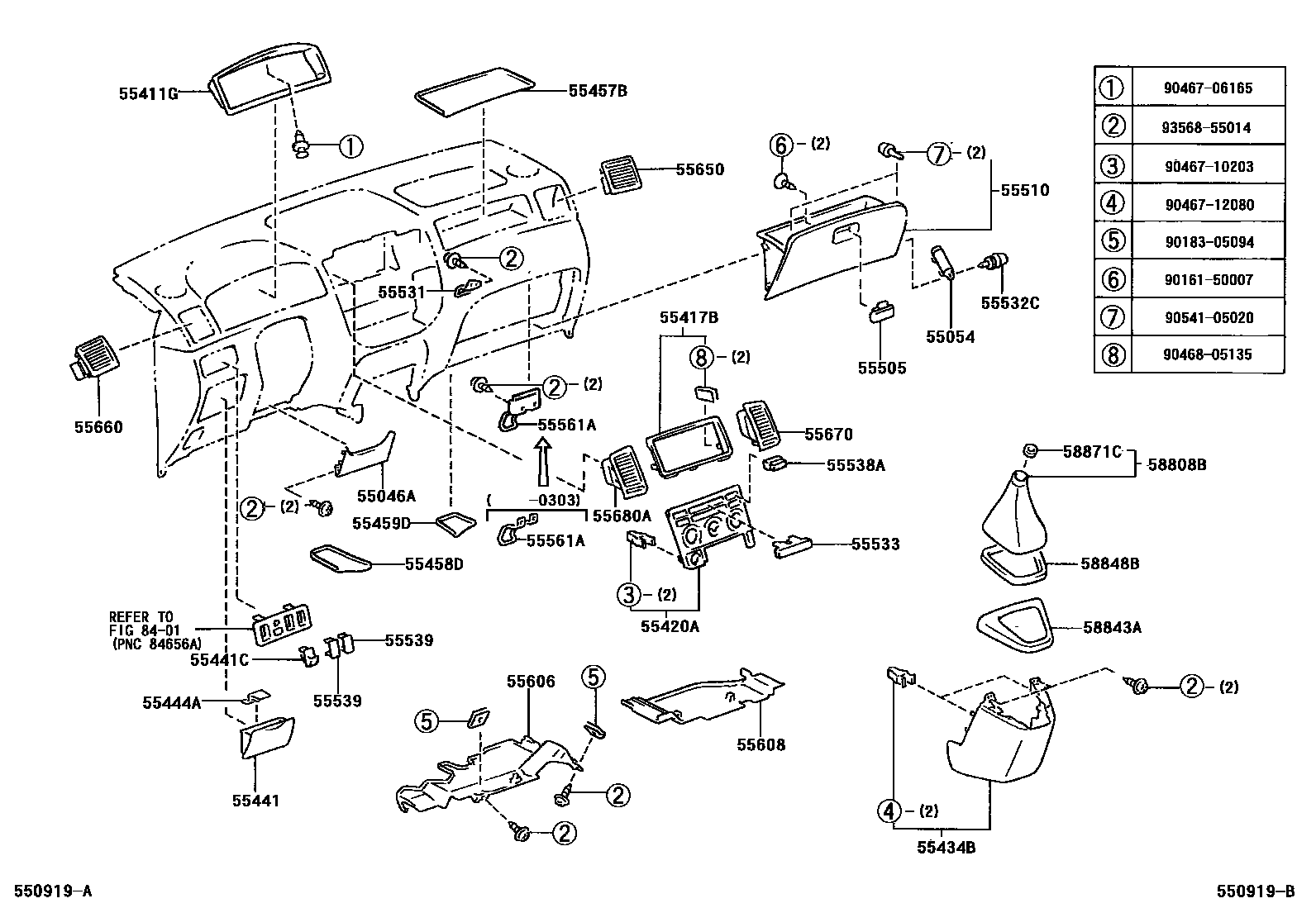

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-13030 · 55306-13040 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-13020 · 55307-13030 |
| 55331 | Dashboard reinforcement | 55330-13020 · 55330-13021 · 55330-13050 · 55330-13051 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52012 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-13050 · 55356-13060 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-13050 · 55357-13060 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-13020 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55349-13010 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-13020 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-13050 |
| 55423E | Center instrument cluster No. 1 cushion | 55423-13010 |
| 55424D | Center instrument cluster No. 2 cushion | 55424-13020 |
| 55444A | Dashboard storage box spring | 55444-12080 |
| 55457B | Dashboard safety pad spacer | 55457-13010 · 55457-13020 |
| 55458D | Instrument panel lower right cover | 55458-13010 · 55458-13020 |
| 55459D | Instrument panel lower left cover | 55459-13010 · 55459-13020 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-12180 |
| 55531 | glove box panel | 55531-13010 · 55531-13020 |
| 55532C | Glove box cover stop | 55532-13010 |
| 55533 | automatic clock hole cover | 55533-13010 |
| 55538A | Cooler switch hole cover | 55538-12100 |
| 55561A | Glove box lid lock | 55308-13020 · 55561-13030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-13010 · 55606-13020 |
| 55608 | Instrument panel No. 3 bottom cover sub-assembly | 55608-13010 · 55608-13020 |
| 55636 | Instrument panel bottom cover bracket No. 1 | 55636-13010 |
| 55636A | Instrument panel bottom cover bracket No. 2 | 55637-13010 · 55637-13020 |
| 58848B | Shift lever hole cover | 58848-13010 |
| 58871C | Armrest box cushion | 58871-20060 |
