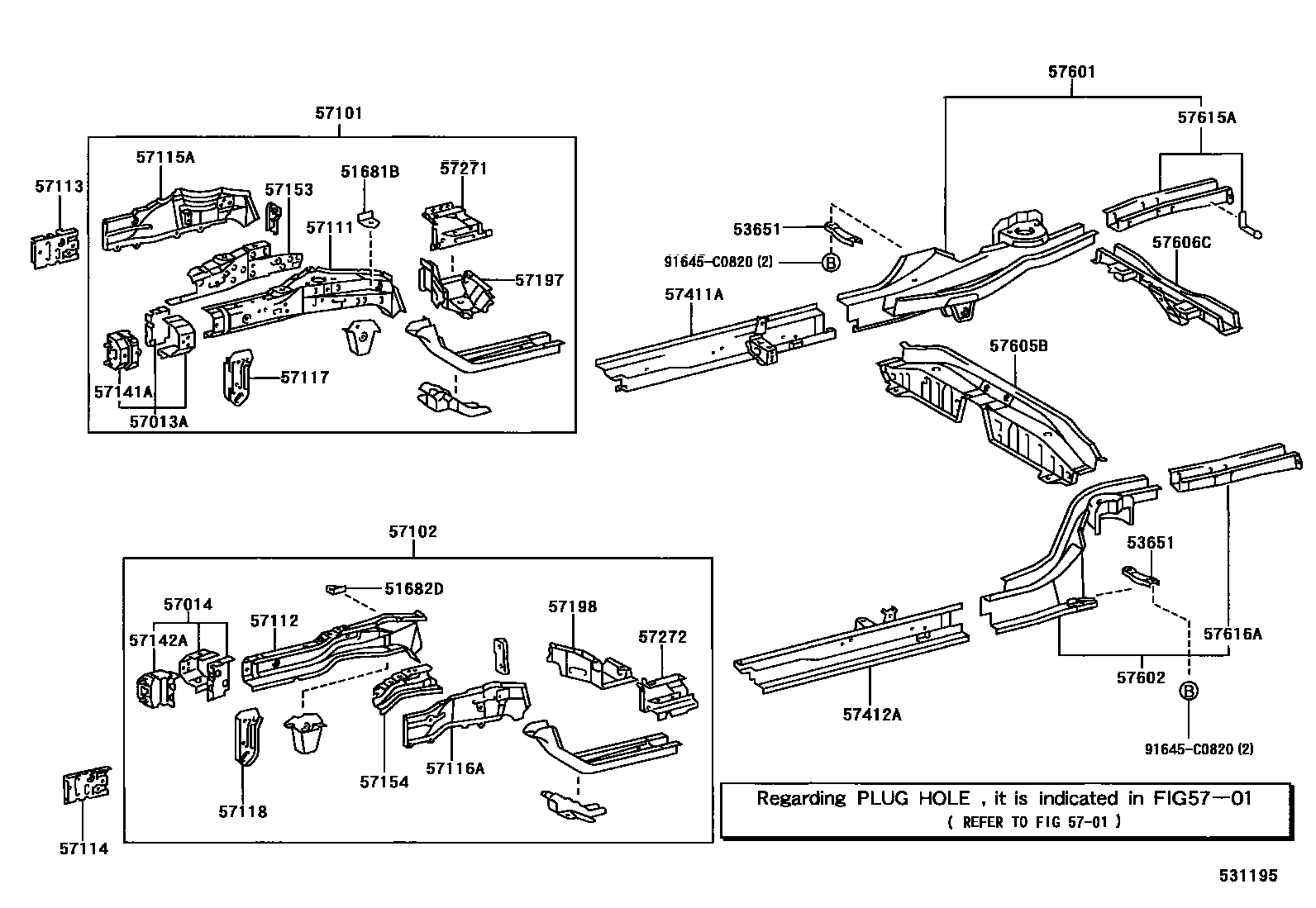

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681B | Right front wheel brake flexible hose support plate | 51681-32050 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-32040 |
| 53651 | Rear floor longitudinal beam bracket | 53651-32010 |
| 57013A | Right front floor cross member sub-assembly | 52011-13030 |
| 57014 | Left front floor longitudinal beam sub-assembly | 52012-13030 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-13030 · 57101-13040 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-13030 · 57102-13050 |
| 57111 | Right front longitudinal beam | 57111-13010 · 57111-13020 |
| 57112 | Left front longitudinal beam | 57112-13030 |
| 57113 | Right front longitudinal beam extension | 57113-13010 |
| 57114 | Left front longitudinal beam extension | 57114-13010 |
| 57115A | Right front longitudinal beam outer panel | 57115-12080 |
| 57116A | Left front longitudinal beam outer panel | 57116-12080 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-12130 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-12130 |
| 57141A | Front bumper arm right bracket | 57013-13010 |
| 57142A | Front bumper arm left bracket | 57014-13010 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-12070 · 57016-13020 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-12050 · 57017-12060 |
| 57197 | Right front torsion box section piece | 57197-12030 |
| 57198 | Left front anti-torsion box section piece | 57198-12030 |
| 57271 | Steering housing support beam right extension | 57271-13020 |
| 57272 | Steering casing support beam left extension | 57272-13020 |
| 57411A | Floor right inner longitudinal beam | 57401-13070 |
| 57412A | Floor left inner longitudinal beam | 57402-13050 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-13470 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-13460 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-13080 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-13160 |
| 57615A | Rear floor right rear longitudinal member | 57615-13904 |
| 57616A | Rear floor left rear longitudinal member | 57616-13906 |
