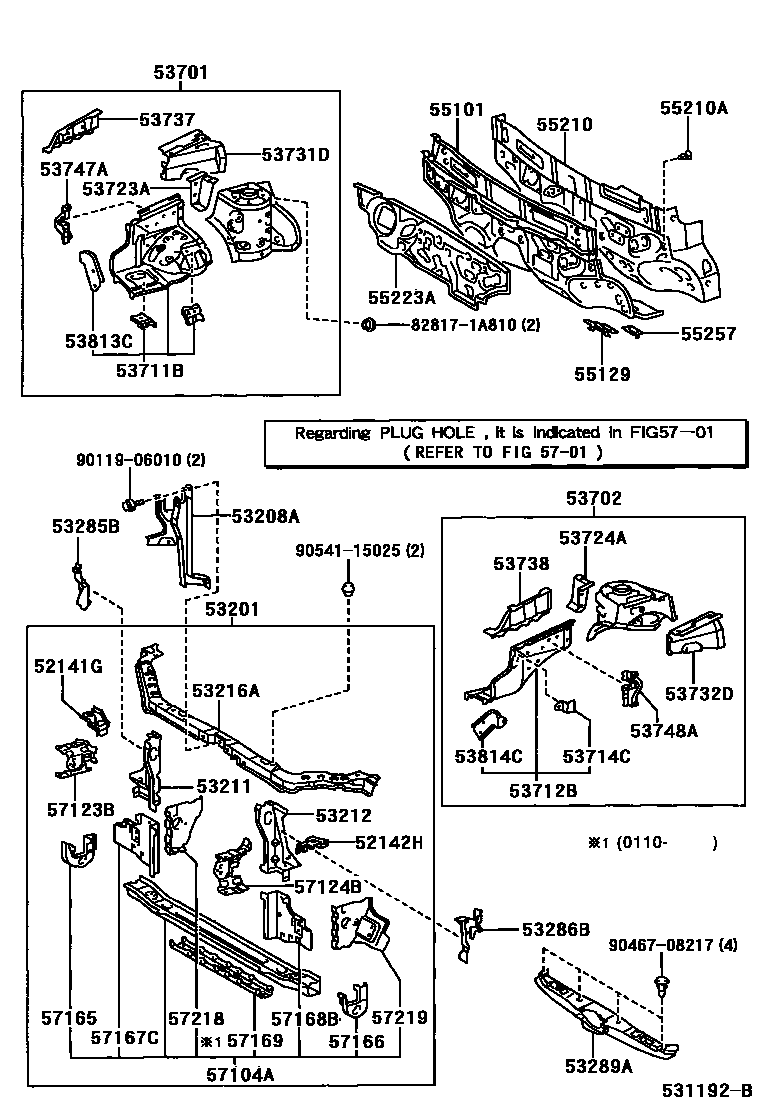

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141G | Front bumper right side stay | 52141-13040 |
| 52142H | Front bumper left stay | 52142-13040 |
| 53201 | Radiator bracket sub-assembly | 53201-13050 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-13050 |
| 53211 | Radiator right side support | 53211-12410 |
| 53212 | Radiator left support | 53212-12350 |
| 53216A | Radiator upper bracket | 53216-13900 |
| 53285B | Radiator side 1 air seal | 53285-13010 |
| 53286B | Radiator No. 2 side air seal | 53286-13010 |
| 53289A | Radiator bracket opening cover | 53289-13010 |
| 53701 | Right front fender fender sub-assembly | 53701-13040 · 53701-13050 |
| 53702 | Left front fender fender sub-assembly | 53702-13030 |
| 53711B | Right front fender front fender | 53711-13900 · 53711-13902 |
| 53712B | Left front fender front fender | 53712-13900 · 53712-13902 |
| 53714C | Left front fender fender front extension | 53714-12150 · 53714-13020 |
| 53723A | Front spring bracket right side reinforcement | 53723-12080 |
| 53724A | Front spring bracket left reinforcement | 53724-12070 |
| 53731D | Right front fender to cowl side upper beam | 53731-12160 |
| 53732D | Left front fender to cowl side upper beam | 53732-12140 |
| 53737 | Right front fender to front wall side sill | 53737-13020 |
| 53738 | Left front fender to front wall side sill | 53738-13020 |
| 53747A | Fender fender right extension | 53747-13010 |
| 53748A | Fender fender left extension | 53748-13010 |
| 53813C | Right front fender extension | 53813-13010 |
| 53814C | Left front fender extension | 53814-13010 |
| 55101 | Front apron sub-assembly | 55101-13130 · 55101-13140 · 55101-13150 · 55101-13160 · 55101-13170 · 55101-13180 · 55101-13190 · 55101-13200 · 55101-13280 |
| 55129 | Front panel hole cover | 55129-32030 · 55139-32010 |
| 55210 | Front wall insulation pad assembly | 55210-13030 · 55210-13040 |
| 55223A | Front wall outer heat insulation pad | 55223-12140 · 55223-13010 |
| 55257 | cowl opening cover | 55257-32010 |
| 57104A | Front cross member sub-assembly | 57104-12110 · 57104-12170 · 57104-12250 |
| 57123B | Right front longitudinal beam bracket | 57123-13010 |
| 57124B | Left front longitudinal beam bracket | 57124-13010 |
| 57165 | Front cross member lower right reinforcement | 57165-12070 |
| 57166 | Front cross member lower left reinforcement | 57166-12020 |
| 57167C | Front cross member right corner panel | 57167-12110 |
| 57168B | Front cross member left corner panel | 57168-12110 |
| 57169 | Front floor right front bracket | 57169-12020 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-12010 · 57218-12020 · 57218-12030 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-12010 · 57219-12030 |
