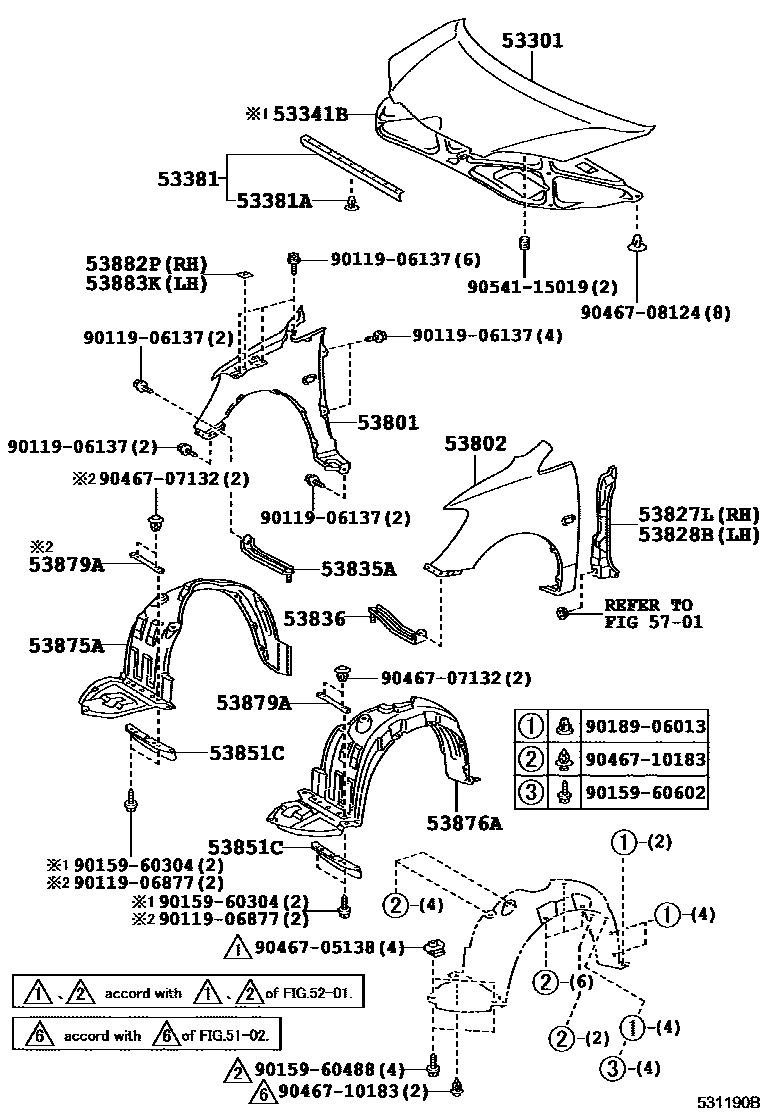

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-13050 |
| 53341B | engine cover gasket | 53341-13010 |
| 53381 | Engine cover to radiator bracket seal | 53381-13020 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-13100 · 53811-13110 |
| 53802 | Left front fender sub-assembly | 53812-13090 · 53812-13100 |
| 53827L | Right front fender side panel protector | 53827-13050 |
| 53828B | Left front fender side panel protector | 53828-13030 |
| 53835A | Right front fender to fender stay | 53835-13030 |
| 53836 | Left front fender to extension stay | 53836-13030 |
| 53851C | No. 1 front fender outer panel pad | 53851-13020 |
| 53875A | Right front fender lining | 53875-13020 |
| 53876A | Left front fender lining | 53876-13020 |
| 53879A | Front fender lining fixing parts | 53879-13010 · 53879-47010 |
| 53882P | Right front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53882-16030 |
