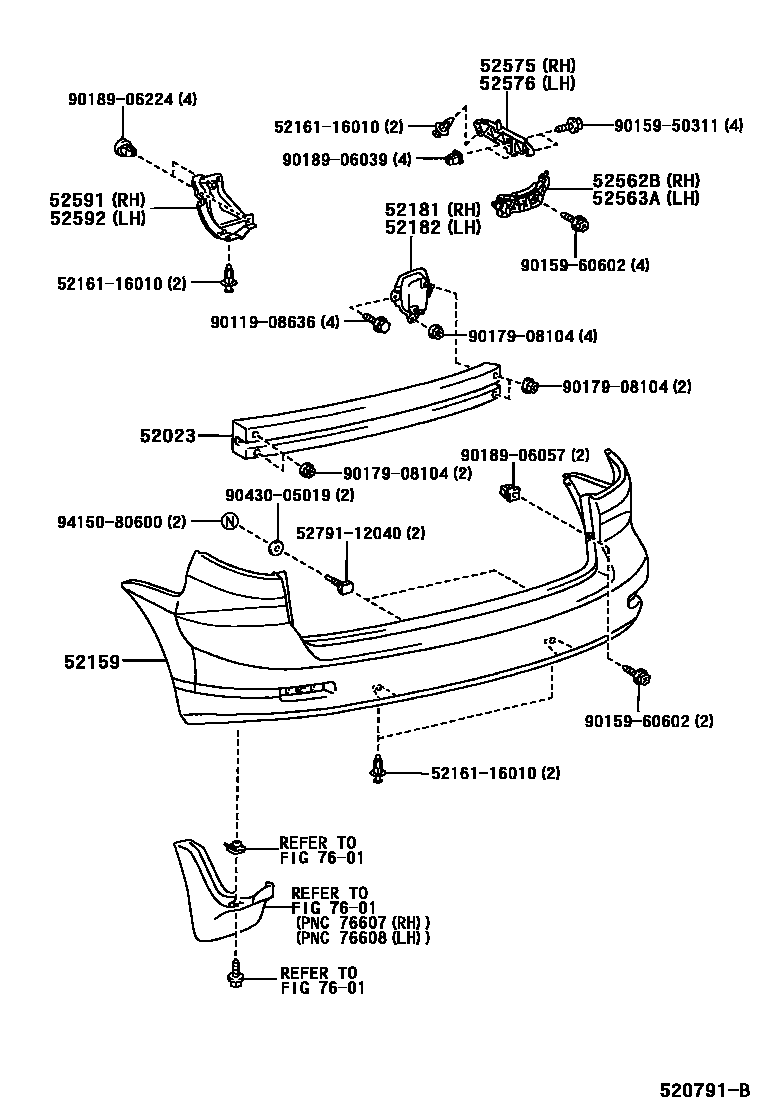

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-13030 |
| 52159 | rear bumper cover | 52159-13905 |
| 52181 | Rear bumper right arm | 58323-13020 |
| 52182 | Rear bumper left arm | 58324-13010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-13050 |
| 52563A | Rear bumper upper left fixing bracket | 52563-13050 |
| 52575 | Rear bumper right side fixing bracket | 52575-13040 |
| 52576 | Rear bumper left side fixing bracket | 52576-13040 |
| 52591 | Rear bumper right seal | 52591-13060 |
| 52592 | Rear bumper left seal | 52592-13060 |
