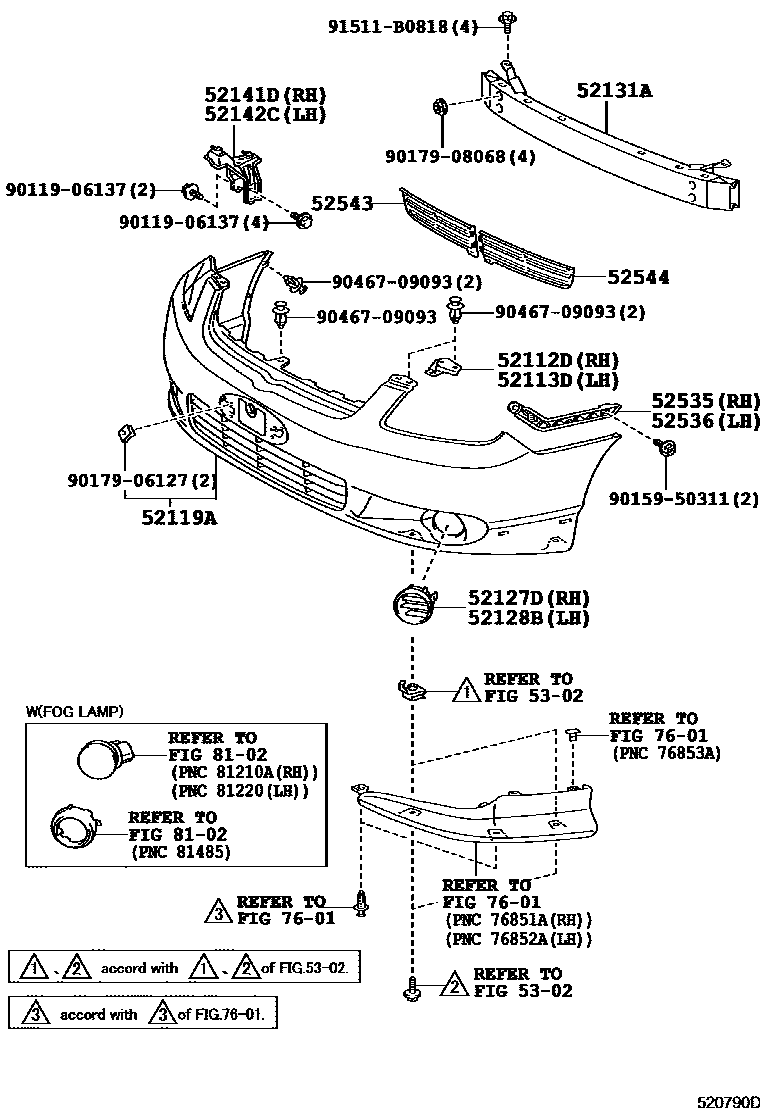

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112D | Front bumper right extension | 52112-13040 |
| 52113D | Front bumper left extension | 52113-13040 |
| 52119A | front bumper cover | 52119-13904 · 52119-13905 · 52119-13906 |
| 52127D | Front bumper right hole cover | 52127-13060 |
| 52128B | Front bumper left hole cover | 52128-13060 |
| 52131A | Front bumper reinforcement | 52021-13020 |
| 52141D | Front bumper right side stay | 52081-13010 · 52081-13011 |
| 52142C | Front bumper left stay | 52082-13010 · 52082-13011 |
| 52535 | Front bumper right side fixing bracket | 52535-13030 · 52535-13031 |
| 52536 | Front bumper left fixed bracket | 52536-13030 · 52536-13031 |
| 52543 | Front bumper right seal | 52543-13010 |
| 52544 | Front bumper left seal | 52544-13010 |
