Toyota COROLLA 制动助力器和真空管 — Figure 4703

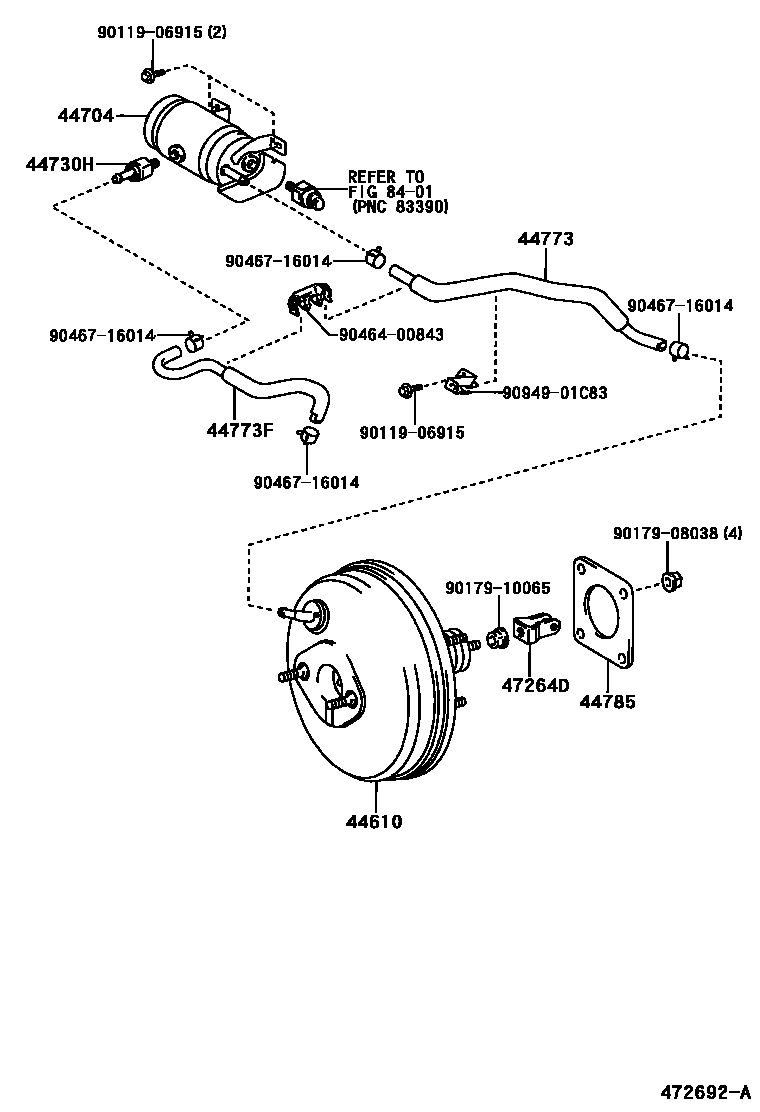

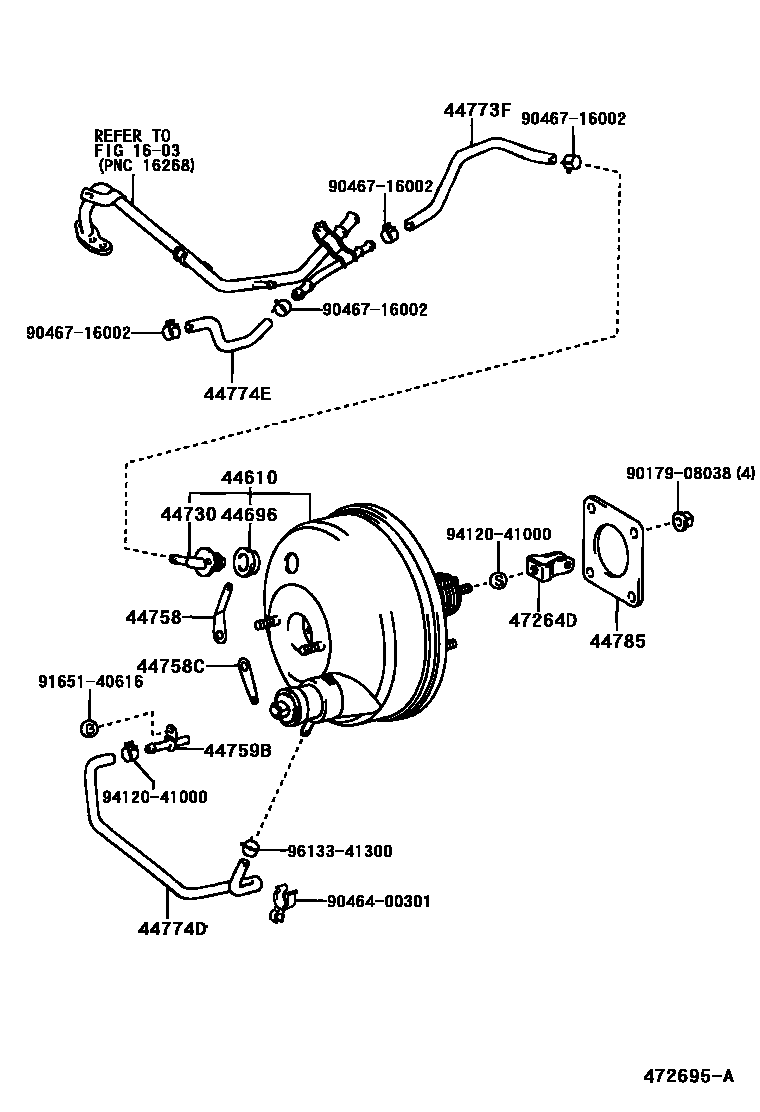

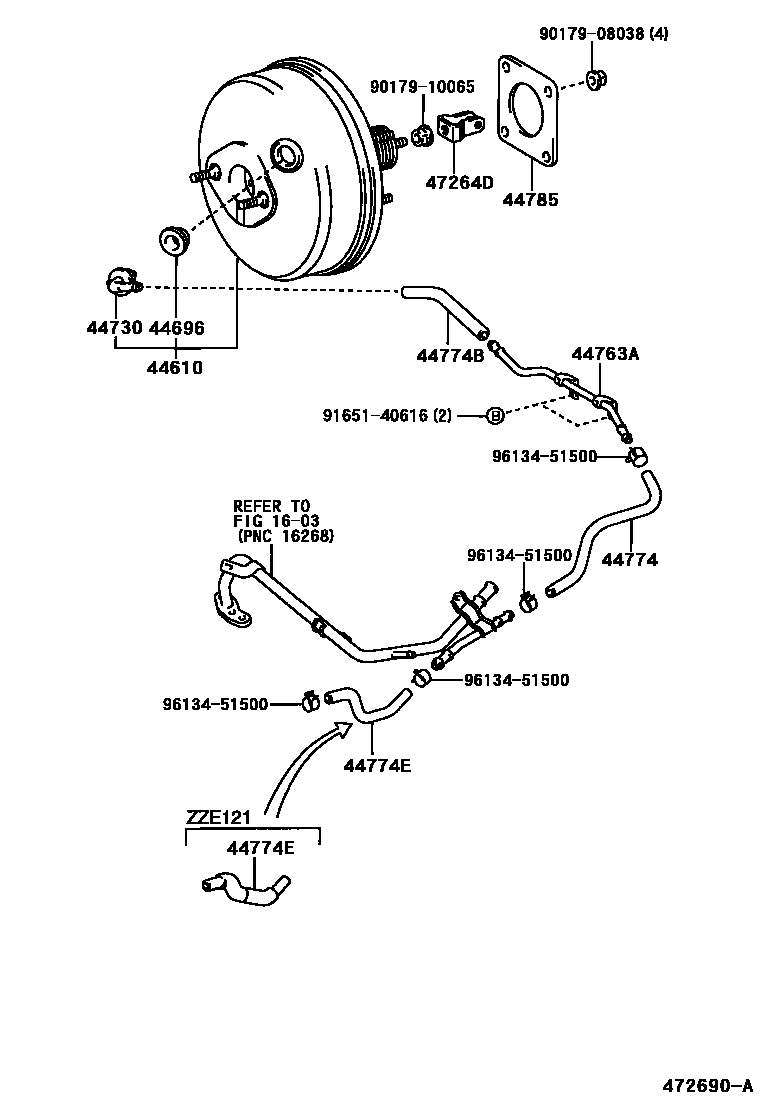

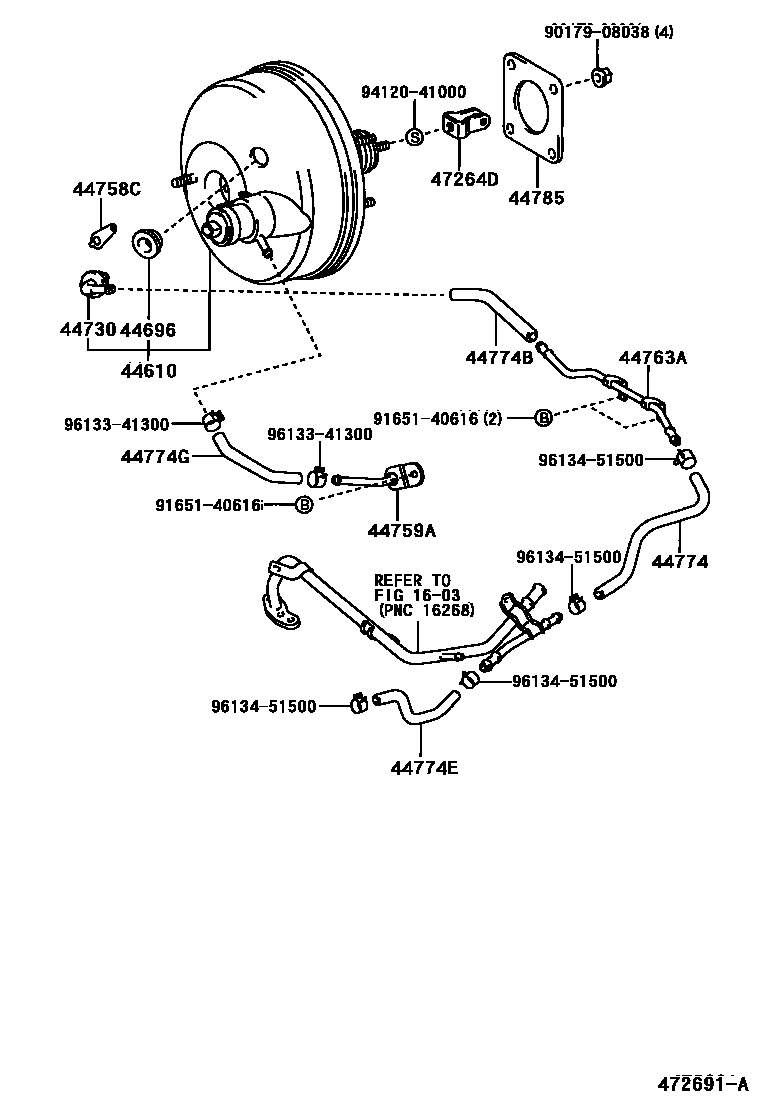

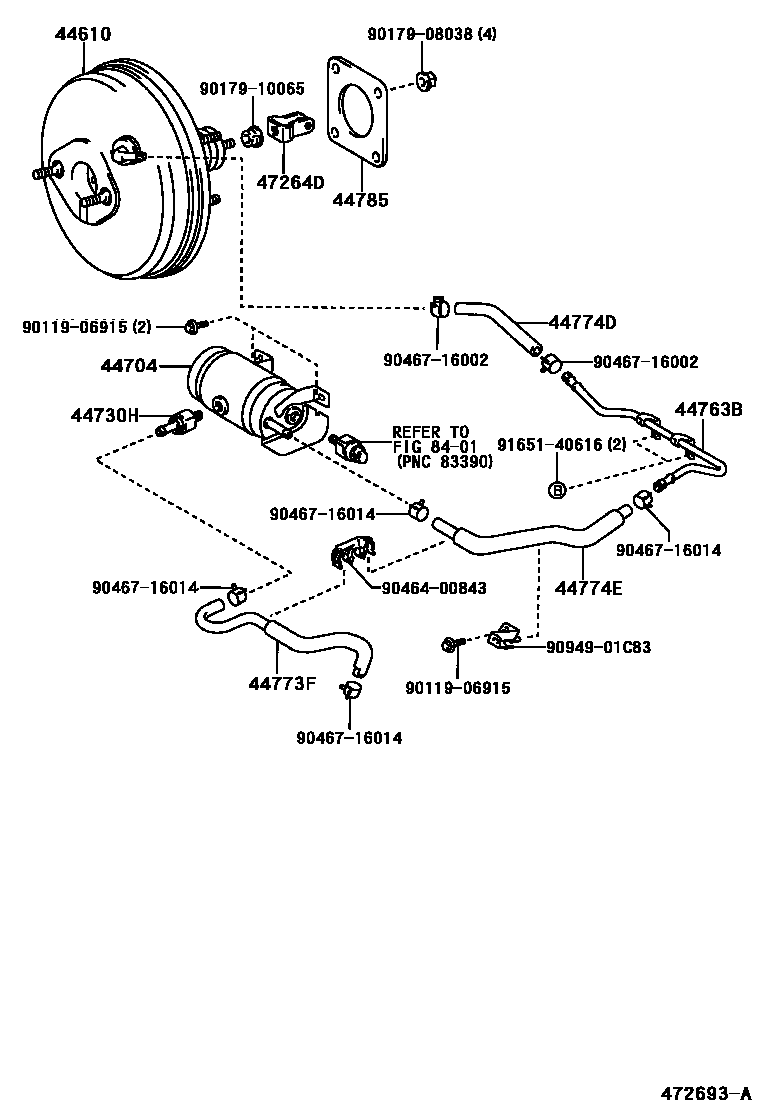

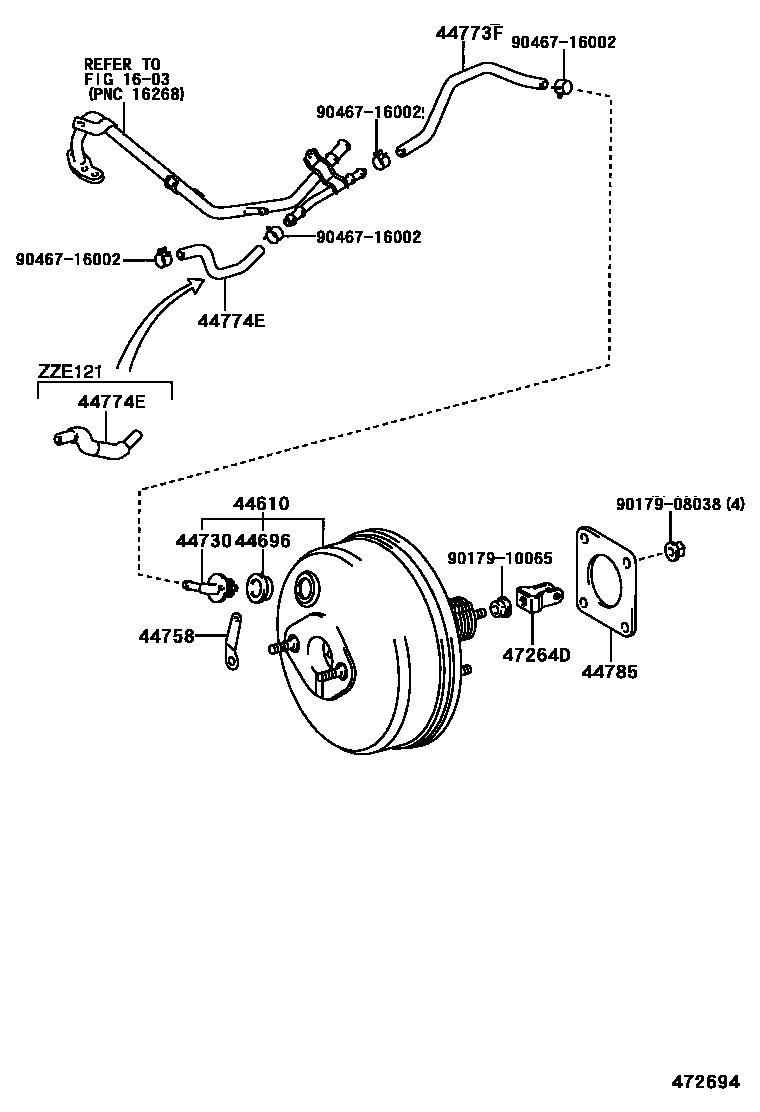

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-13060 · 44610-13080 · 44610-13090 · 44610-13100 · 44610-13110 · 44610-13120 |
| 44696 | One-way valve seal | 90480-24015 · 90480-24439 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-13010 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-28010 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-60050 |
| 44758 | Vacuum check valve bracket | 44758-13020 · 44758-42010 |
| 44758C | Solenoid valve cover bracket | 44758-12360 · 44758-13010 |
| 44759A | Brake booster air hose connector | 44759-12060 |
| 44759B | Vacuum liquid tank inner tube | 44759-12080 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12340 |
| 44763B | Tube (tube connector to tube connector) | 44763-13010 |
| 44773 | No. 2 vacuum hose | 44773-13020 |
| 44773F | Hoses (connector to check valve) | 44773-12710 · 44773-13030 |
| 44774 | Hoses (joints to connector tubes) | 44774-12420 |
| 44774B | Hoses (joints to connector tubes) | 95446-09180 |
| 44774D | Hoses (fitting to fitting) | 44774-12440 · 44774-13010 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-13020 · 44774-20310 |
| 44774G | Hoses (connector to solenoid valve) | 44774-12460 |
| 44785 | brake booster pad | 44785-20020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63010 |
