Toyota COROLLA 制动总泵 — Figure 4702

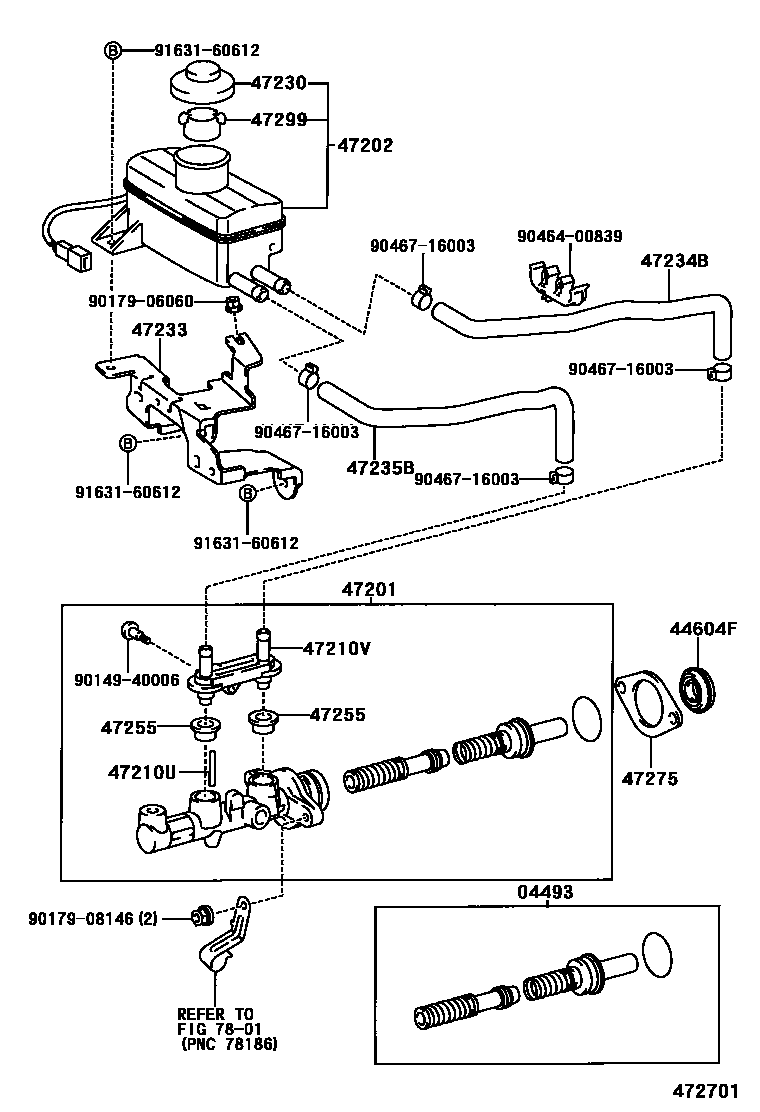

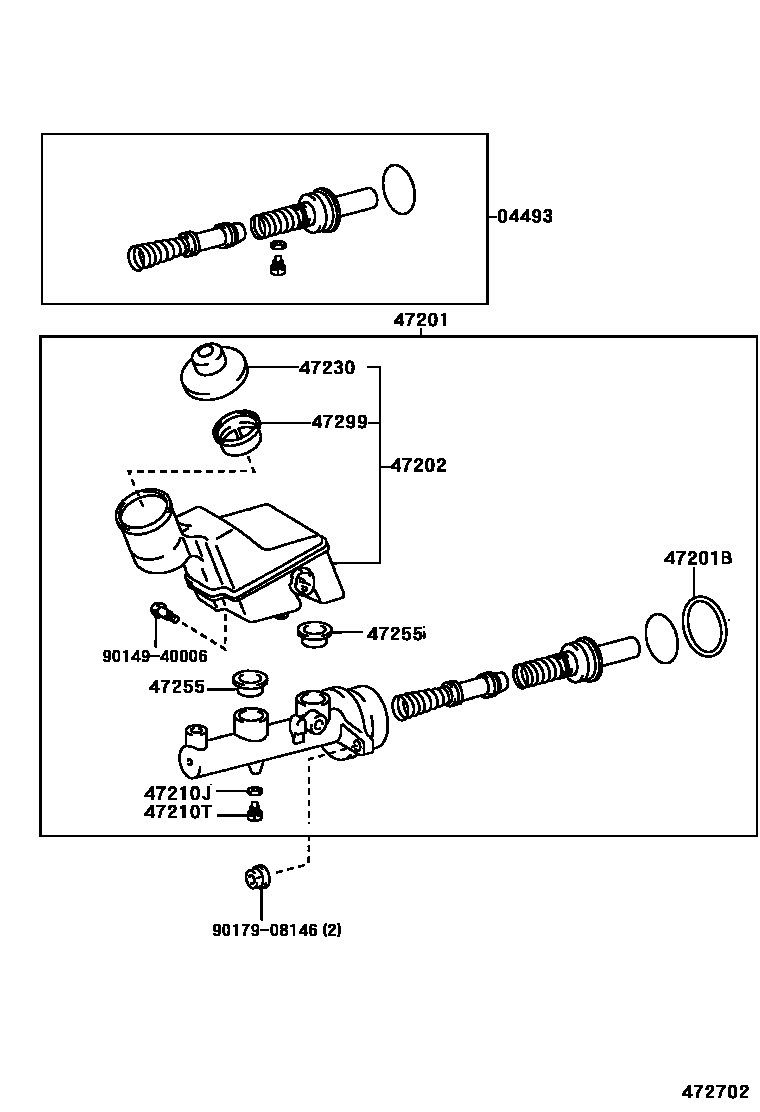

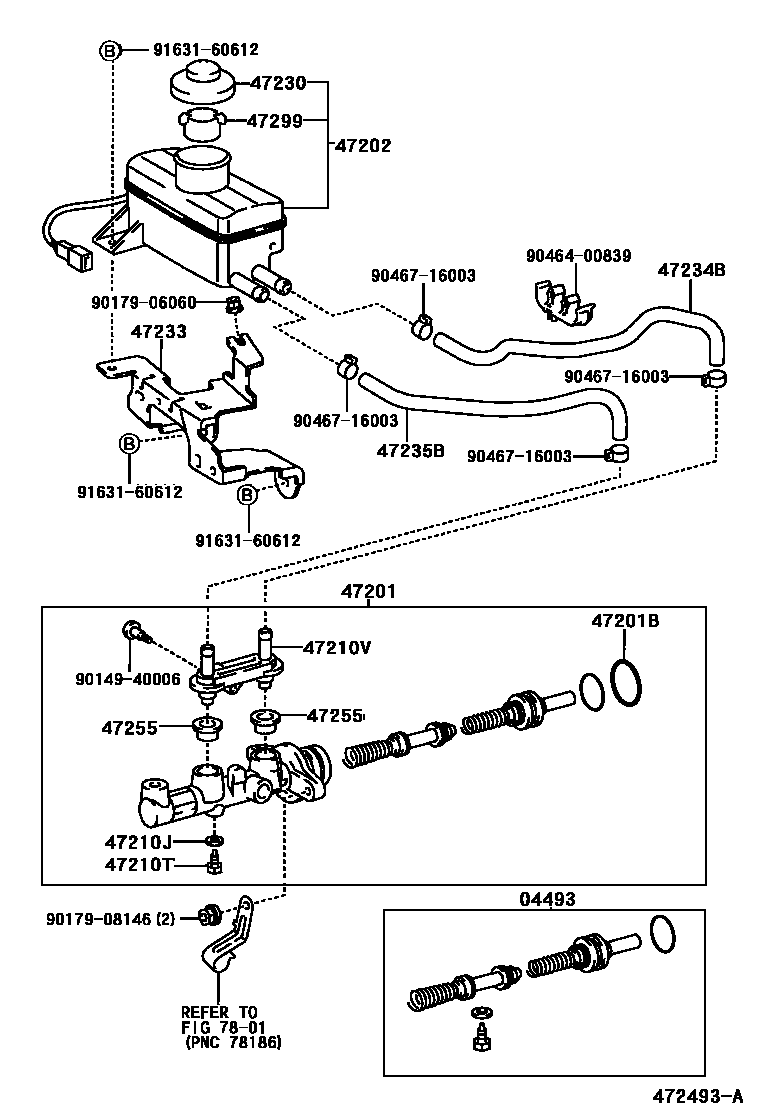

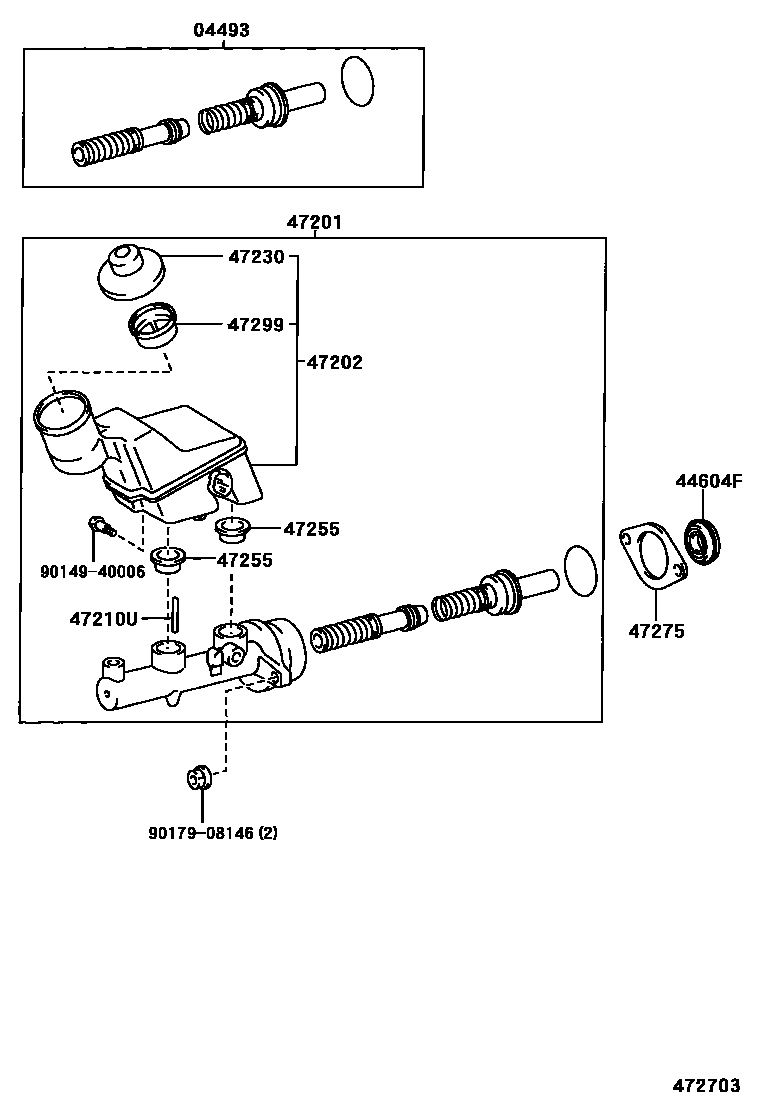

Toyota COROLLA EPC diagram 4702, 制动总泵, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-13010 · 04493-1A010 · 04493-1A020 |
| 44604F | Brake booster body seal | 44604-52030 |
| 47201 | Brake master cylinder sub-assembly | 47201-13070 · 47201-13080 · 47201-13090 · 47201-13100 · 47201-13110 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-13020 · 47220-13040 · 47220-13050 · 47220-13060 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47210U | Direct sales (for brake master cylinder) | 90029-14204 |
| 47210V | Connector (for brake master cylinder) | 90029-40011 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 |
| 47233 | Reservoir tank bracket | 47233-13020 |
| 47234B | Liquid storage tank pipe No. 1 | 47234-13020 · 47234-13030 |
| 47235B | Brake master cylinder fluid reservoir pipe No. 2 | 47235-13020 · 47235-13030 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47275 | brake master cylinder gasket | 47275-12020 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-25010 |
