Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

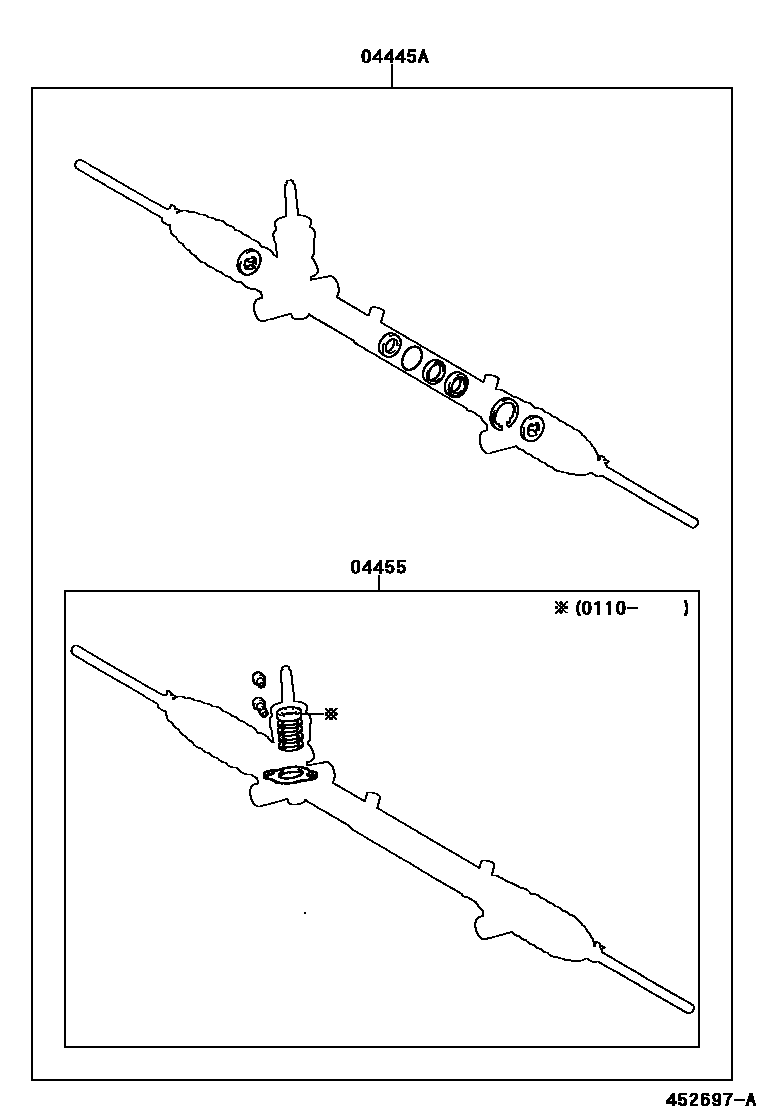

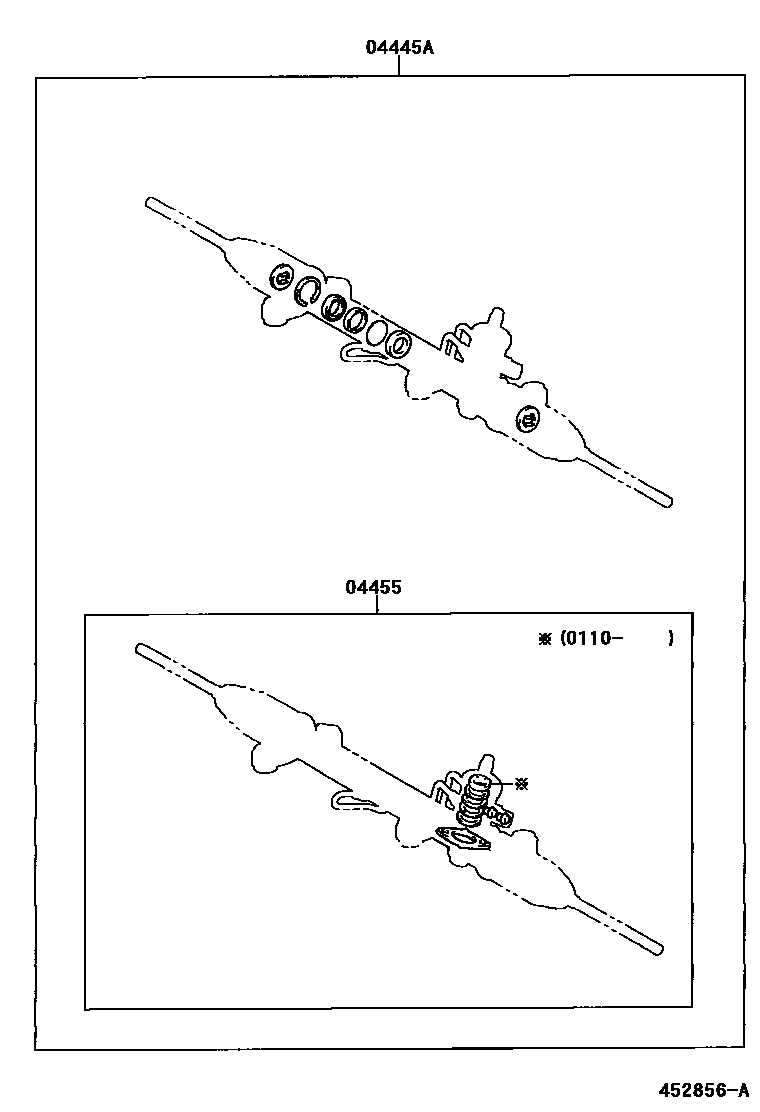

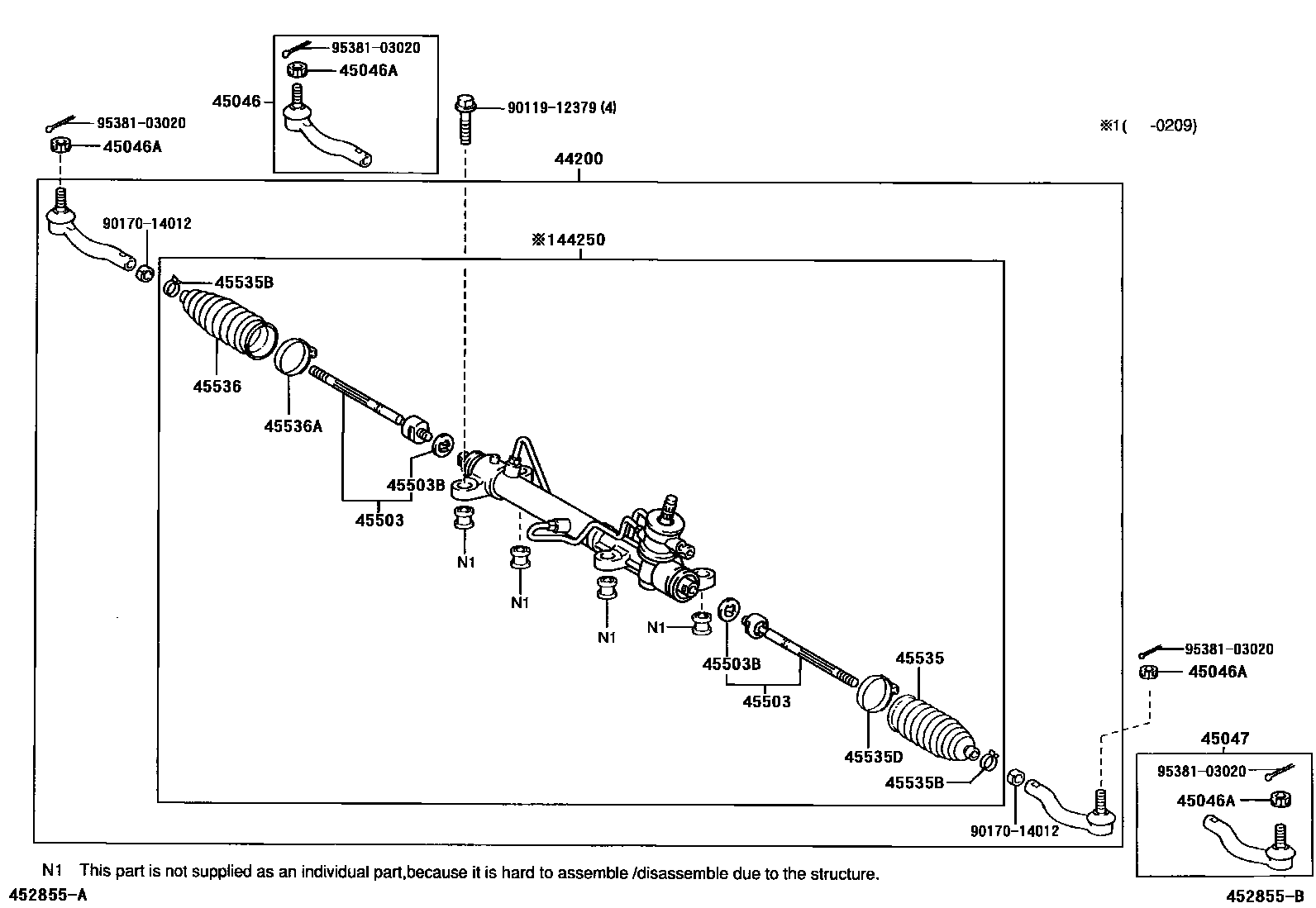

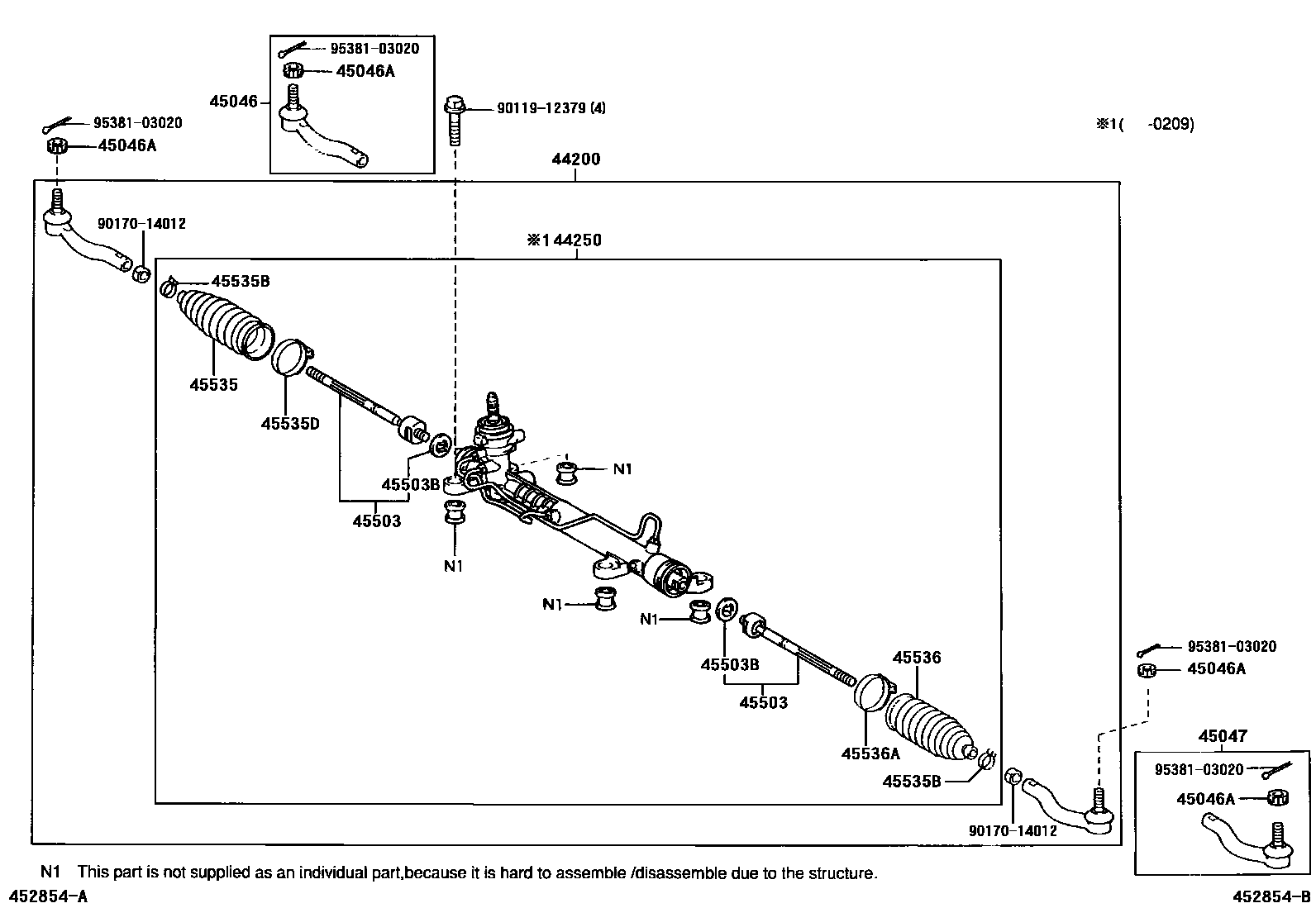

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-13010 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-13010 · 04455-44010 |
| 44200 | Power steering tie rod assembly | 44200-13021 · 44200-13030 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-13021 · 44250-13030 |
| 45046 | Right tie rod end sub-assembly | 45046-49115 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-49045 |
| 45503 | Steering rack end sub-assembly | 45503-19255 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45535 | No. 1 steering rack dust cover | 45535-13010 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19019 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-55016 |
| 45536 | No. 2 steering rack dust cover | 45535-13010 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-55016 |
