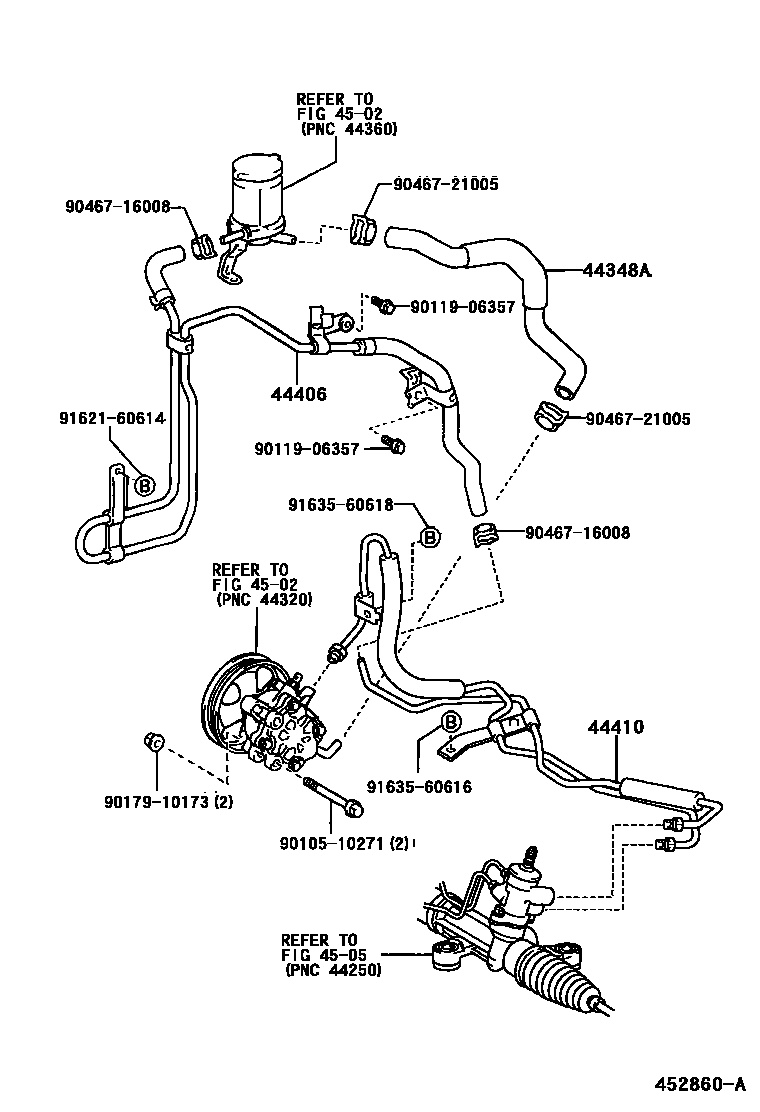

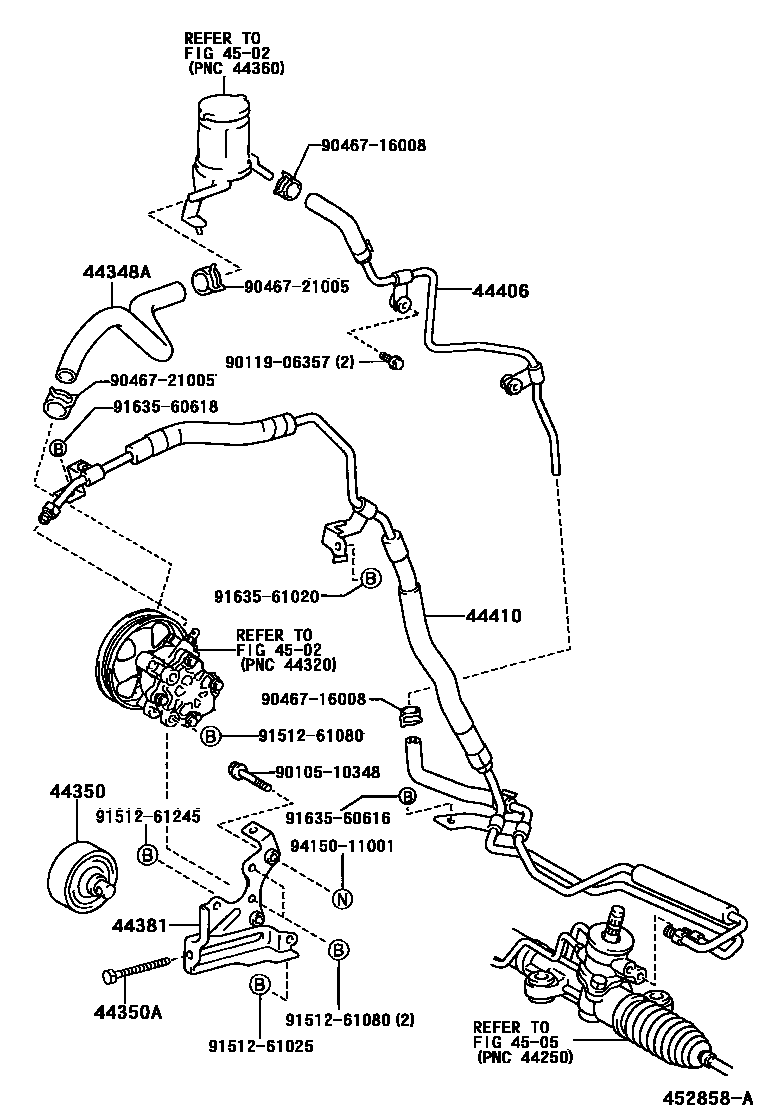

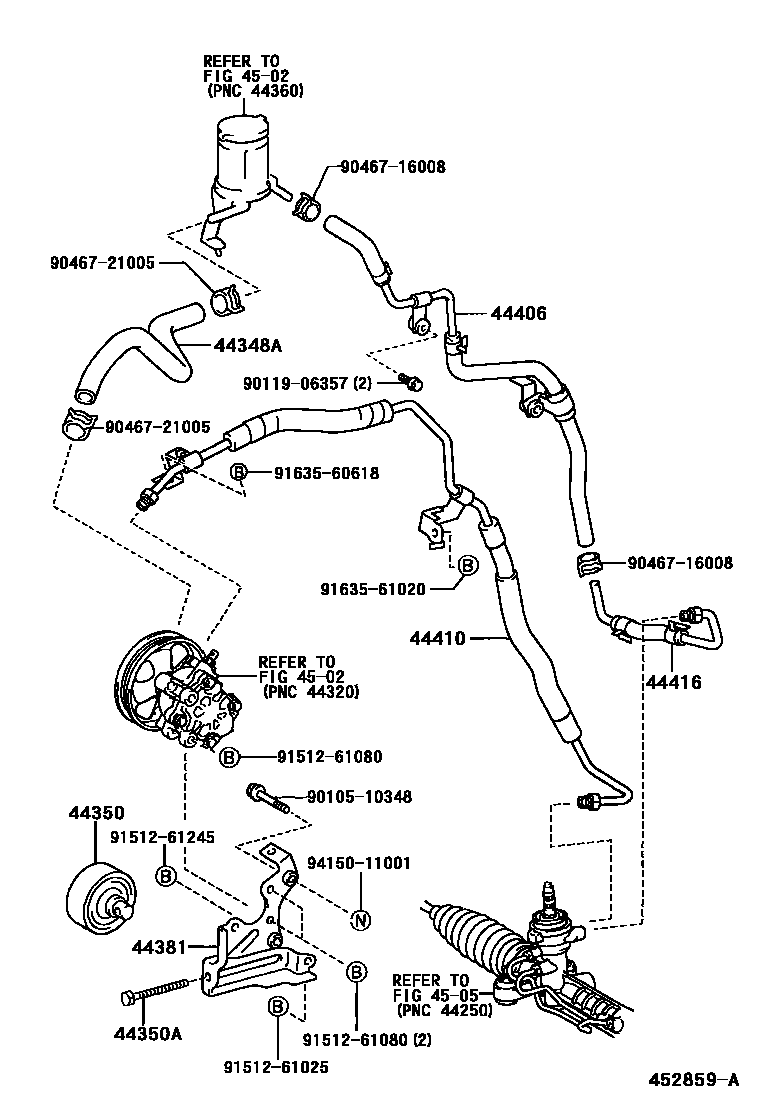

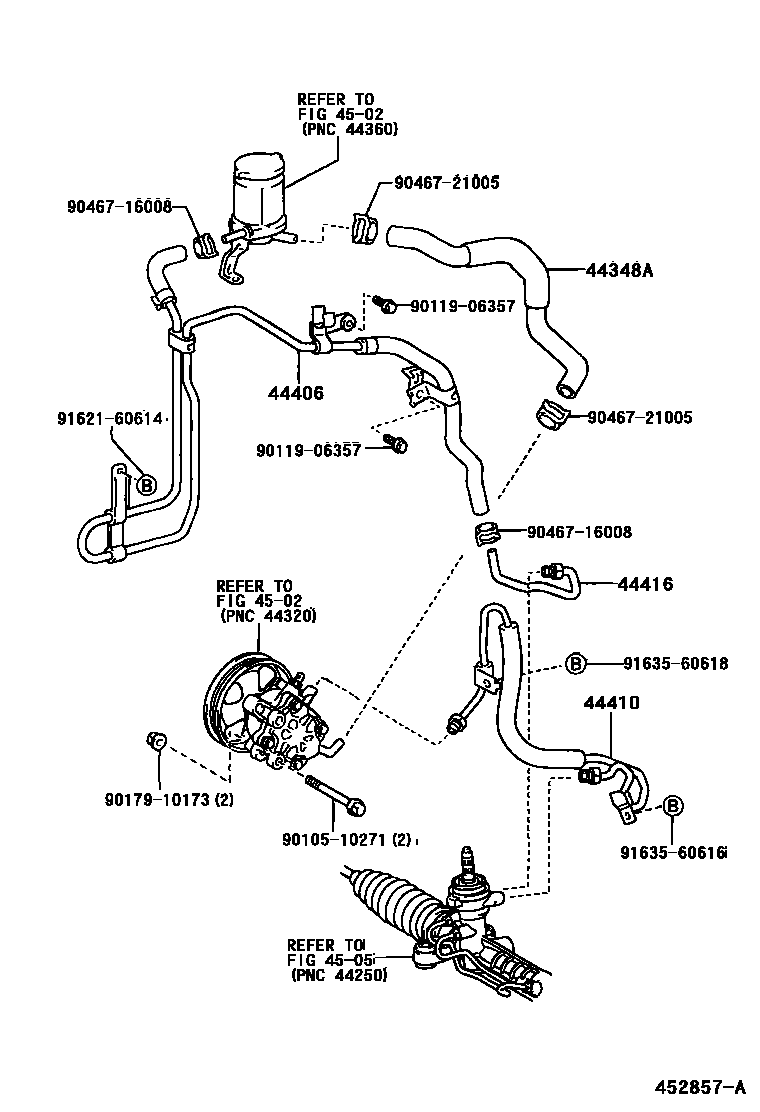

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44348A | No. 1 hose (tank to pump) | 44348-12091 · 44348-13010 |
| 44350 | Power steering idler assembly | 44350-12070 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 |
| 44381 | Power steering idler bracket | 44381-13010 |
| 44406 | Oil return pipe sub-assembly | 44406-12240 · 44406-13011 · 44406-13030 |
| 44410 | Pressure supply pipe assembly | 44410-13020 · 44410-13040 · 44410-13050 · 44410-13060 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-13010 · 44416-13020 |
