Toyota COROLLA Front Drive Shaft — Figure 4302

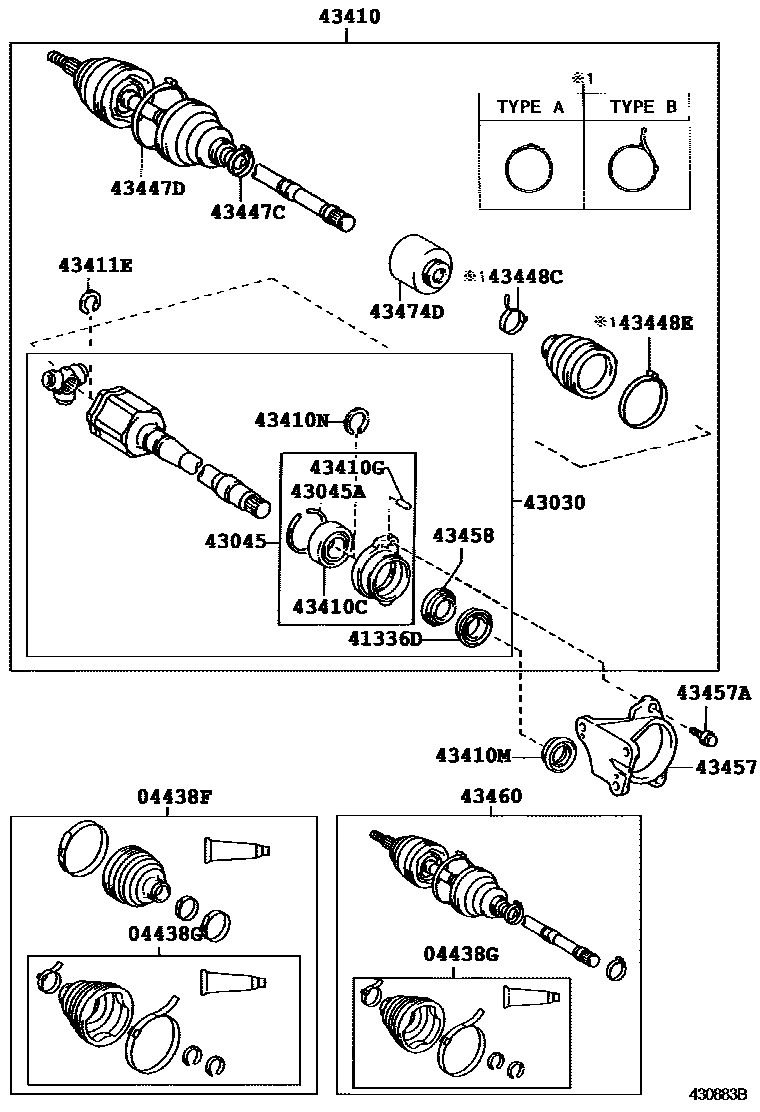

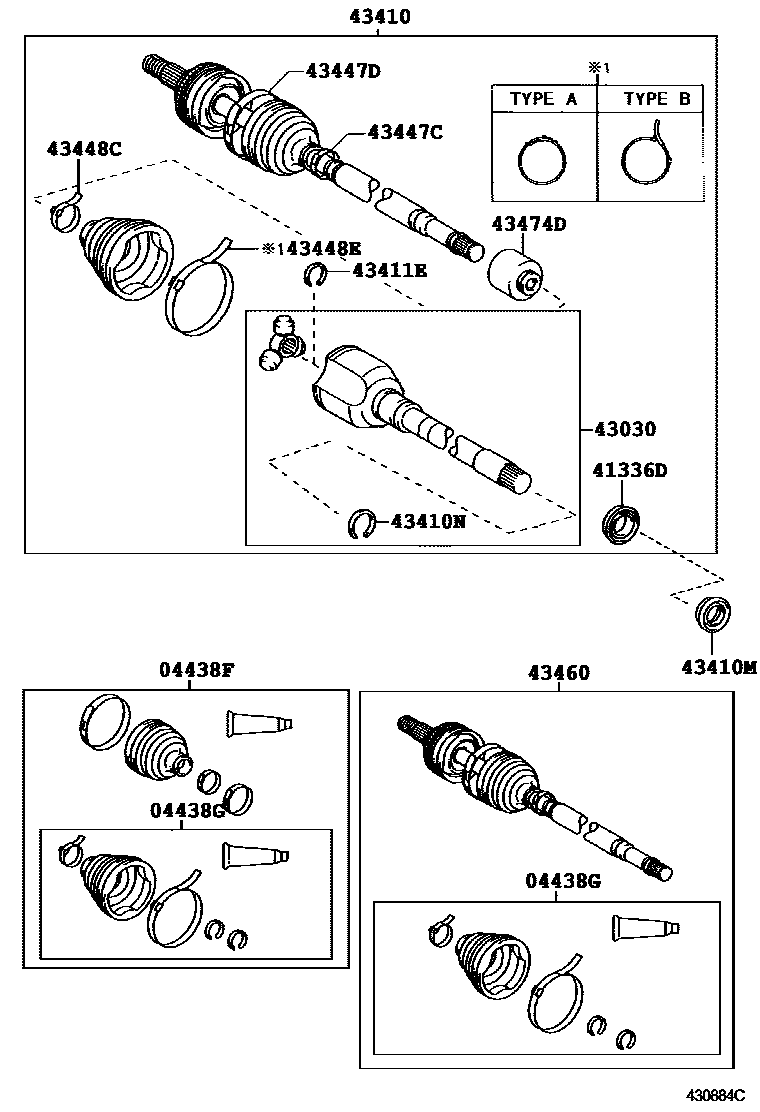

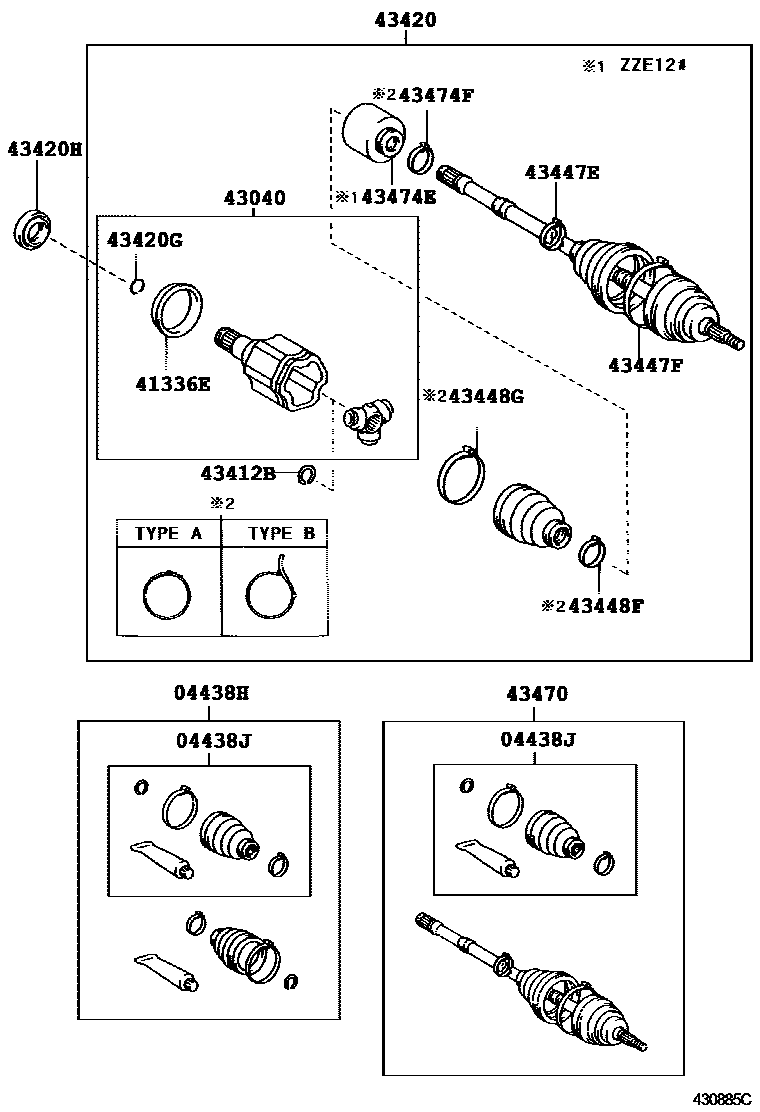

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12481 · 04438-12610 · 04438-28051 · 04438-28052 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-12470 · 04438-28040 · 04438-28041 · 04438-52051 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-12630 · 04438-12640 · 04438-28051 · 04438-28052 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-12470 · 04438-28040 · 04438-28041 · 04438-52051 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-12020 · 41336-12060 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12060 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-28010 · 43030-28011 · 43403-12040 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-28010 · 43040-28011 · 43040-32040 · 43403-12040 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20050 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-12660 · 43410-12670 · 43410-13050 |
| 43410C | Bearings (for front driveshaft) | 90363-41002 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-34023 · 90311-35045 · 90311-35051 · 90311-40025 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-38015 · 90521-26004 · 90521-27005 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 · 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-13030 · 43420-13050 · 43420-13060 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-26004 · 90521-27005 · 90521-33002 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-34028 · 90311-35044 · 90311-35046 · 90311-50024 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12150 · 42345-20040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12140 · 42345-28020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12150 · 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12140 · 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-42010 · 90949-01078 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 · 90949-01076 · 90949-01946 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16140 · 42345-42010 · 90949-01078 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 · 90949-01076 · 90949-01946 |
| 43457 | drive shaft bearing bracket | 43457-20070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10285 |
| 43458 | Front drive shaft dust cover | 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-49165 · 43460-49167 · 43460-80001 · 43460-80004 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-80013 · 43470-80015 · 43470-80018 · 43470-80029 |
| 43474D | Right front driveshaft shock absorber | 43474-12120 · 43474-44010 |
| 43474E | Left front driveshaft shock absorber | 43474-13020 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-14010 · 90949-01947 |
