Toyota COROLLA 前桥壳和差速器 — Figure 4301

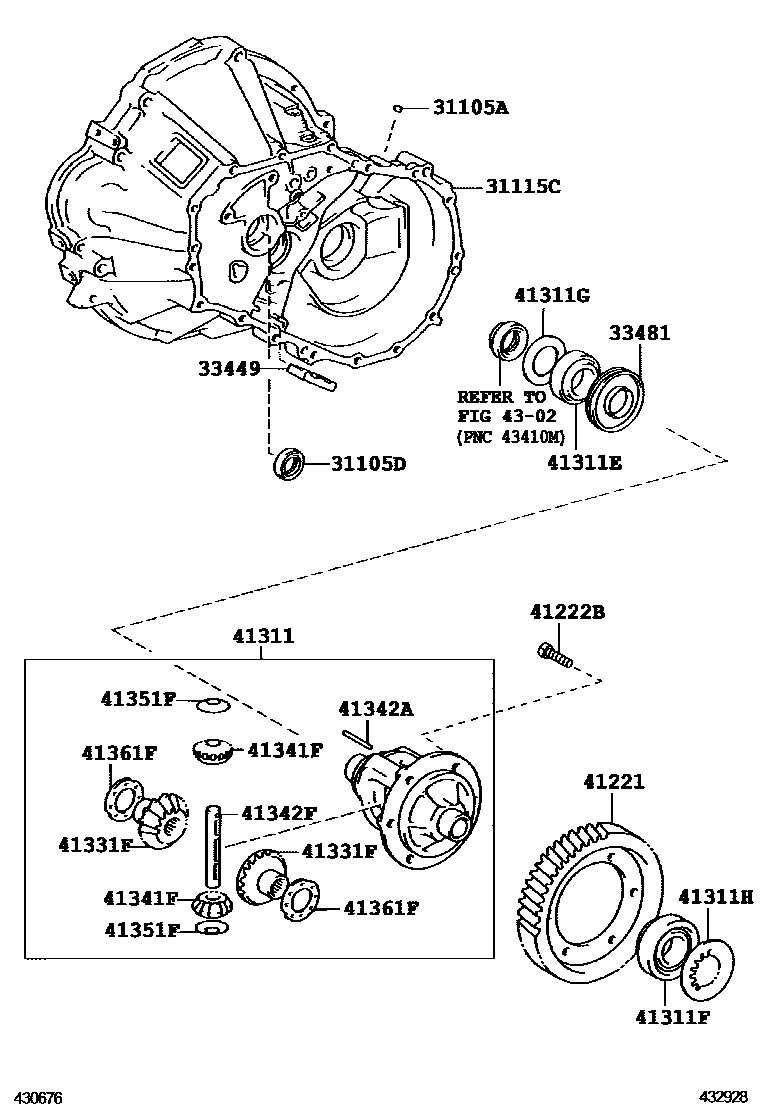

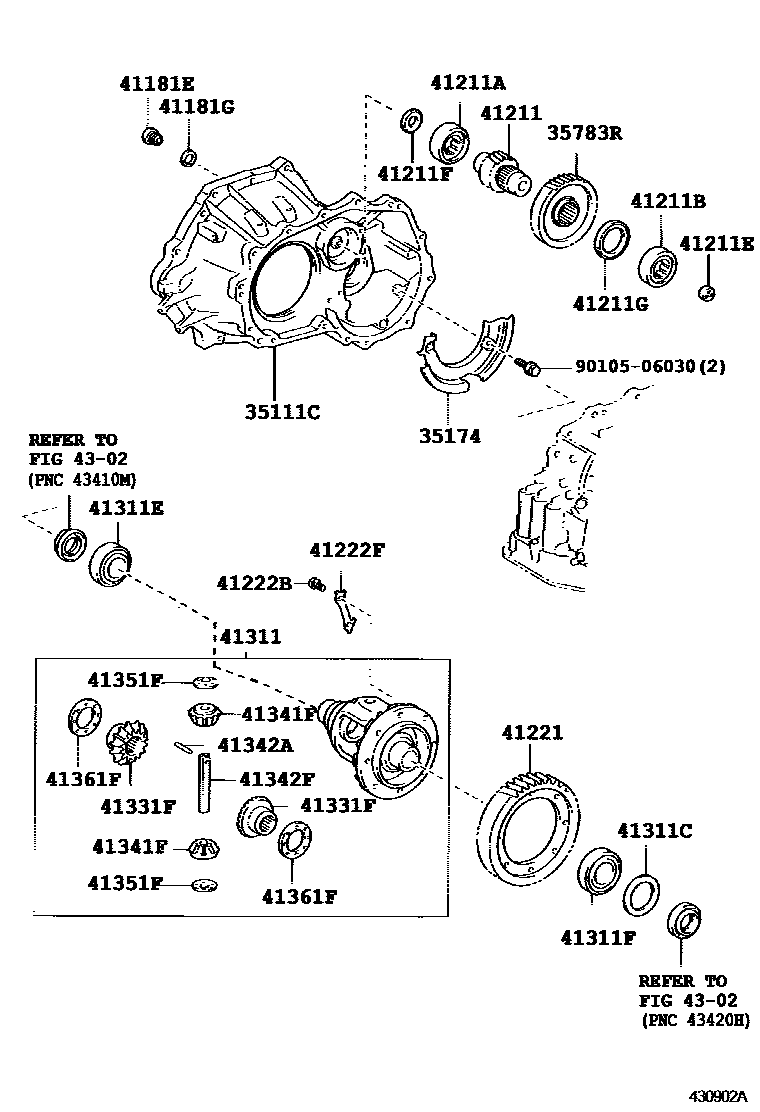

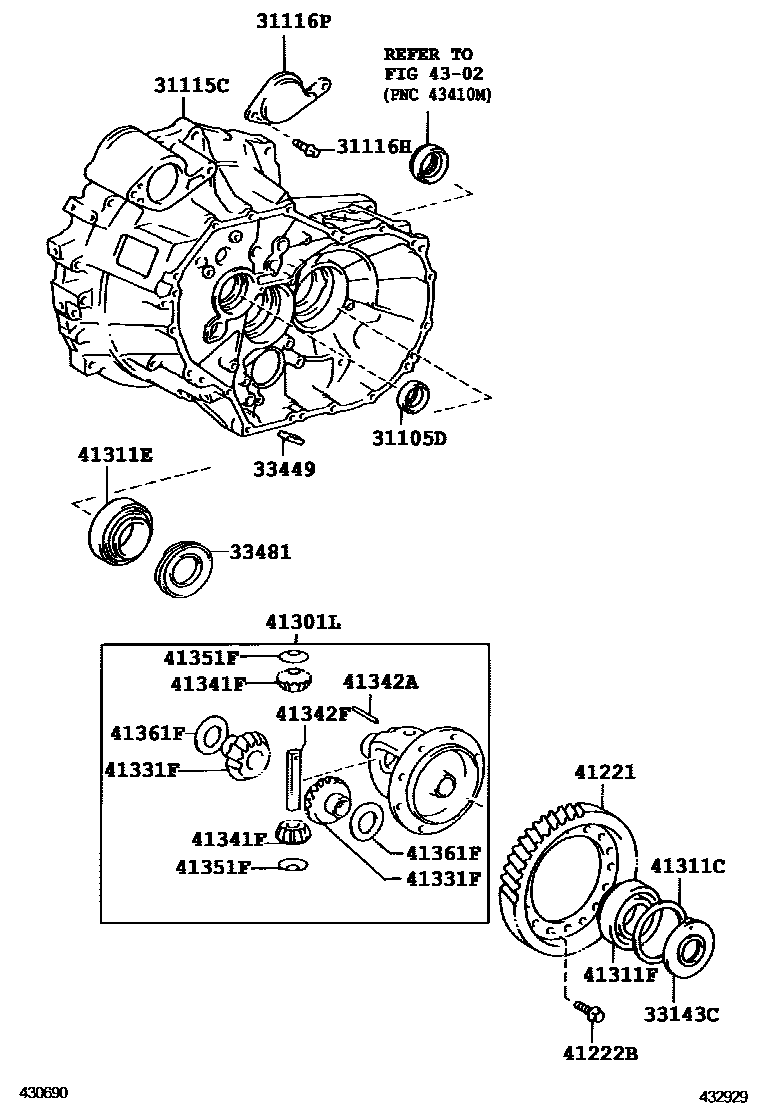

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25016 · 90311-30006 |
| 31115C | Front transmission axle housing (MTM) | 31115-12110 · 31115-28011 |
| 31116H | Bolts (for front transaxle housing cover) | 91622-61025 |
| 31116P | Transmission axle housing cover | 31116-12020 |
| 33143C | Front differential oil baffle | 33143-28010 |
| 33449 | derailleur magnet | 33449-12020 · 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-12040 · 33481-20150 · 33481-20160 |
| 35111C | Transmission axle housing | 35105-20160 |
| 35174 | Transmission axle housing oil separator | 35174-20010 |
| 35783R | countershaft driven gear | 35783-52020 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41211 | Differential drive pinion | 41211-52040 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-12340 · 41221-20350 · 41221-28080 · 41221-52090 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-12319 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-28070 |
| 41311 | front differential case | 41301-12041 · 41301-12210 · 41301-32061 · 41301-32071 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-38004 · 90366-40016 · 90366-40097 · 90366-57001 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-44001 · 90366-50072 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41331F | Front differential side gear | 41331-12011 · 41331-28020 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-12030 · 41341-28010 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12140 · 41342-28010 · 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-30060 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 |
