Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512

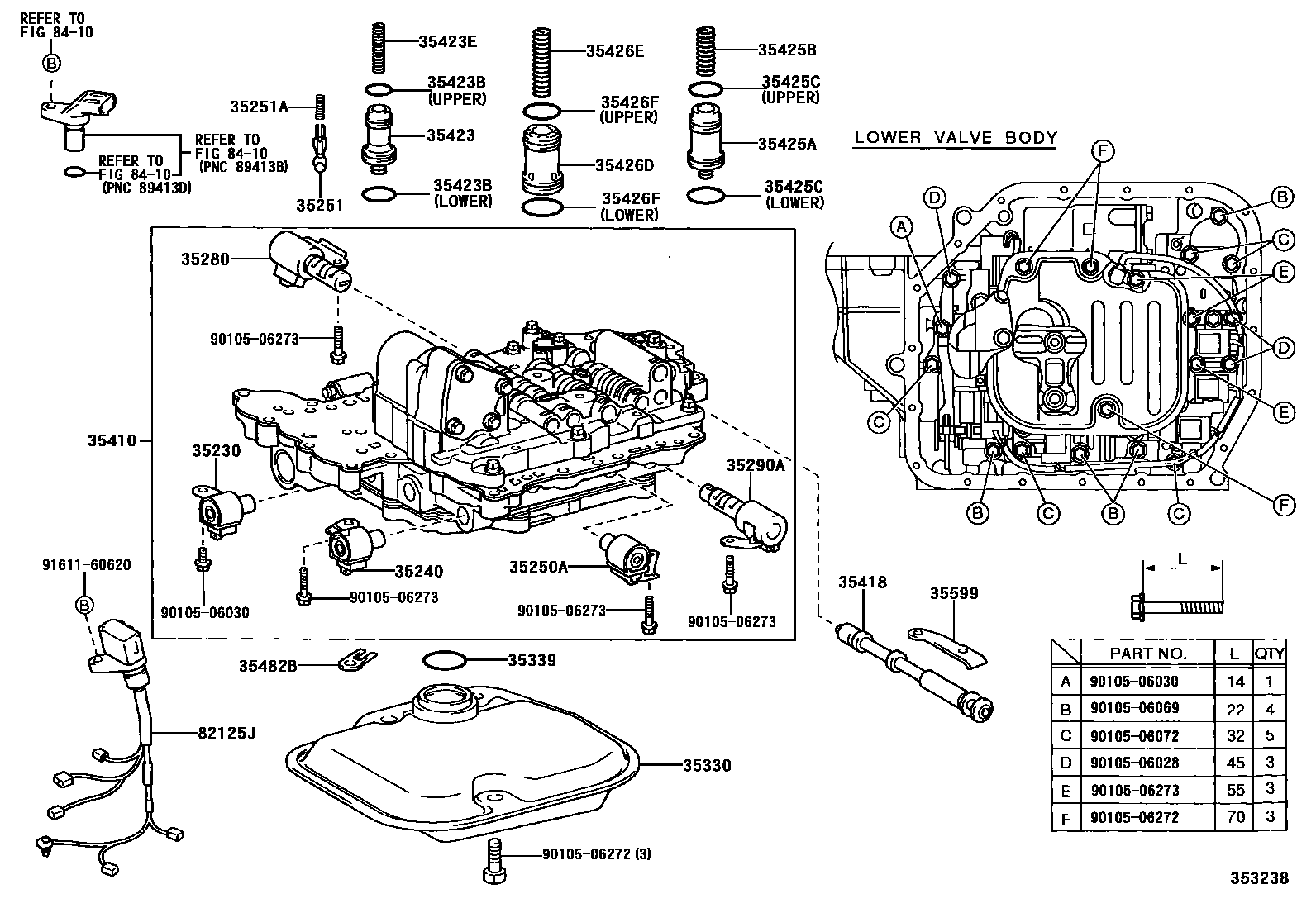

Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-52011 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-52011 |
| 35250A | No. 3 transmission solenoid valve assembly | 35250-52010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35280 | Lock control solenoid valve assembly | 35270-52011 |
| 35290A | Pipe pressure control solenoid valve assembly | 35290-52020 |
| 35330 | Valve body oil filter assembly | 35330-0W020 |
| 35339 | Oil filter gasket | 90301-32010 |
| 35410 | Transmission valve body assembly | 35410-52040 · 35410-52041 · 35410-52042 |
| 35418 | Manual valve | 35418-52020 |
| 35423 | B-2 Accumulator Piston | 35403-52010 · 35403-52020 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-20010 · 90301-29011 |
| 35423E | Compression spring (for B-2 accumulator piston) | 90501-18119 |
| 35425A | C-2 Accumulator Piston | 35405-52010 · 35405-52020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-24036 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-22010 · 90301-35004 |
| 35426D | C-3 Accumulator Piston | 35426-52020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-23149 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-24016 · 90301-29011 |
| 35482B | temperature sensor clip | 35482-52020 |
| 35599 | Manual locking spring cover | 35599-52010 |
| 82125J | Transmission wiring harness | 82125-20270 |
