Toyota COROLLA Shift Lever & Retainer — Figure 3312

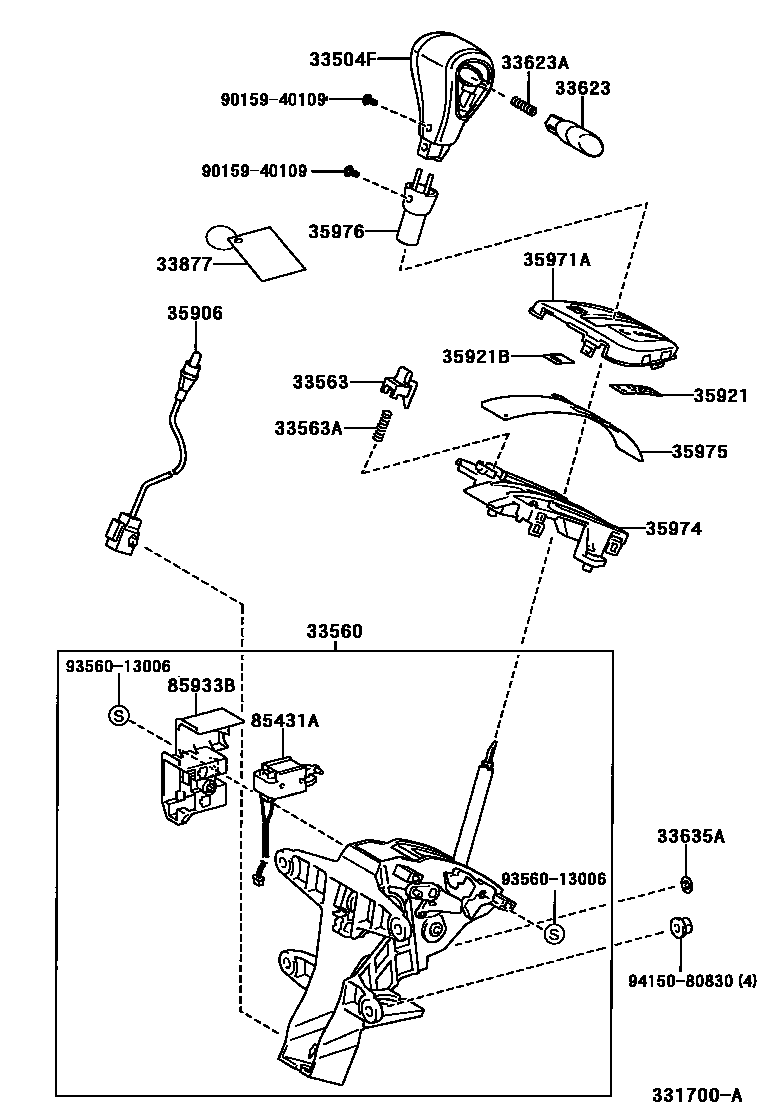

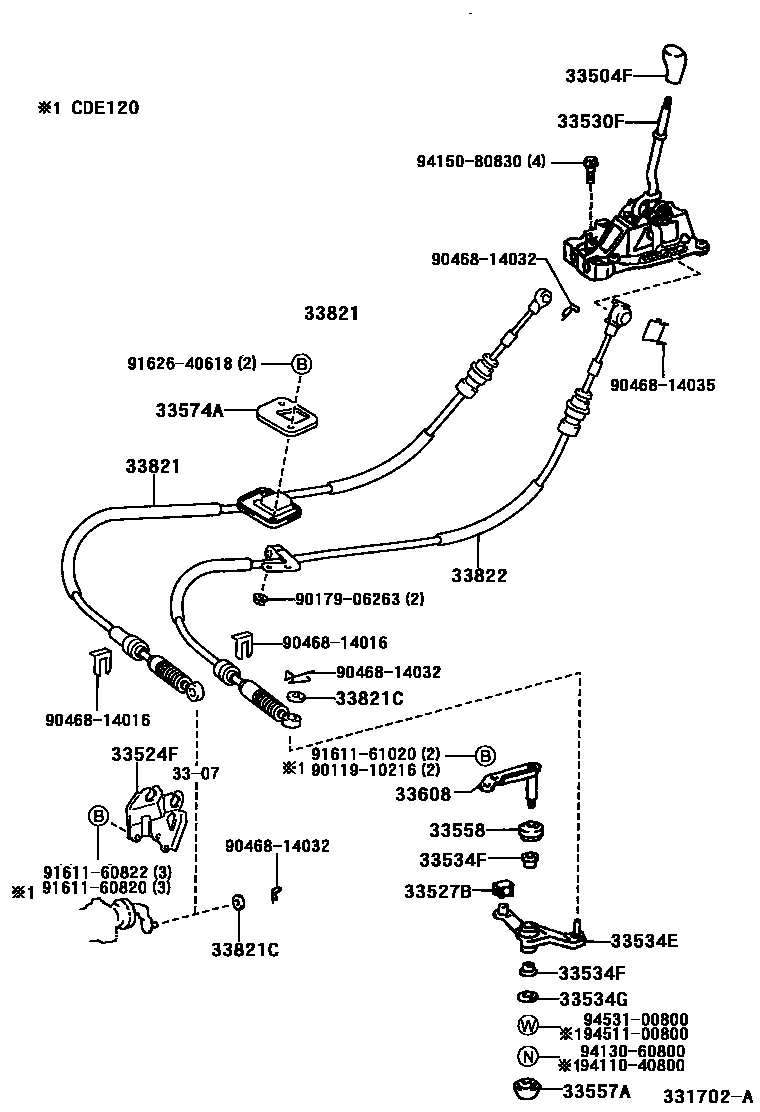

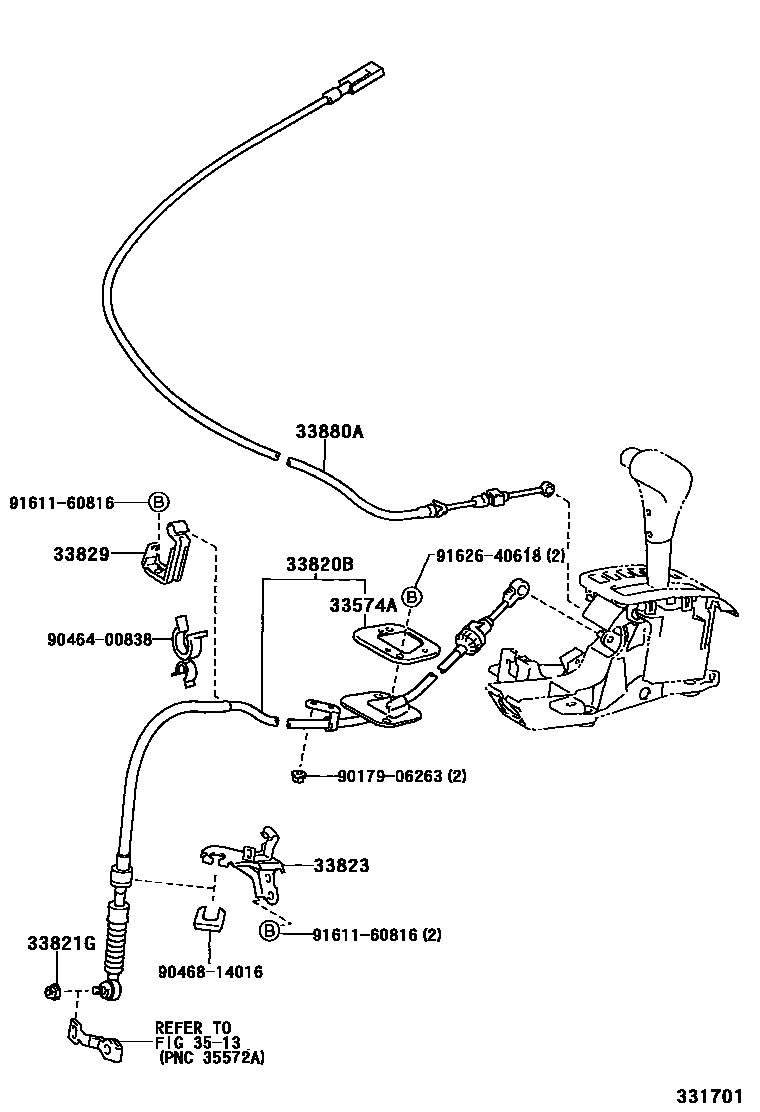

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 · 33524-42020 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-13050 · 33530-13051 · 33530-13060 · 33530-13061 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 · 33534-42010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-13010 · 33560-13020 |
| 33563 | Shift lock release button | 33563-13010 |
| 33563A | Compression spring (for shift lock release button) | 90501-06118 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12100 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 · 33608-42010 |
| 33623 | Shift lever handle button | 33623-13020 · 33623-13030 |
| 33623A | Compression spring (for shift lever knob button) | 90501-05063 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-13010 |
| 33820B | Transmission control cable assembly | 33820-13010 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-13020 · 33821-13021 · 33821-13022 · 33821-13030 · 33821-13031 · 33821-13032 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 |
| 33821G | Nut (for transmission control cable) | 90179-08061 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-13010 · 33822-13011 · 33822-13012 · 33822-13020 · 33822-13021 · 33822-13022 |
| 33823 | No. 1 transmission control cable bracket | 33823-20230 |
| 33829 | Transmission control cable bracket | 33829-12070 |
| 33877 | Shift lock information label No. 1 | 33877-50030 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-13011 · 33880-13020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-13020 · 35906-13030 |
| 35921 | control position indicator board | 35921-13010 · 35921-13020 |
| 35921B | No. 2 control position indicator board | 35921-13030 |
| 35971A | Position indicator light upper shell | 35971-13030 · 35971-13040 |
| 35974 | Position indicator light lower shell | 35974-13011 |
| 35975 | Slide cover (for position indicator light) | 35975-13010 · 35975-13020 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-13030 |
| 85431A | Shift lock solenoid valve | 85431-13010 |
| 85933B | Shift lock control ECU | 85933-13040 |
