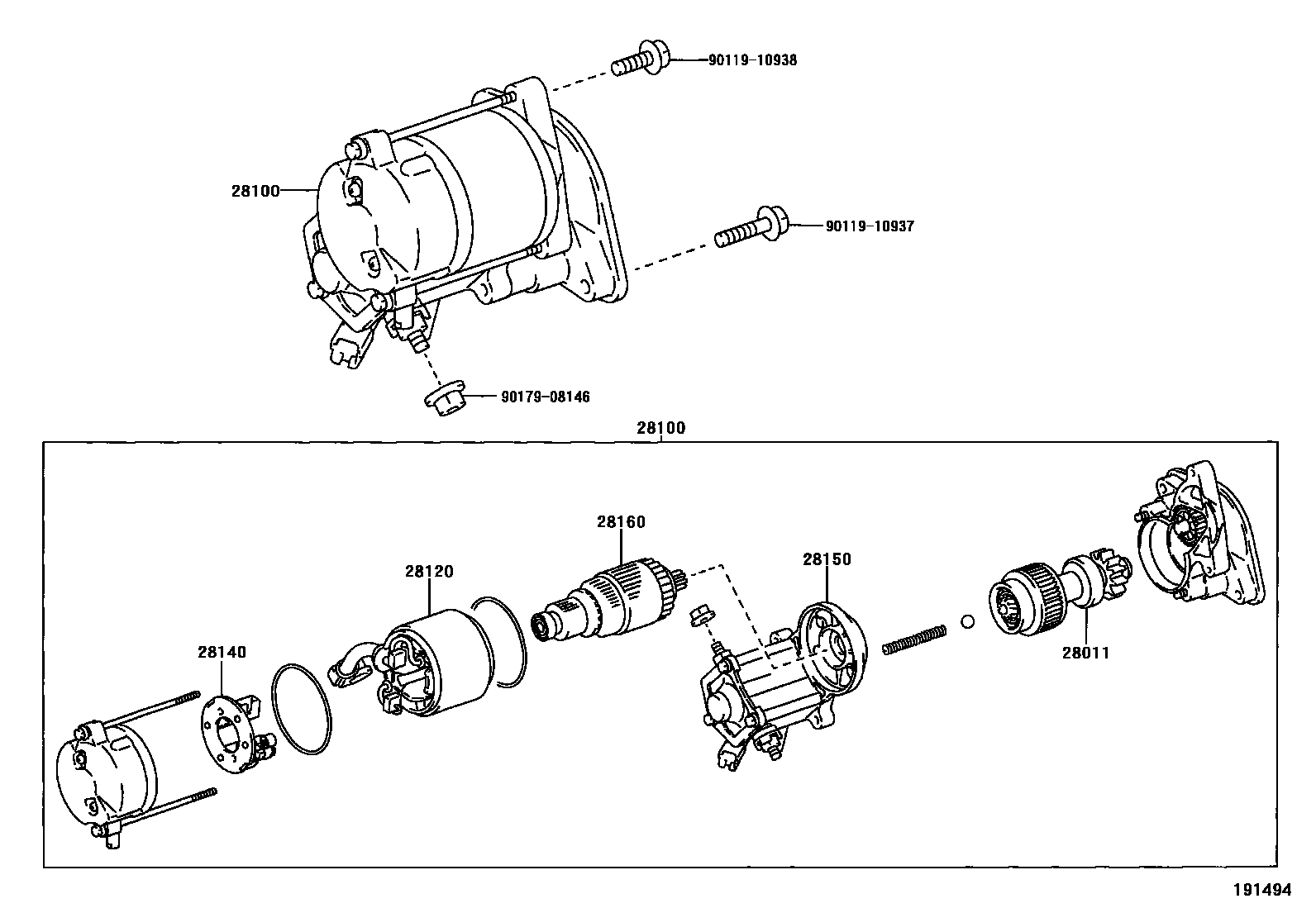

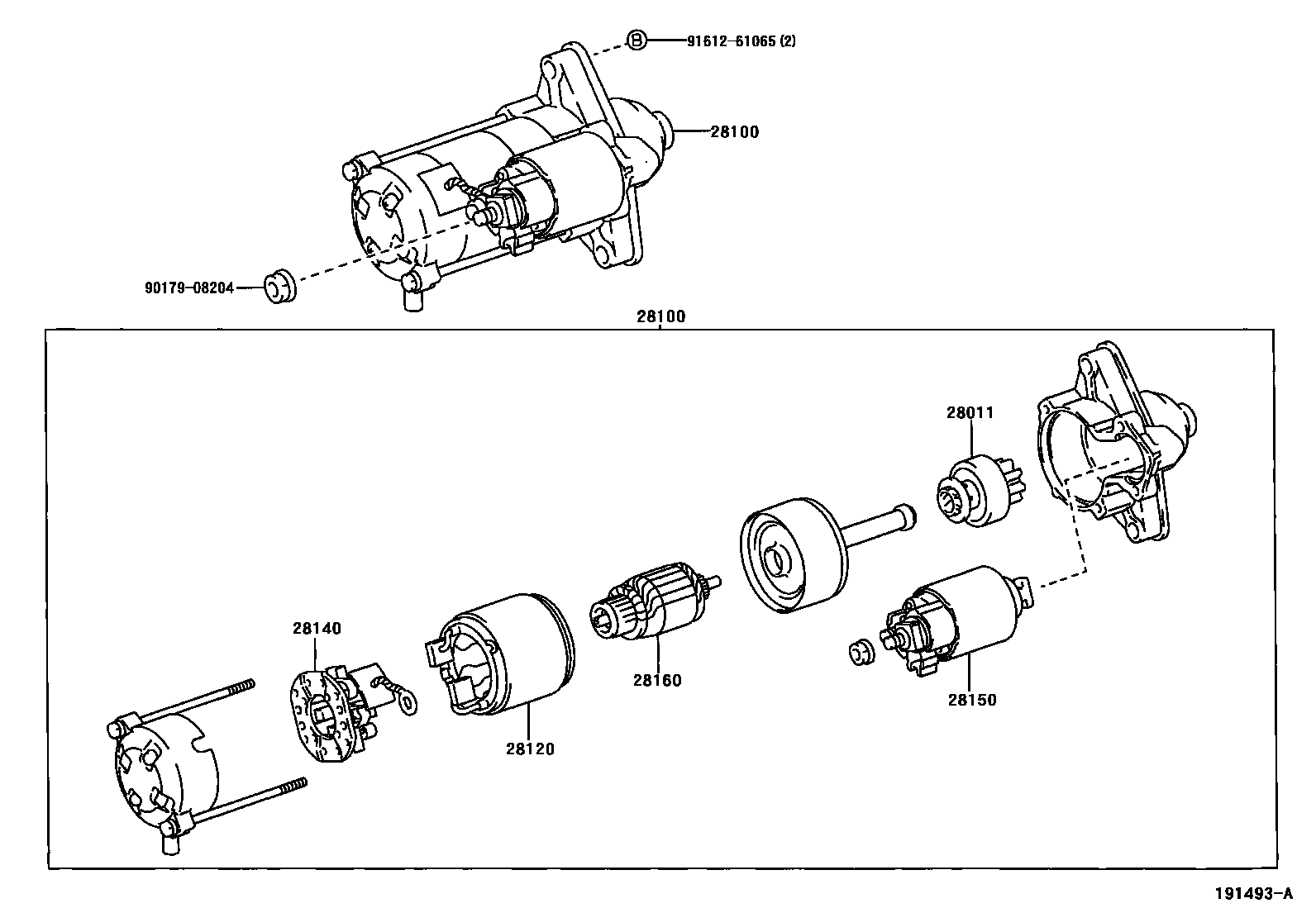

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-64020 · 28011-64130 · 28011-70020 |
| 28100 | Starter assembly | 28100-22030 · 28100-22040 · 28100-64300 · 28100-64430 |
| 28120 | Starter yoke assembly | 28120-55050 · 28120-64040 · 28120-70020 · 28120-70050 |
| 28140 | Starter brush holder assembly | 28140-64040 · 28140-64130 · 28140-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-64341 · 28150-64430 · 28150-70030 |
| 28160 | Starter armature assembly | 28160-64041 · 28160-70021 · 28160-70050 · 28160-74070 |
