Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 9 PNC and OE references.

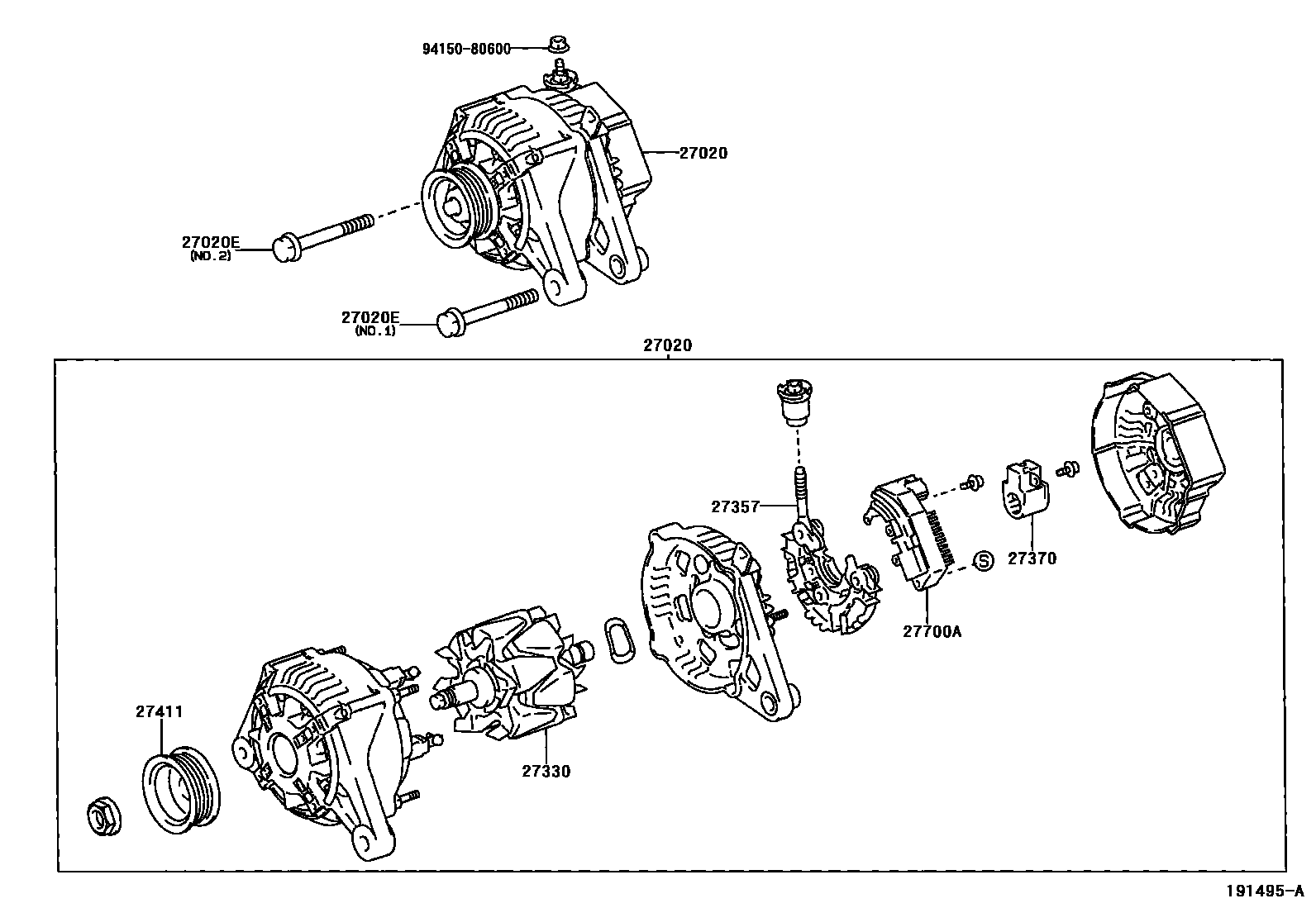

Toyota COROLLA Alternator EPC diagram — 191495A
Alternator — 191495A (200109 – 999999)

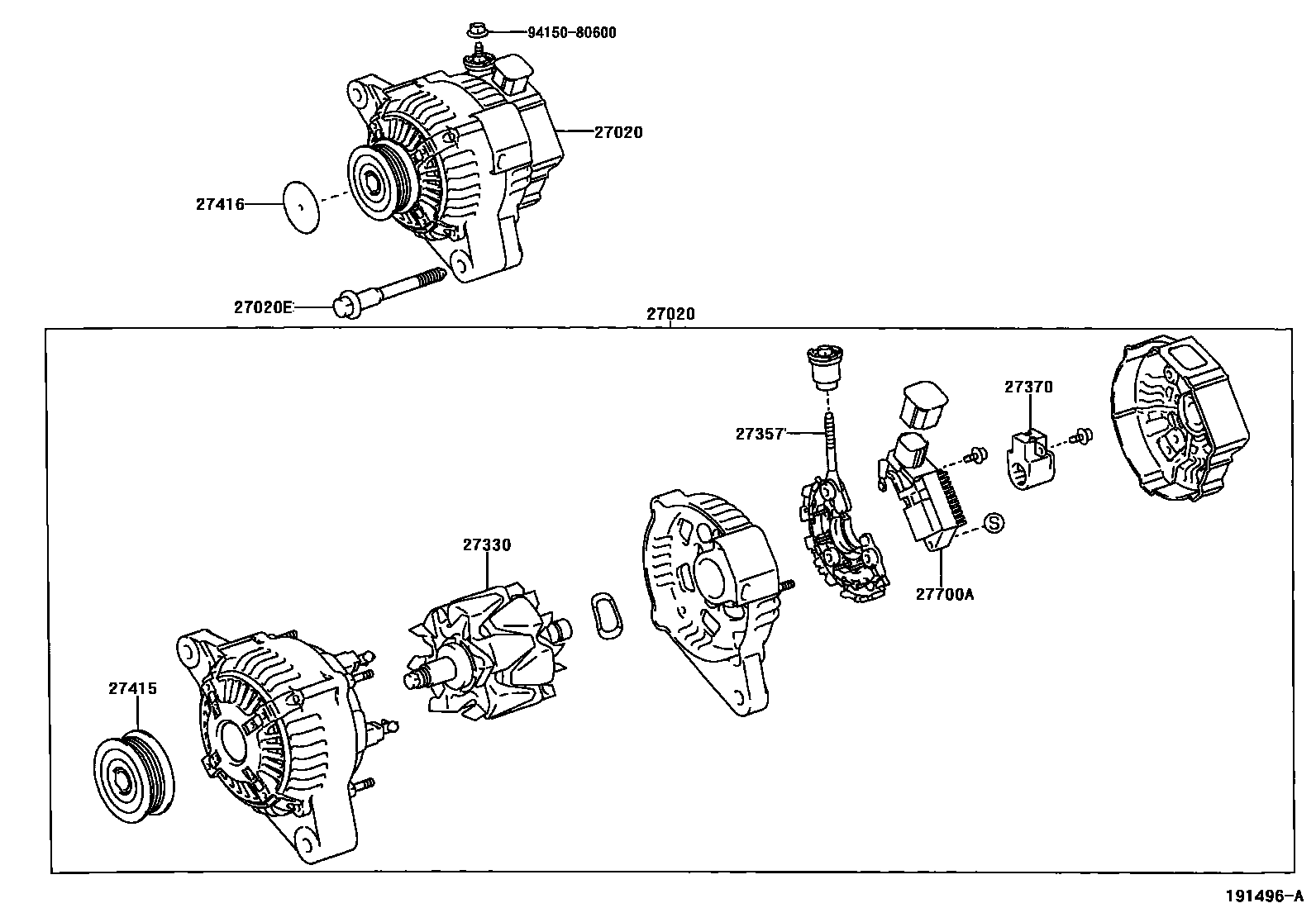

Toyota COROLLA Alternator EPC diagram — 191496A
Alternator — 191496A (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-22100 · 27060-27060 · 27060-27070
27020EBolts (for generator)90105-10075 · 90901-05004 · 91511-80830
27330Alternator Rotor Assembly27330-20130 · 27330-74550
27357Generator rectifier frame27357-20130 · 27357-22050 · 27357-22070
27370Alternator Brush Holder Assembly27370-75060
27411Alternator Pulley27411-50050
27415PULLEY, ALTERNATOR W/CLUTCH27415-27011
27416Generator pulley cover27416-27010
27700AGenerator voltage regulator assembly27700-27080 · 27700-46060 · 27700-64090
