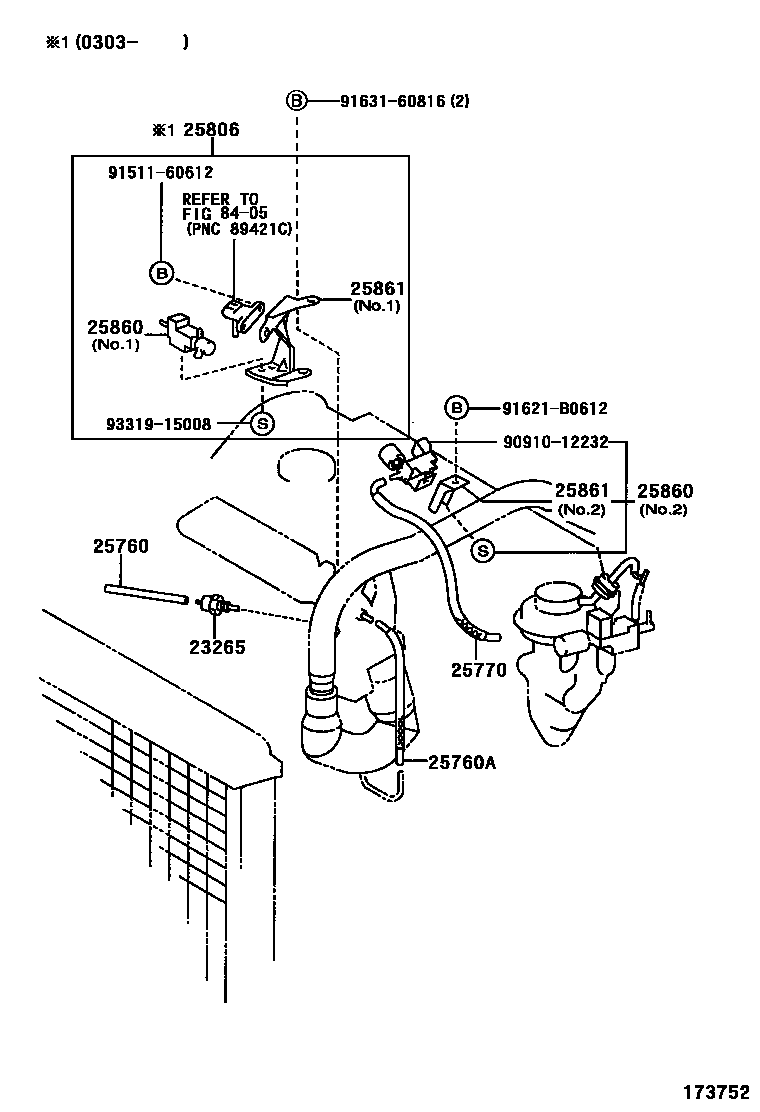

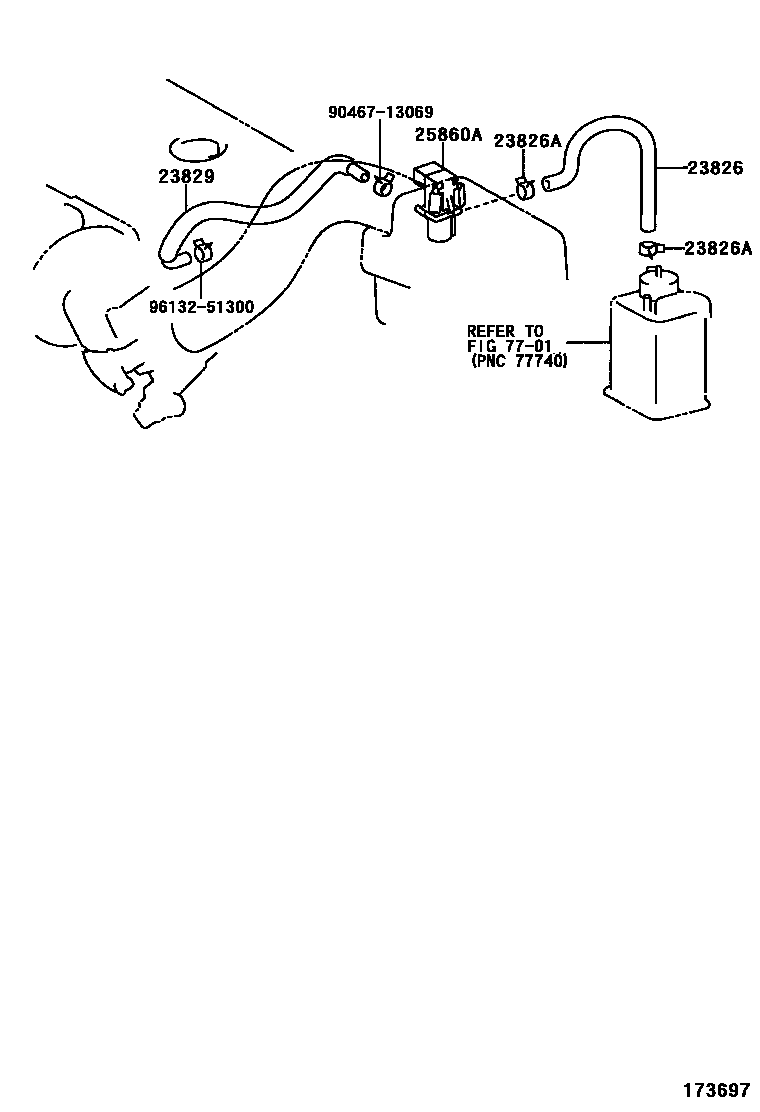

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23265 | No. 1 gas filter | 90917-11037 |
| 23826 | No. 1 fuel vapor supply hose | 23826-21030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-41100 · 96132-51100 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22050 · 23829-22080 |
| 25760 | Vacuum transfer hose assembly | 25760-27050 |
| 25760A | Vacuum transfer hose assembly | 25760-27040 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-27030 |
| 25806 | pressure control valve assembly | 25806-27020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-27020 · 25860-64140 |
| 25860A | No. 1 vacuum switch valve | 90910-12257 |
| 25861 | Vacuum switch valve bracket | 25861-27020 · 25861-27030 |
