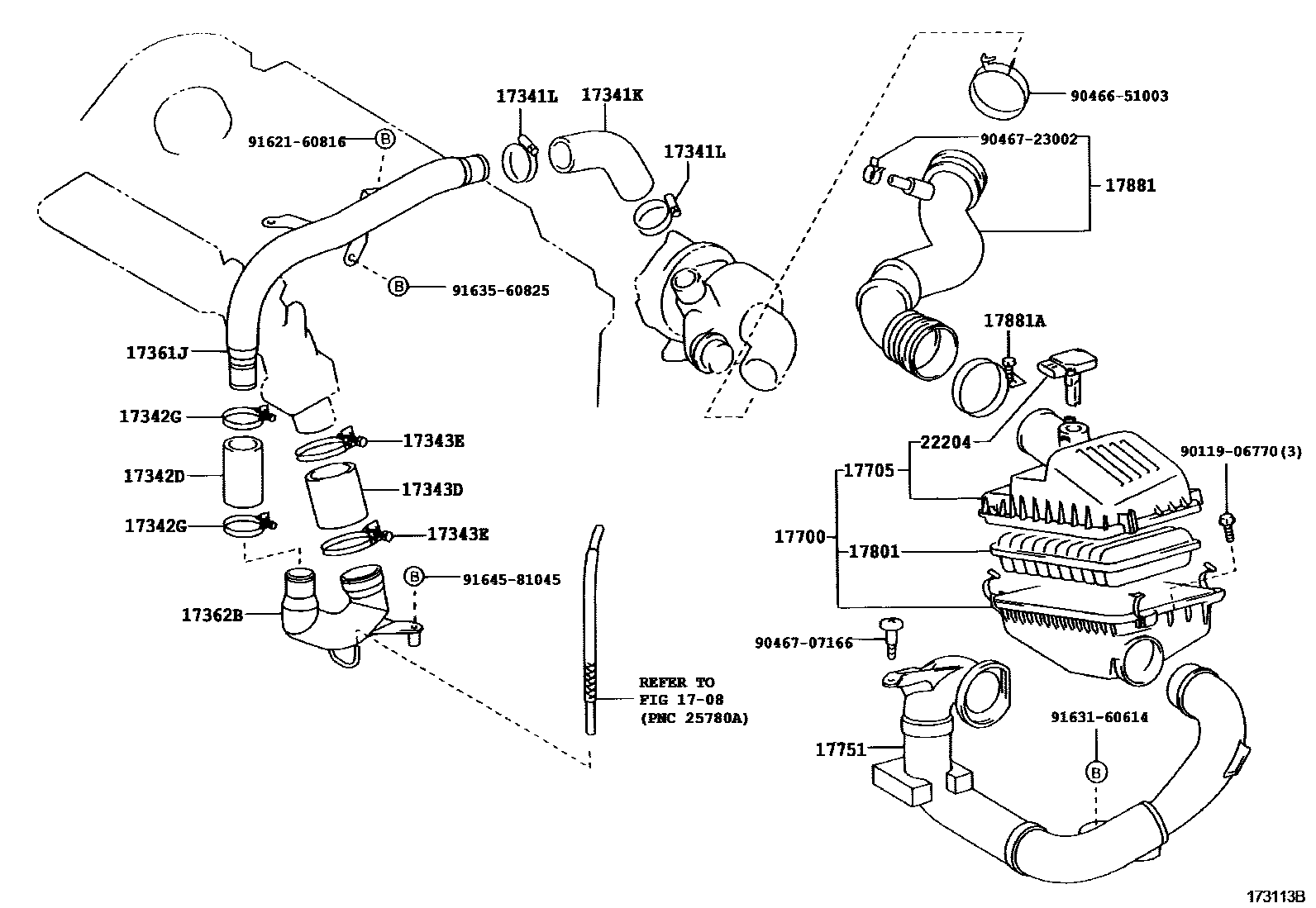

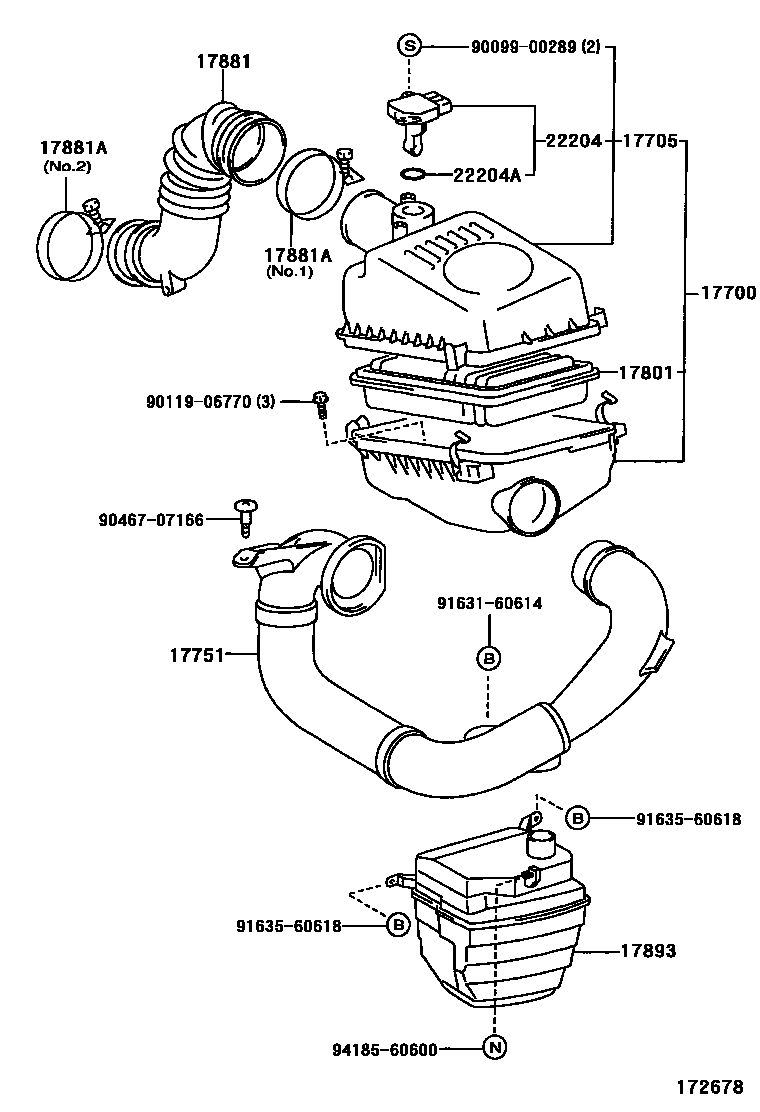

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341K | Air hose No. 1 (for intercooler) | 17341-27020 |
| 17341L | hose clamp | 90460-50006 |
| 17342D | Air hose No. 2 | 17342-27020 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-50006 |
| 17343D | No. 3 air hose | 17343-27020 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-73011 |
| 17361J | Air tube No. 1 | 17361-27040 |
| 17362B | No. 2 air pipe | 17362-27020 |
| 17700 | air filter assembly | 17700-22120 · 17700-27170 |
| 17705 | Air filter cover sub-assembly | 17705-22120 · 17705-27040 |
| 17751 | No. 1 air filter air inlet | 17751-21060 · 17751-22070 · 17751-22090 · 17751-27050 |
| 17801 | Air filter element sub-assembly | 17801-22020 · 17801-27020 |
| 17881 | No. 1 air cleaner hose | 17880-27040 · 17881-22070 · 17881-22080 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10730 · 96111-10780 · 96111-10800 |
| 17893 | Intake resonator | 17893-64080 |
| 22204 | Intake air flow meter assembly | 22204-22010 · 22204-27010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
