Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 6 PNC and OE references.

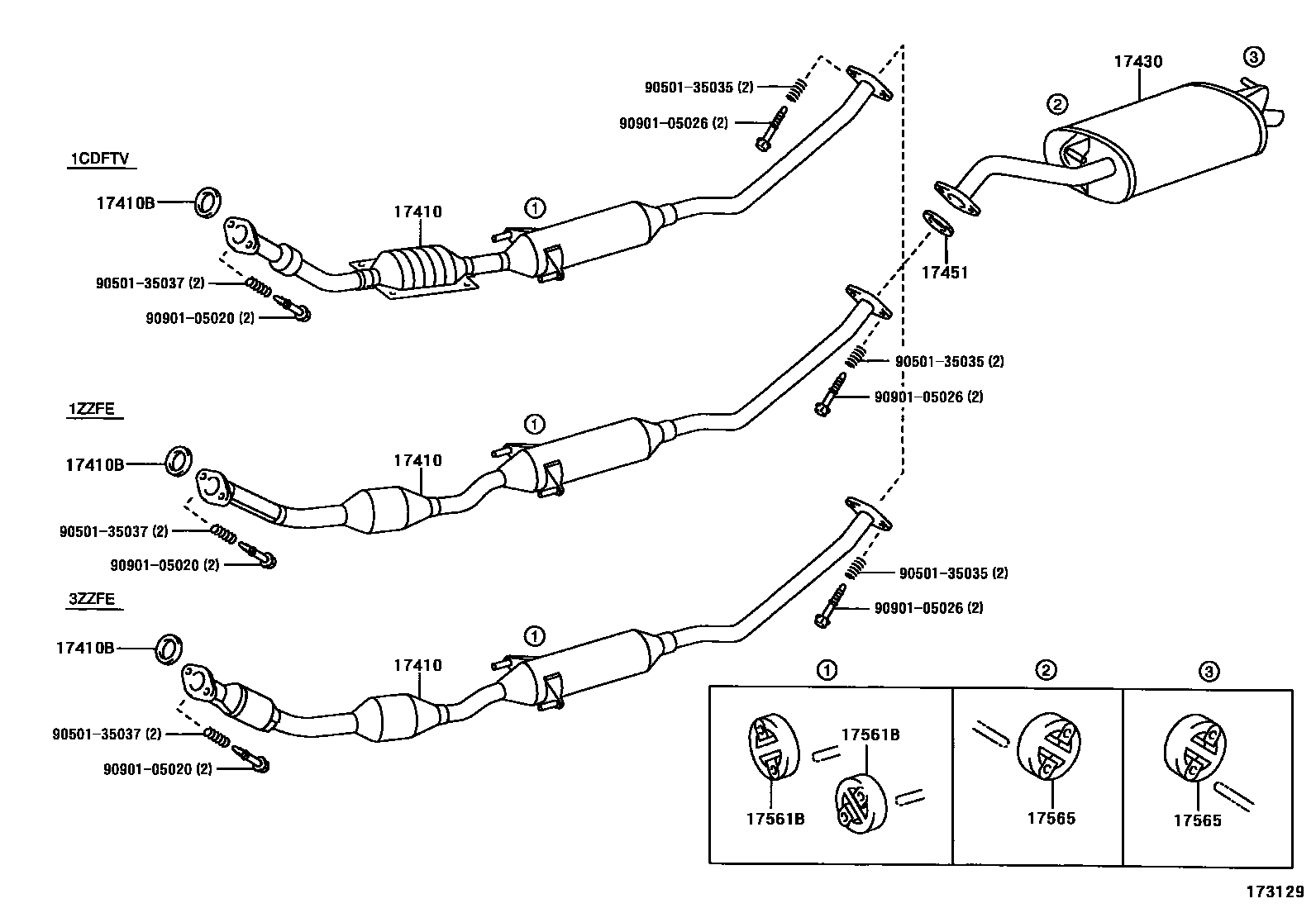

Toyota COROLLA Exhaust Pipe EPC diagram — 173129
Exhaust Pipe — 173129 (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-22260 · 17410-22270 · 17410-27100
17410BExhaust pipe gasket17451-22060 · 17451-22070
17430Exhaust tailpipe assembly17430-22240 · 17430-22250 · 17430-27120
17451Exhaust pipe gasket17451-16030 · 17451-64030
17561BNo. 1 exhaust pipe lifting lug17565-21030
17565No. 5 exhaust pipe lifting lug17565-21040
