Toyota COROLLA Water Pump — Figure 1601

Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 5 PNC and OE references.

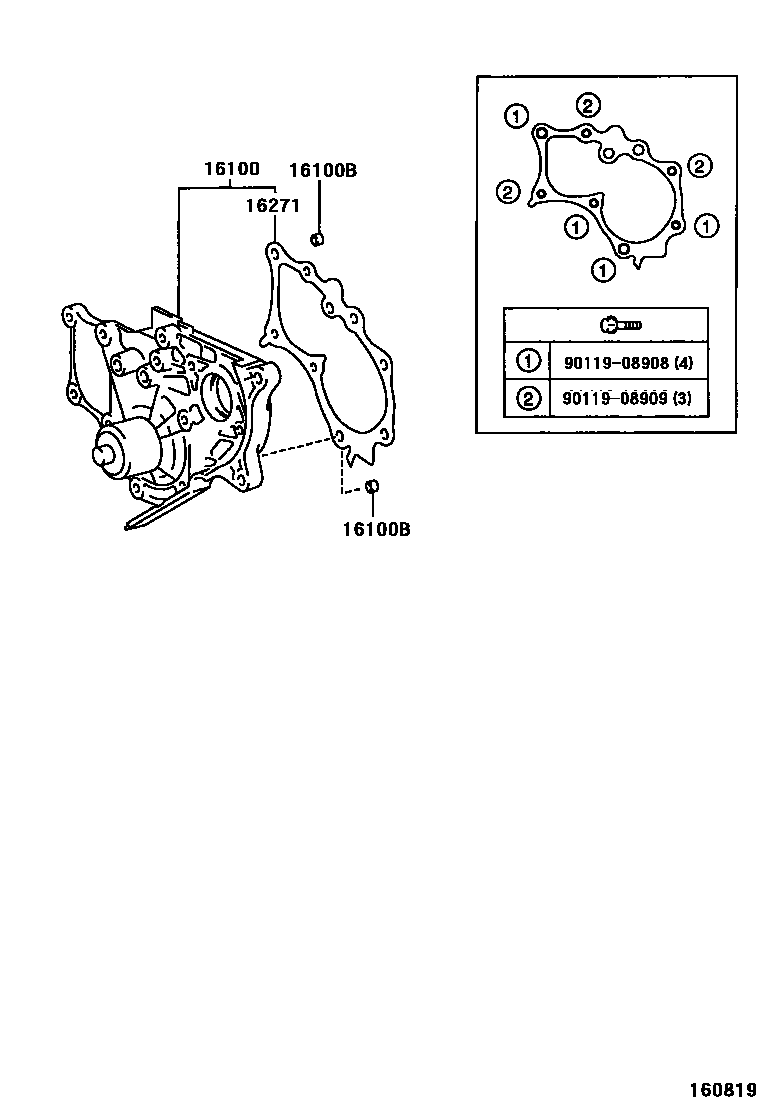

Toyota COROLLA Water Pump EPC diagram — 160819
Water Pump — 160819 (200110 – 999999)

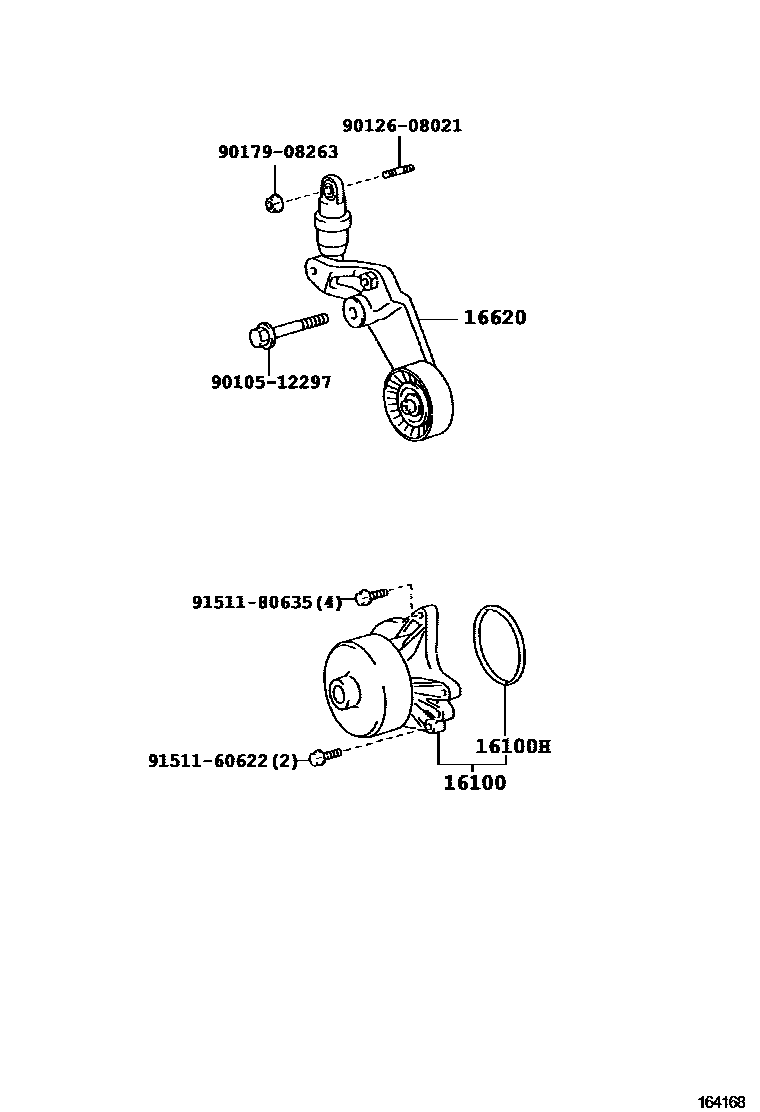

Toyota COROLLA Water Pump EPC diagram — 164168
Water Pump — 164168 (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-29135 · 16100-29175
16100BRing pin (for water pump assembly)90253-11021
16100HO-ring (for water pump)90301-69006
16271water pump gasket16271-27010
16620Poly V-belt tensioner assembly16620-22011
