Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 5 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 150151A
Oil Filter — 150151A (200109 – 999999)

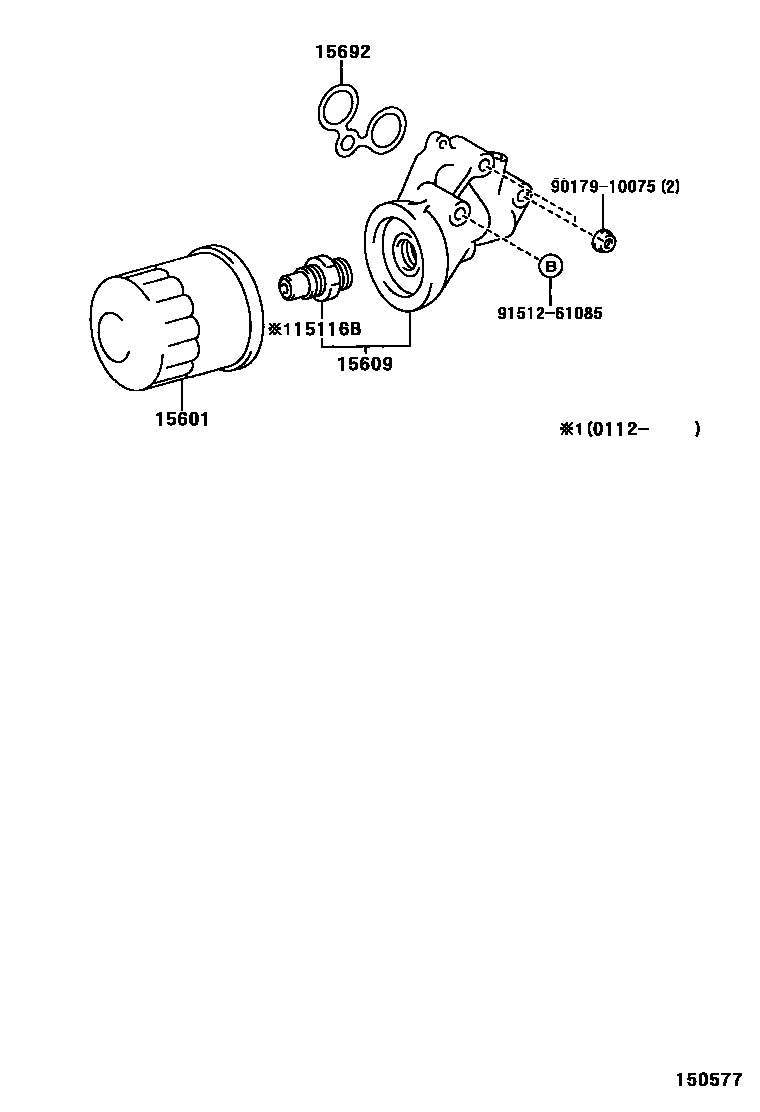

Toyota COROLLA Oil Filter EPC diagram — 150577
Oil Filter — 150577 (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
15116BOil filter fixing screw15116-54021
15600AConnector (for oil filter)90904-04002
15601Oil filter sub-assembly90915-10003 · 90915-30003
15609Oil filter bracket sub-assembly15609-27010
15692Oil filter holder gasket15692-27010
