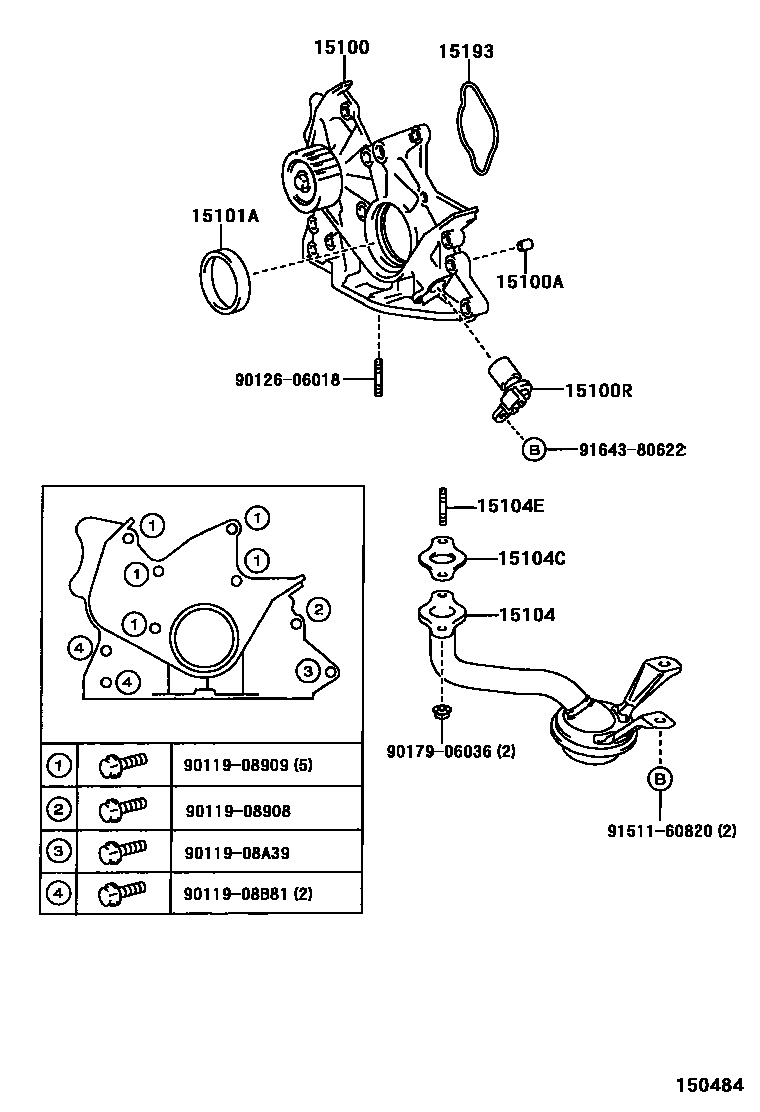

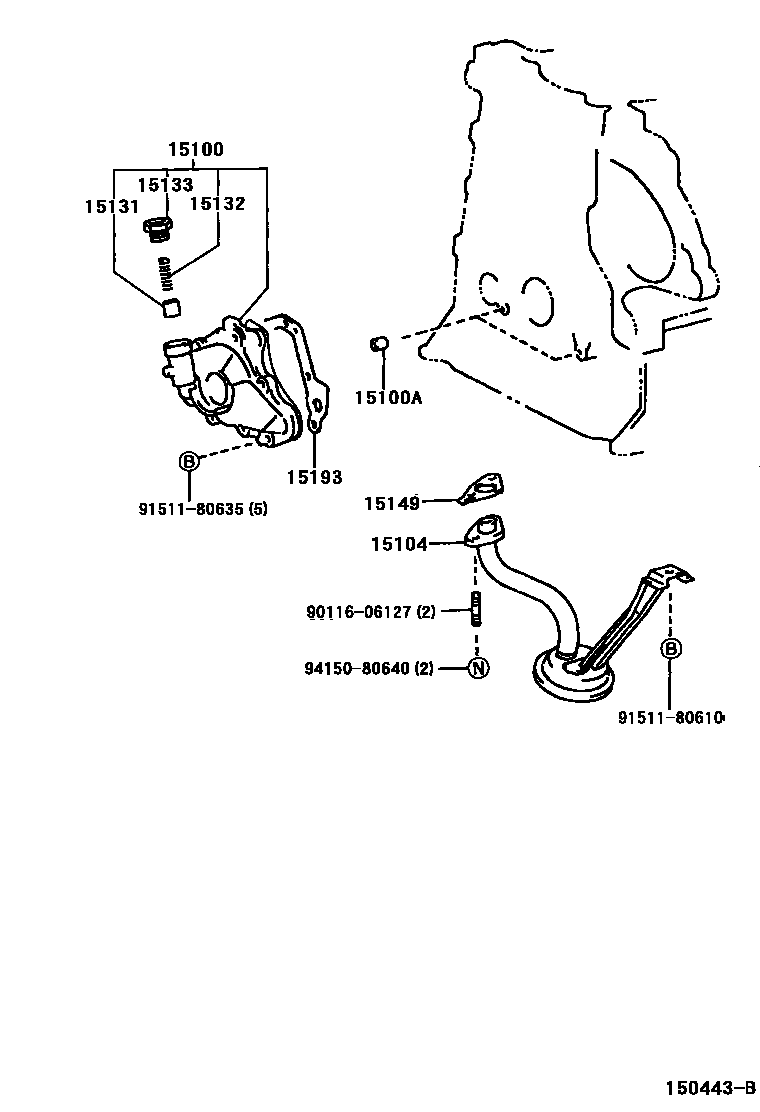

Toyota COROLLA Engine Oil Pump — Figure 1501
Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-22040 · 15100-22041 · 15100-27030 |
| 15100A | Ring pin (for oil pump assembly) | 90253-09003 · 90253-11021 |
| 15100R | crankshaft position sensor | 90919-05042 |
| 15101A | Seals (for crankshaft) | 90311-45017 |
| 15104 | Oil filter sub-assembly | 15104-22022 · 15104-22023 · 15104-27060 |
| 15104C | Gasket (for oil filter) | 15149-27010 |
| 15104E | Stud bolts (for oil filter) | 90116-06132 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-22040 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 |
| 15149 | Oil filter flange gasket | 15149-22010 |
| 15193 | oil pump gasket | 15193-27010 · 15197-22010 |
