Toyota COROLLA Camshaft & Valve — Figure 1302

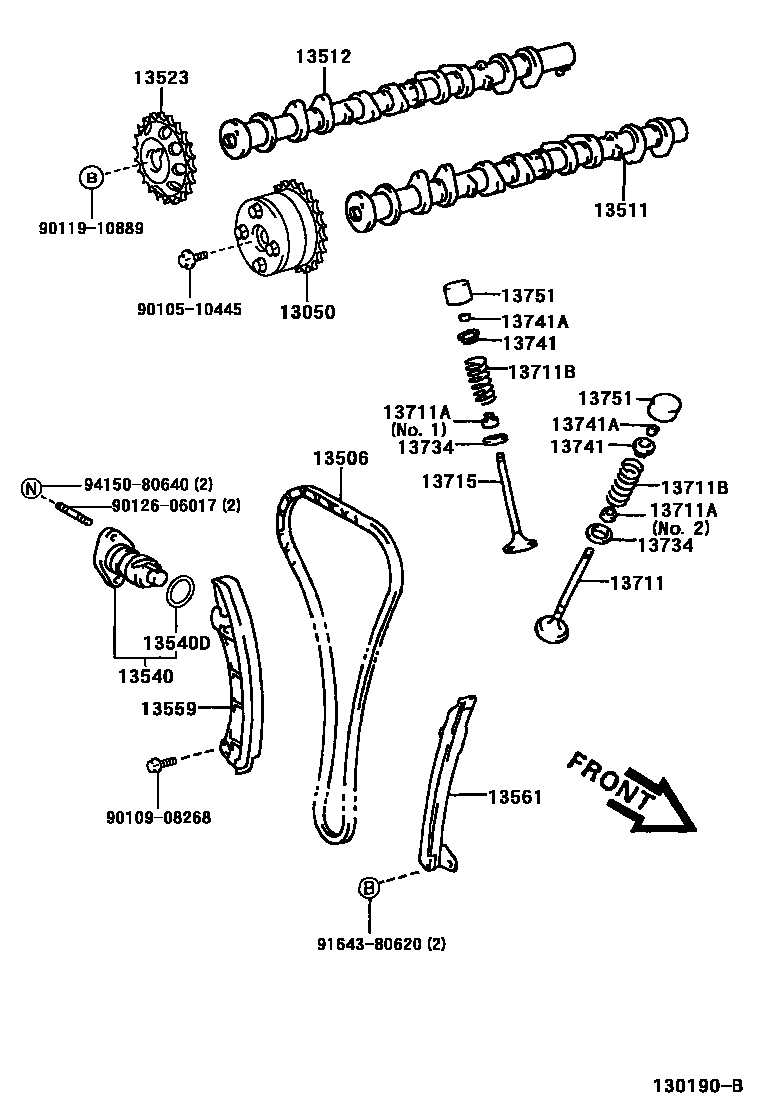

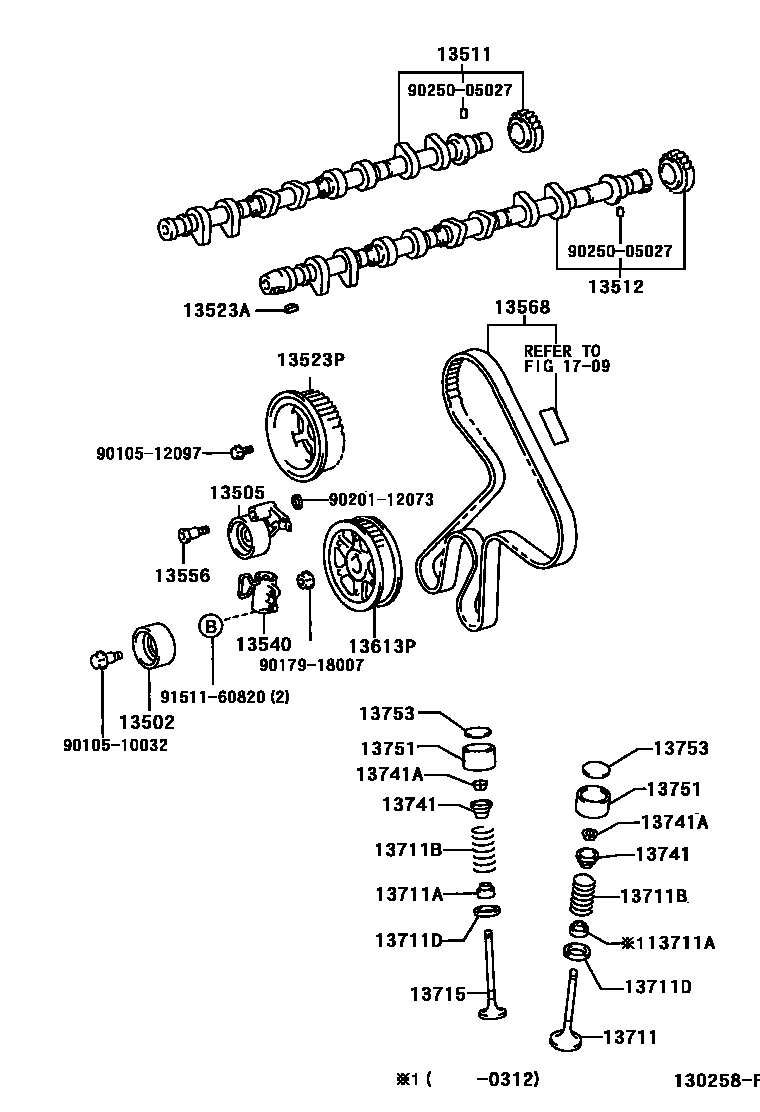

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-22011 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-27010 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-27010 |
| 13506 | Chain sub-assembly | 13506-22030 |
| 13511 | camshaft | 13501-22060 · 13501-22061 · 13501-27011 |
| 13512 | Camshaft No. 2 | 13502-22010 · 13502-22011 · 13502-27011 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523P | Camshaft timing pulley | 13523-27010 |
| 13540 | No. 1 chain tensioner assembly | 13540-22022 · 13540-27011 |
| 13540D | O-ring (for chain tensioner) | 90301-22013 |
| 13556 | Timing belt idler shaft | 13556-27010 |
| 13559 | chain tensioner guide plate | 13559-22011 |
| 13561 | No. 1 chain shock absorber | 13561-22020 |
| 13568 | timing belt | 13568-29035 |
| 13613P | Fuel injection pump drive pulley | 13603-27010 |
| 13711 | intake valve | 13711-22040 · 13711-27010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02101 · 90913-02111 · 90913-02119 · 90913-02121 |
| 13711B | Compression spring (for inner side) | 90501-29048 · 90905-01055 · 90905-01084 |
| 13711D | Flat washer (for valve spring seat) | 90560-11032 |
| 13715 | exhaust valve | 13715-22040 · 13715-27010 |
| 13734 | Valve spring seat | 13734-74010 |
| 13741 | Valve spring seat ring | 13741-16010 · 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03021 · 90913-03028 |
| 13751 | valve lifter | 13751-16010 · 13751-46030 · 13751-46040 · 13751-46050 · 13751-46060 · 13751-46070 · 13751-46080 · 13751-46090 · 13751-46100 · 13751-46110 · 13751-46120 · 13751-46130 · 13751-46140 · 13751-46150 · 13751-46160 · 13751-46170 · 13751-46180 · 13751-46190 · 13751-46200 · 13751-46210 · 13751-46220 · 13751-46230 · 13751-46240 · 13751-46250 · 13751-46260 · 13751-46270 · 13751-46280 · 13751-46290 · 13751-46300 · 13751-46310 · 13751-46320 · 13751-46330 · 13751-46340 · 13751-46350 · 13751-46360 · 13751-46370 |
| 13753 | valve adjustment gasket | 13753-27010 · 13753-27030 · 13753-27050 · 13753-27070 · 13753-27090 · 13753-27110 · 13753-27130 · 13753-27150 · 13753-27170 · 13753-27190 · 13753-27210 · 13753-27230 · 13753-27250 · 13753-27270 · 13753-27290 · 13753-27310 · 13753-27330 |
