Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 5 PNC and OE references.

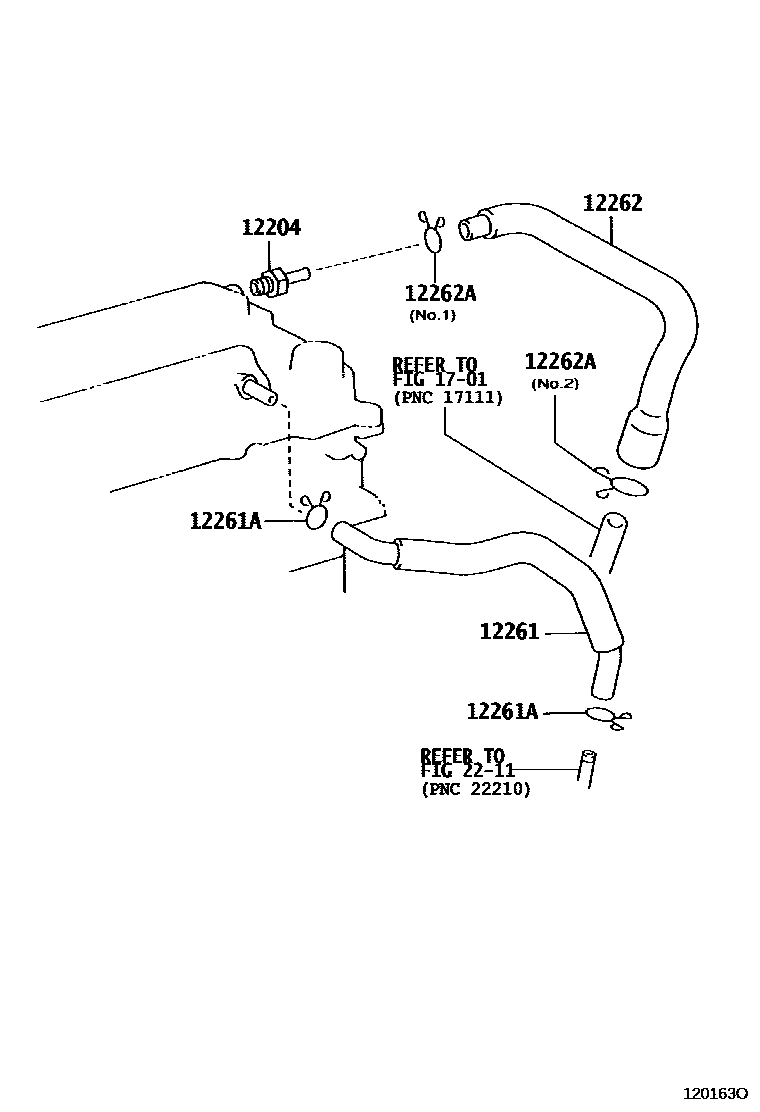

Toyota COROLLA Ventilation Hose EPC diagram — 120163O
Ventilation Hose — 120163O (200109 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120216
Ventilation Hose — 120216 (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22050
12261Ventilation Hose12261-22050 · 12261-27030
12261AClip or clip (for vent hose)90467-21004 · 90467-21152 · 90467-23002
12262Ventilation hose No. 212262-22040 · 12262-22060
12262AClamp (for vent hose No. 2)90467-13103 · 90467-19003
