Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

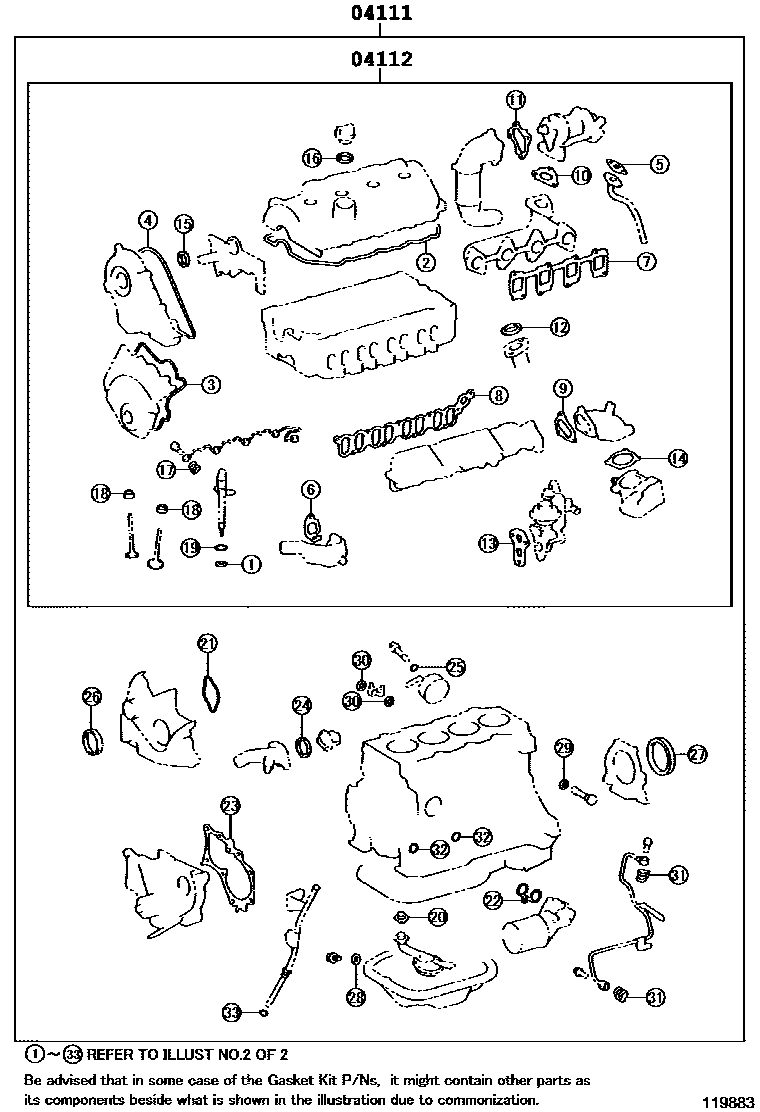

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119883
Engine Overhaul Gasket Kit — 119883 (200110 – 999999)

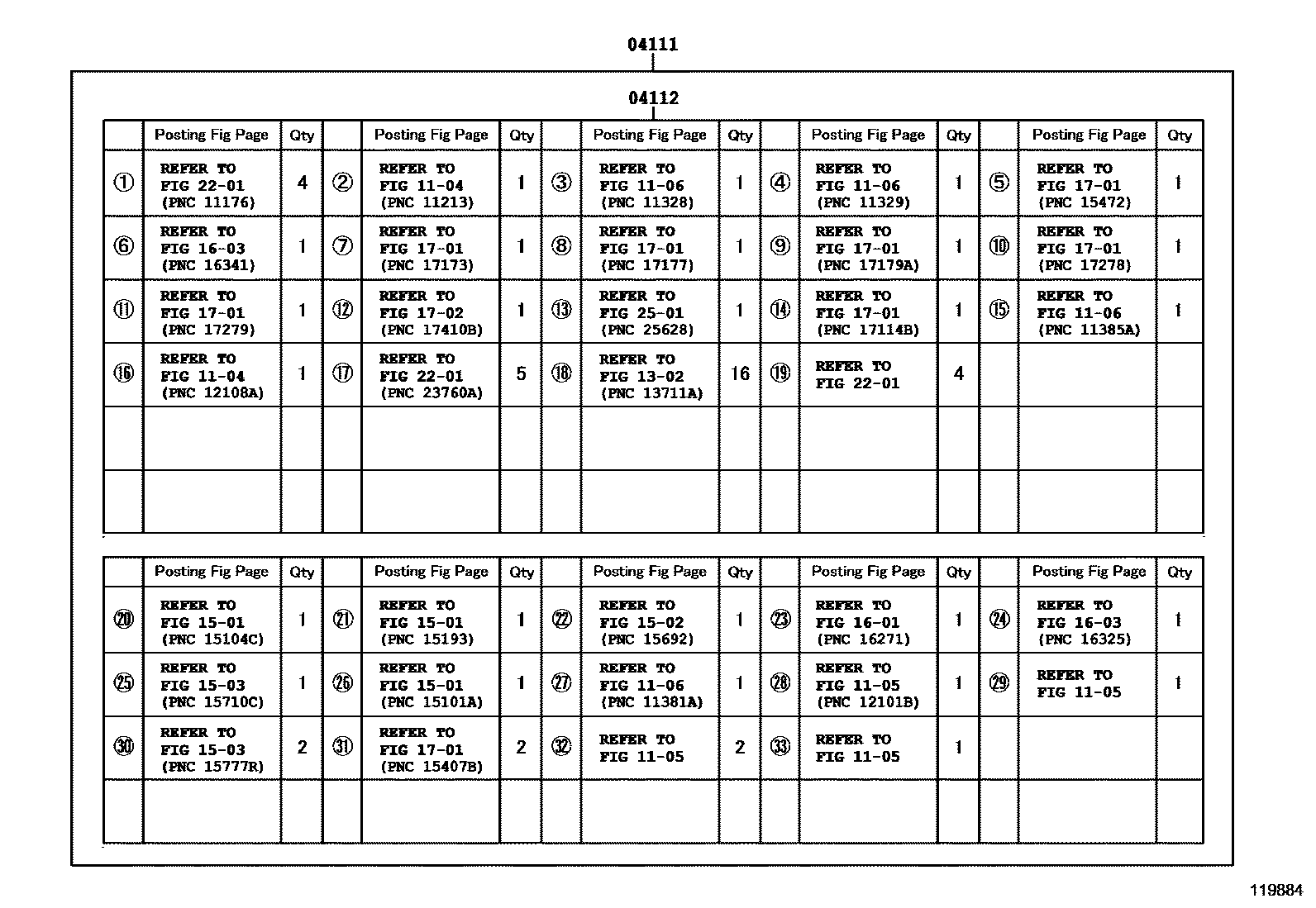

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119884
Engine Overhaul Gasket Kit — 119884 (200110 – 999999)

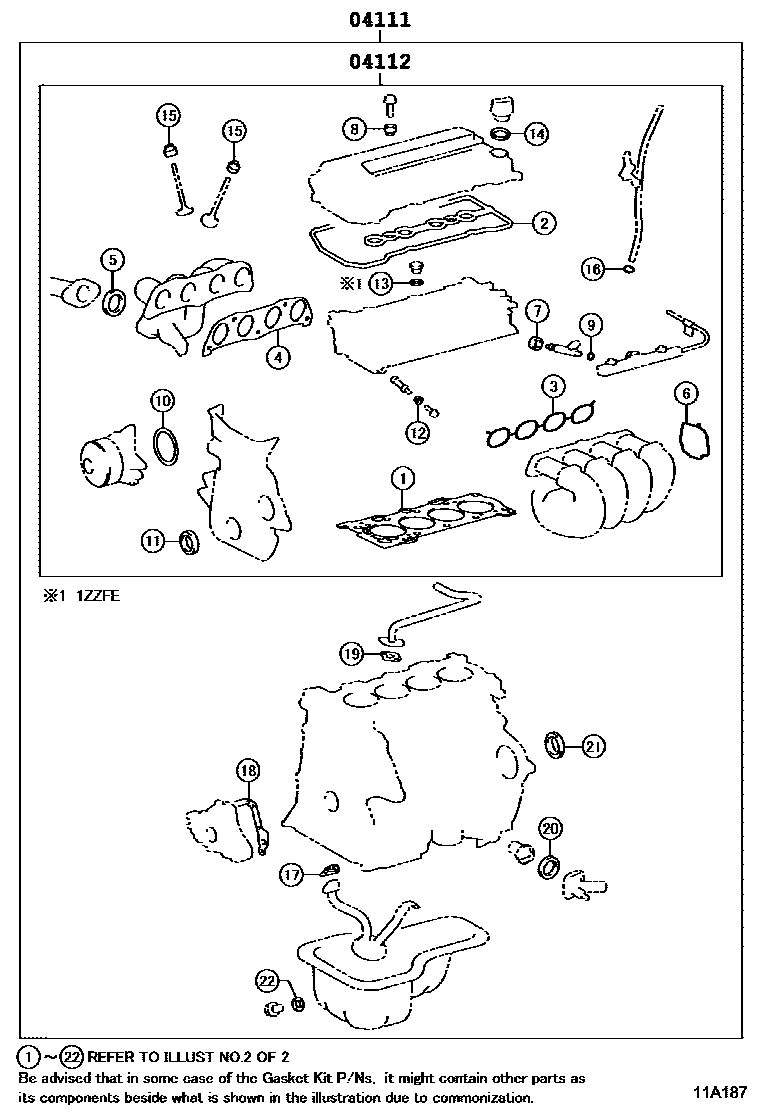

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A187
Engine Overhaul Gasket Kit — 11A187 (200109 – 999999)

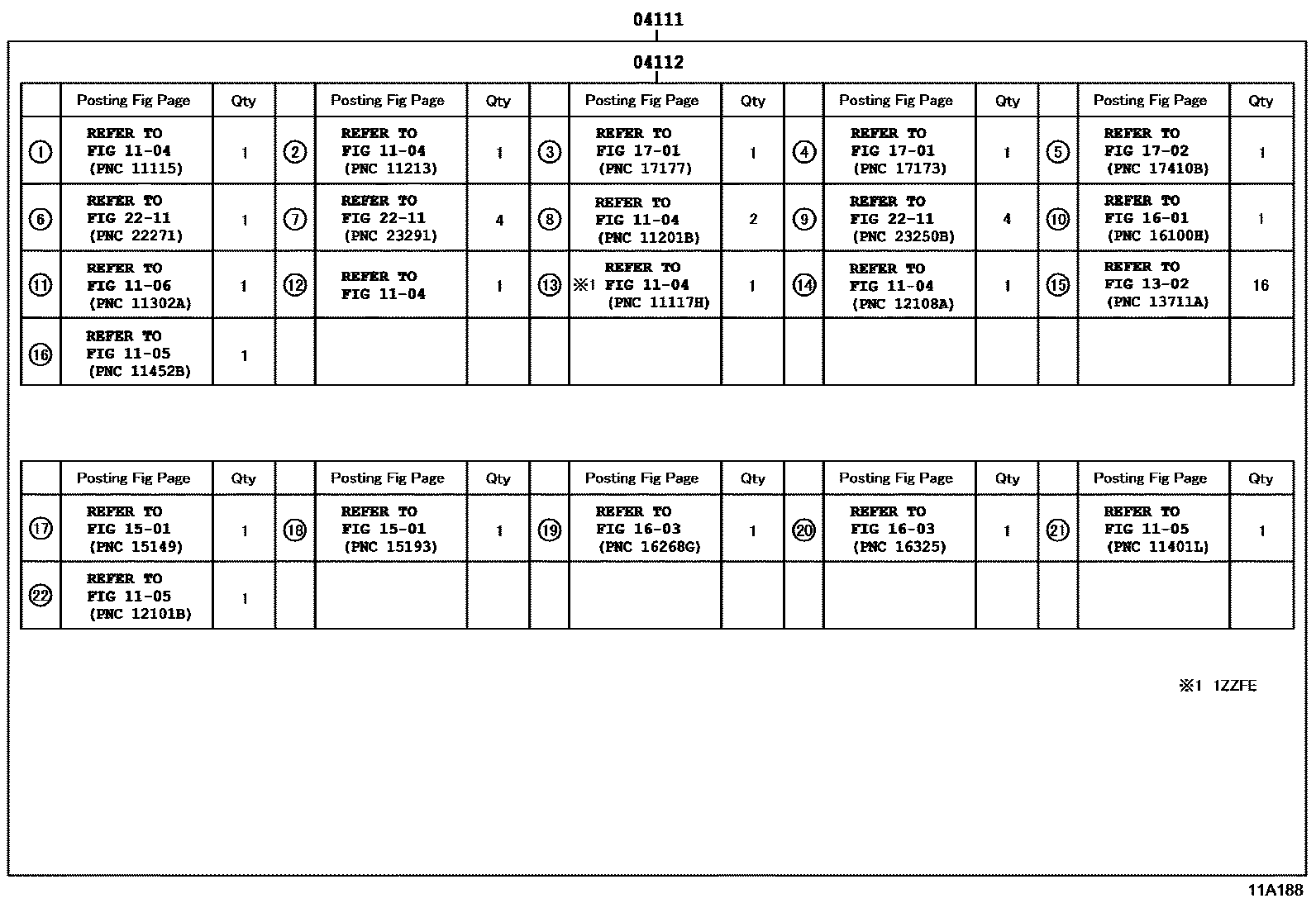

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A188
Engine Overhaul Gasket Kit — 11A188 (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-22131 · 04111-22132 · 04111-22160 · 04111-22180 · 04111-22181 · 04111-22182 · 04111-27100
04112Engine valve grinding pad assembly04112-22131 · 04112-22132 · 04112-22160 · 04112-22180 · 04112-22181 · 04112-22182 · 04112-27090
