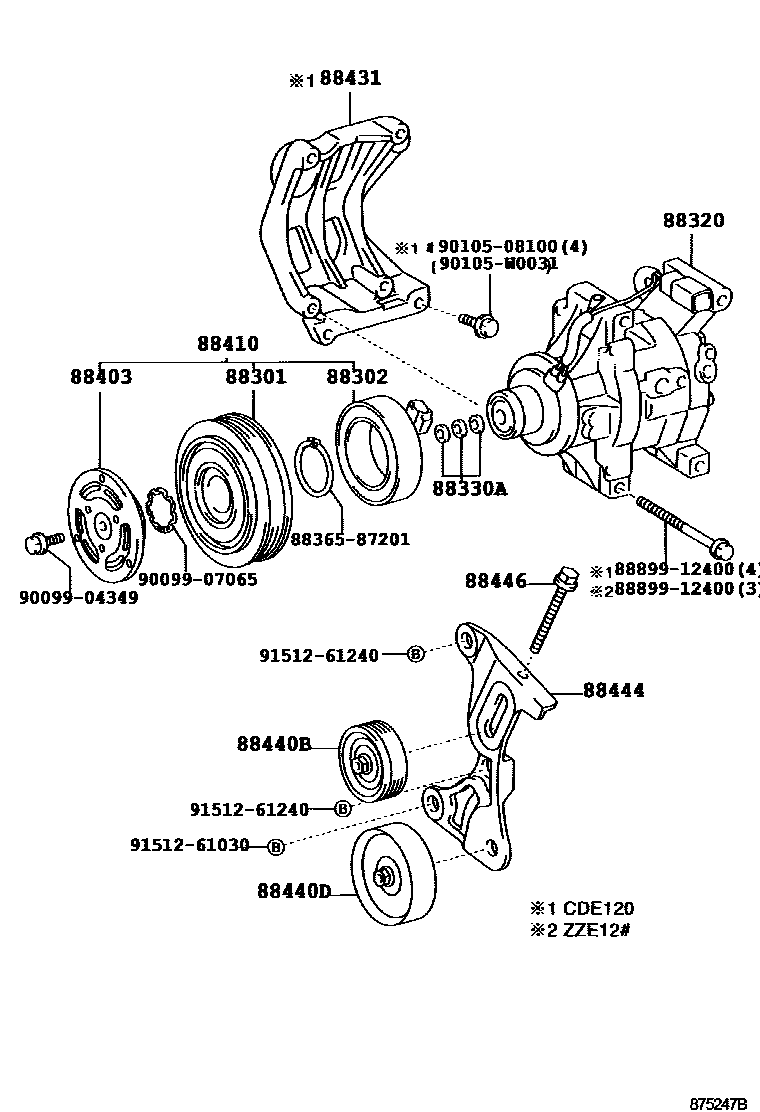

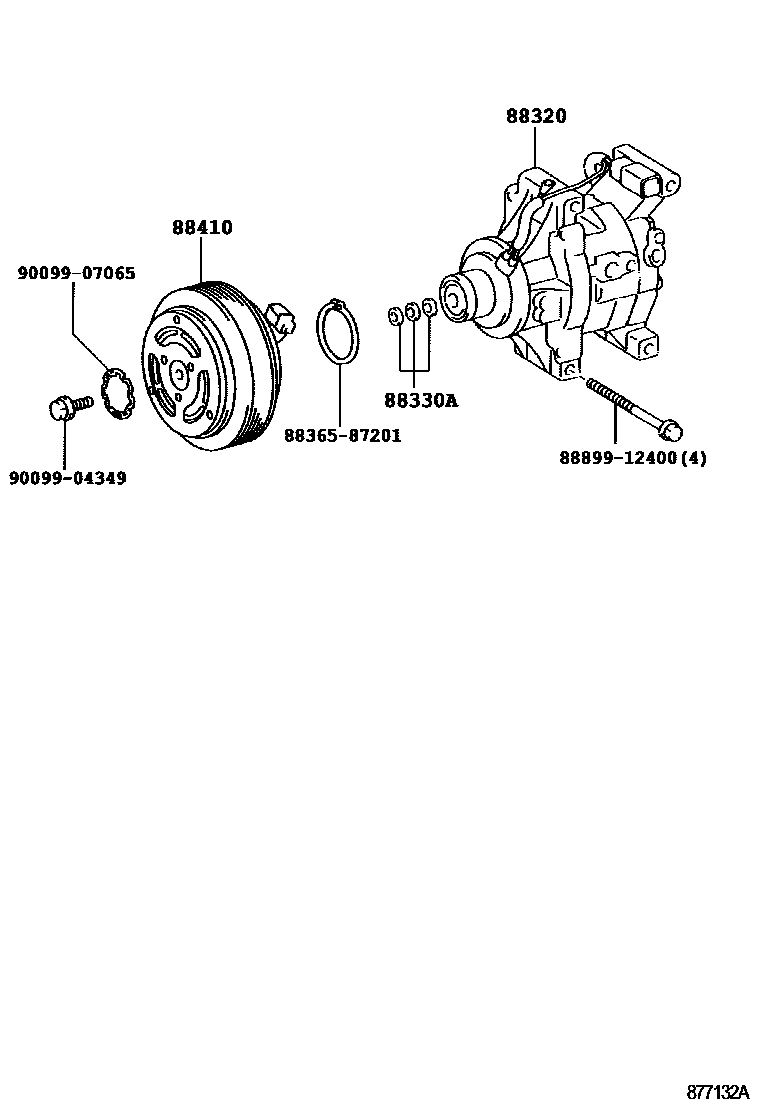

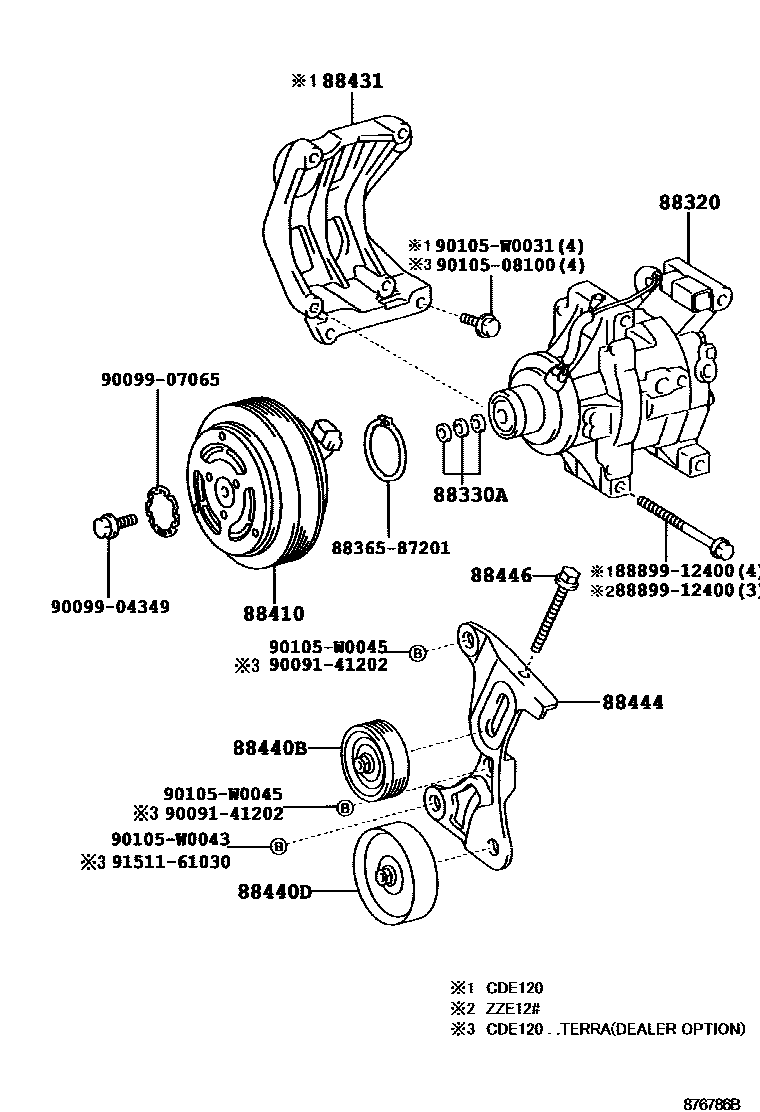

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-13010 · 88412-13020 · 88412-13030 · 88412-1A170 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-1A050 |
| 88320 | Cooler Compressor Assembly | 88320-1A481 · 88320-1A550 · 88320-52420 |
| 88330A | Washer (for electromagnetic clutch) | 88318-87704 · 88318-87705 · 88318-87706 · 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-1A020 |
| 88410 | Magnetic Clutch Assembly | 88410-13010 · 88410-13020 · 88410-13030 · 88410-1A220 · 88410-1A260 · 88410-1A290 · 88410-1A330 |
| 88431 | Compressor No. 1 mounting bracket | 88431-02070 |
| 88440B | Idler gear assembly | 88440-12230 · 88440-12260 |
| 88440D | No. 2 idler gear assembly | 88440-12250 |
| 88444 | Idler gear bracket | 88444-12060 |
| 88446 | Idler gear bolt | 88446-12030 |
