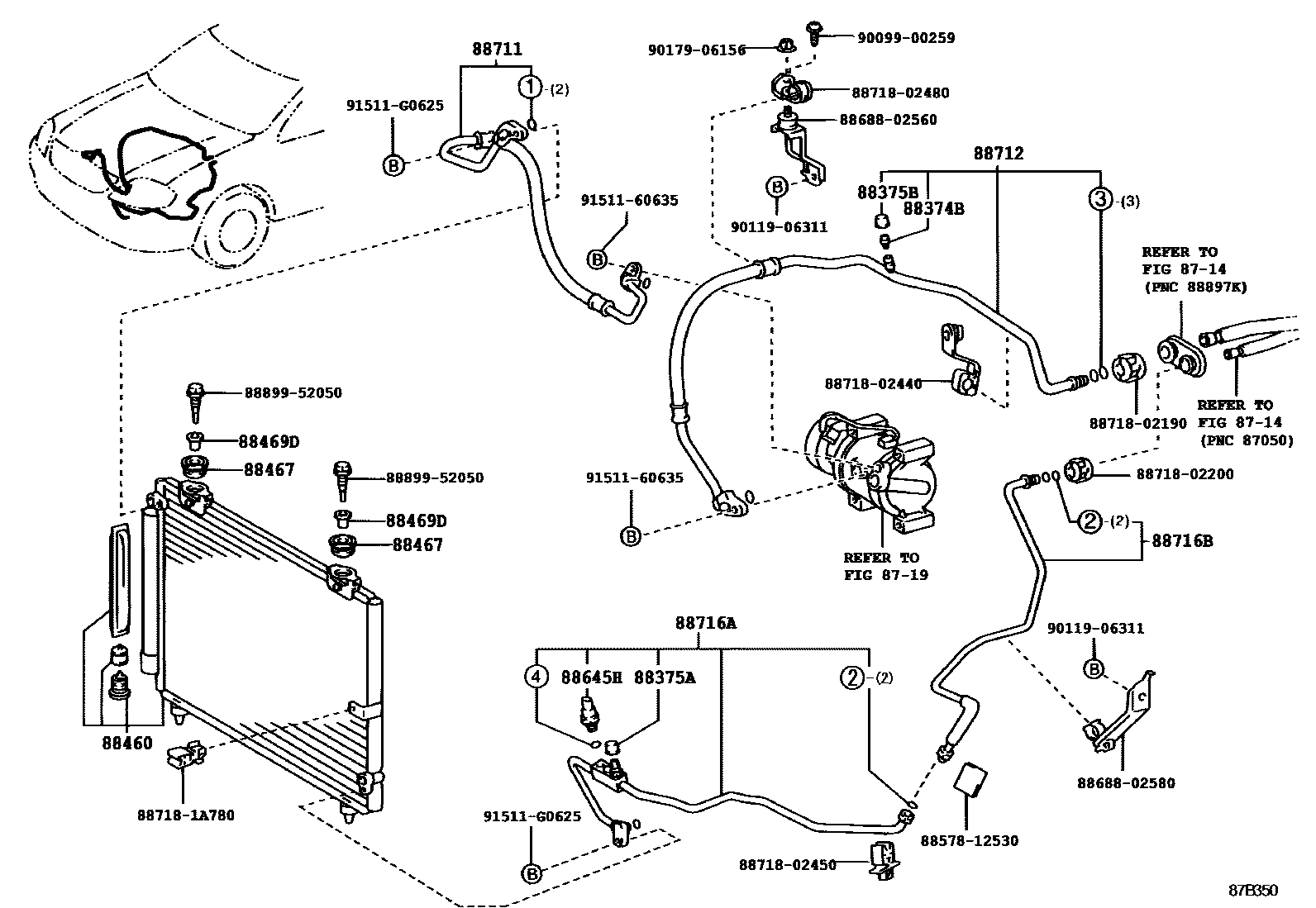

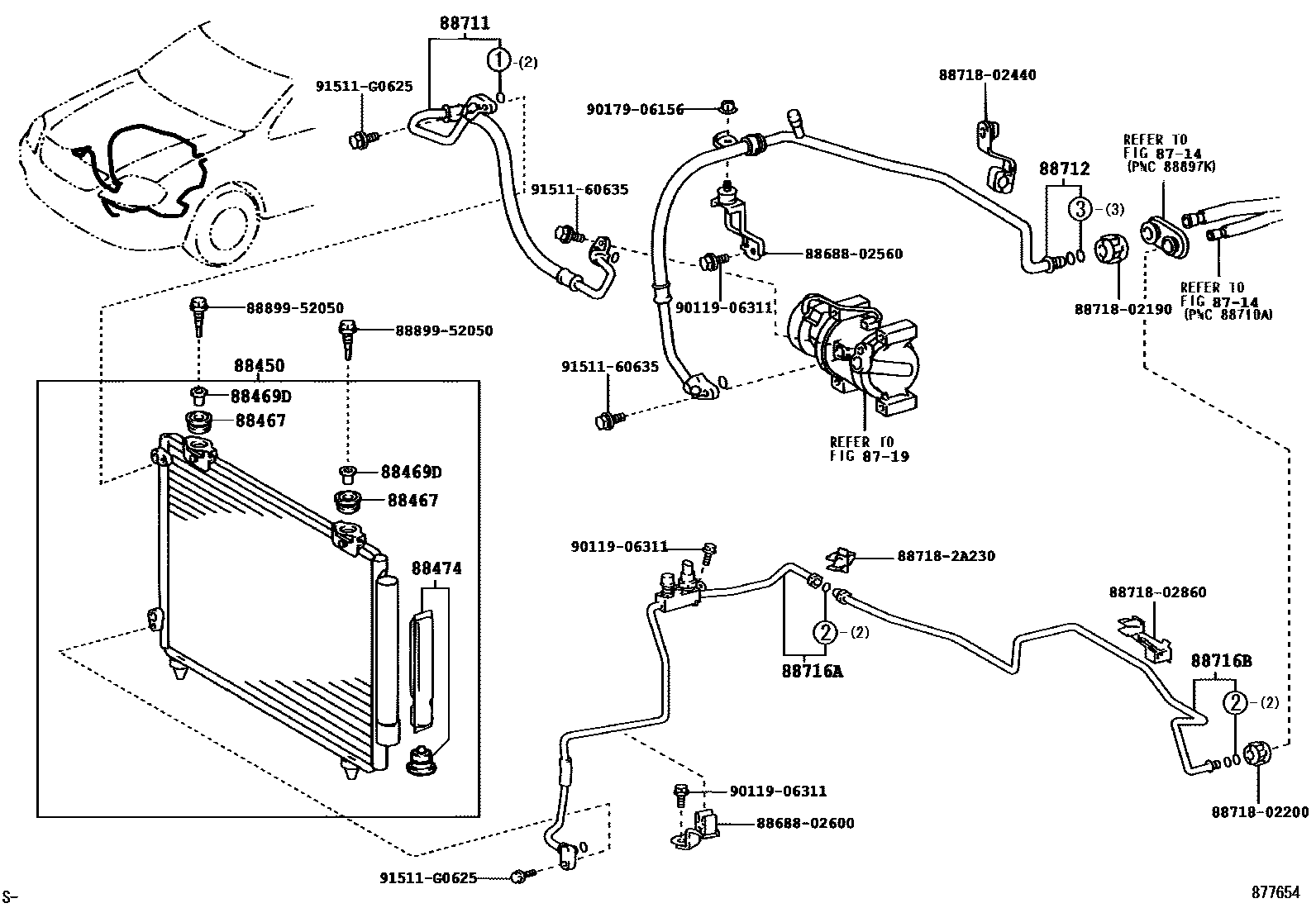

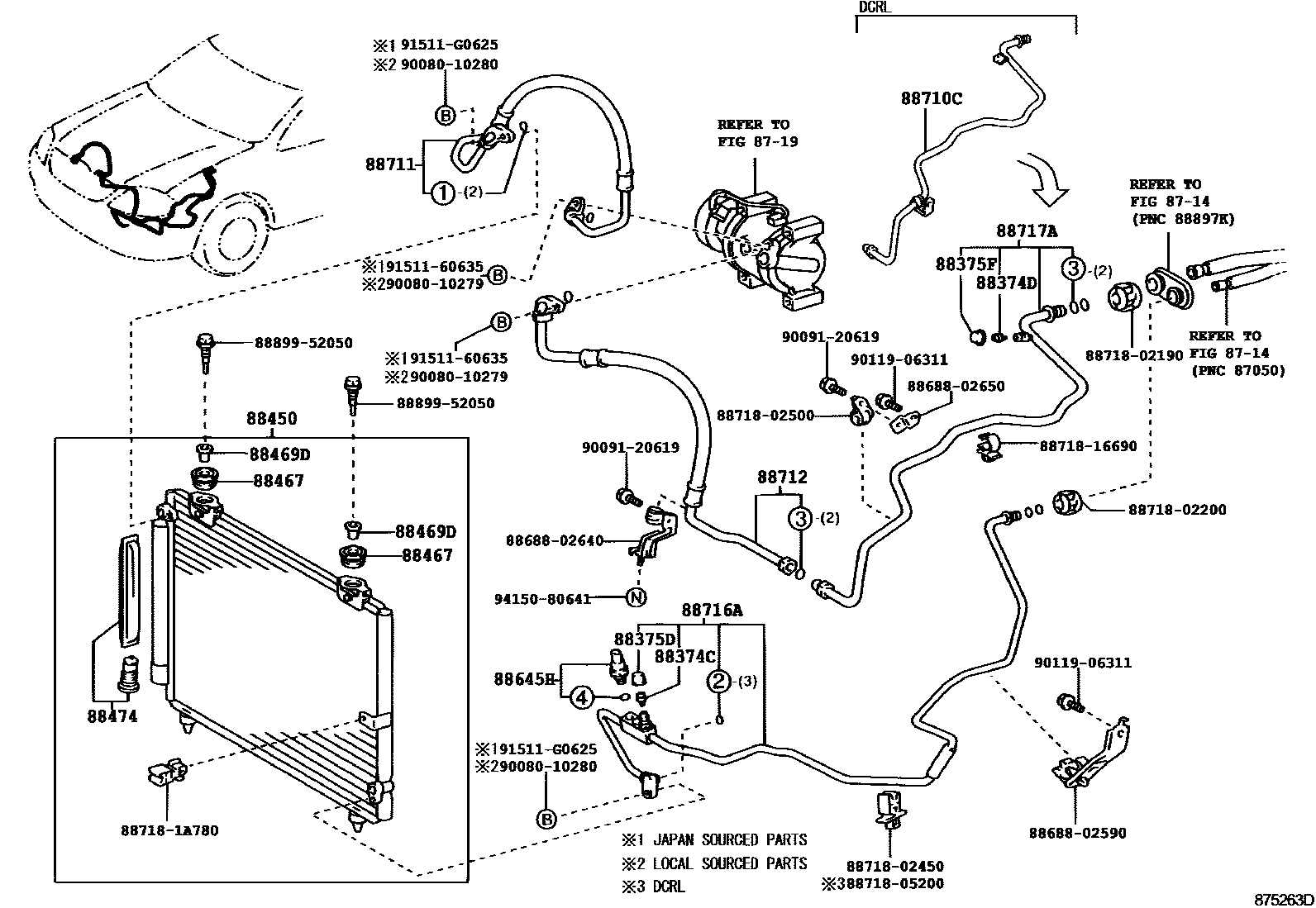

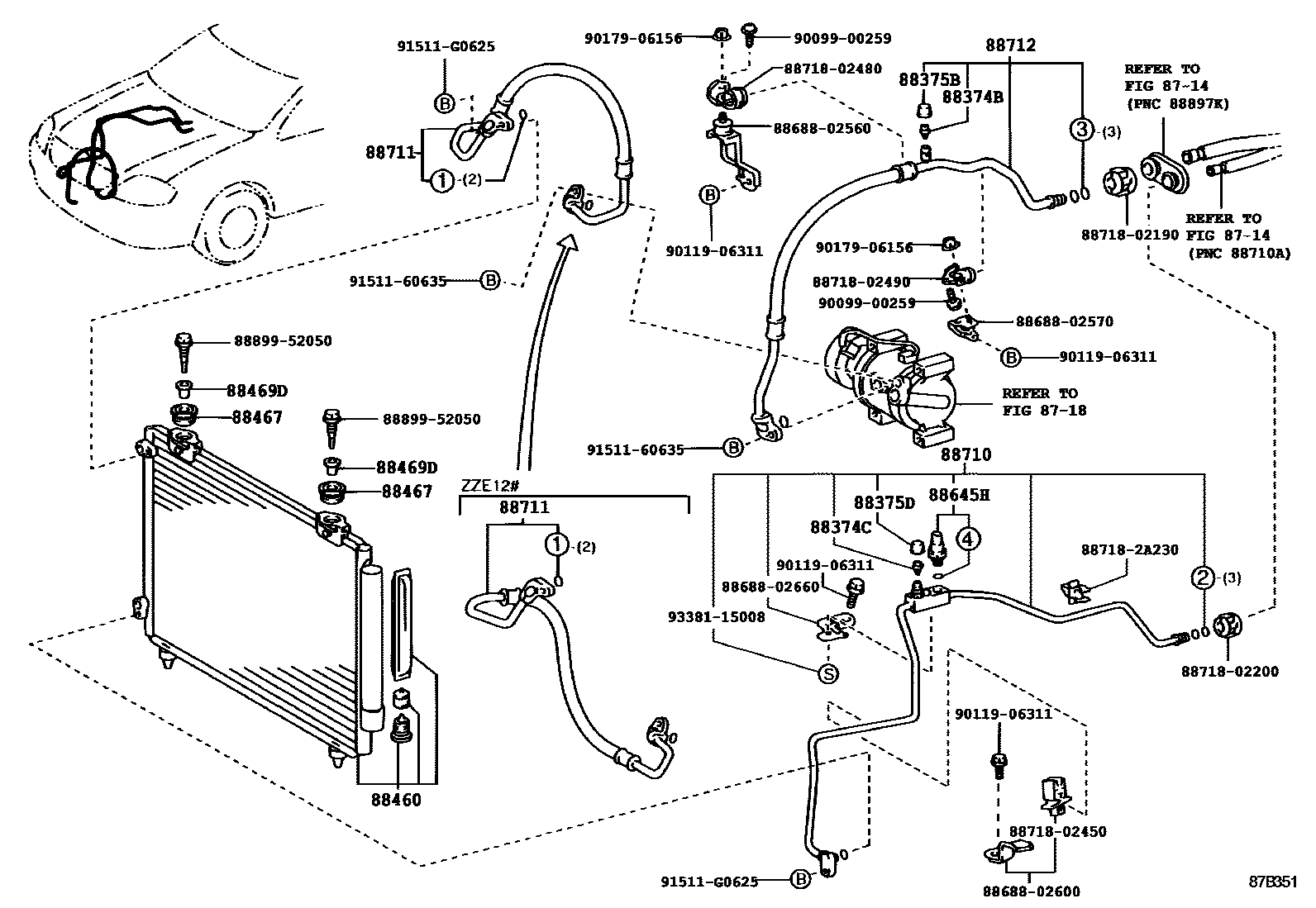

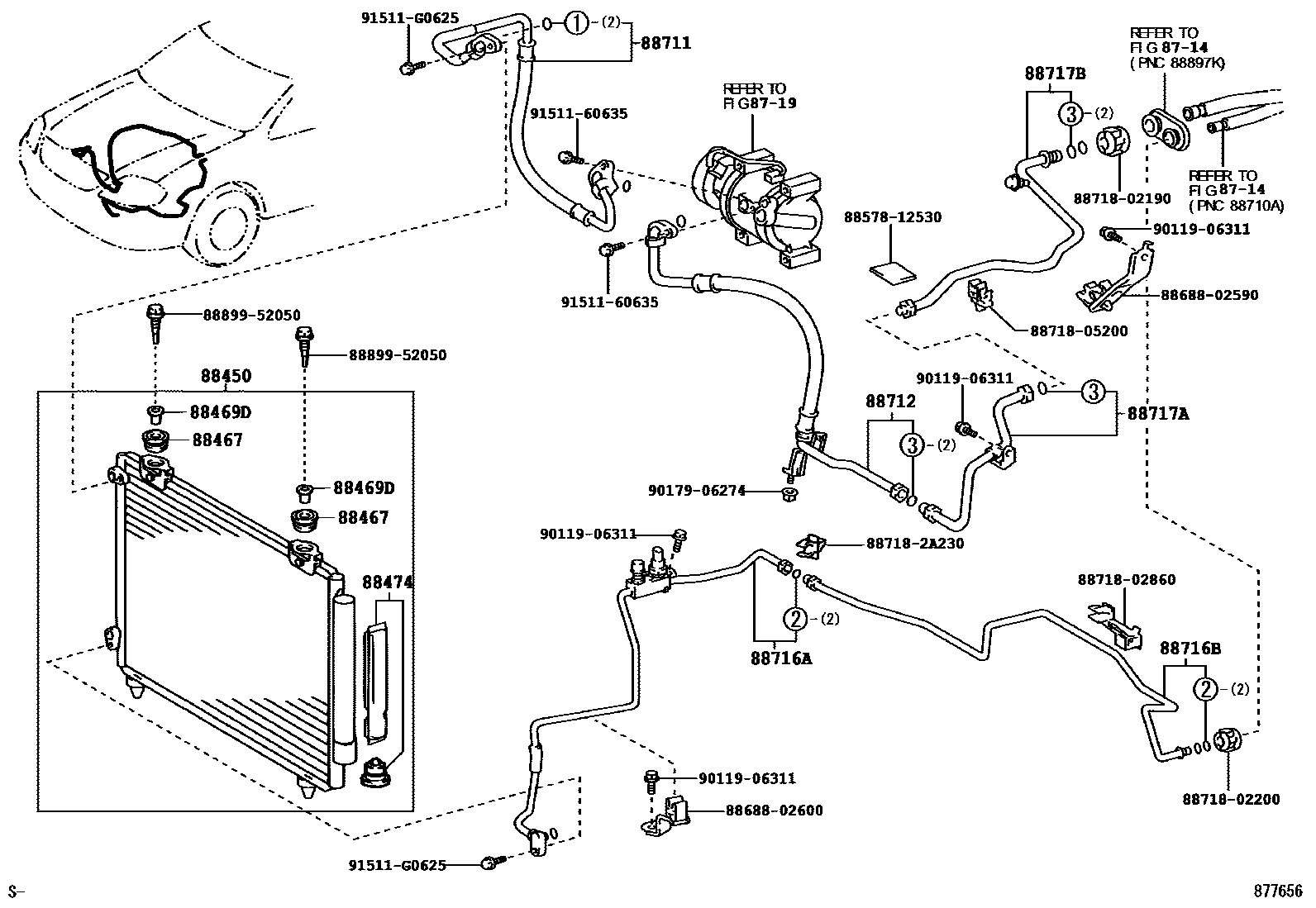

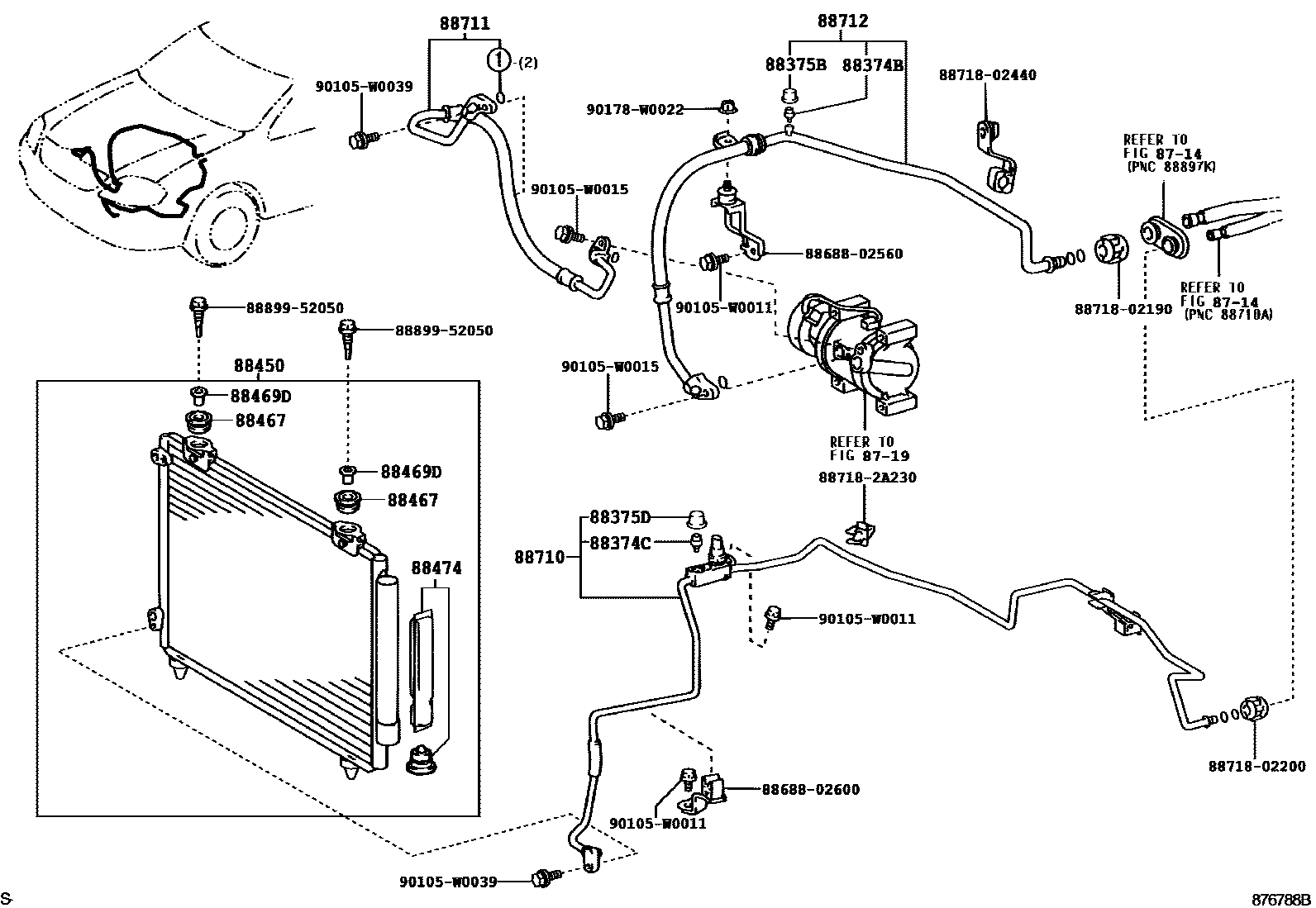

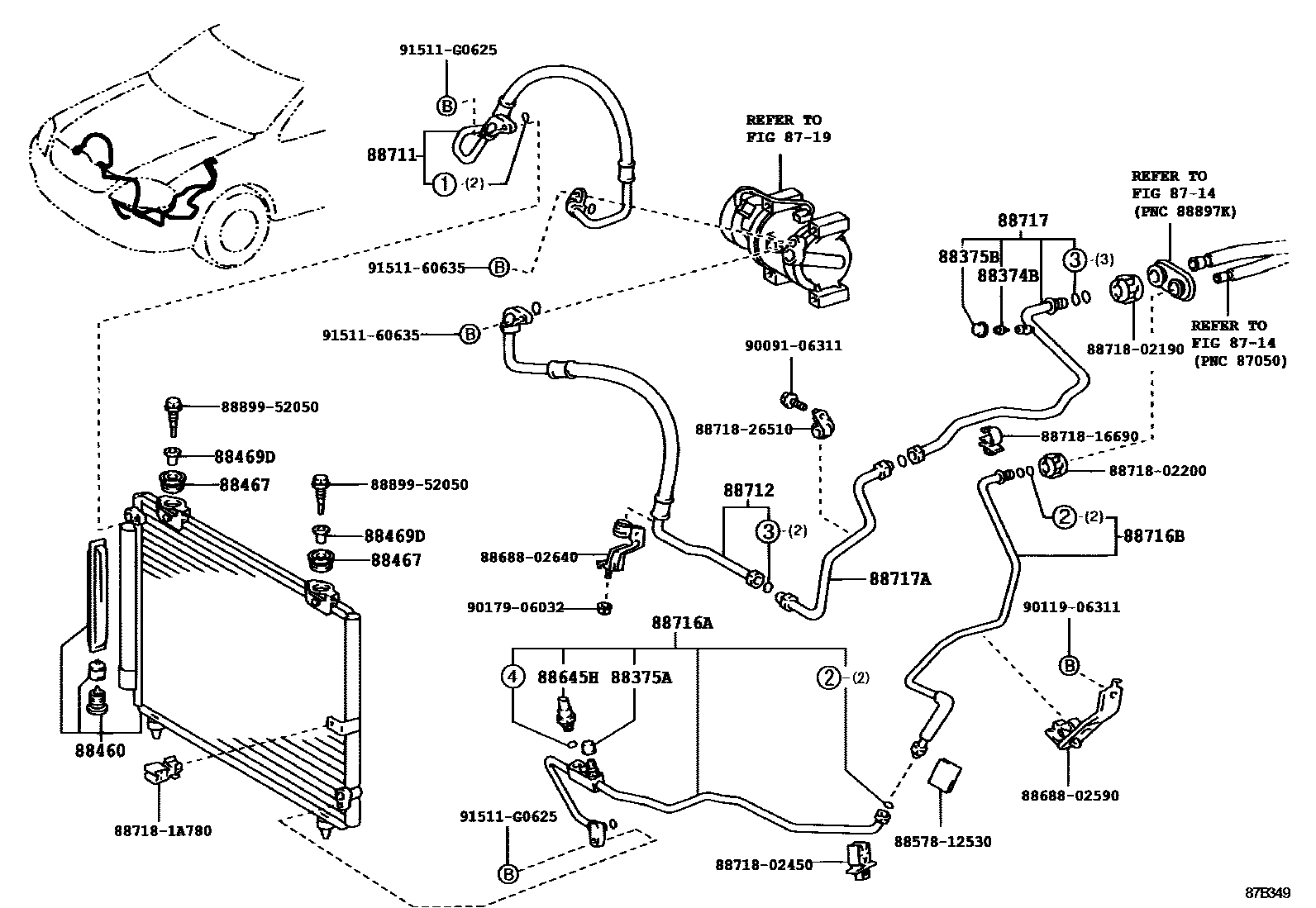

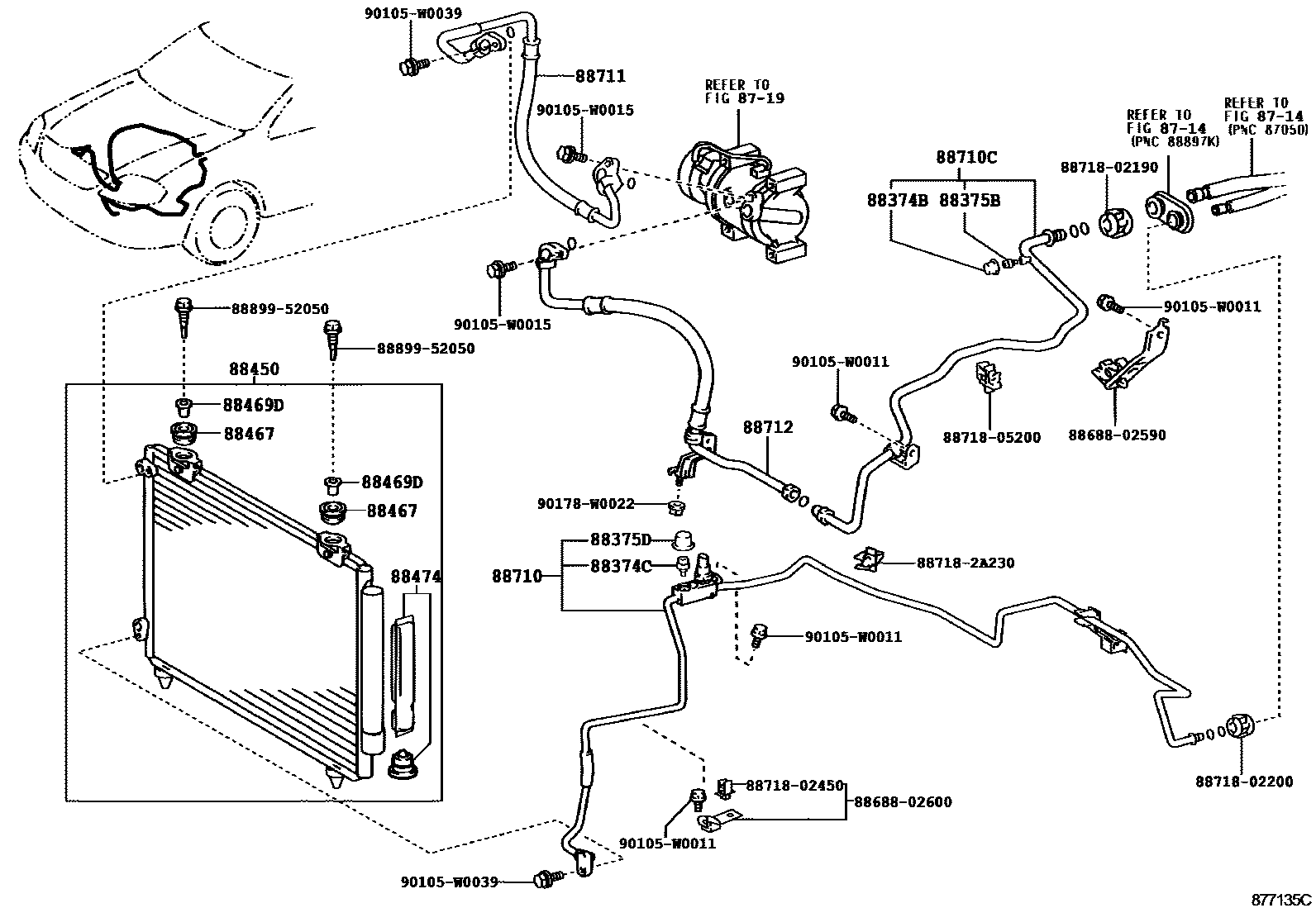

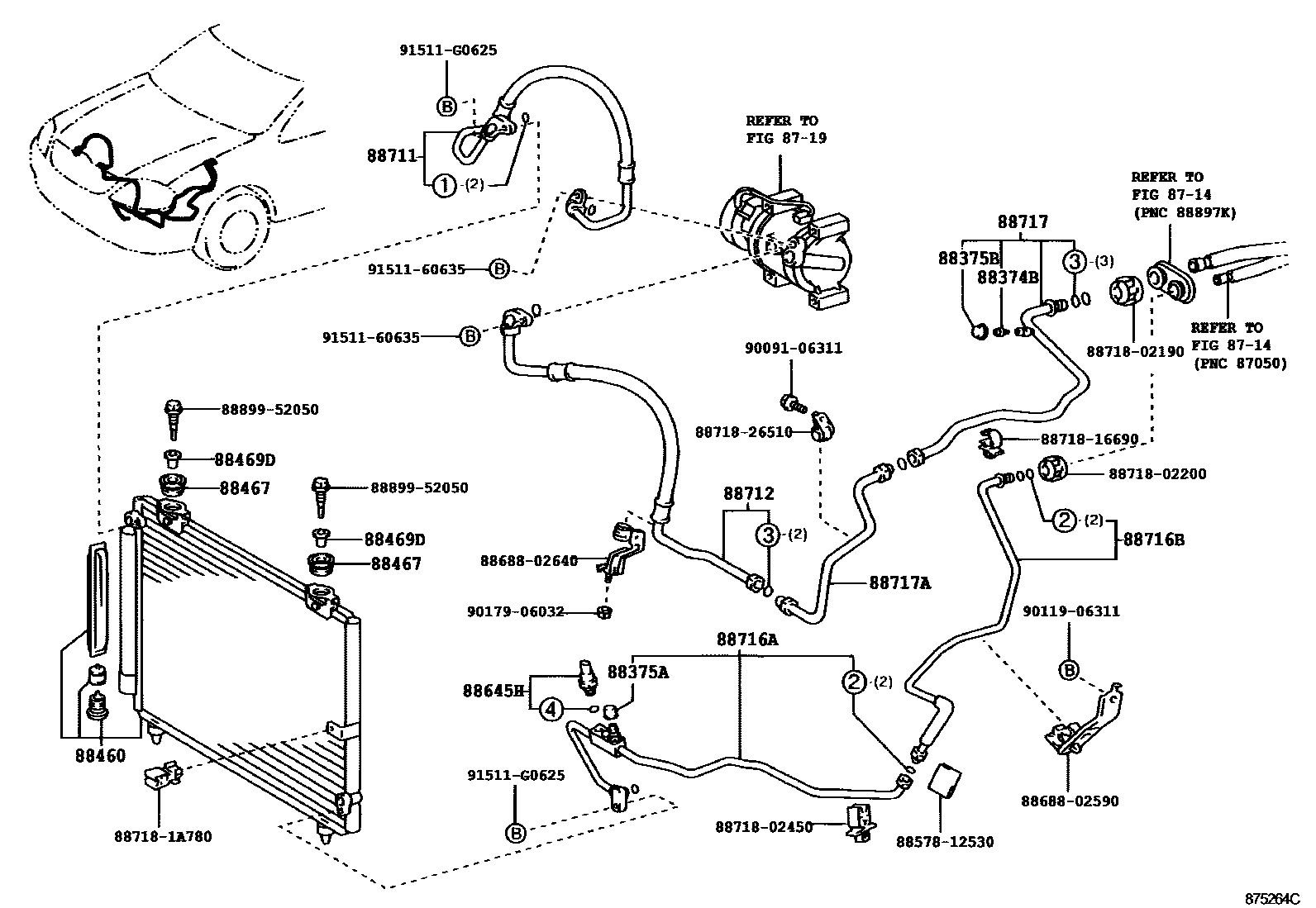

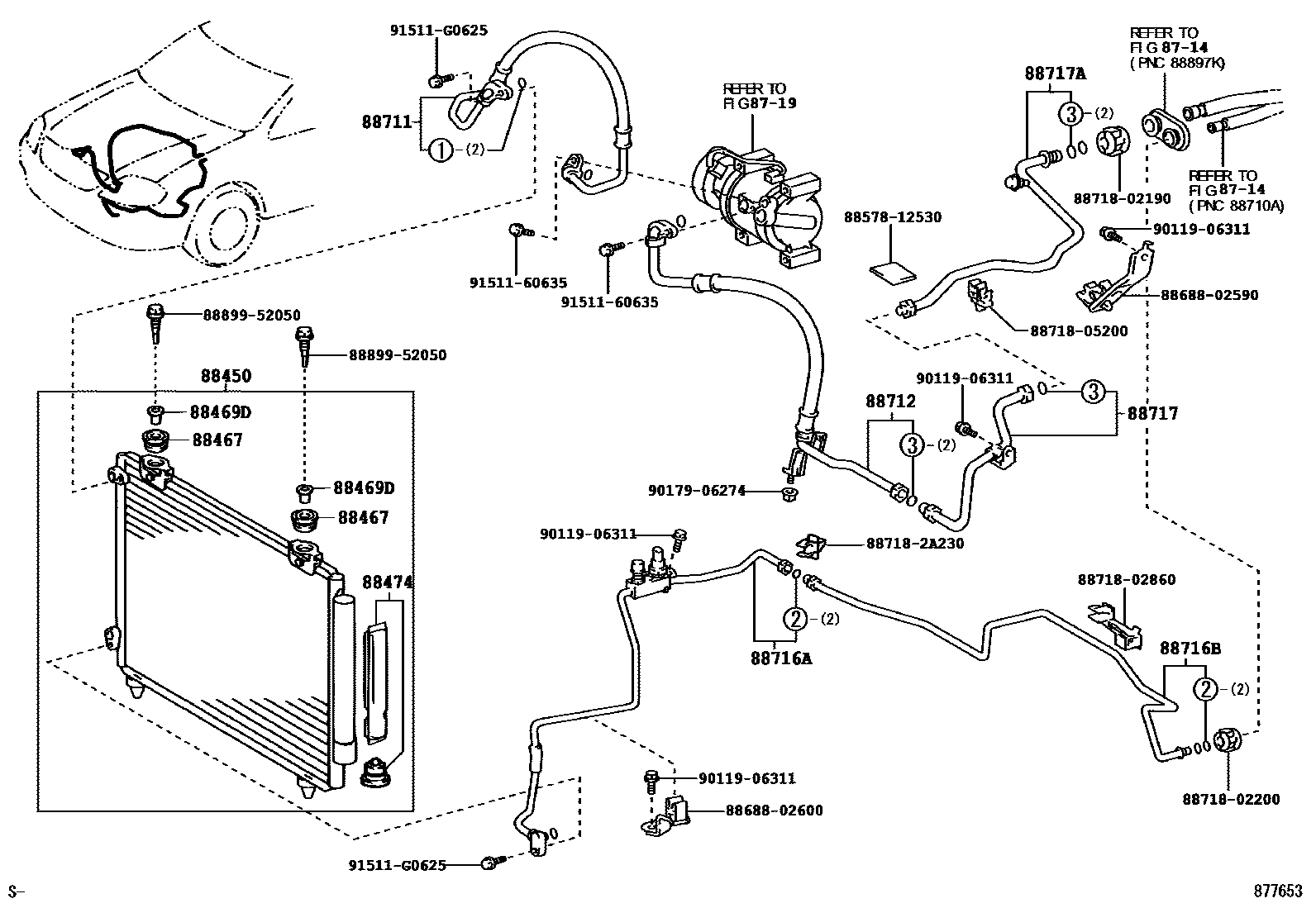

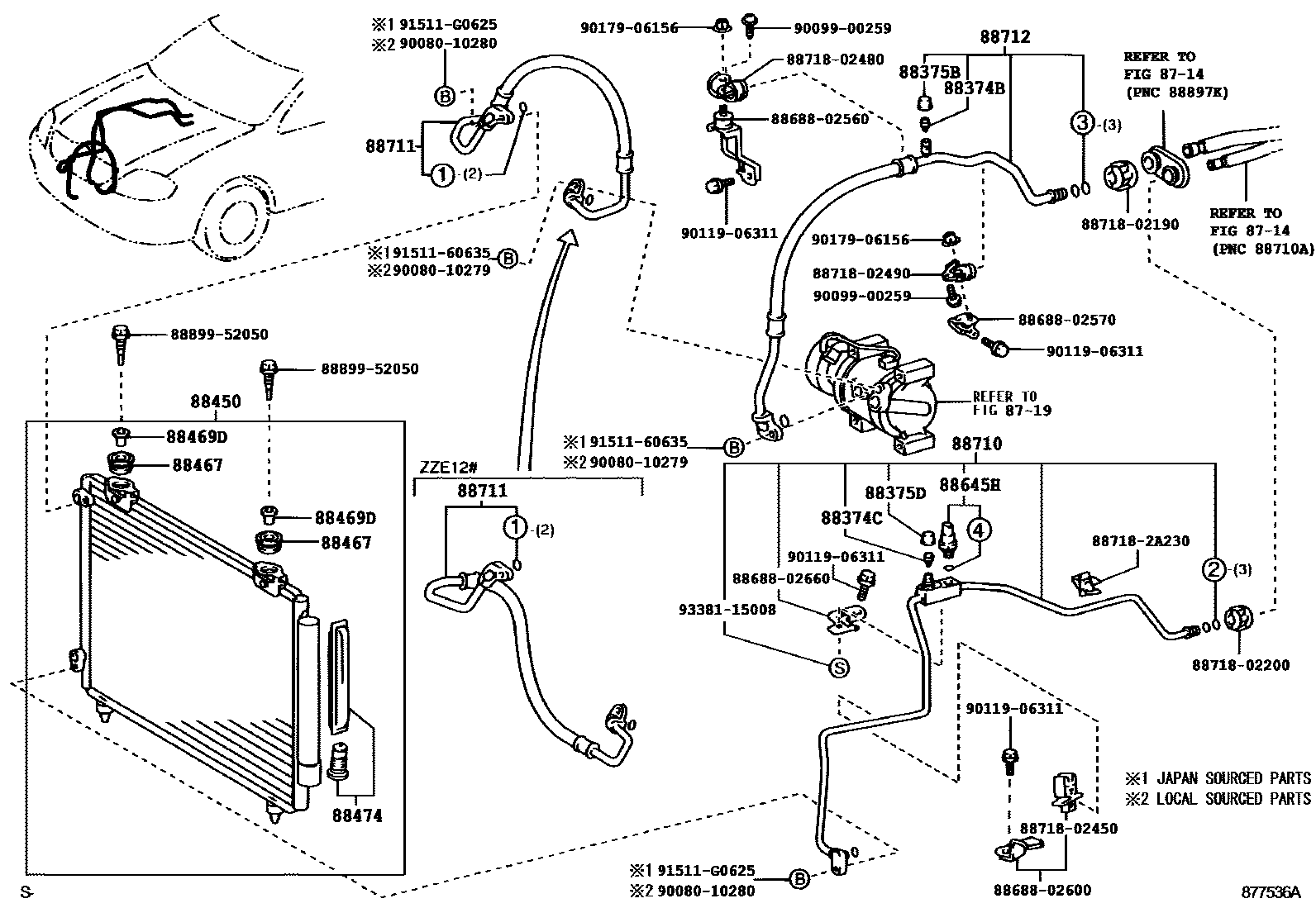

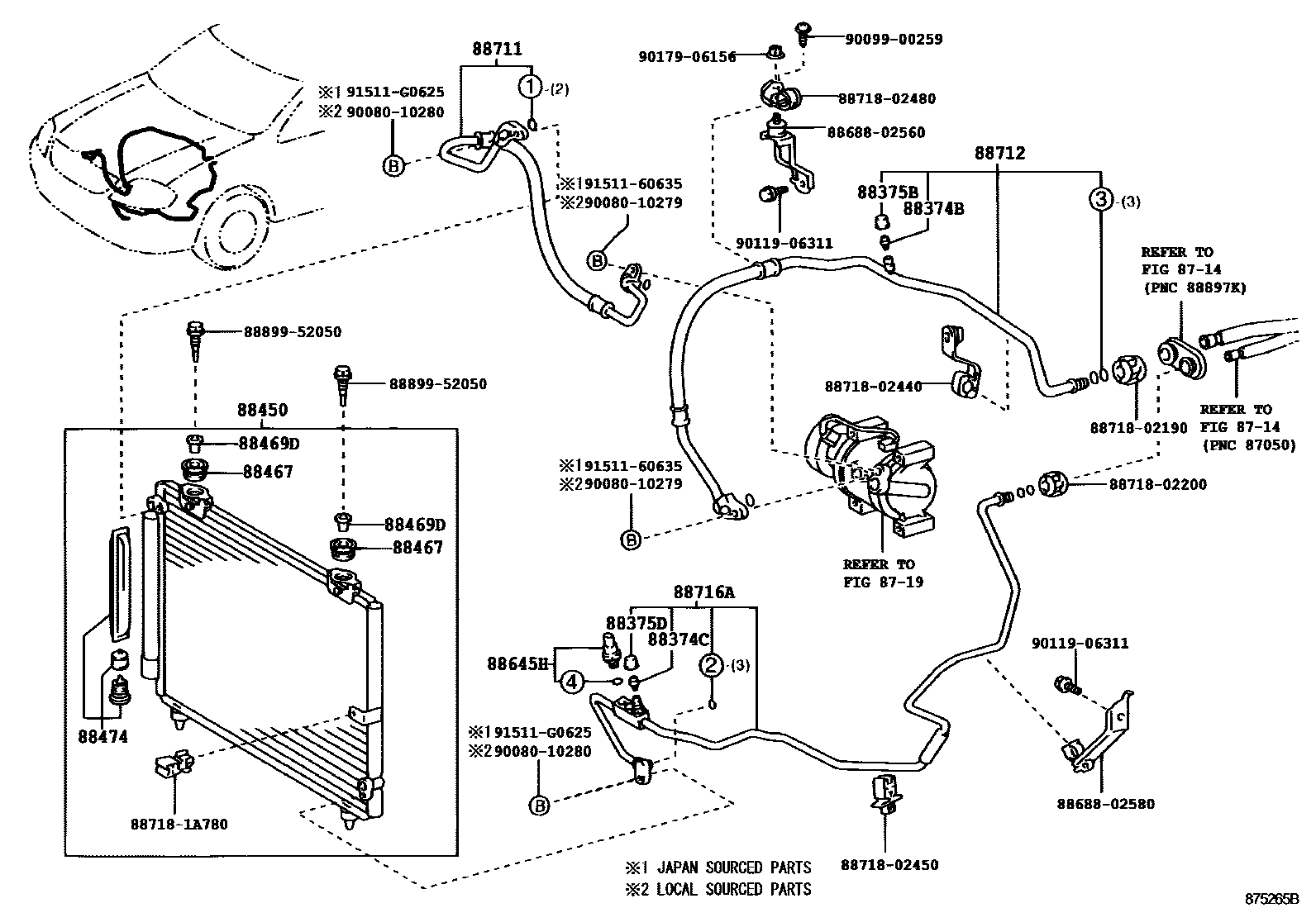

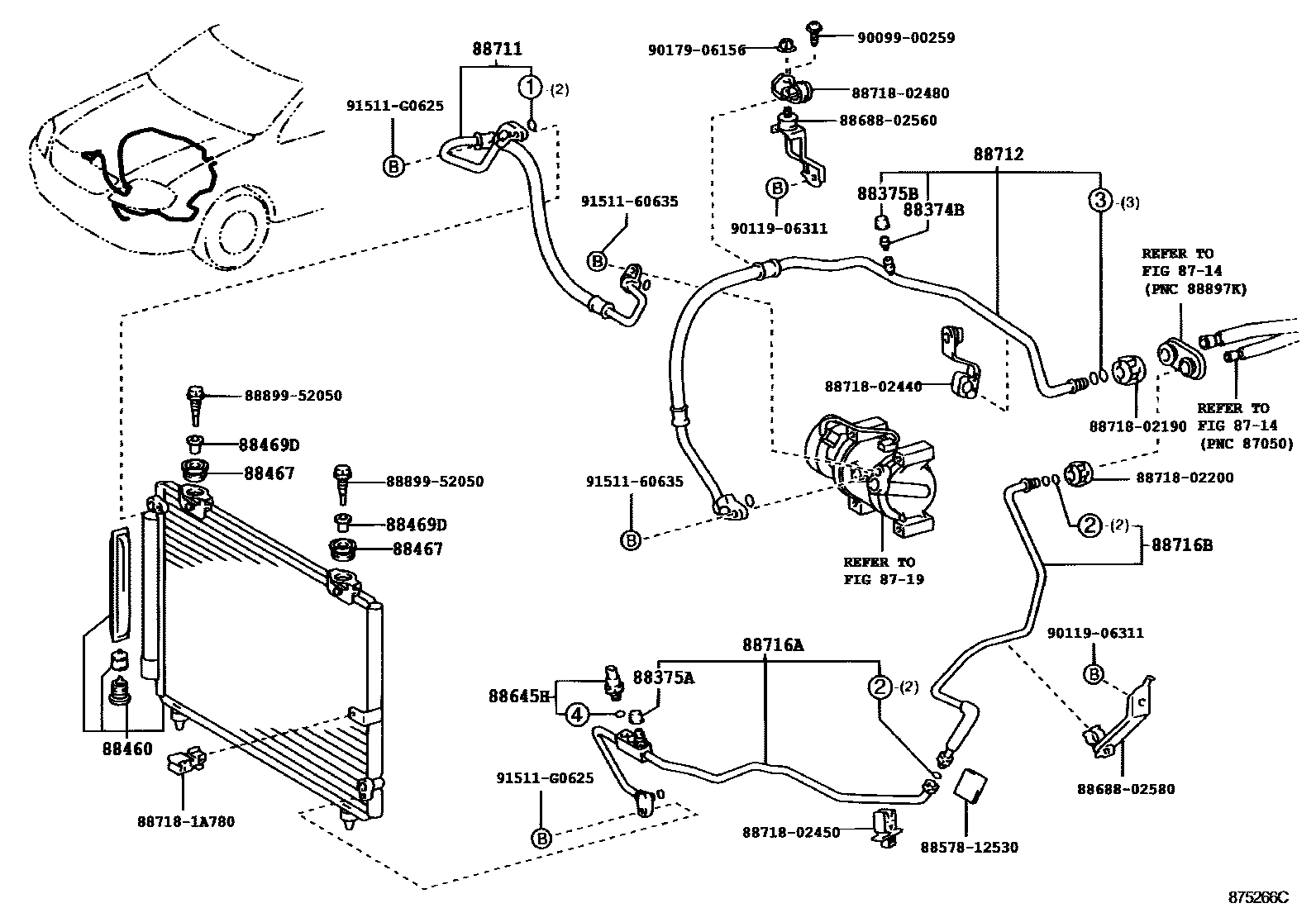

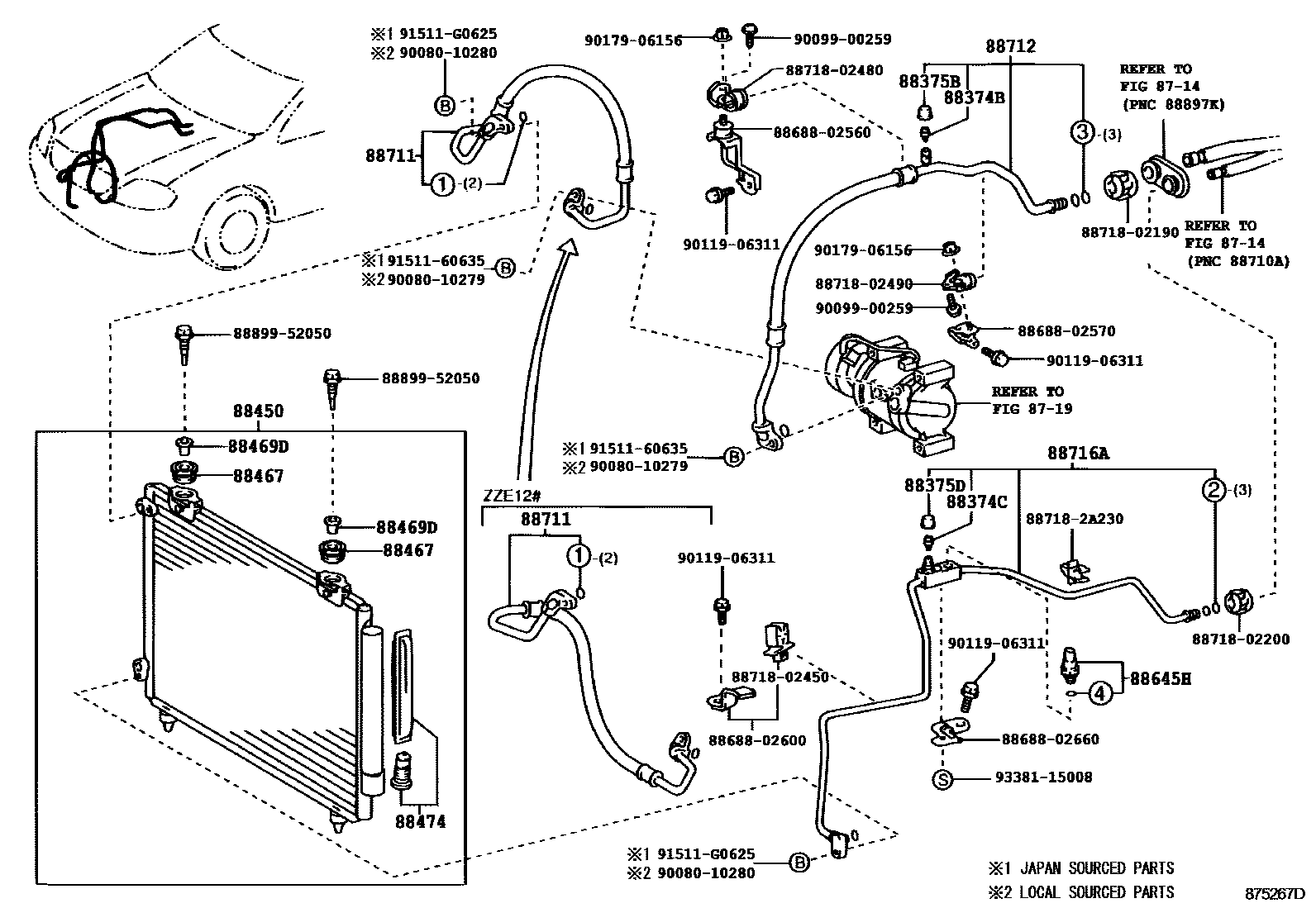

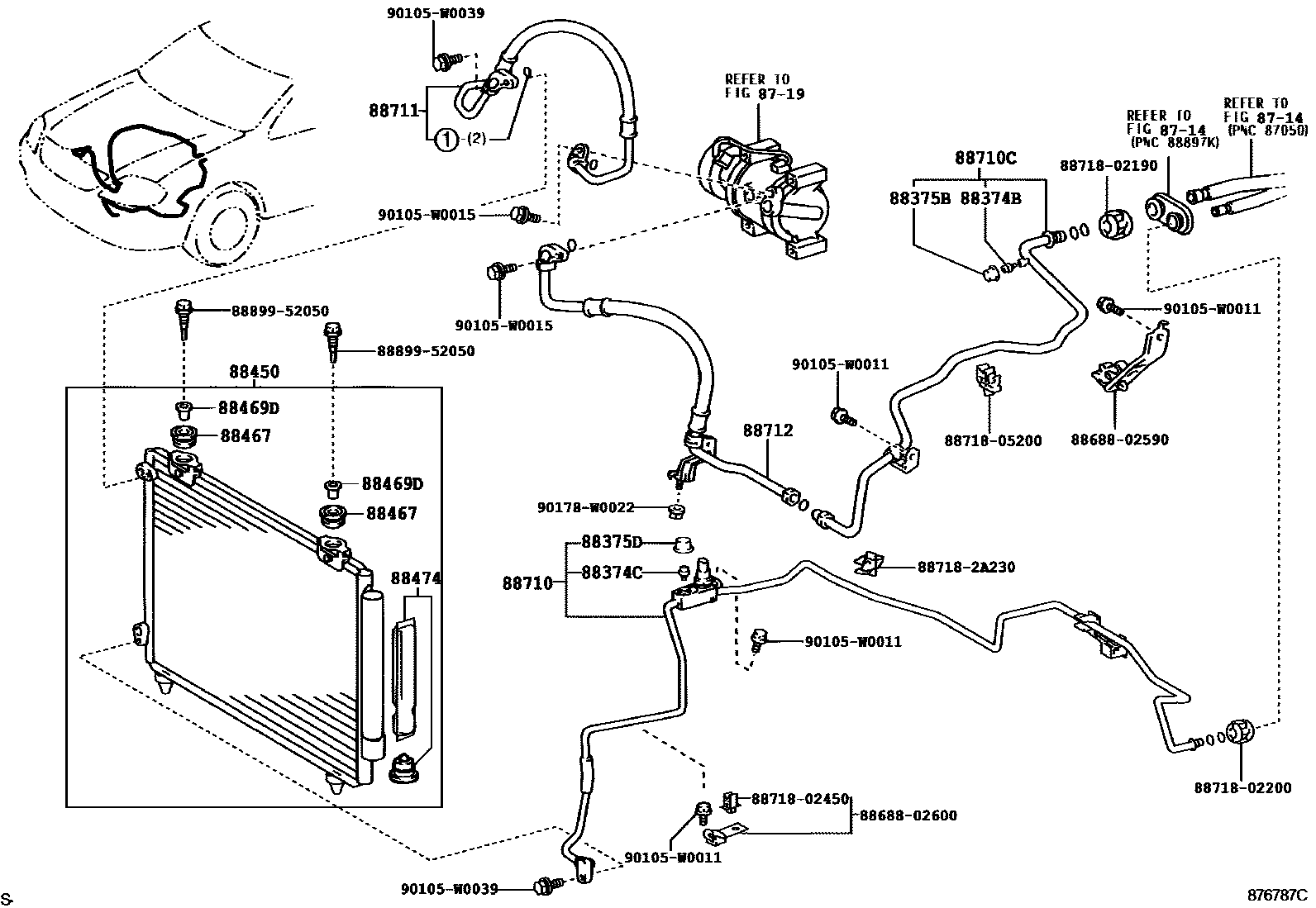

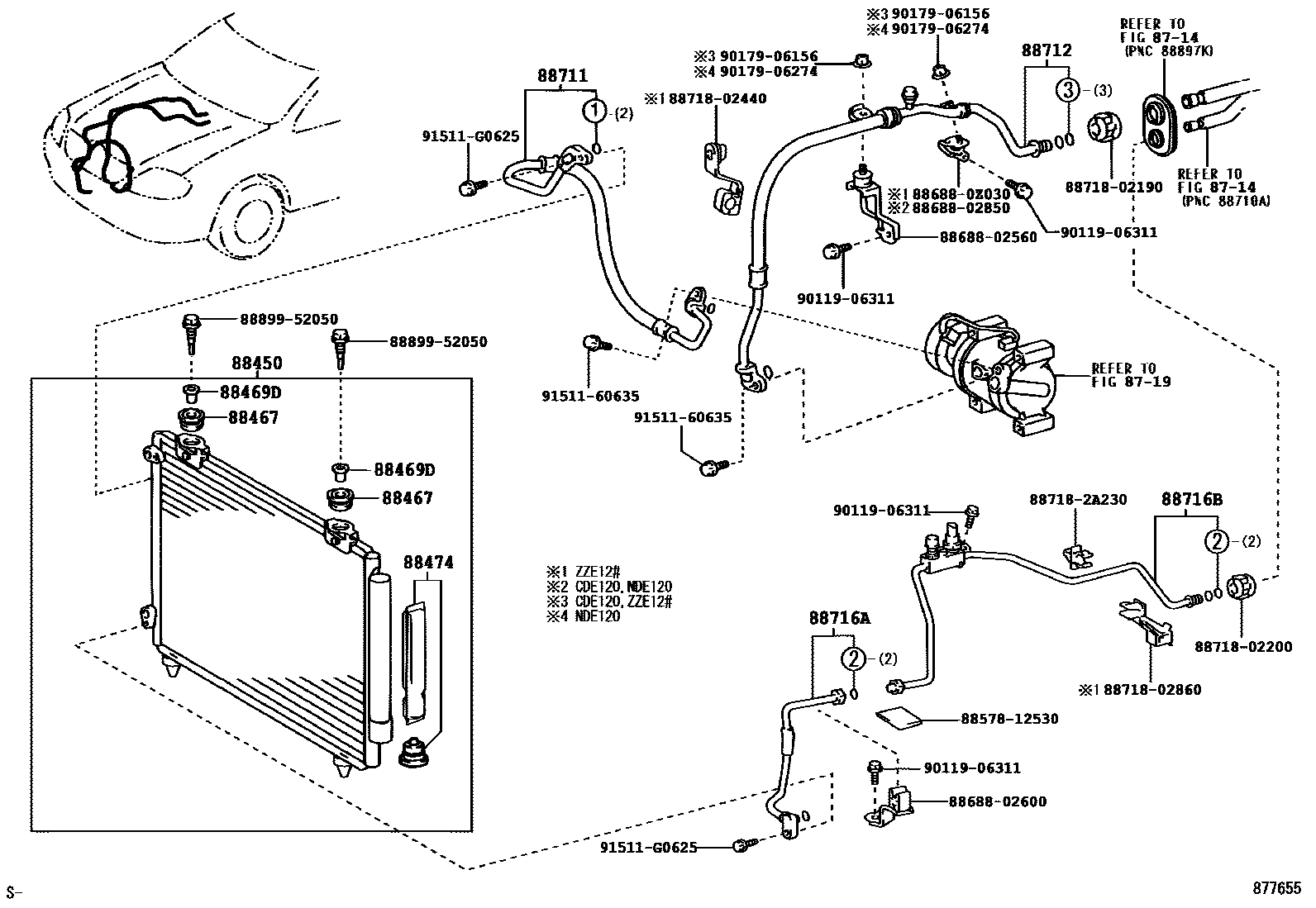

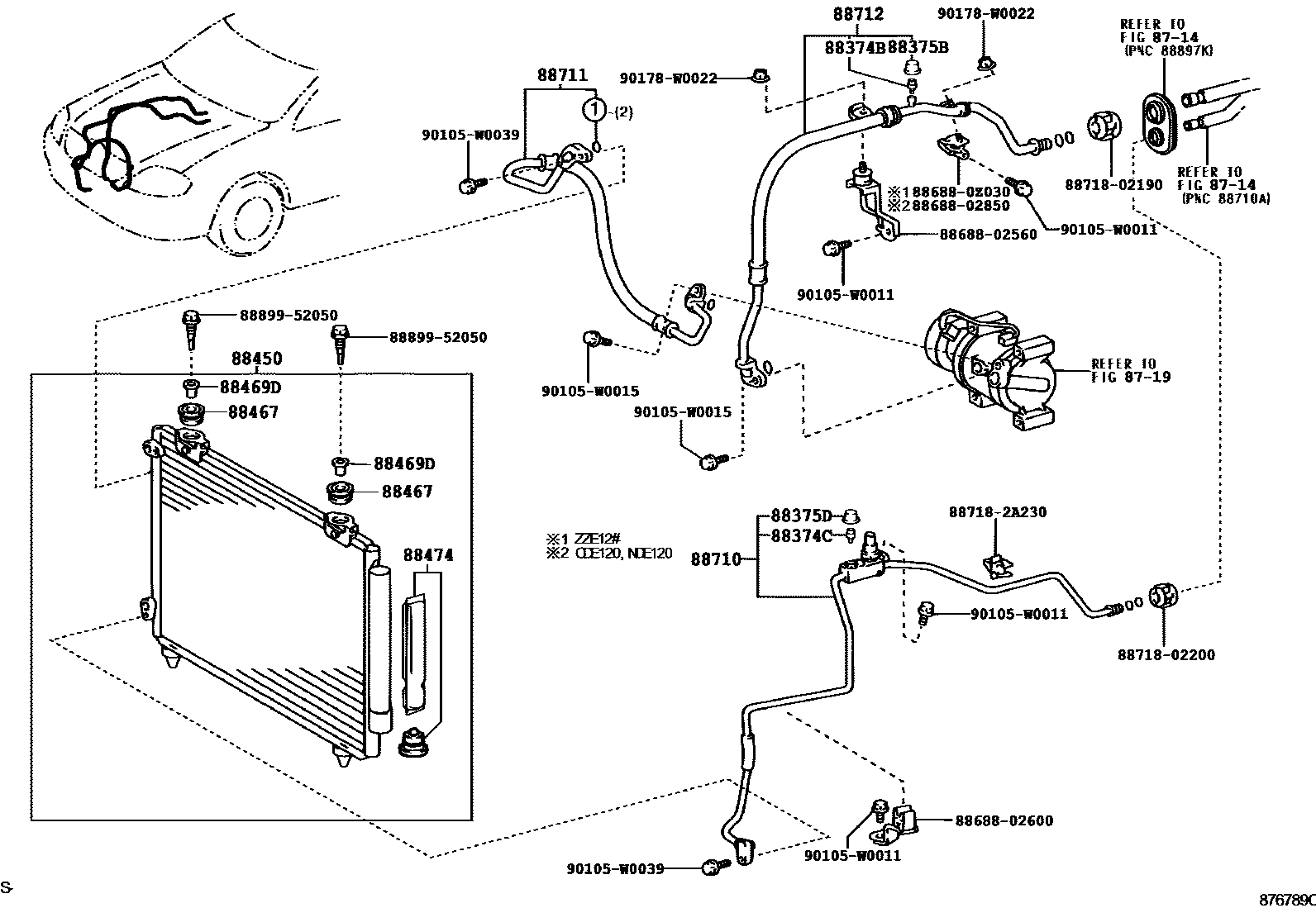

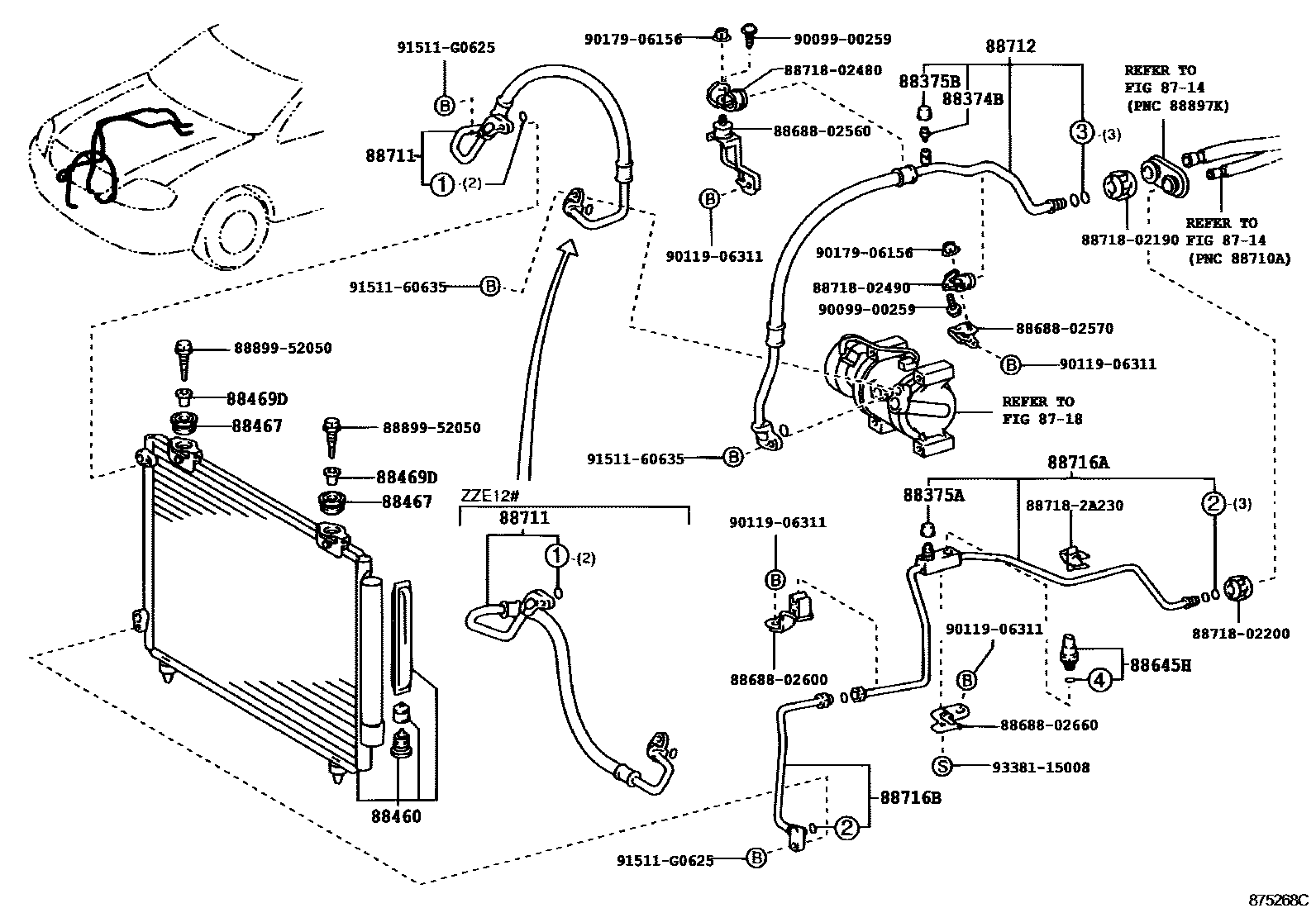

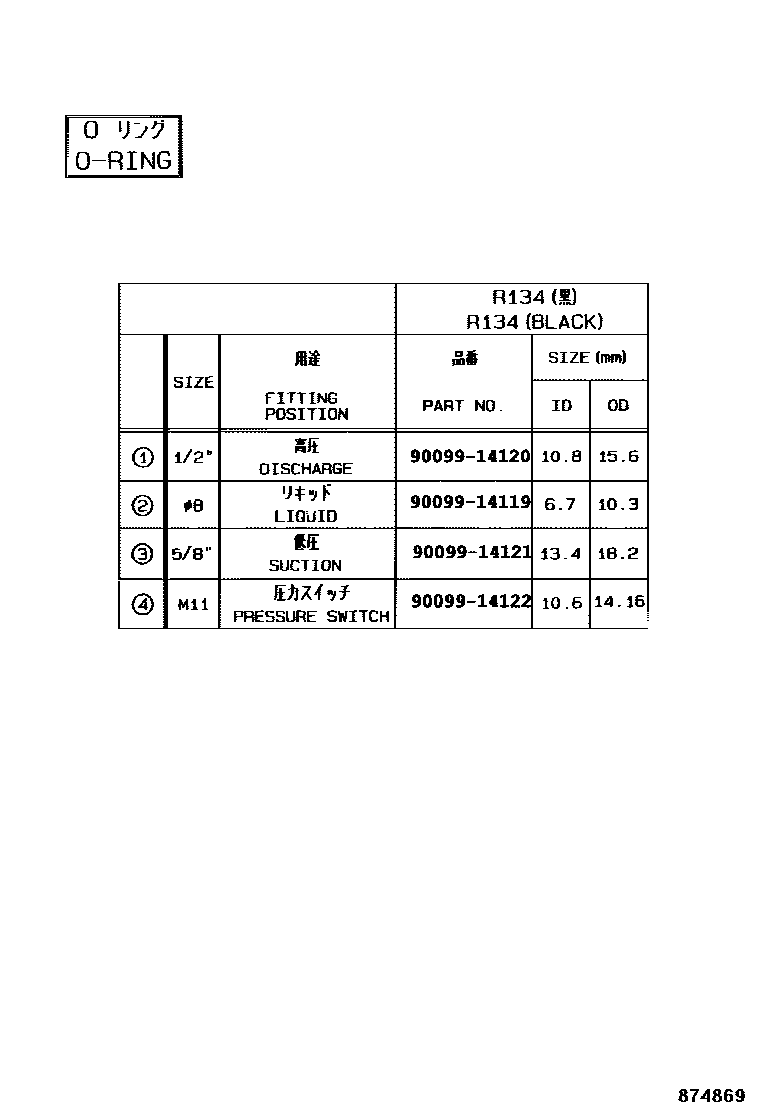

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 19 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88374D | No. 3 maintenance valve | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88375F | No. 3 maintenance valve cover | 88375-30290 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02140 · 88450-02150 · 88450-02240 |
| 88460 | Air conditioning condenser assembly | 88460-02100 · 88460-02110 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88710 | Air conditioning pipe assembly | 88710-02480 · 88710-02610 · 88710-02620 |
| 88710C | Air conditioning pipe assembly | 88710-02540 · 88710-02630 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-02090 · 88703-02100 · 88703-02170 · 88703-02180 · 88703-02190 · 88703-02240 · 88703-02250 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-02360 · 88704-02390 · 88704-02400 · 88704-02420 · 88704-02531 · 88704-02561 · 88712-02180 · 88712-02190 · 88712-02200 · 88712-02210 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02580 · 88710-02600 · 88710-02730 · 88716-02280 · 88716-02300 · 88716-02330 · 88716-02370 · 88716-02470 · 88716-02480 · 88716-02710 |
| 88716B | Cooler refrigerant liquid pipe B | 88710-02760 · 88716-02310 · 88716-02340 · 88716-02500 · 88716-02680 · 88716-05500 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88707-05040 · 88717-02140 |
| 88717A | Cooler refrigerant suction pipe A | 88710-02740 · 88717-02130 · 88717-02170 · 88717-05230 |
| 88717B | Cooler refrigerant suction pipe B | 88717-02220 |
