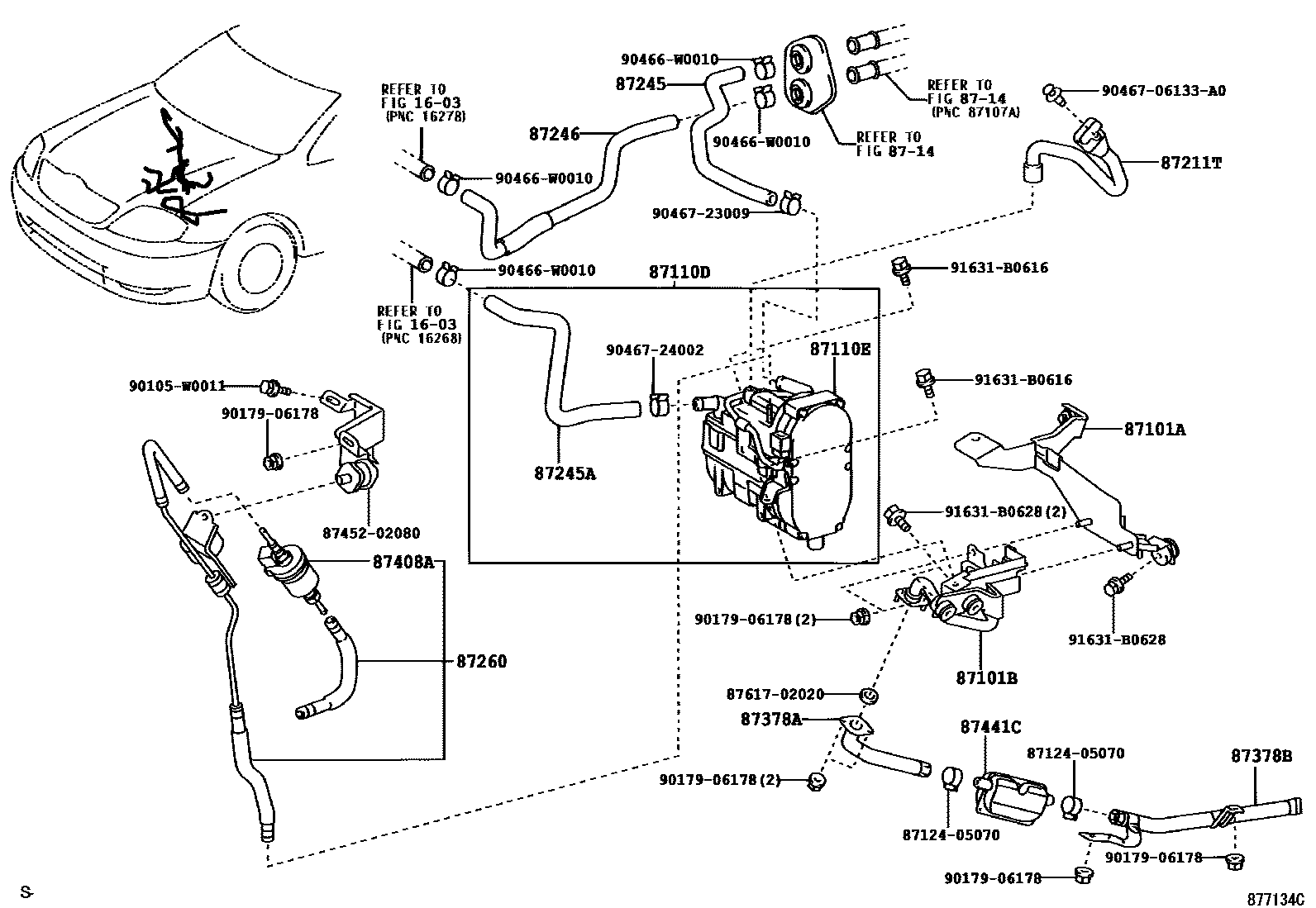

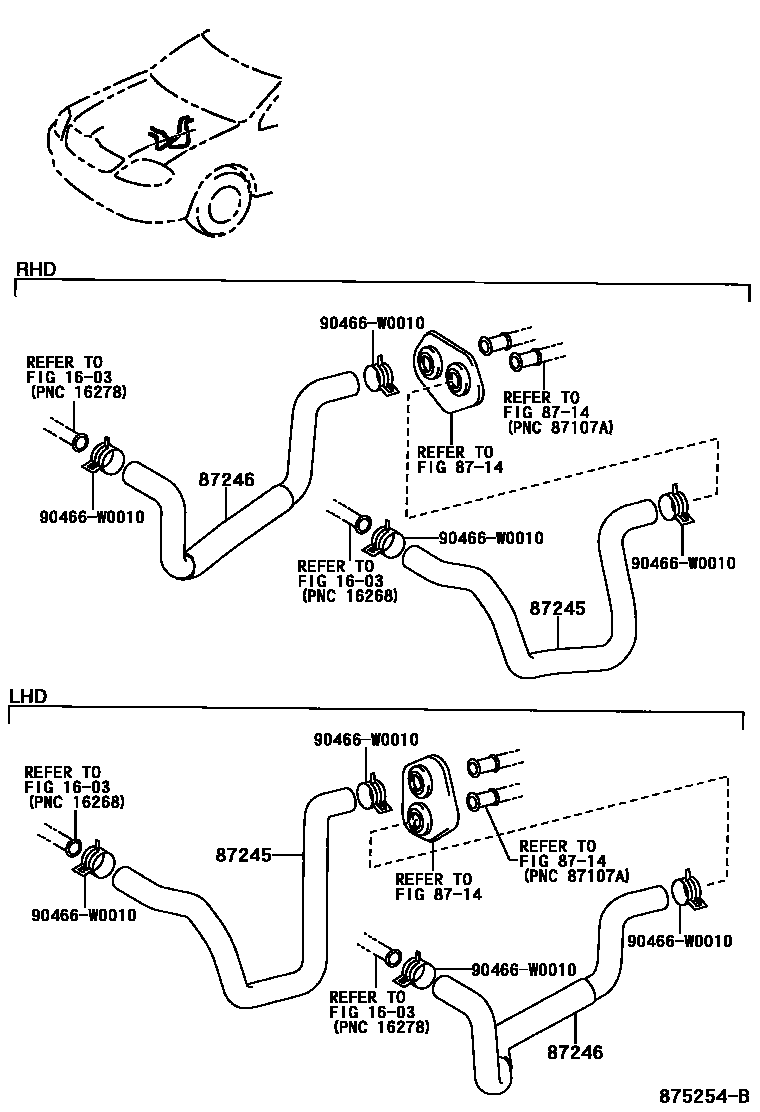

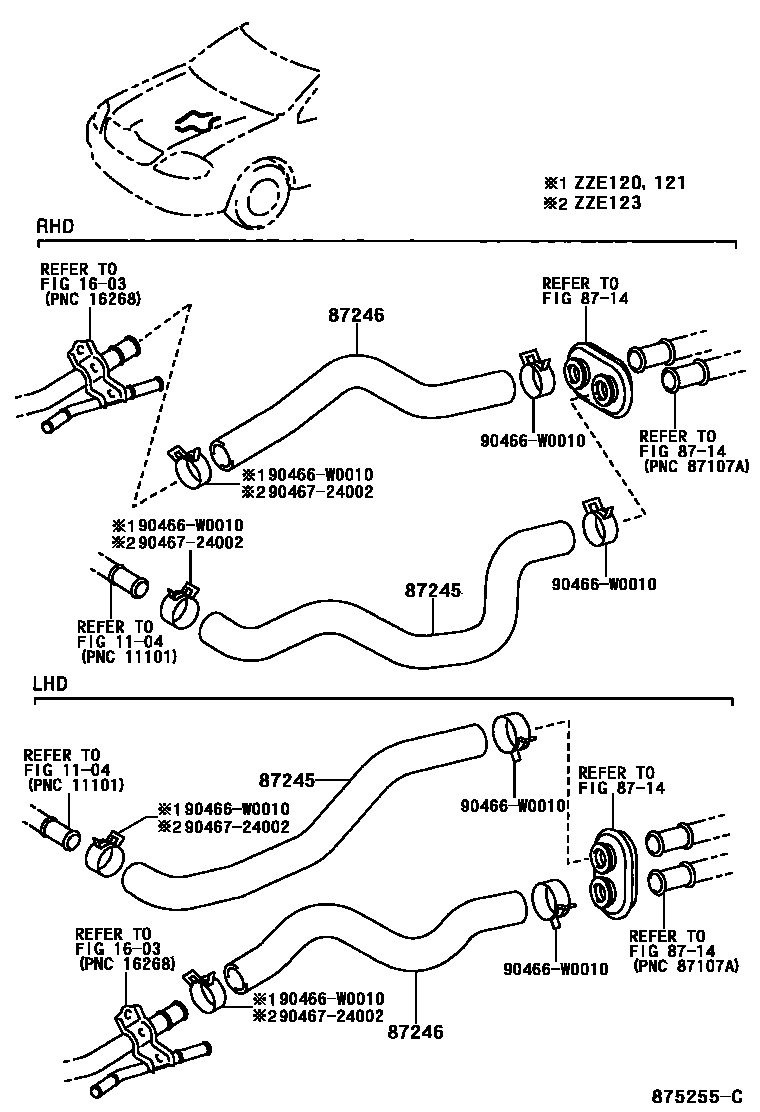

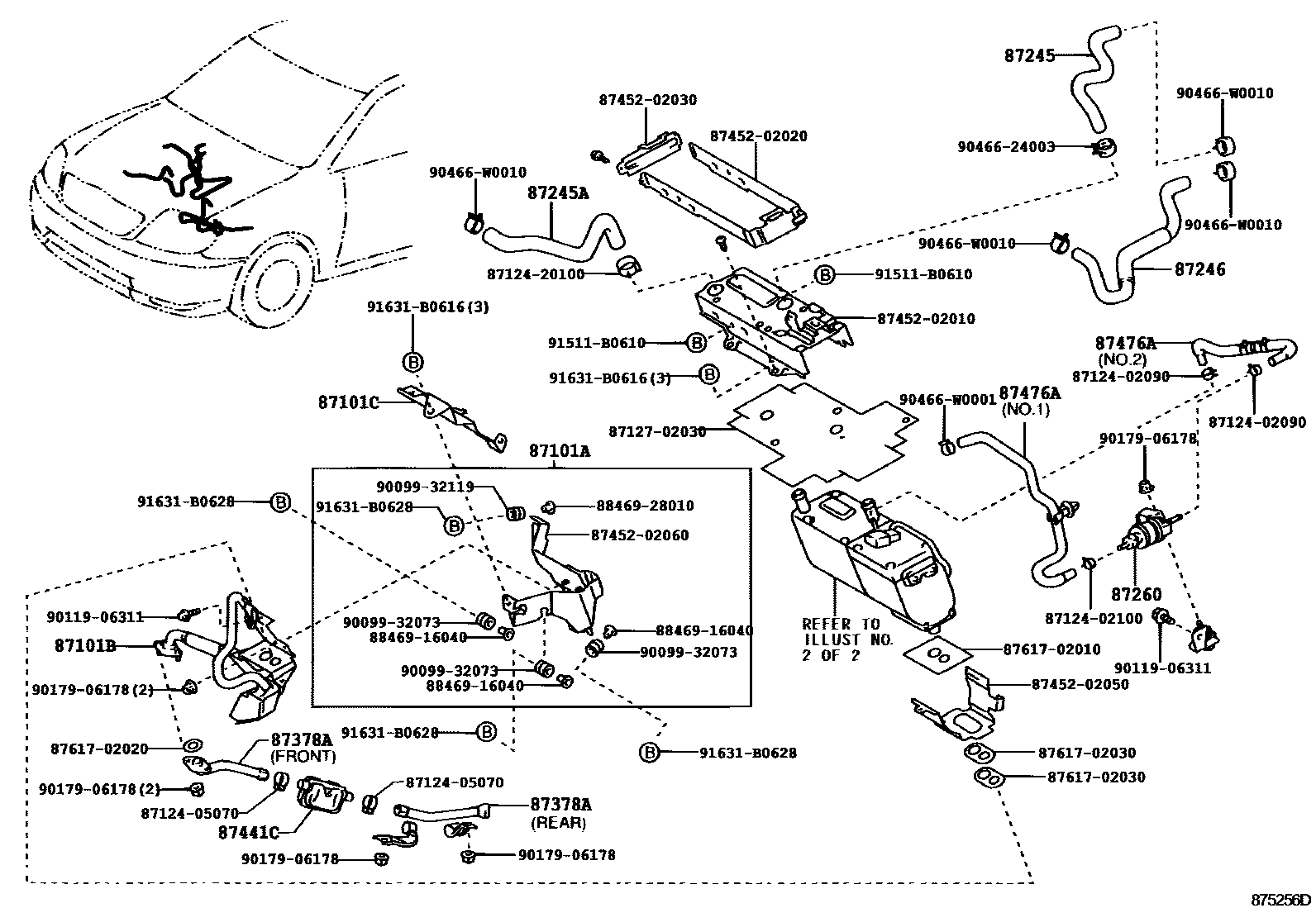

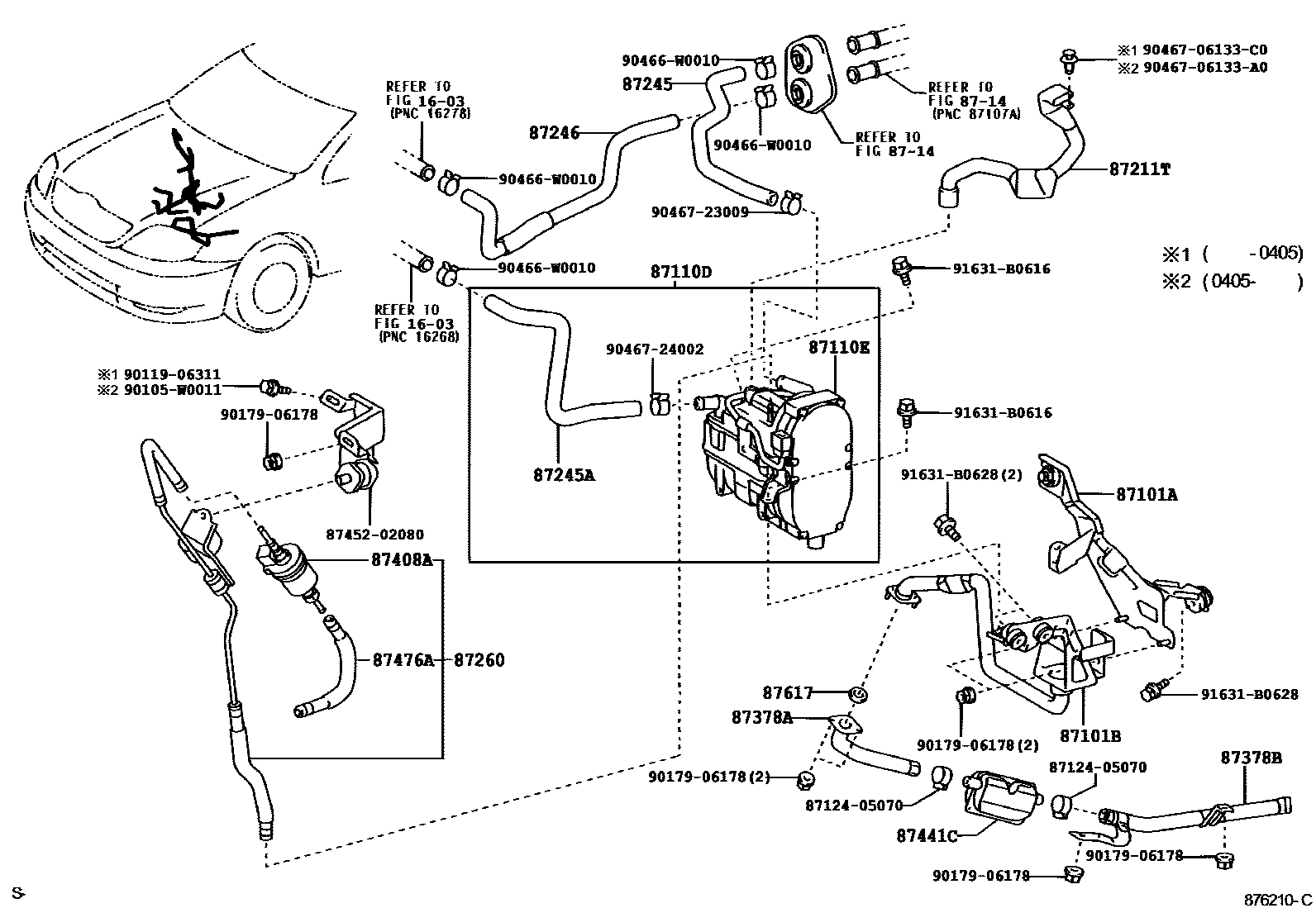

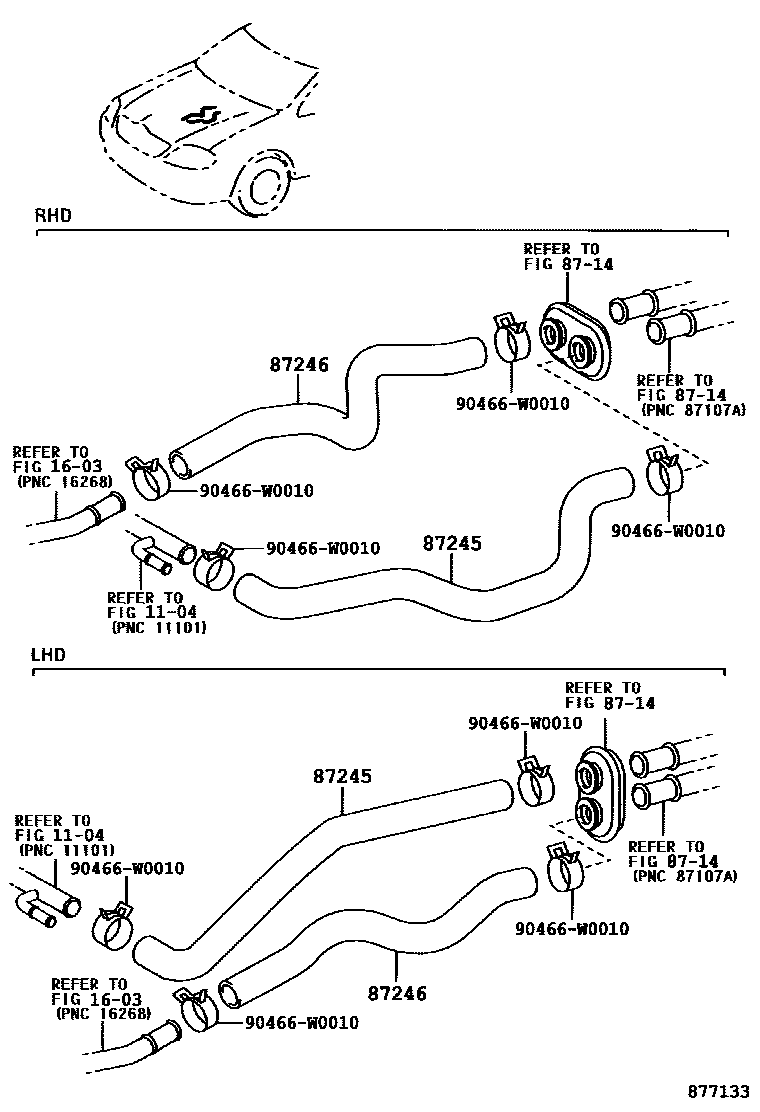

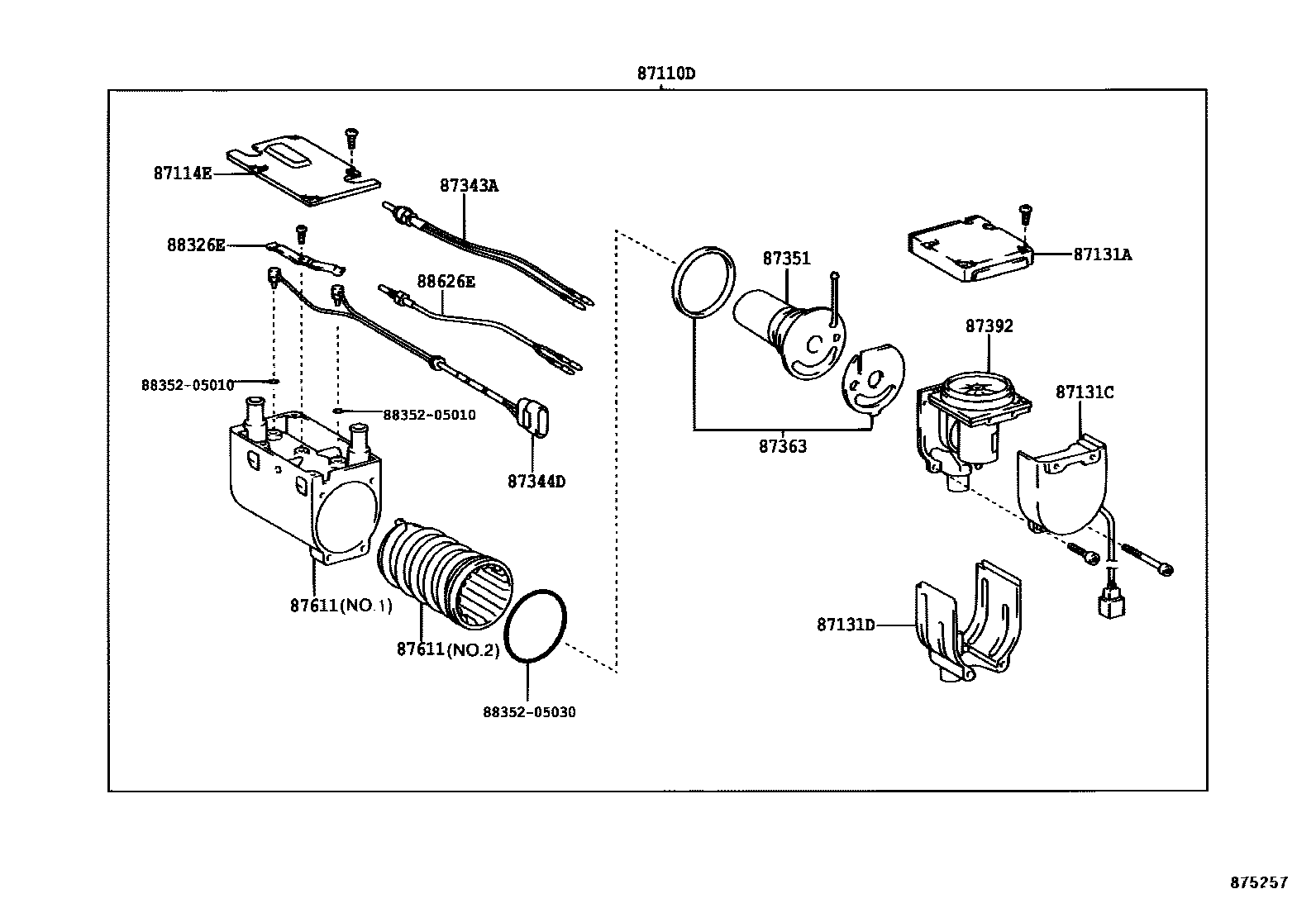

Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716
Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 7 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-02010 · 87101-02040 · 87101-05020 |
| 87101B | No. 2 heater bracket sub-assembly | 87101-02020 · 87101-02050 · 87101-05030 |
| 87101C | No. 3 heater bracket sub-assembly | 87101-02030 |
| 87110D | heater assembly | 87100-02020 · 87100-02021 · 87100-05020 · 87100-05021 · 87100-05022 · 87110-05030 |
| 87110E | heater assembly | 87110-02010 · 87110-02011 · 87110-05020 · 87110-05021 · 87110-05022 |
| 87114E | Heater cover No. 1 | 87114-05050 |
| 87131A | heater blower housing | 87131-05040 |
| 87131C | No. 2 heater blower housing | 87131-05050 |
| 87131D | No. 3 heater blower housing | 87131-05060 |
| 87211T | air duct | 87211-02150 · 87211-05010 |
| 87245 | Heater water inlet hose | 87245-02370 · 87245-02371 · 87245-02390 · 87245-02410 · 87245-02430 · 87245-02431 · 87245-02450 · 87245-02470 · 87245-02490 · 87245-02650 · 87245-02670 · 87245-02690 · 87245-02890 · 87245-02A00 · 87245-05500 · 87245-05550 · 87245-05570 |
| 87245A | Heater water inlet hose A | 87245-02360 · 87245-02700 · 87245-05490 |
| 87246 | Heater outlet hose | 87245-02380 · 87245-02400 · 87245-02420 · 87245-02440 · 87245-02460 · 87245-02480 · 87245-02660 · 87245-02680 · 87245-05560 · 87245-05580 |
| 87260 | Heater pump assembly | 87260-02010 · 87260-02020 · 87260-02021 · 87260-05010 · 87260-05011 |
| 87343A | Combustion heater glow plug | 87343-05010 |
| 87344D | heating wire | 87344-05010 |
| 87351 | fuel regulator chamber | 87351-05010 |
| 87363 | fuel regulator cover gasket | 87363-05010 |
| 87378A | Exhaust Pipe | 87378-02030 · 87378-02040 |
| 87378B | Exhaust pipe No. 2 | 87378-02040 |
| 87392 | Motor housing | 87392-05020 |
| 87408A | Fuel pump sub-assembly | 87408-0D011 |
| 87441C | Silencer | 87441-05010 |
| 87476A | Heater No. 1 fuel hose | 87476-02010 · 87476-02020 · 87476-05030 |
| 87611 | heat exchanger box | 87611-05010 · 87611-05020 |
| 87617 | Heat exchanger unit gasket No. 1 | 87617-02020 |
| 88326E | Cover plate | 88326-05040 |
| 88626E | water temperature sensor | 88626-05020 |
