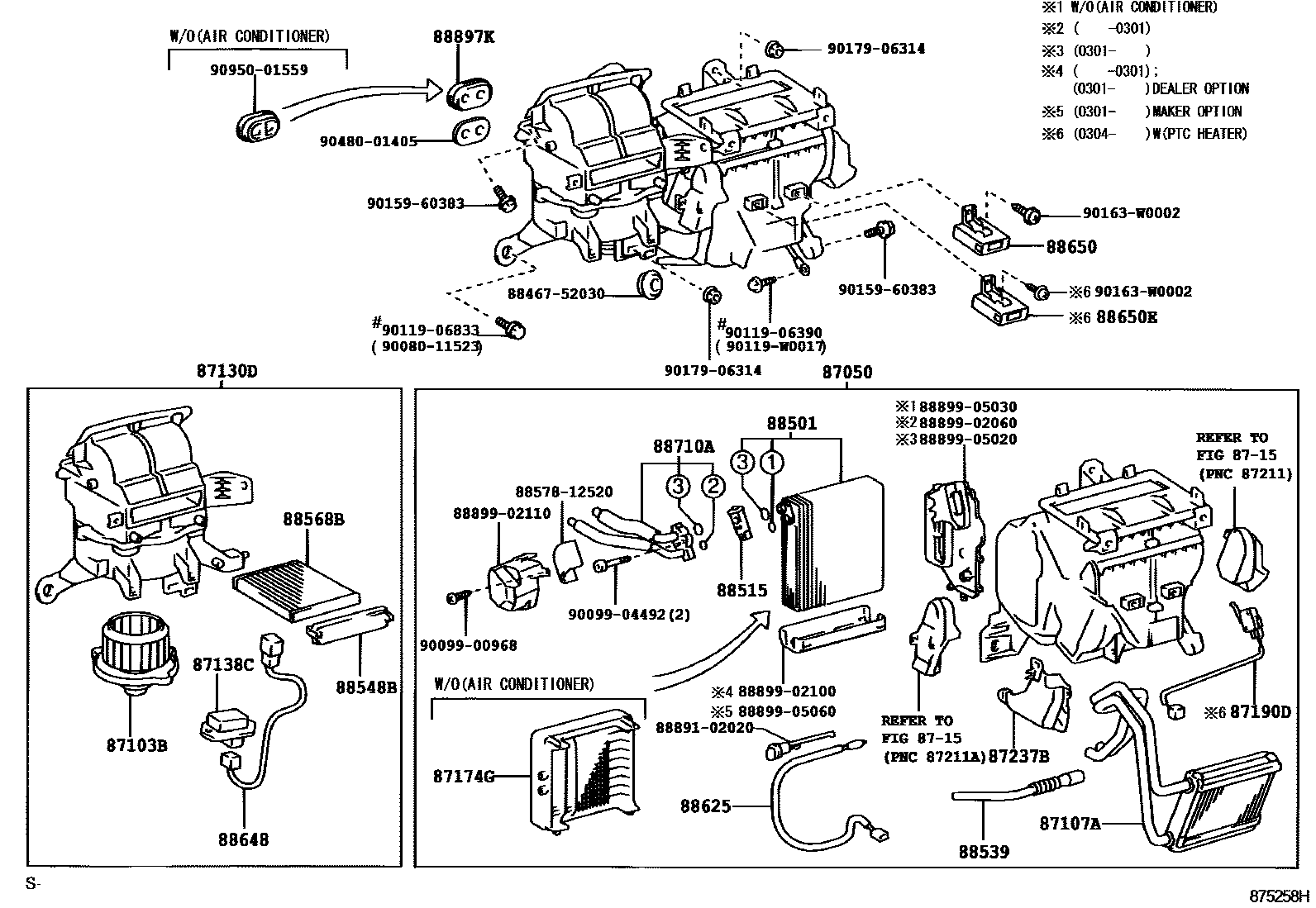

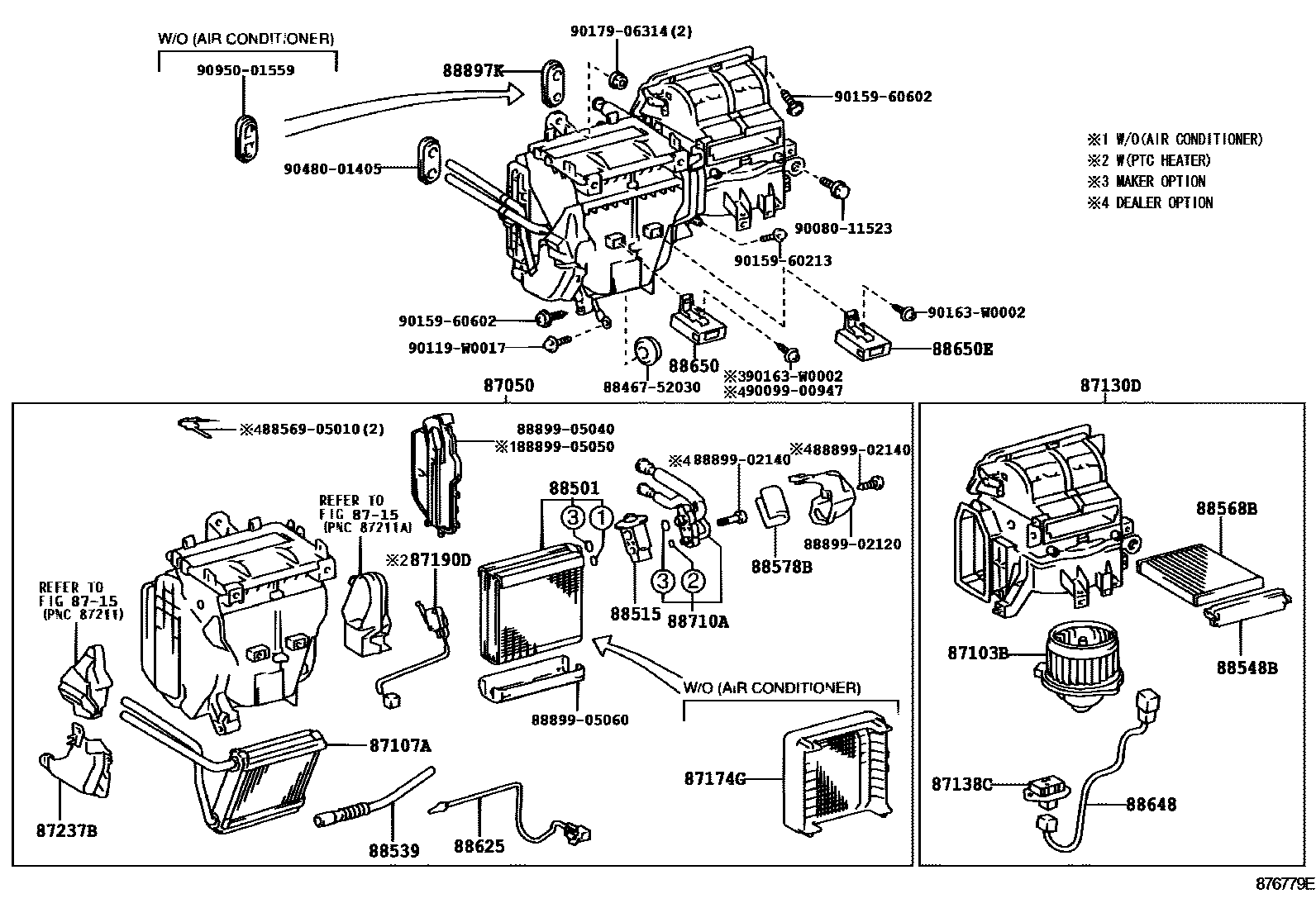

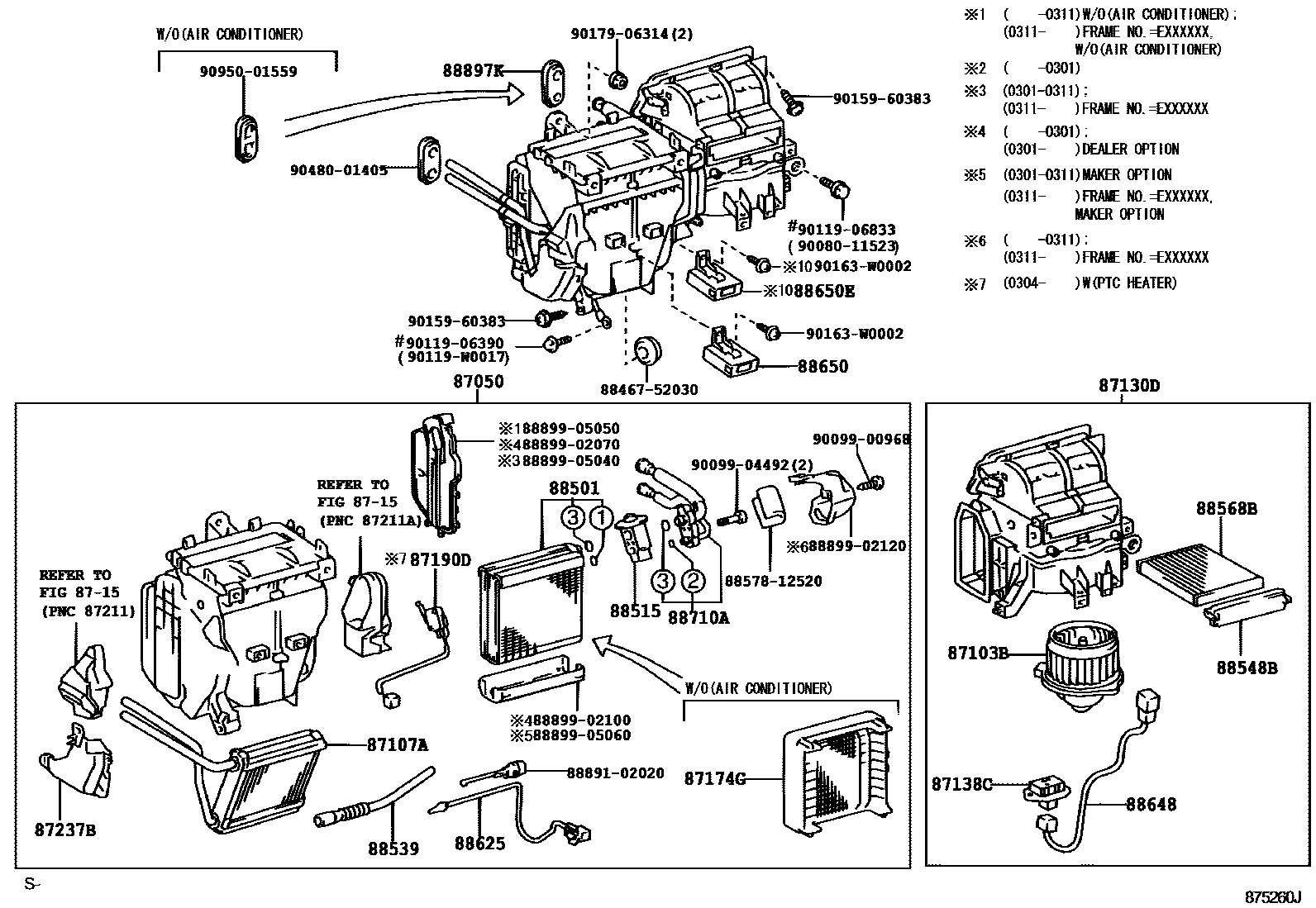

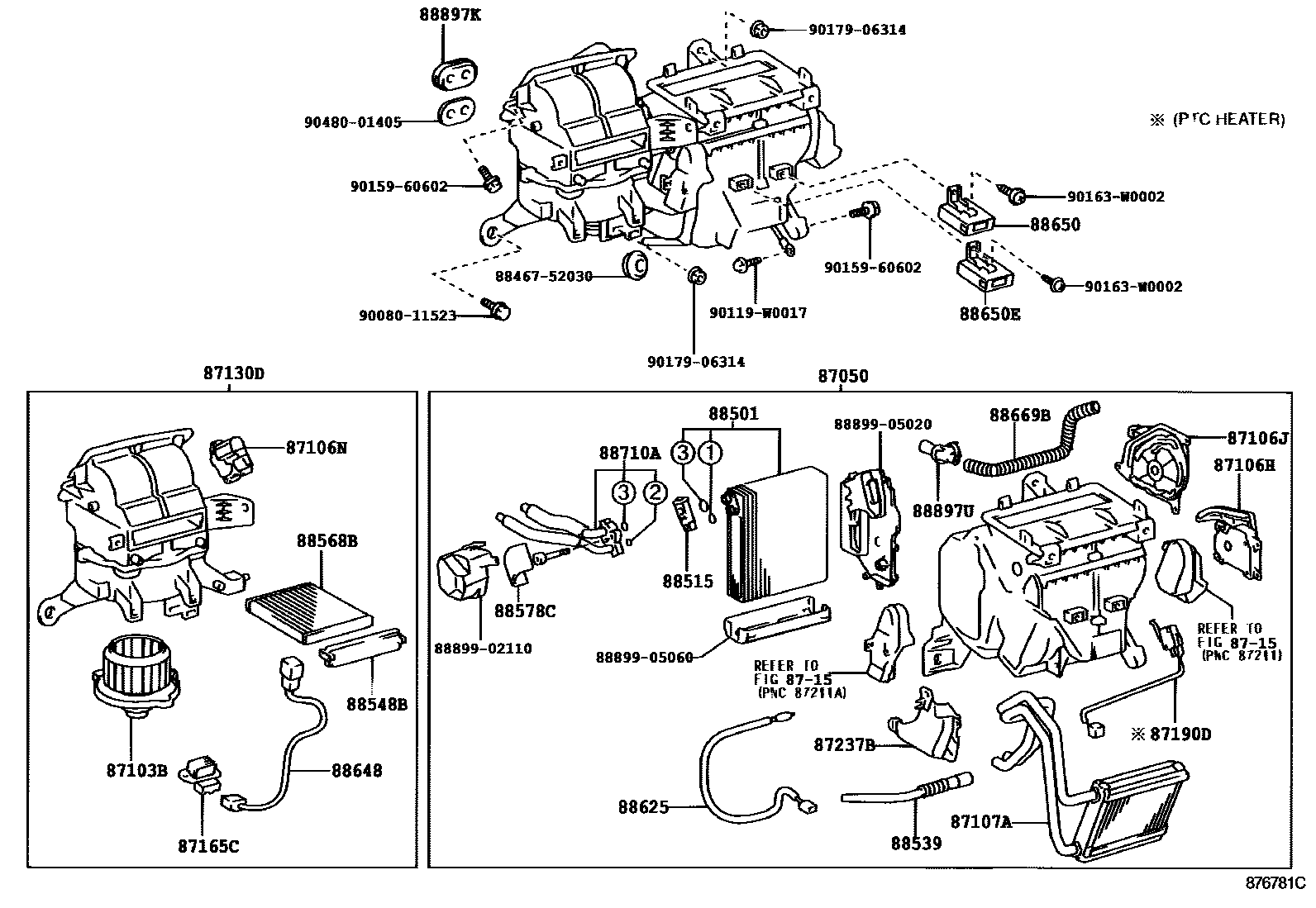

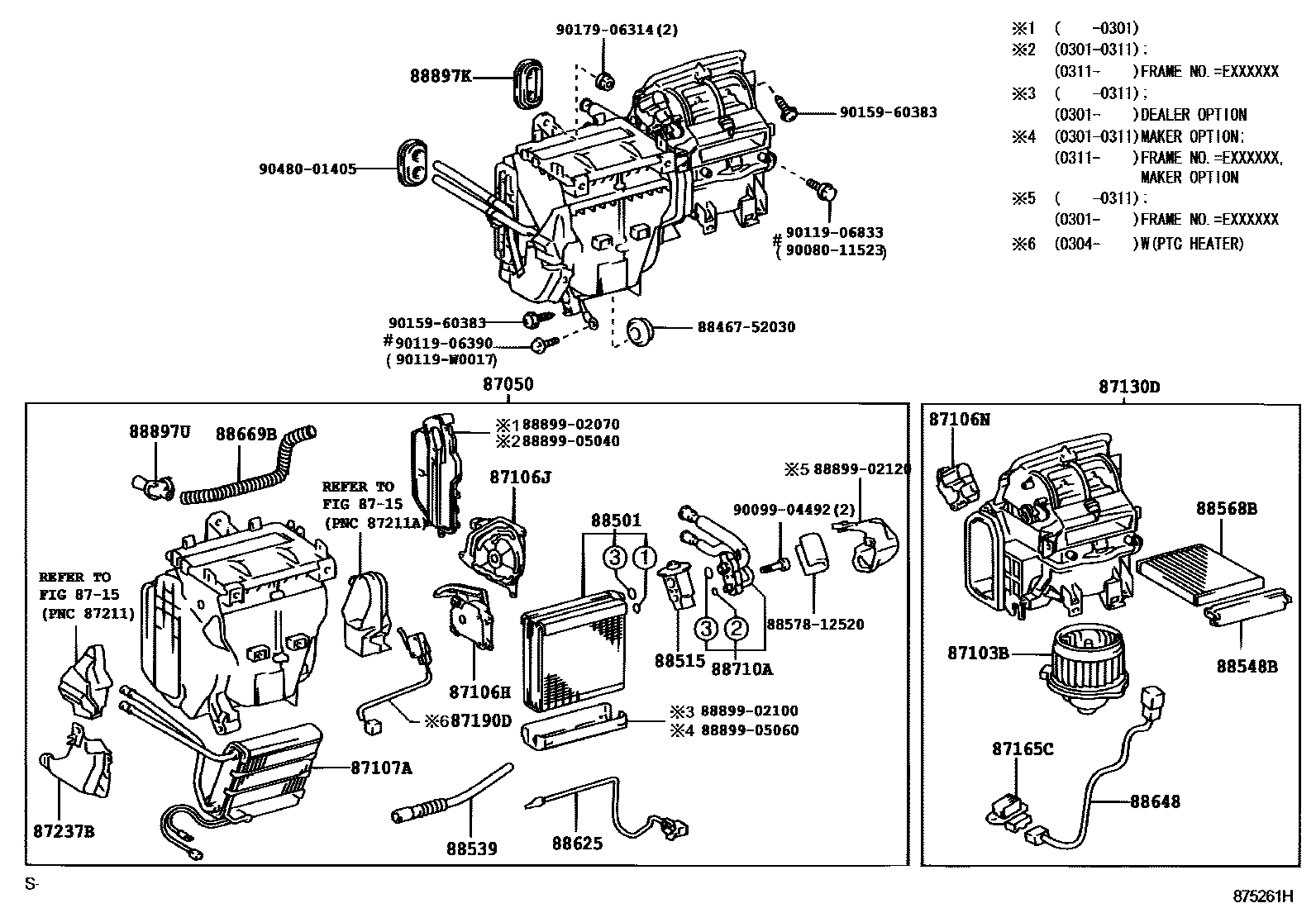

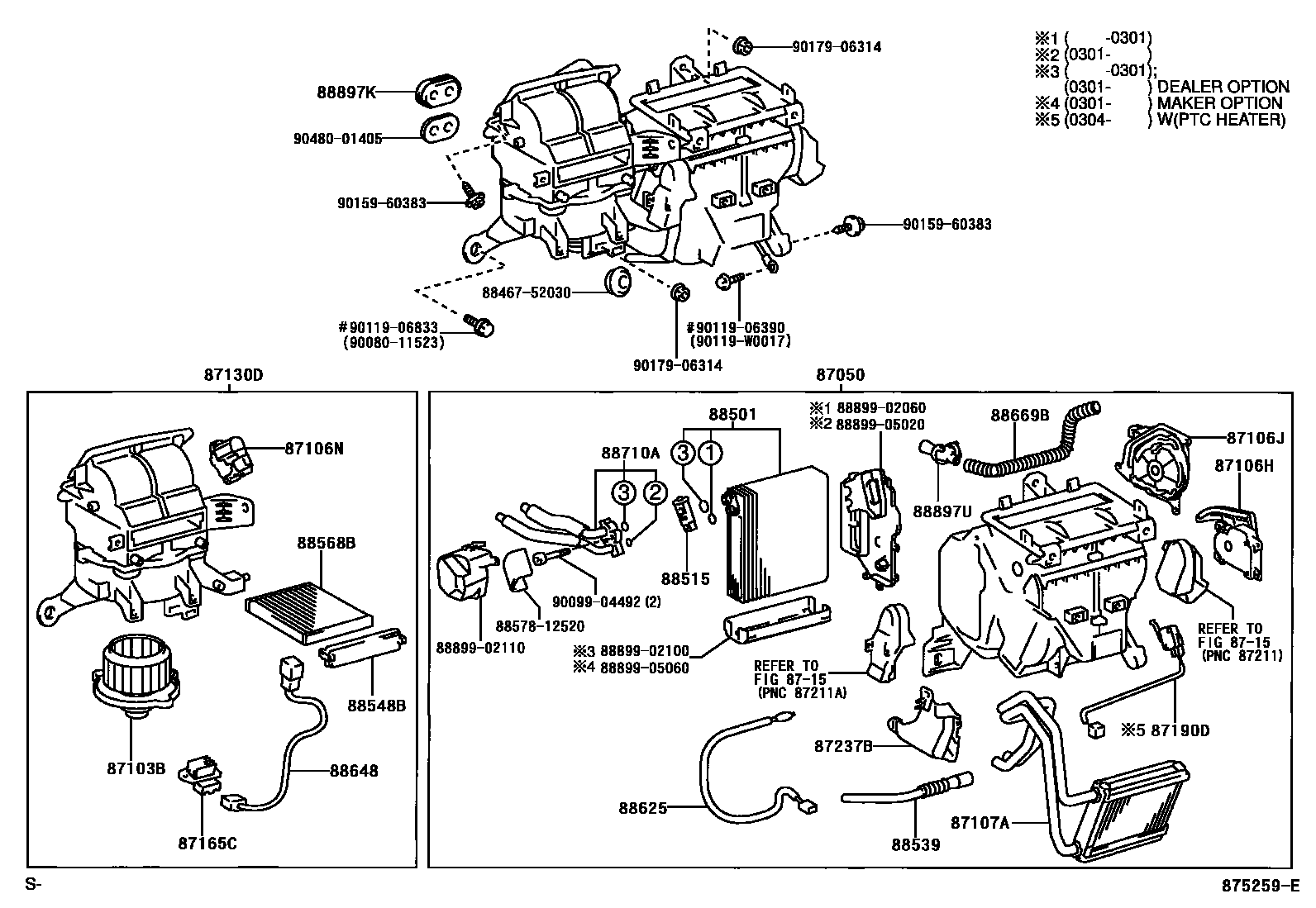

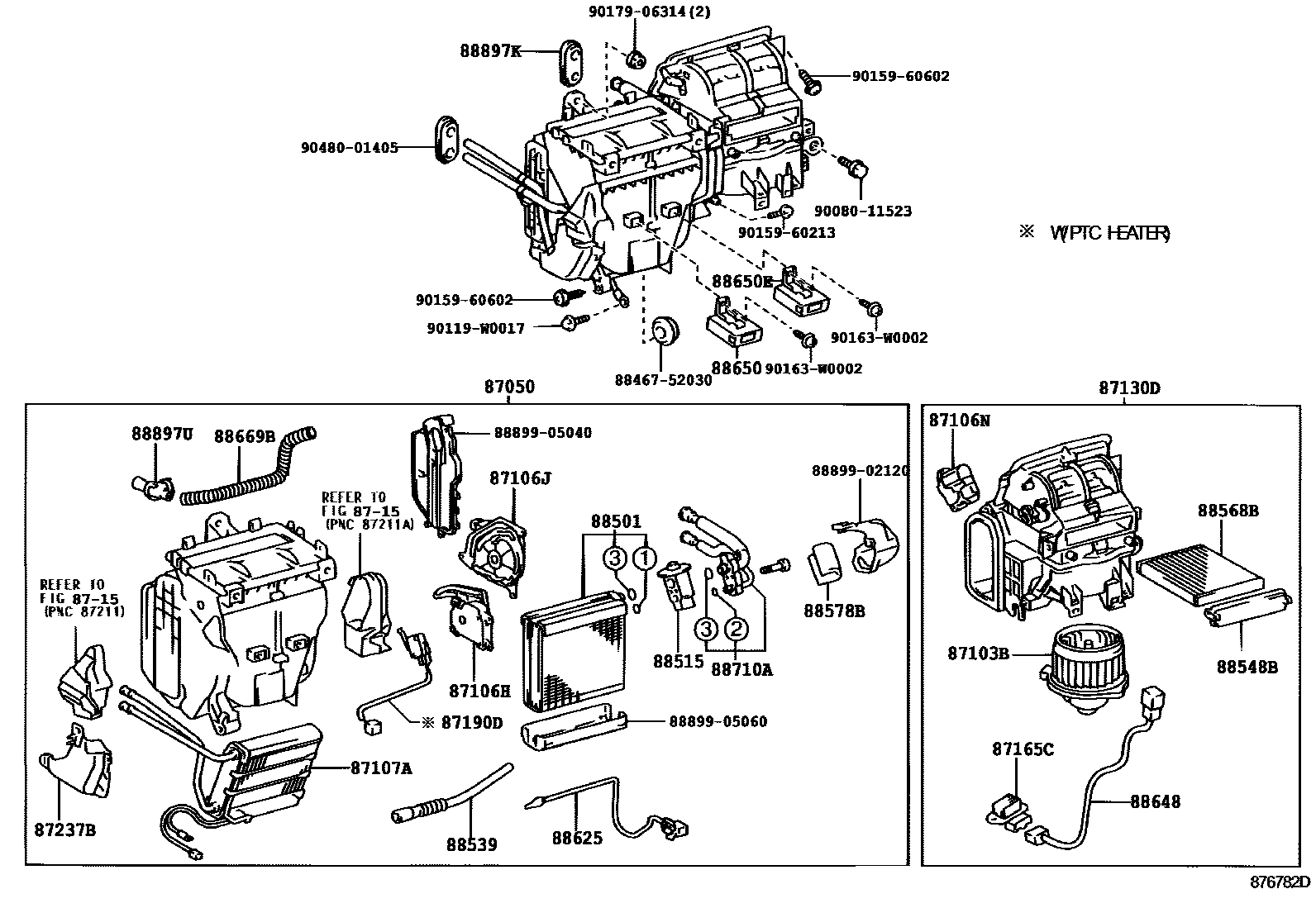

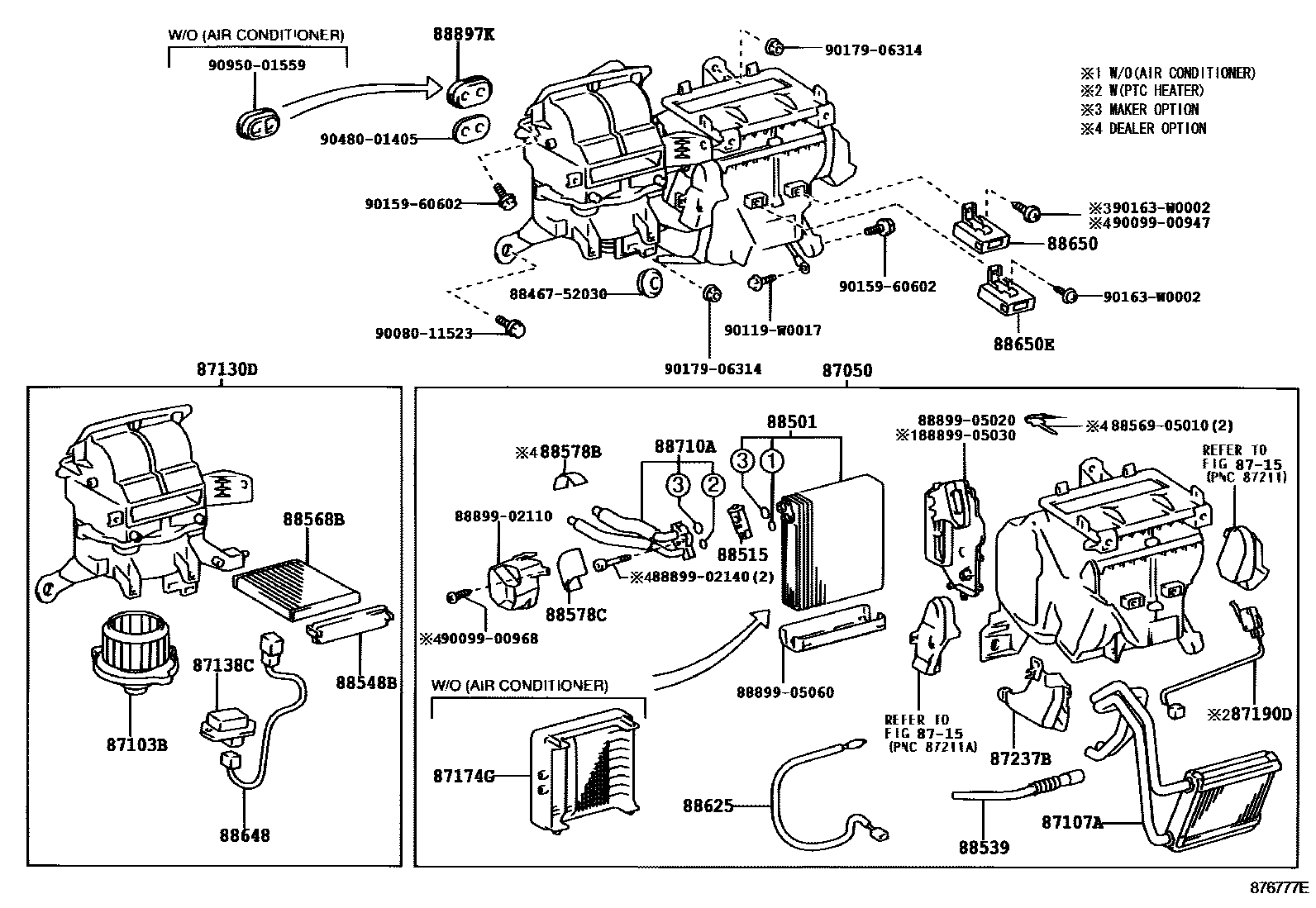

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 9 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-02010 · 87050-02020 · 87050-02030 · 87050-02040 · 87050-02050 · 87050-02060 · 87050-02070 · 87050-02080 · 87050-02090 · 87050-02100 · 87050-02110 · 87050-02120 · 87050-02130 · 87050-02140 · 87050-02150 · 87050-02210 · 87050-02220 · 87050-02230 · 87050-02240 · 87050-02250 · 87050-02260 · 87050-02270 · 87050-02280 · 87050-02290 · 87050-02300 · 87050-02310 · 87050-02320 · 87050-02330 · 87050-02340 · 87050-02350 · 87050-02360 · 87050-02370 · 87050-02520 · 87050-02530 · 87050-02540 · 87050-02550 · 87050-02560 · 87050-02570 · 87050-02580 · 87050-02590 · 87050-02600 · 87050-02610 · 87050-02620 · 87050-02630 · 87050-02640 · 87050-02650 · 87050-02660 · 87050-02690 · 87050-02700 · 87050-02710 · 87050-02720 · 87050-02730 · 87050-02740 · 87050-02750 · 87050-02760 · 87050-02770 · 87050-02780 |
| 87103B | Blower motor sub-assembly with fan | 87103-02070 · 87103-02080 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02030 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02040 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02070 · 87106-02100 |
| 87107A | Heater radiator device sub-assembly | 87107-02110 · 87107-02120 · 87107-02130 · 87107-02140 · 87107-05090 · 87107-05100 · 87107-0F020 · 87107-0F030 |
| 87130D | Blower assembly | 87130-02070 · 87130-02080 · 87130-02090 · 87130-02100 · 87130-02190 · 87130-02200 · 87130-02230 · 87130-02240 · 87130-02330 · 87130-02340 · 87130-02350 · 87130-02360 |
| 87138C | Blower resistor | 87138-02040 |
| 87165C | Blower motor control device | 87165-13010 |
| 87174G | Air heater deflector | 87174-02020 · 87174-05010 |
| 87190D | Temperature control switch assembly | 87190-02010 · 87190-02020 · 87190-0F010 |
| 87237B | Heater connection cover | 87237-02020 · 87237-05050 · 87237-0F020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02050 · 88501-02060 · 88501-05070 · 88501-05080 |
| 88515 | Cooler expansion valve | 88515-02070 · 88515-02090 · 88515-02091 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-02070 |
| 88548B | air filter housing | 88548-02040 |
| 88568B | Air Cleaner | 88568-02030 |
| 88578B | Cooling unit seal No. 1 | 88578-12520 |
| 88578C | No. 2 cooling unit seal | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88620-12080 · 88625-02060 · 88625-52020 · 88625-52090 · 88625-60140 |
| 88648 | No. 1 cooler wiring harness | 88648-02120 · 88648-02150 · 88648-02240 · 88648-02260 |
| 88650 | Cooler stabilized amplifier assembly | 88650-02350 · 88650-02351 · 88650-02380 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-02380 · 88650-02390 |
| 88669B | Cooler air hose | 88669-02030 · 88669-02040 |
| 88710A | Air conditioning pipe assembly | 88710-02270 · 88710-05360 · 88710-05380 |
| 88897K | Seals (for cooler tubes) | 90480-01434 |
| 88897U | aspirator tube | 88897-02180 |
