Toyota COROLLA 后视镜 — Figure 8701

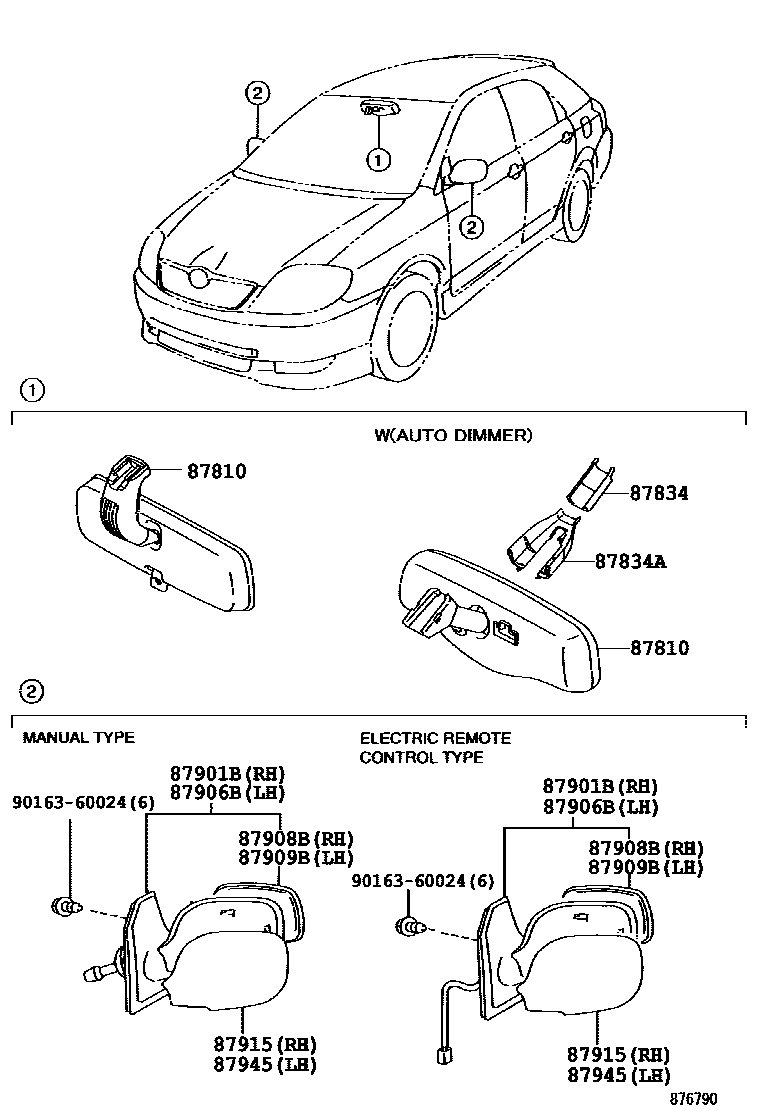

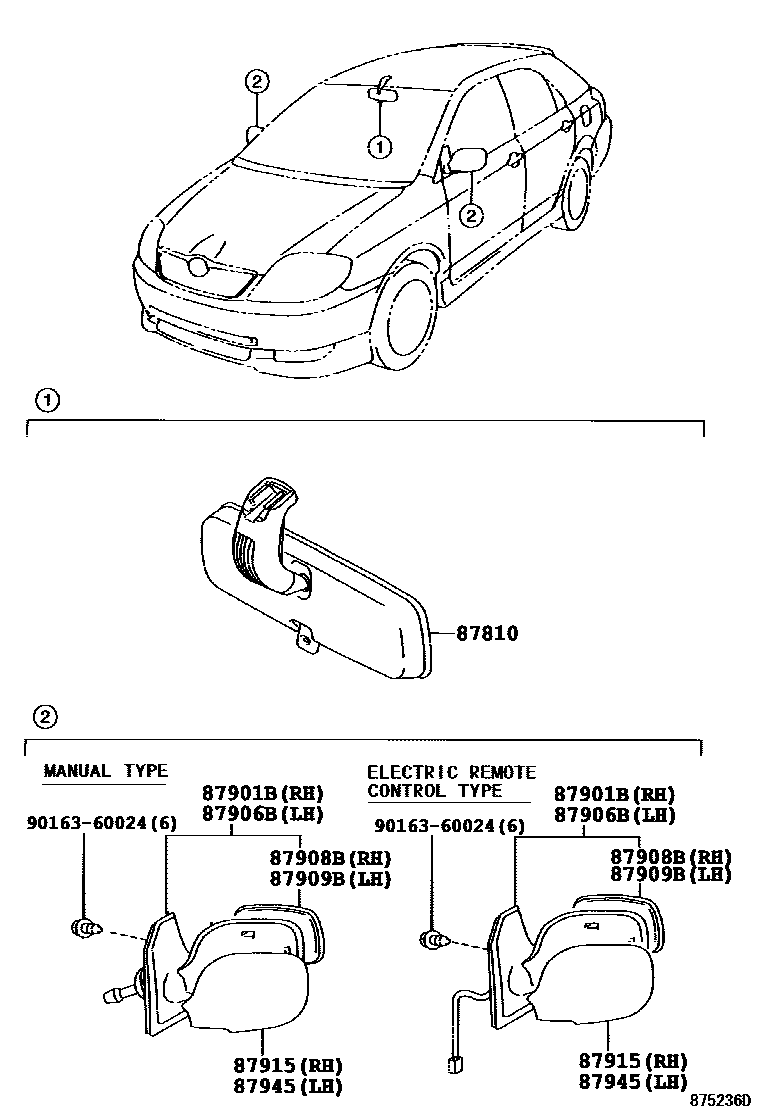

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-05040 · 87810-05041 · 87810-05042 · 87810-0D010 · 87810-0D011 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-02010 |
| 87834A | No. 2 interior rearview mirror stay fixing cover | 87834-05020 |
| 87901B | Right exterior rearview mirror sub-assembly | 87901-02010 · 87901-02020 · 87901-02030 · 87901-02040 · 87901-02050 · 87901-02060 · 87901-02140 · 87901-02150 · 87901-02160 · 87901-02170 |
| 87906B | Left exterior rearview mirror sub-assembly | 87906-02010 · 87906-02020 · 87906-02030 · 87906-02040 · 87906-02050 · 87906-02060 · 87906-02130 · 87906-02140 · 87906-02150 · 87906-02160 |
| 87908B | Right rearview mirror sub-assembly | 87908-02330 · 87908-02340 · 87908-02360 · 87908-02370 · 87908-02590 · 87908-02600 · 87908-02610 · 87908-02620 |
| 87909B | Left rearview mirror sub-assembly | 87909-02330 · 87909-02340 · 87909-02360 · 87909-02370 · 87909-02570 · 87909-02580 · 87909-02590 · 87909-02600 |
| 87915 | Right exterior rearview mirror cover | 87915-05010 · 87915-05900 · 87915-05901 |
| 87945 | Left exterior rearview mirror cap | 87945-05010 · 87945-05900 · 87945-05901 |
