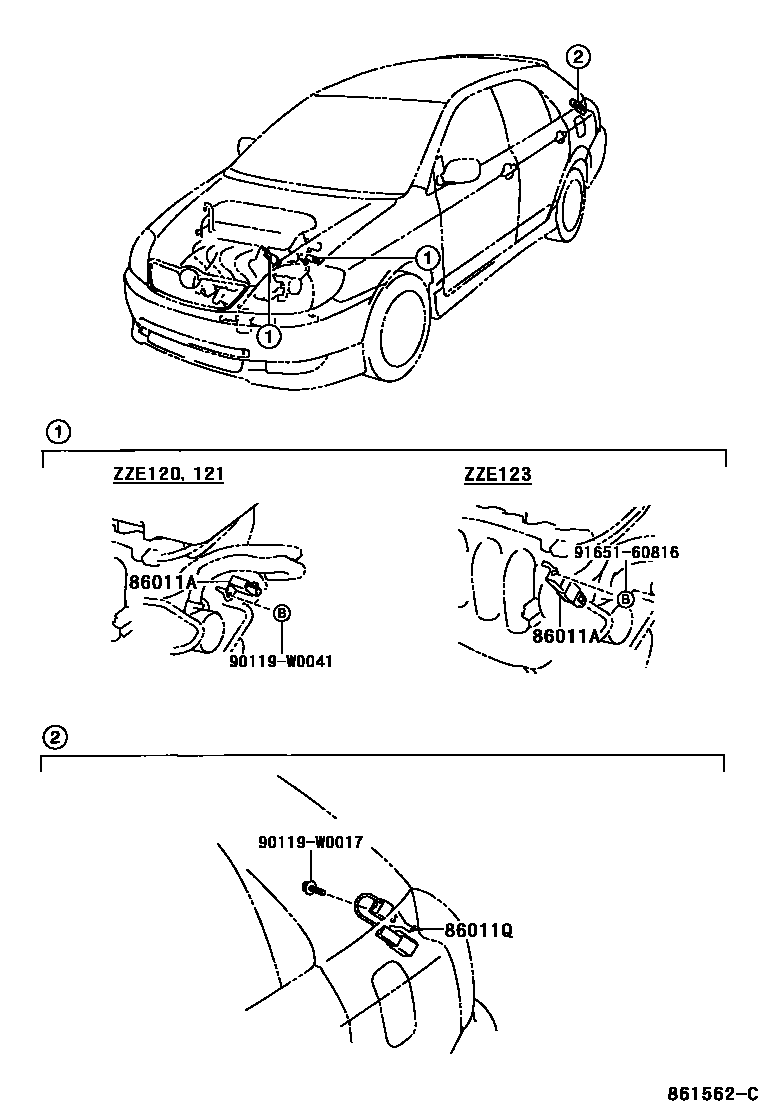

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04165 · 90980-04166 |
| 86011Q | radio settings phase modulator | 90980-04163 |
| 86120 | Radio assembly | 86120-02250 · 86120-02260 · 86120-02380 · 86120-02390 · 86120-02460 · 86120-02470 |
| 86211 | No. 1 radio bracket | 86211-02100 · 86211-12370 |
| 86212 | No. 2 radio bracket | 86212-02100 · 86212-12350 |
| 86230 | Stereo component controller assembly | 86230-13010 |
