Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405

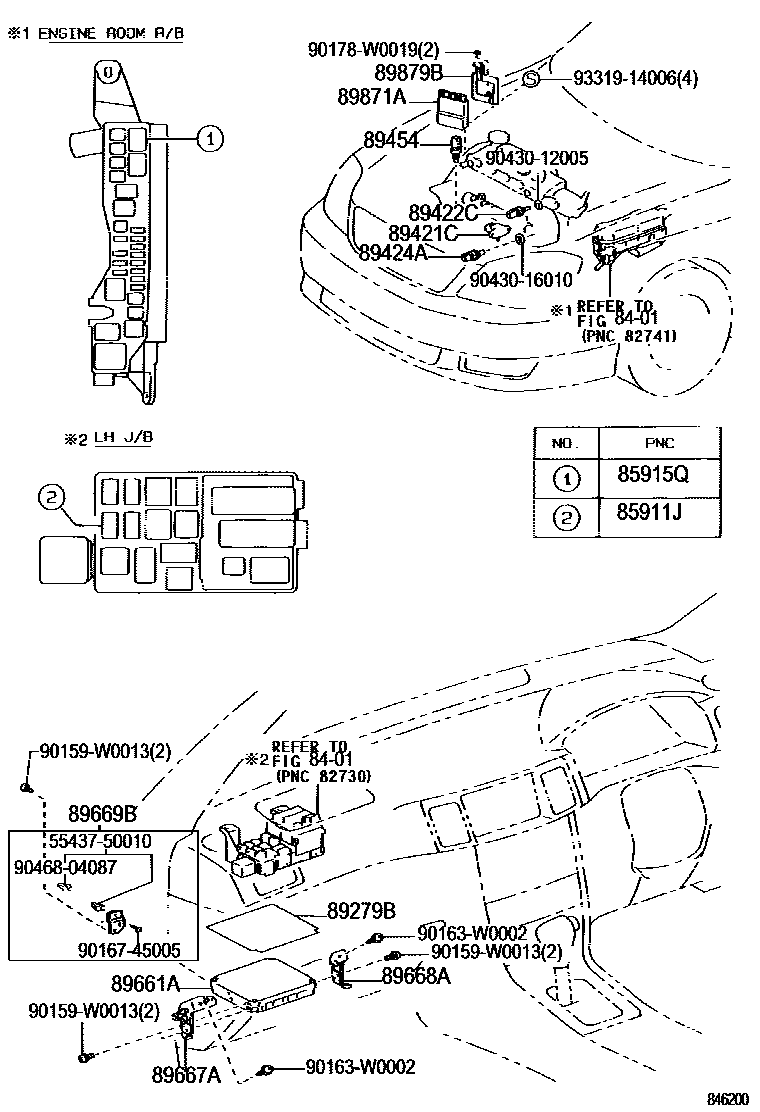

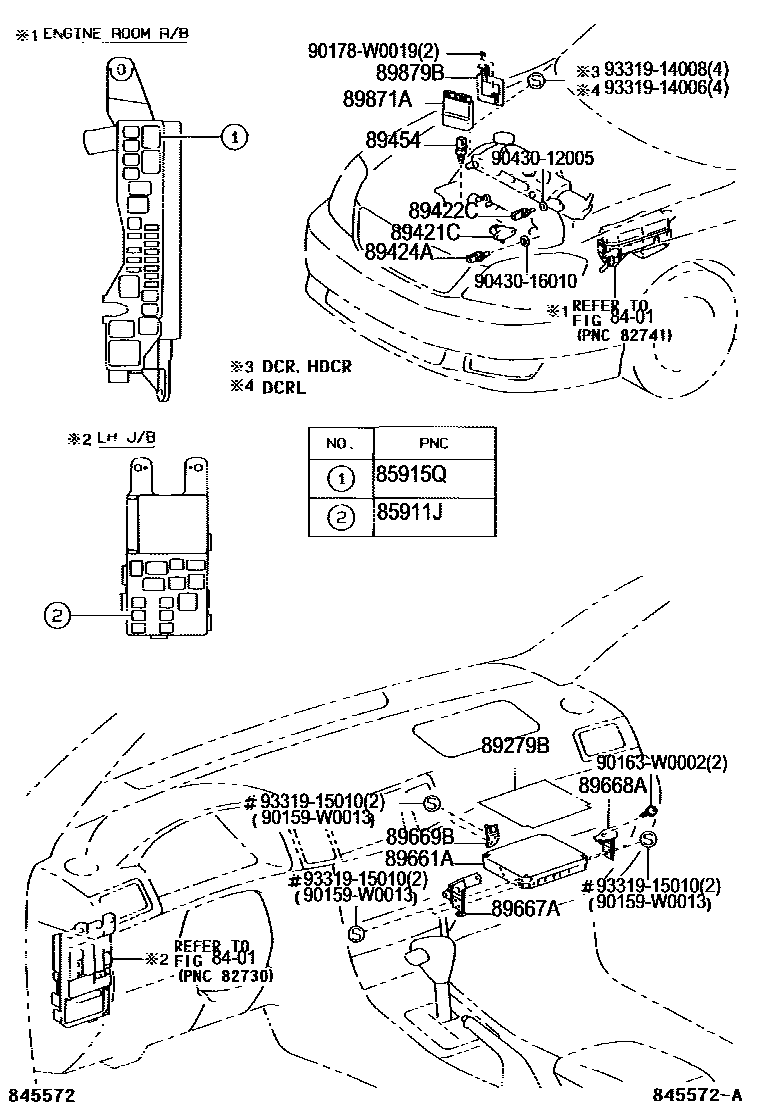

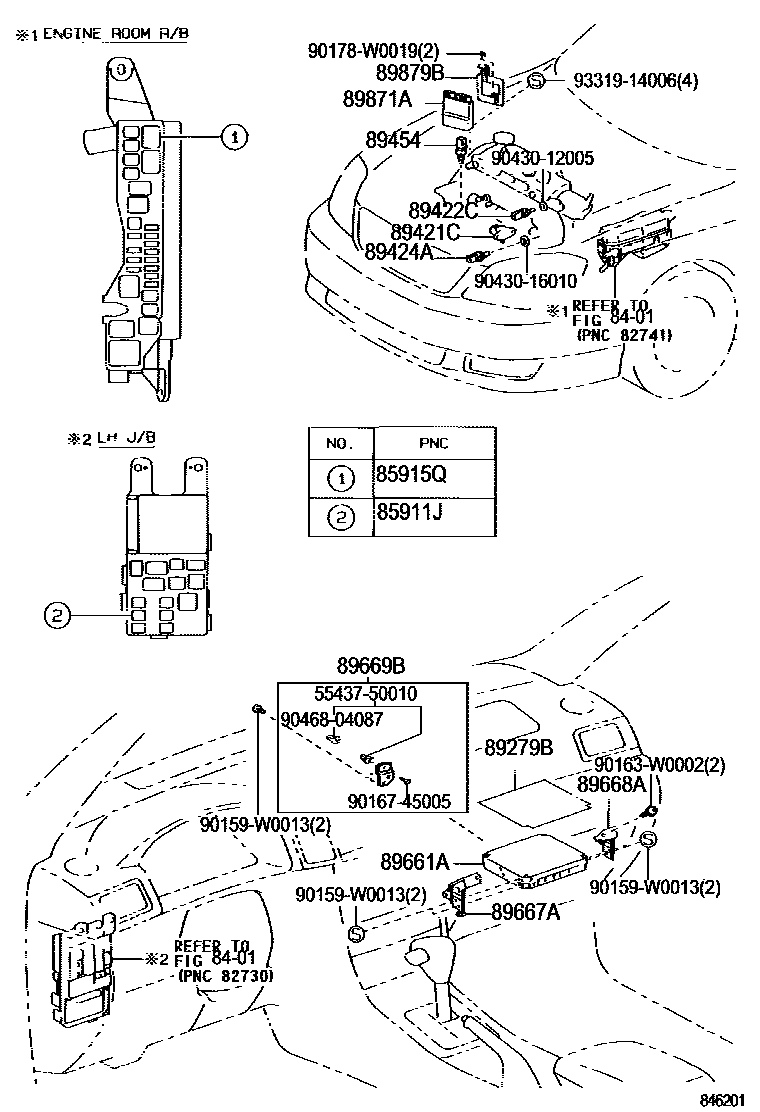

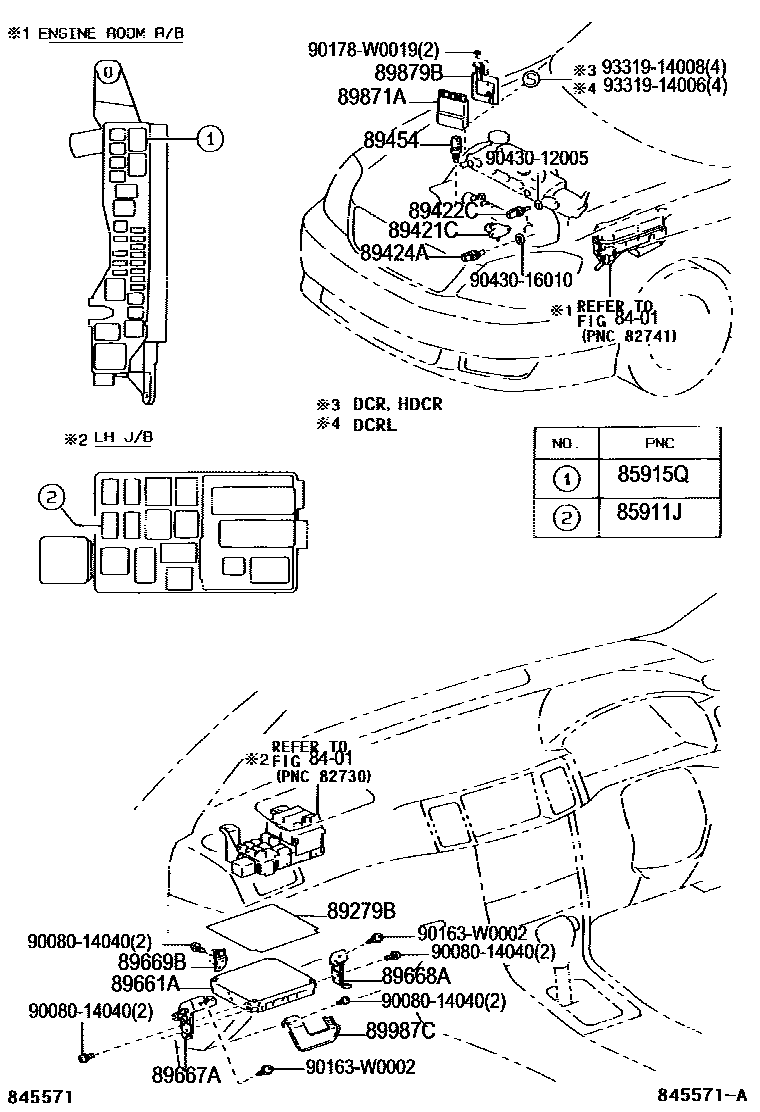

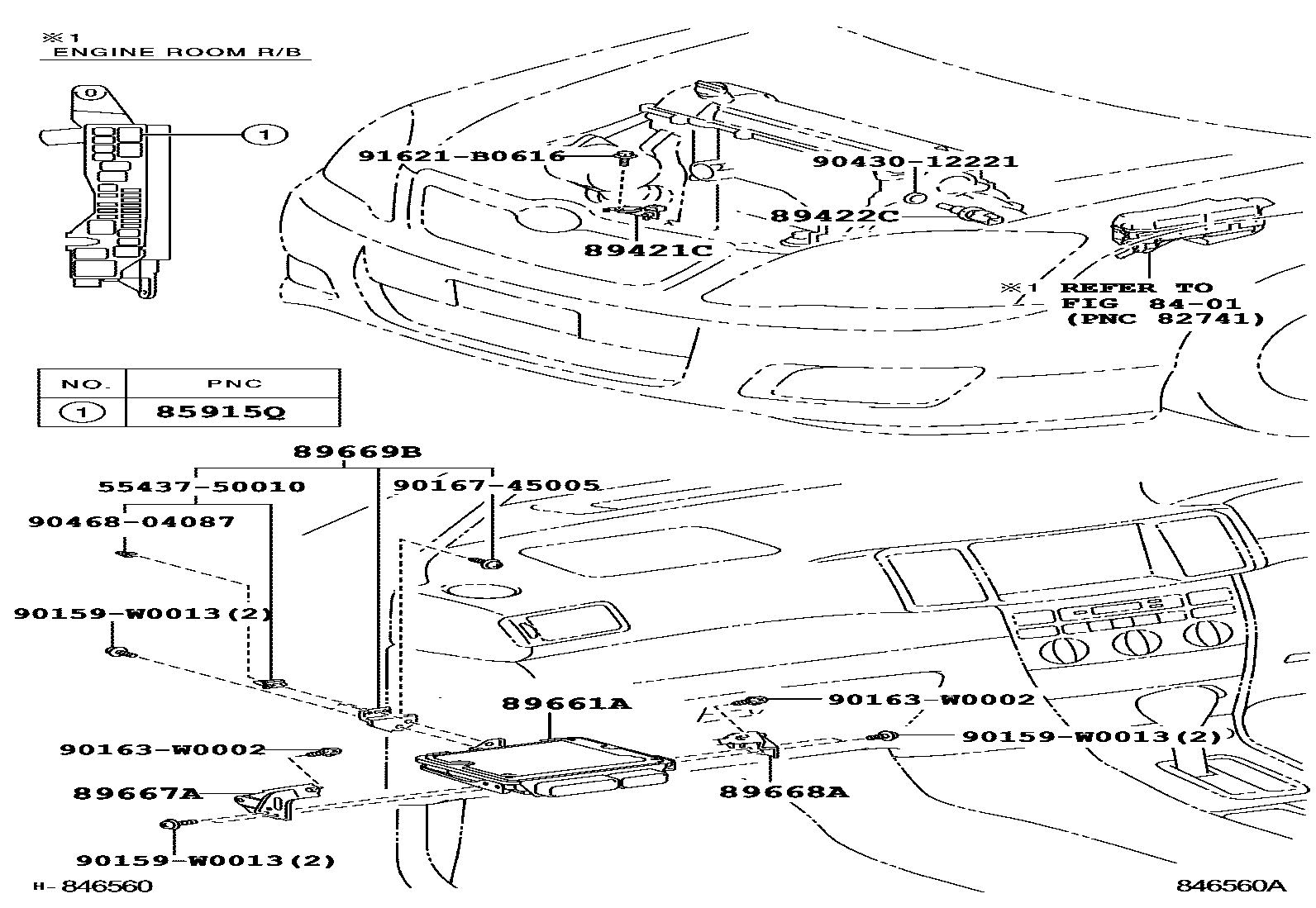

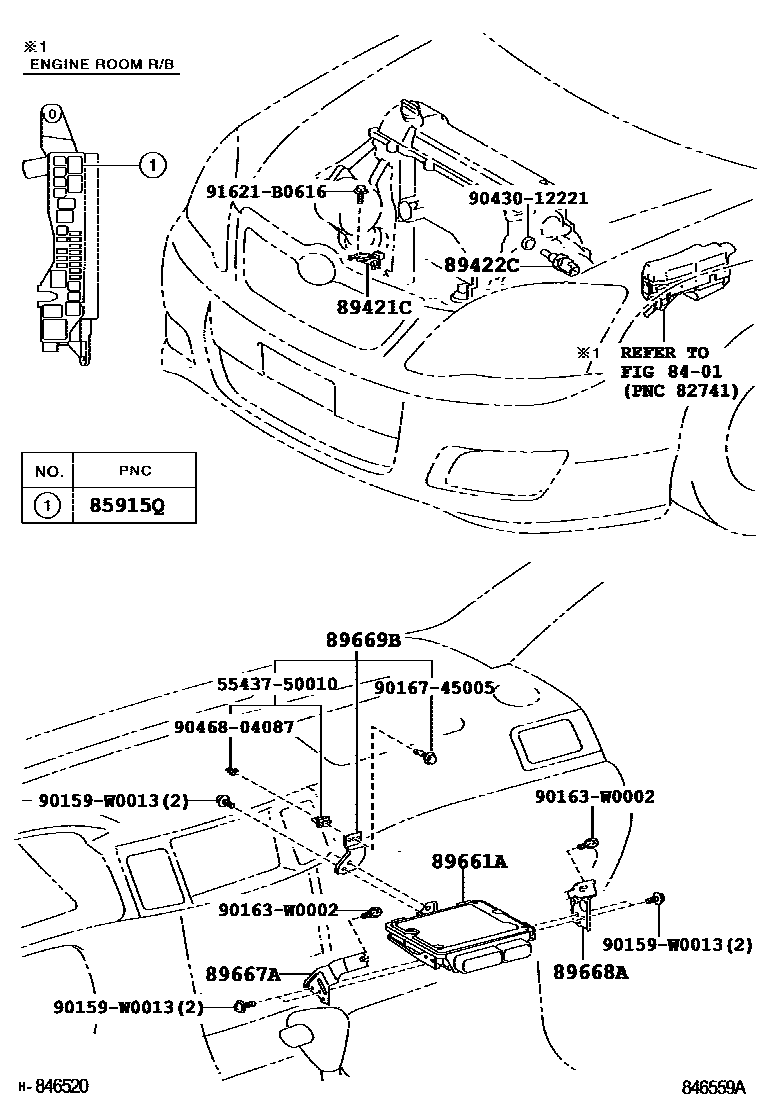

Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911J | Circuit breaking relay assembly (for ECD) | 90080-87019 |
| 85915Q | ECU relay (for diesel engine) | 90080-87019 |
| 89279B | Diesel engine control ECU cover | 89279-12150 · 89279-12160 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89420-12210 · 89421-20210 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 · 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-20010 · 89454-60010 |
| 89661A | Engine control ECU | 89601-02010 · 89601-02020 · 89661-02A60 · 89661-02A61 · 89661-02A62 · 89661-0Z050 · 89661-0Z060 · 89666-02110 · 89666-02120 · 89666-02310 · 89666-02320 |
| 89667A | No. 1 engine control ECU bracket | 89667-02090 · 89667-02100 · 89667-12190 · 89667-13150 |
| 89668A | No. 2 engine control ECU bracket | 89668-02040 · 89668-02050 · 89668-13060 · 89668-13090 |
| 89669B | No. 3 engine control ECU bracket | 89669-02020 · 89669-02030 · 89669-12030 |
| 89871A | Injector driver | 89871-20030 · 89871-20050 |
| 89879B | Injector driver bracket | 89879-13010 · 89879-20130 |
| 89987C | No.1 ECU bracket | 89987-13010 |
