Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

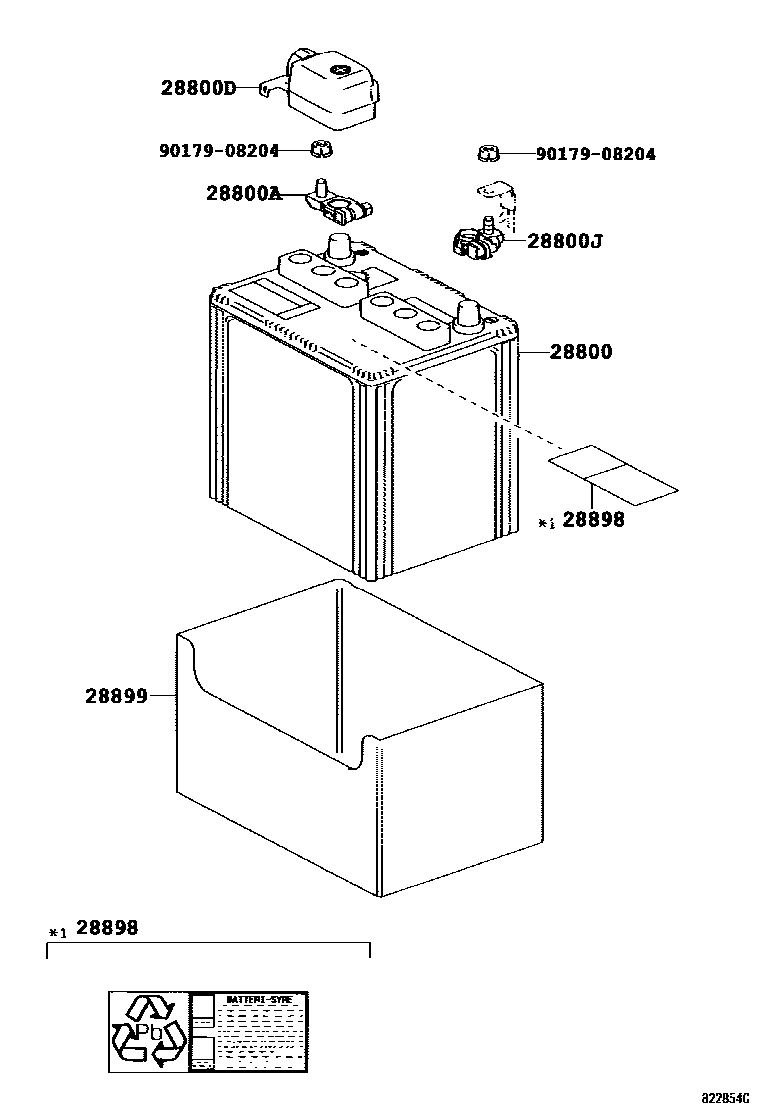

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0B020 · 28800-0D080 · 28800-0D090 · 28800-0D200 · 28800-0D210 · 28800-0D220 · 28800-0D230 · 28800-0D310 · 28800-0D340 · 28800-0D350 · 28800-0D380 · 28800-0G020 · 28800-0G050 · 28800-0N030 · 28800-0N040 · 28800-0N060 |
| 28800A | battery positive terminal | 90982-05056 |
| 28800D | Connector cover (for battery terminals) | 82821-12500 · 82821-52060 |
| 28800J | battery negative terminal | 90982-06028 · 90982-06056 |
| 28898 | battery plates | 28898-0B010 |
| 28899 | Battery insulation cover | 28899-27020 · 28899-27030 · 28899-53010 |
