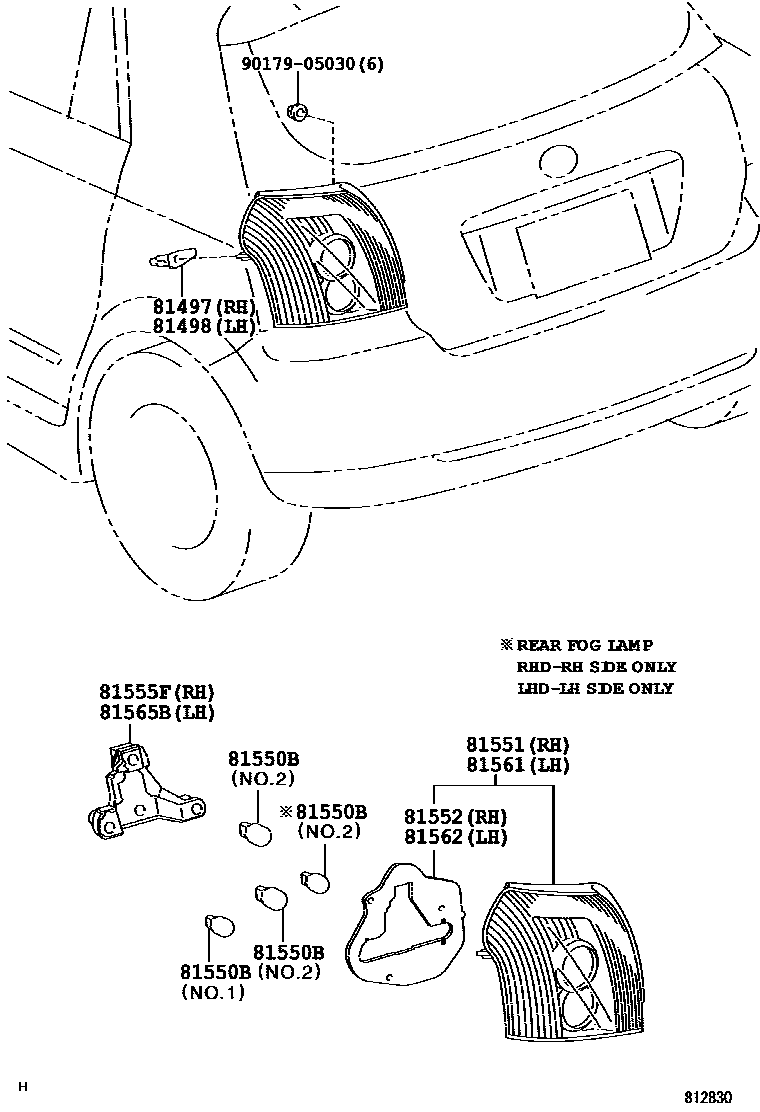

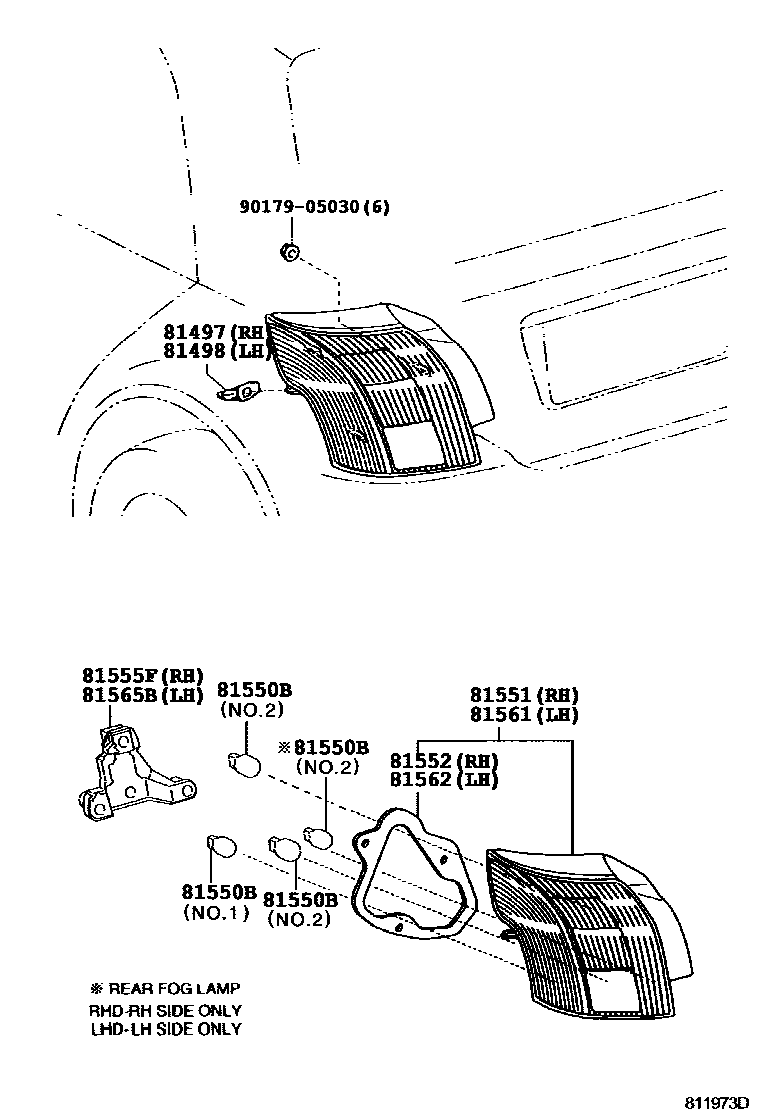

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81497 | Right rear combination lamp cover | 81497-13010 |
| 81498 | Left rear combination lamp cover | 81498-13010 |
| 81550B | Bulb (for rear combination lights) | 90080-81089 · 90080-81090 · 90981-WC005 · 90981-WC006 |
| 81551 | Right rear combination lamp shade | 81551-02140 · 81551-02150 · 81551-02300 · 81551-02310 |
| 81552 | Right rear combination lamp shade gasket | 81552-02140 · 81552-02300 |
| 81555F | Right rear combination light lamp holder | 81555-02140 · 81555-02300 |
| 81561 | Left rear combination lamp shade | 81561-02140 · 81561-02150 · 81561-02300 · 81561-02310 |
| 81562 | Left rear combination lamp shade gasket | 81552-02140 · 81552-02300 |
| 81565B | Left rear combination light lamp holder | 81565-02140 · 81565-02300 |
