Toyota COROLLA Fog Lamp — Figure 8102

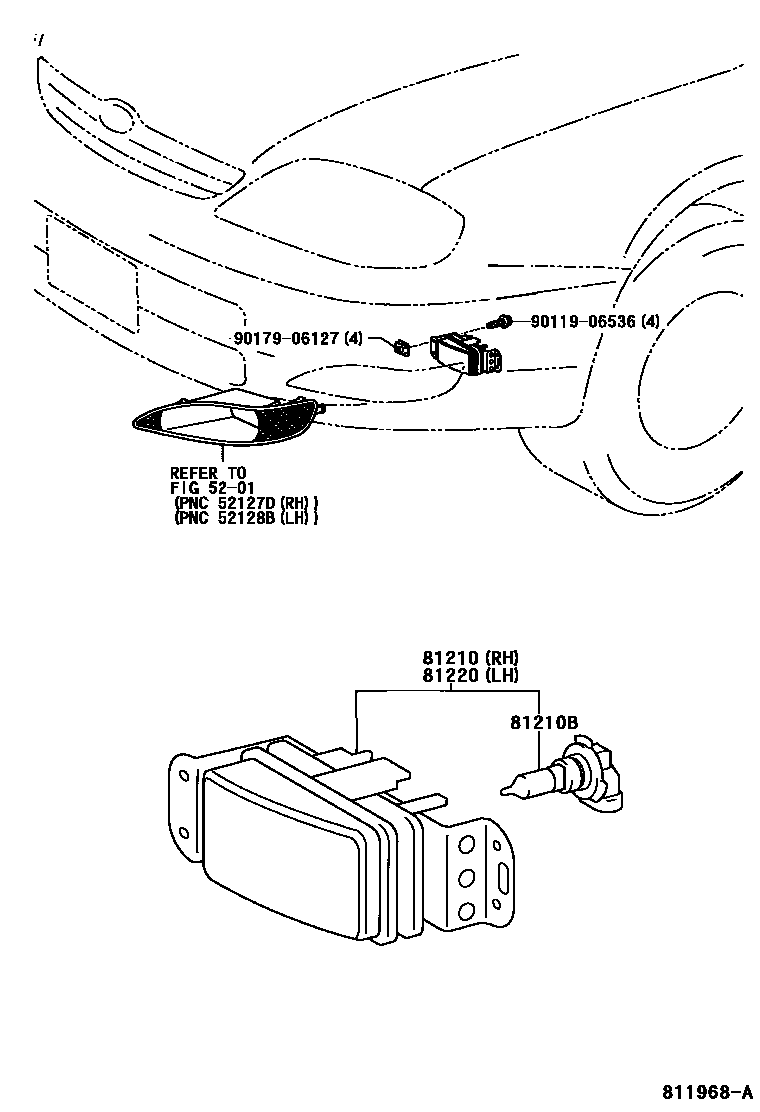

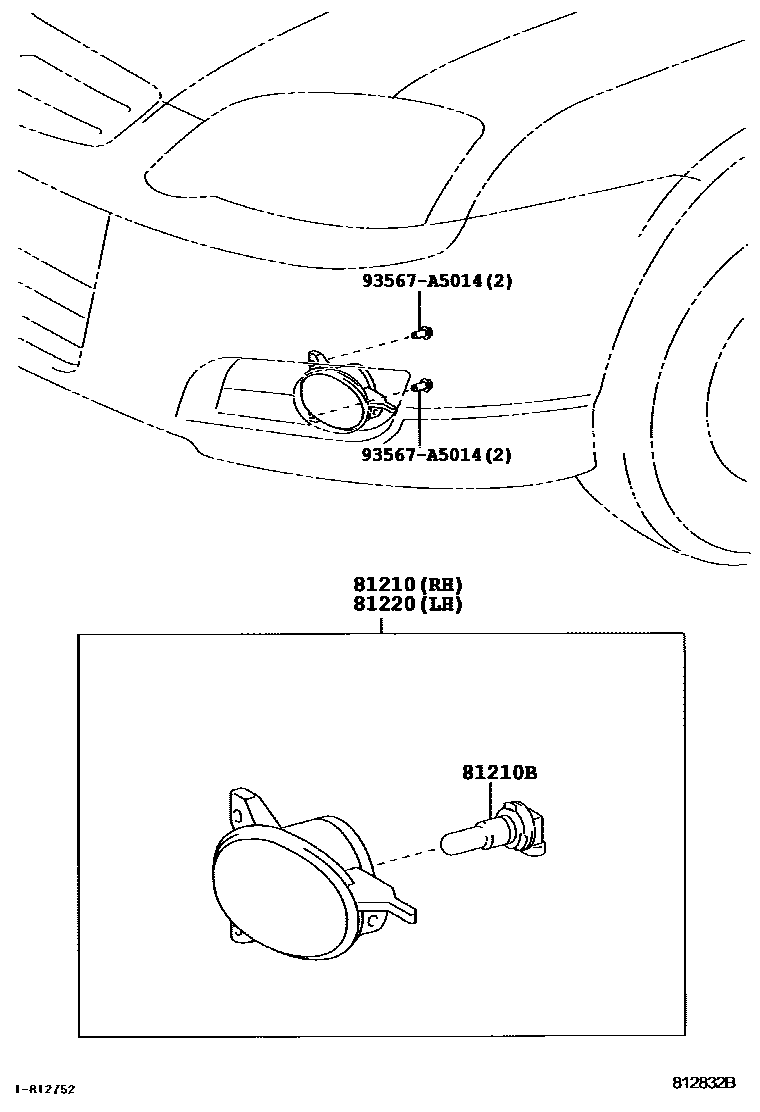

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210 | Fog light assembly | 81210-02050 · 81210-02051 · 81210-02090 |
| 81210B | fog light bulb | 90080-81100 · 90080-81101 · 90981-13075 · 90981-13081 · 90981-WD011 · 90981-WD012 |
| 81220 | Left fog light assembly | 81220-02050 · 81220-02051 · 81220-02090 |
