Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

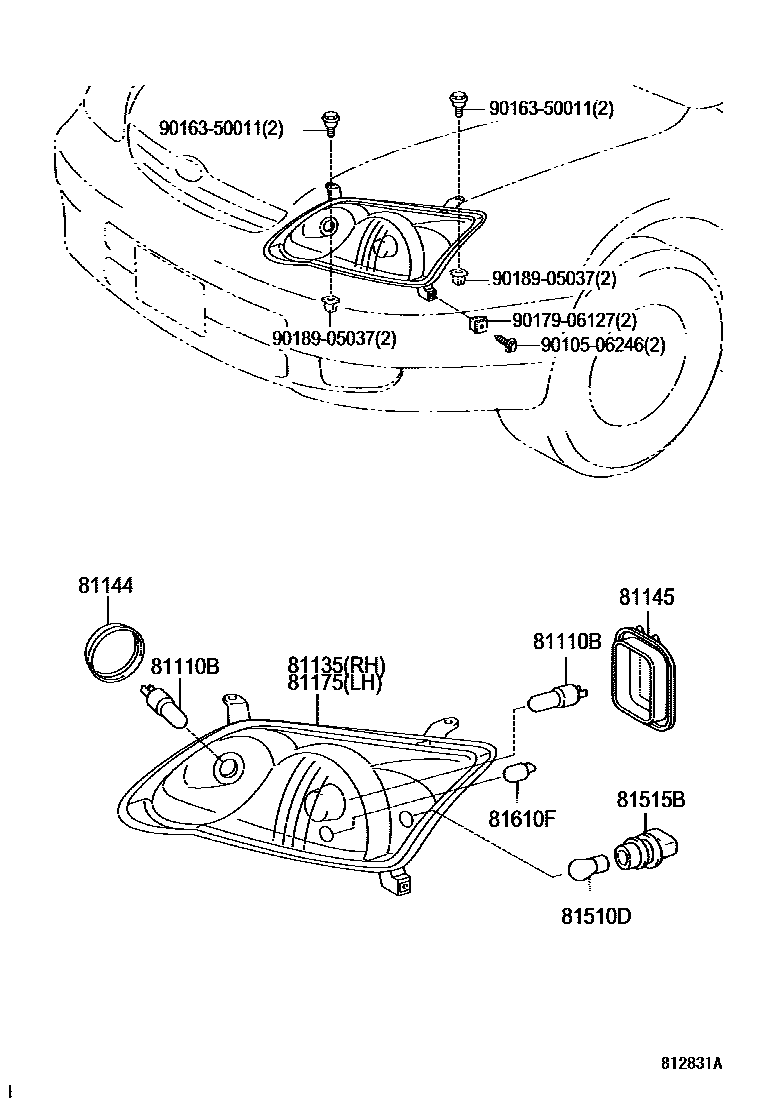

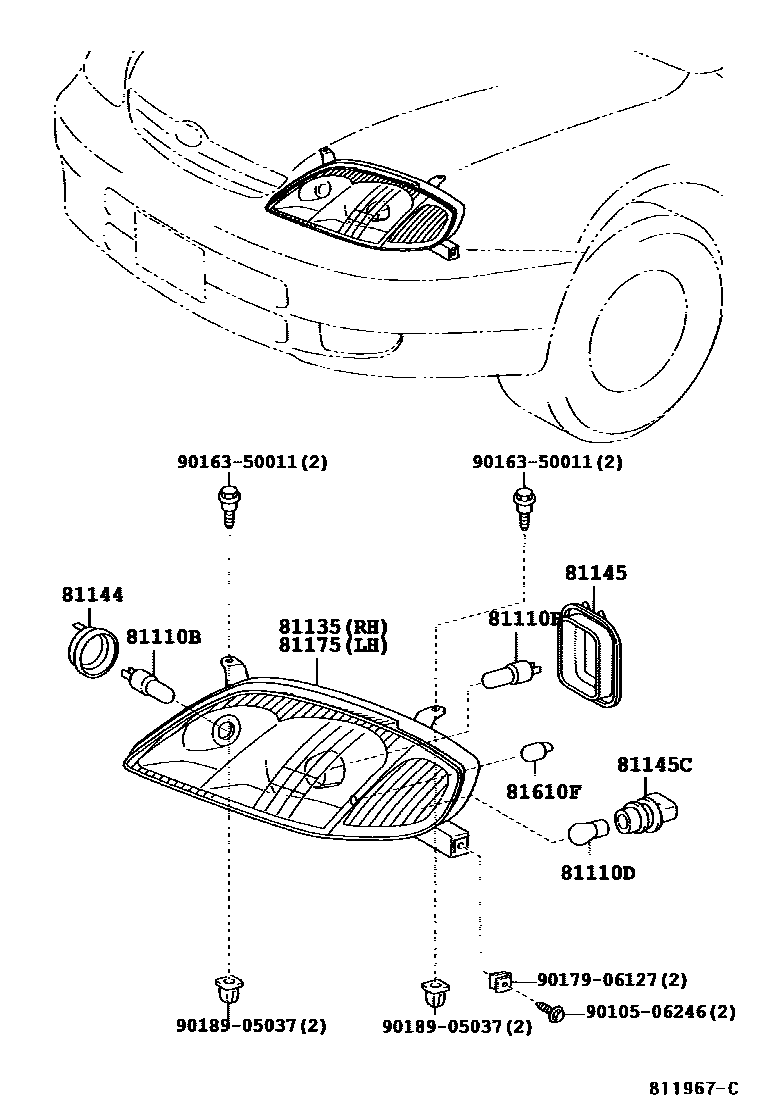

| 81110B | Bulb (for headlight No. 1) | 90080-81097 · 90080-81098 · 90981-13079 |
| 81110D | Bulb (for headlight No. 2) | 90080-81046 |
| 81135 | Right headlight assembly | 81130-02150 · 81130-02160 · 81130-02380 · 81130-02390 |
| 81144 | No. 1 headlight cover | 90069-81025 |
| 81145 | No. 2 headlight cover | 90069-81026 |
| 81145C | No. 2 headlight lamp holder cover | 90069-81027 |
| 81175 | Left headlight assembly | 81170-02150 · 81170-02160 · 81170-02380 · 81170-02390 |

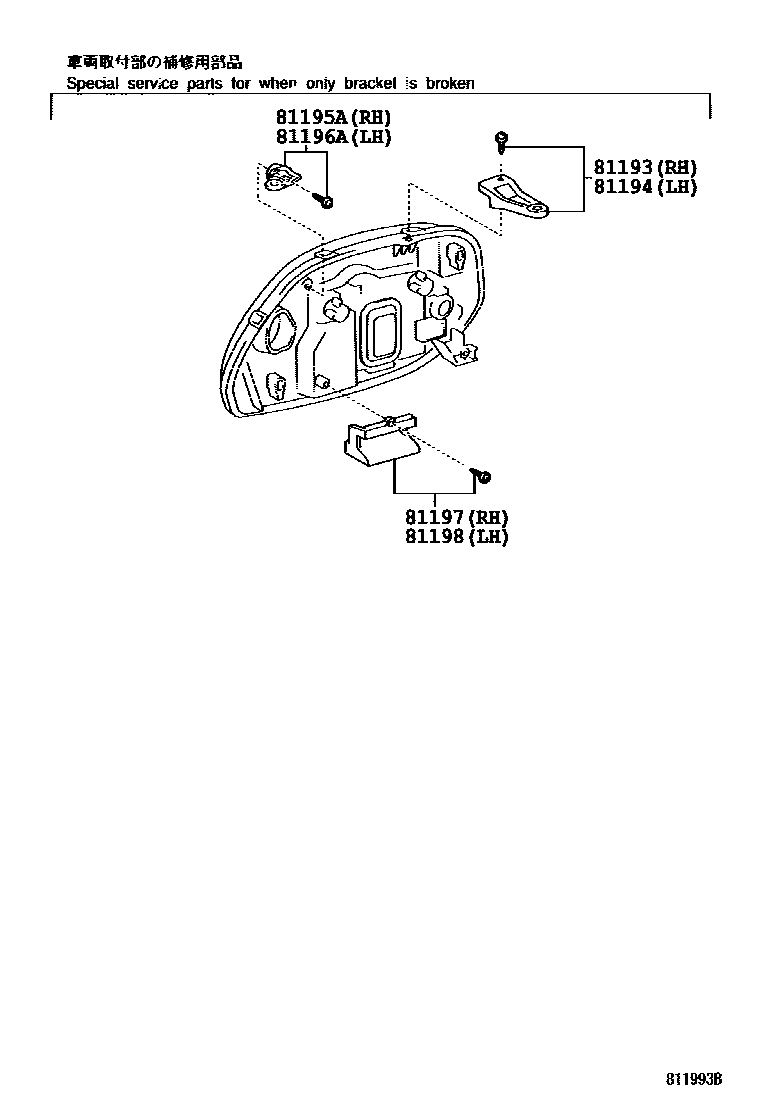

| 81193 | Right headlight upper protective ring | 81193-02020 |
| 81194 | Left headlight upper protective ring | 81194-02040 |
| 81195A | Right headlight lower protection ring | 81195-02030 |
| 81196A | Left headlight lower protection ring | 81196-02020 |
| 81197 | Right headlight lower bracket | 81197-02020 |
| 81198 | Left headlight lower bracket | 81197-02020 |
| 81510D | front turn signal light bulb | 90080-81046 · 90981-WF003 |
| 81515B | Front turn signal lamp holder | 90069-81027 |
| 81610F | Light bulb (for width indicator light) | 90080-81080 · 90981-WB003 |
