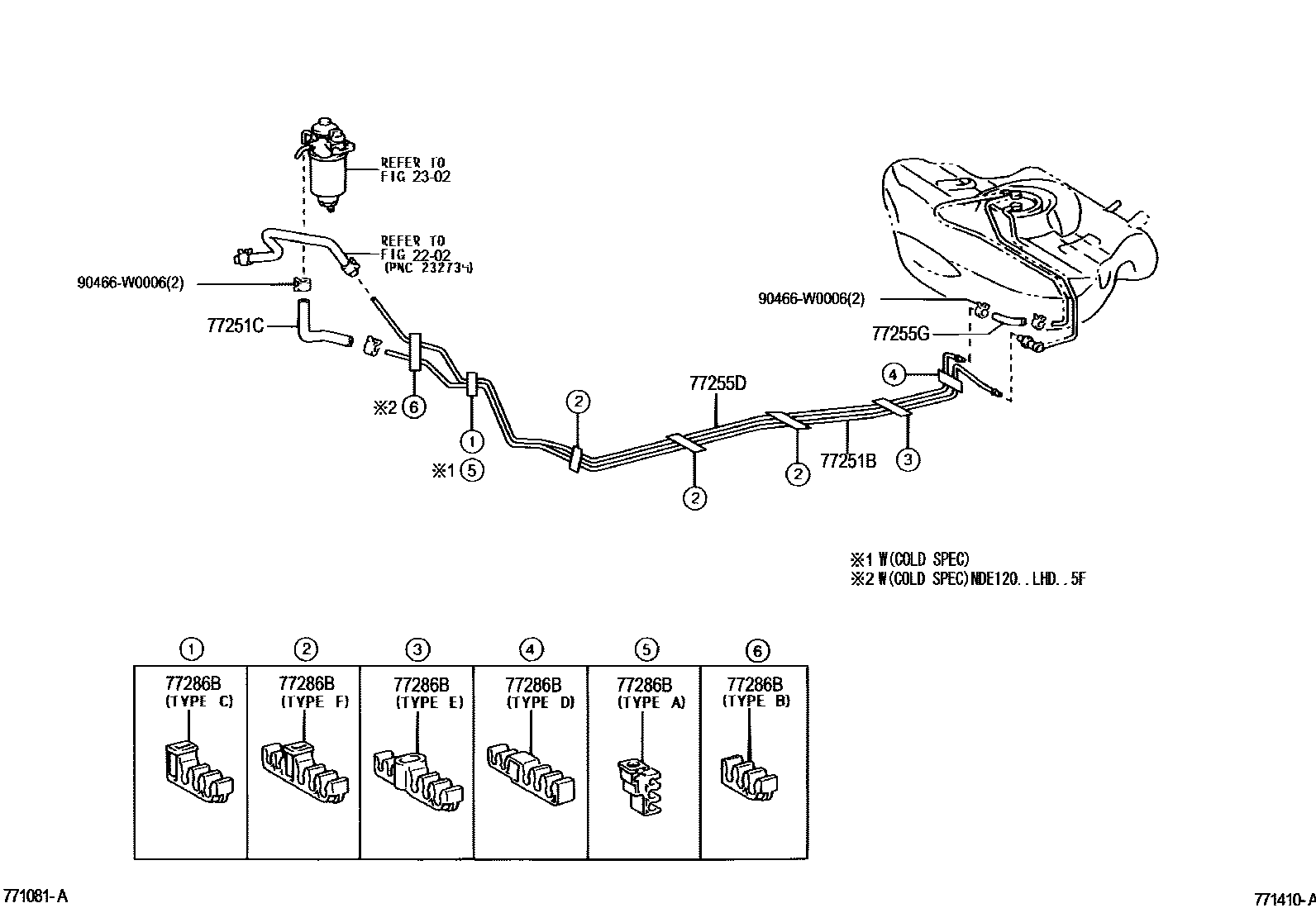

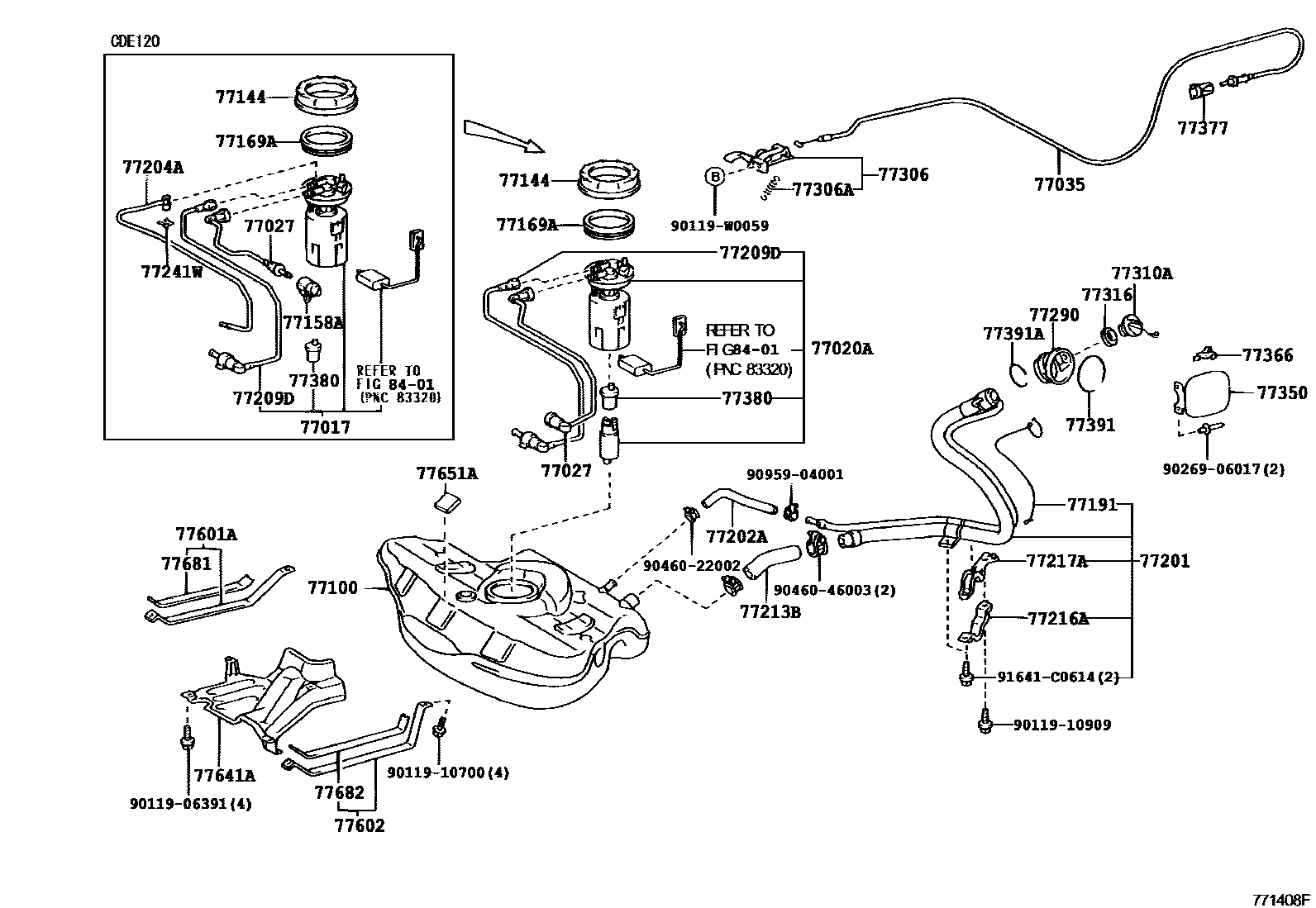

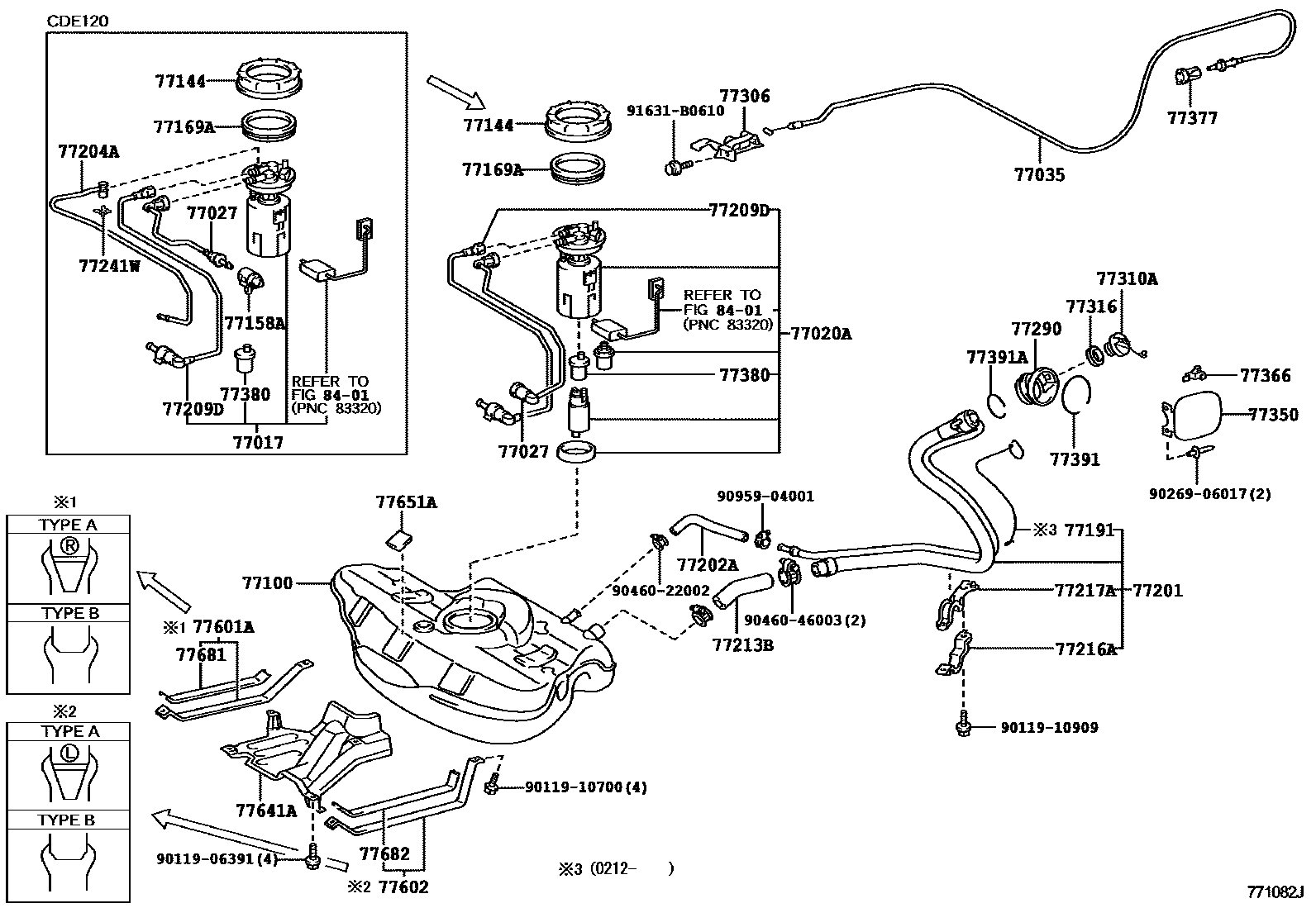

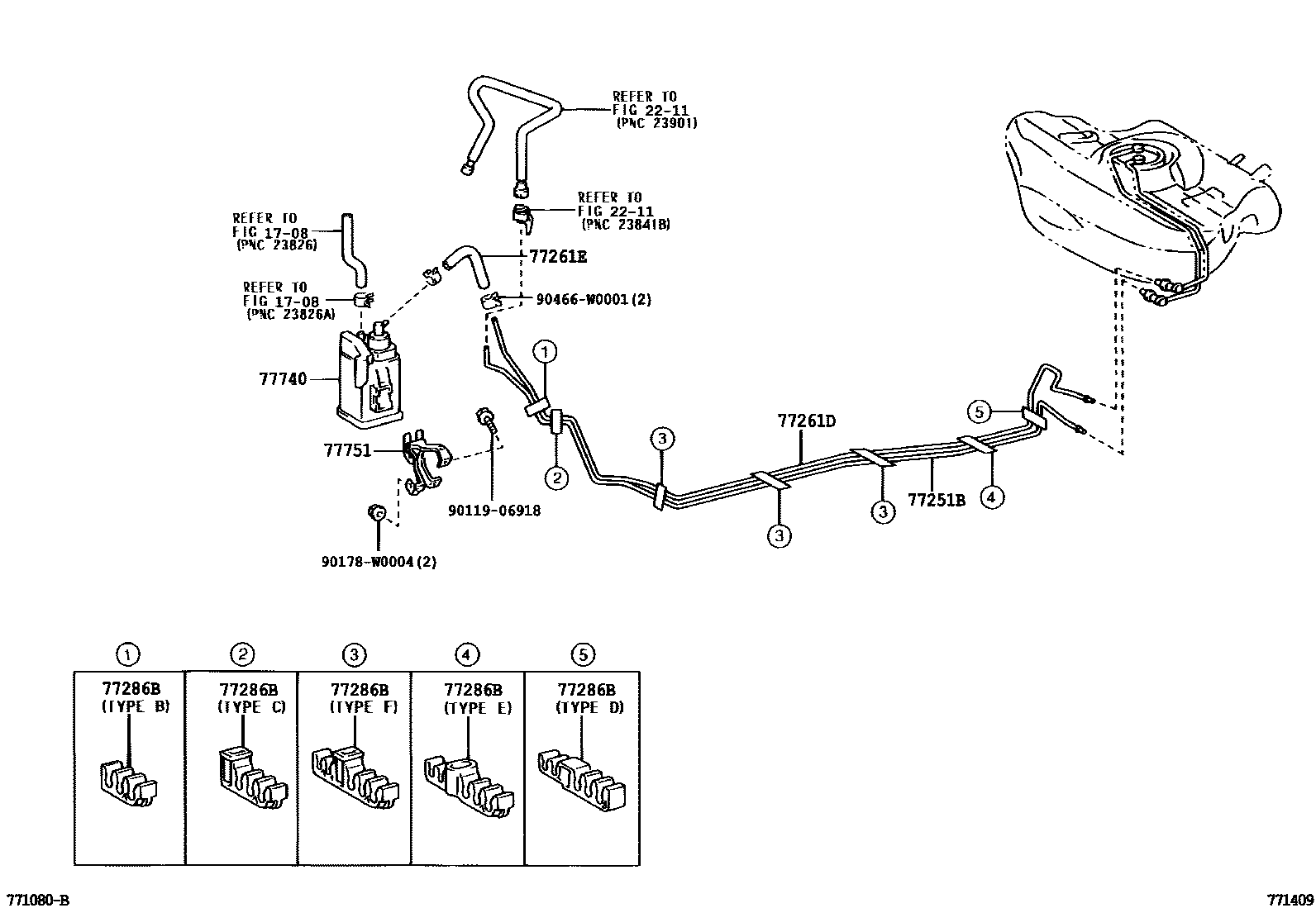

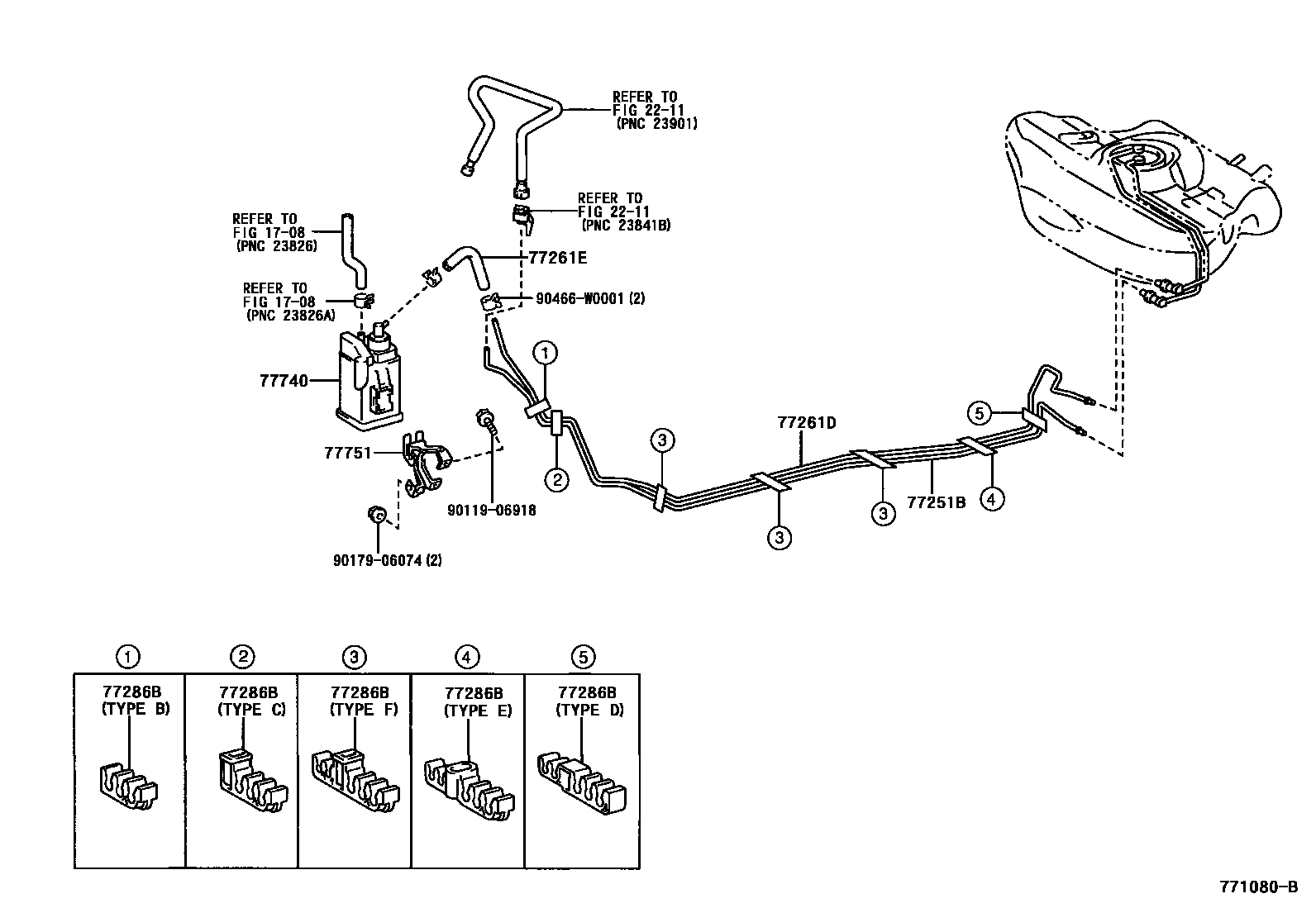

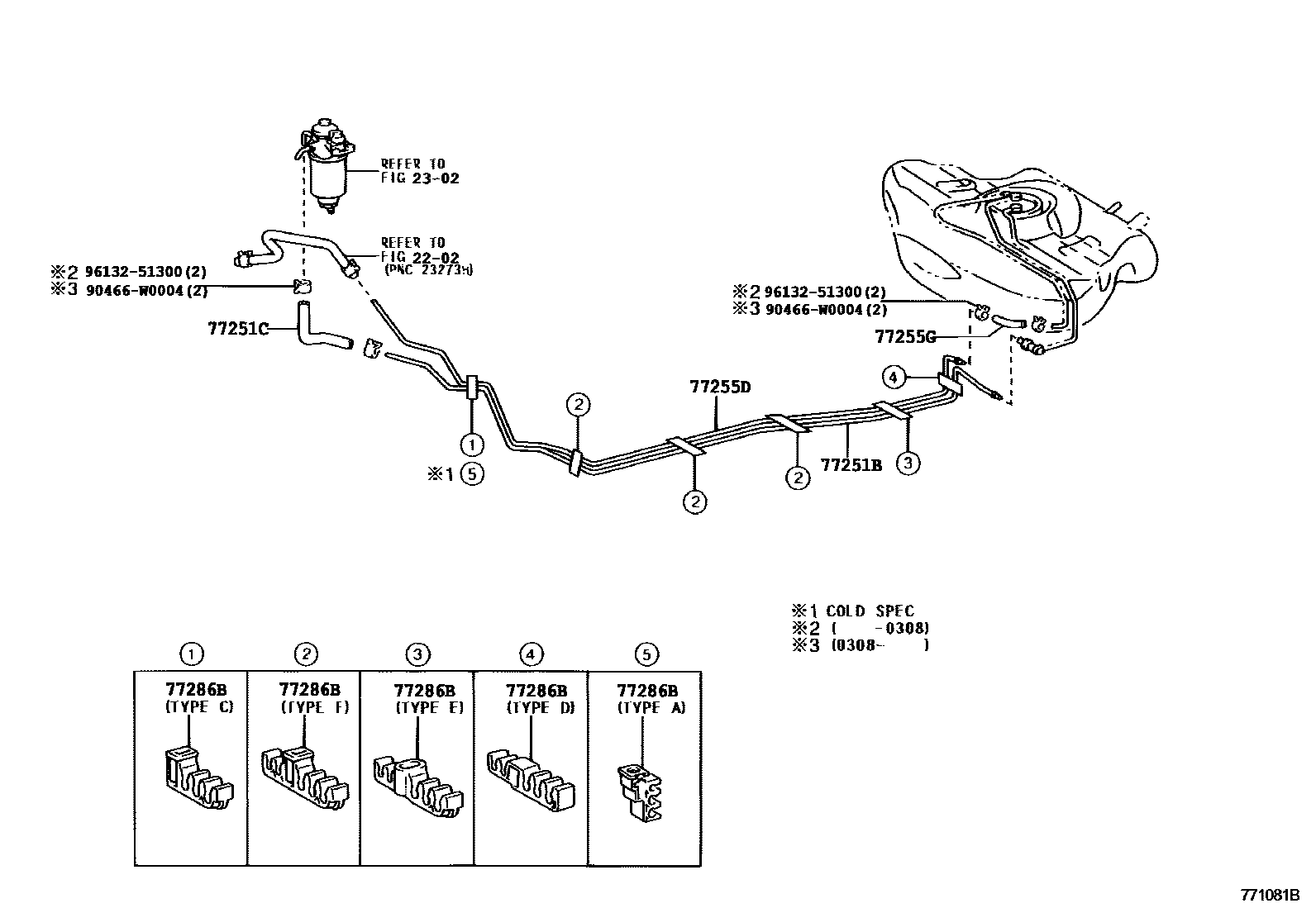

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 6 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77010-02040 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02070 · 77020-02080 · 77020-02081 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-02010 · 77027-02020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02080 · 77035-02090 · 77035-02150 · 77035-02160 |
| 77100 | fuel tank assembly | 77001-02120 |
| 77144 | Fuel pump instrument fixture | 77144-02030 |
| 77158A | Fuel tank suction pipe bracket | 77158-12030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02030 |
| 77191 | Fuel tank ground wire | 77191-02020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-02120 · 77201-02130 |
| 77202A | No. 1 fuel hose (for breather pipe) | 77259-02040 · 77259-02050 |
| 77204A | fuel tank return pipe | 77204-02040 · 77204-05041 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02050 |
| 77213B | Fuel tank to filler pipe hose | 77213-02070 · 77213-02080 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02060 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02030 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-02190 · 77251-02200 · 77251-02210 · 77251-02250 · 77251-02260 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-12260 · 77259-12270 · 77259-12280 · 77259-12290 · 77259-20240 |
| 77255D | fuel return pipe | 77255-02170 · 77255-02171 · 77255-02180 · 77255-02190 · 77255-02191 · 77255-02200 · 77255-02201 |
| 77255G | No. 1 fuel return hose (for fuel return pipe) | 95333-08020 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02170 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95337-06013 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12060 · 77286-47020 · 77289-20060 · 77298-12060 · 77298-12100 · 77298-20080 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-02030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-13020 · 77306-13030 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-60010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-13080 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-02020 |
| 77380 | Fuel shut-off valve assembly | 77380-12020 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-02050 · 77601-02060 |
| 77602 | Fuel tank upper shell sub-assembly | 77602-02050 · 77602-02070 |
| 77641A | No. 1 fuel tank protective shell | 77641-02010 |
| 77651A | No. 1 fuel tank liner | 77651-12070 |
| 77681 | Fuel tank right side strap seat | 77681-02040 |
| 77682 | Fuel tank left side strap seat | 77681-02020 |
| 77740 | Carbon canister assembly | 77740-02090 · 77740-02091 · 77740-05020 · 77740-05021 |
| 77751 | Carbon canister base bracket | 77705-02050 · 77705-12110 · 77750-02050 · 77750-12170 |
