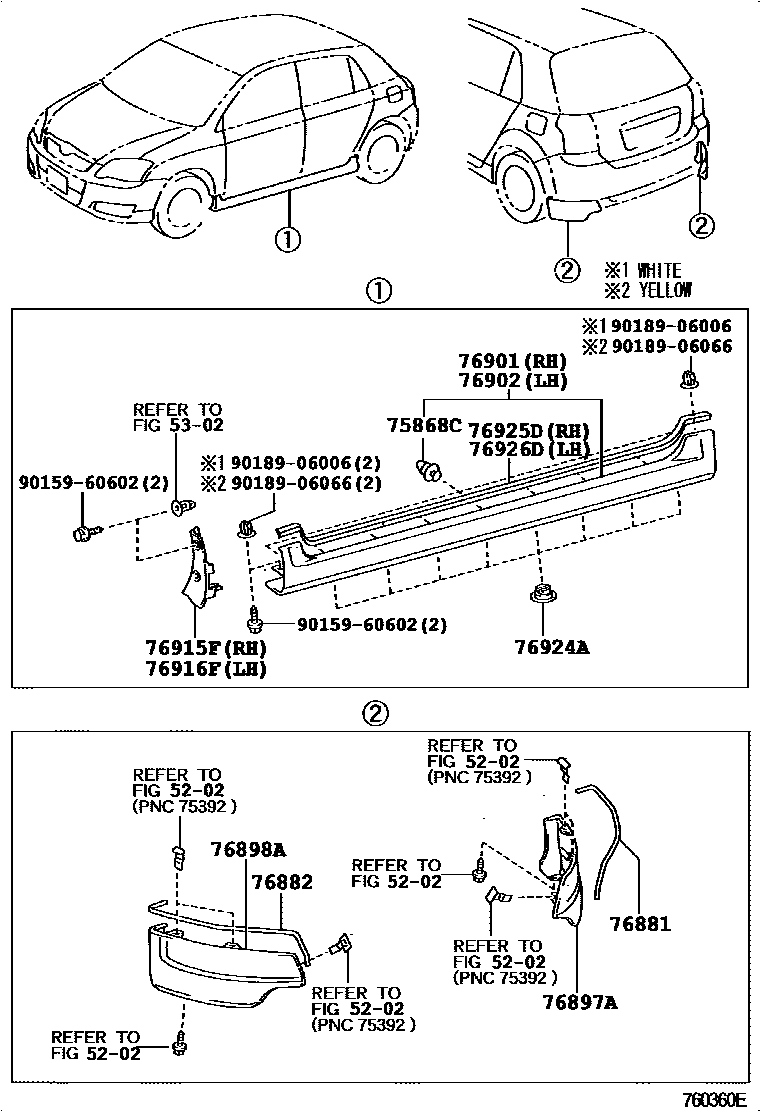

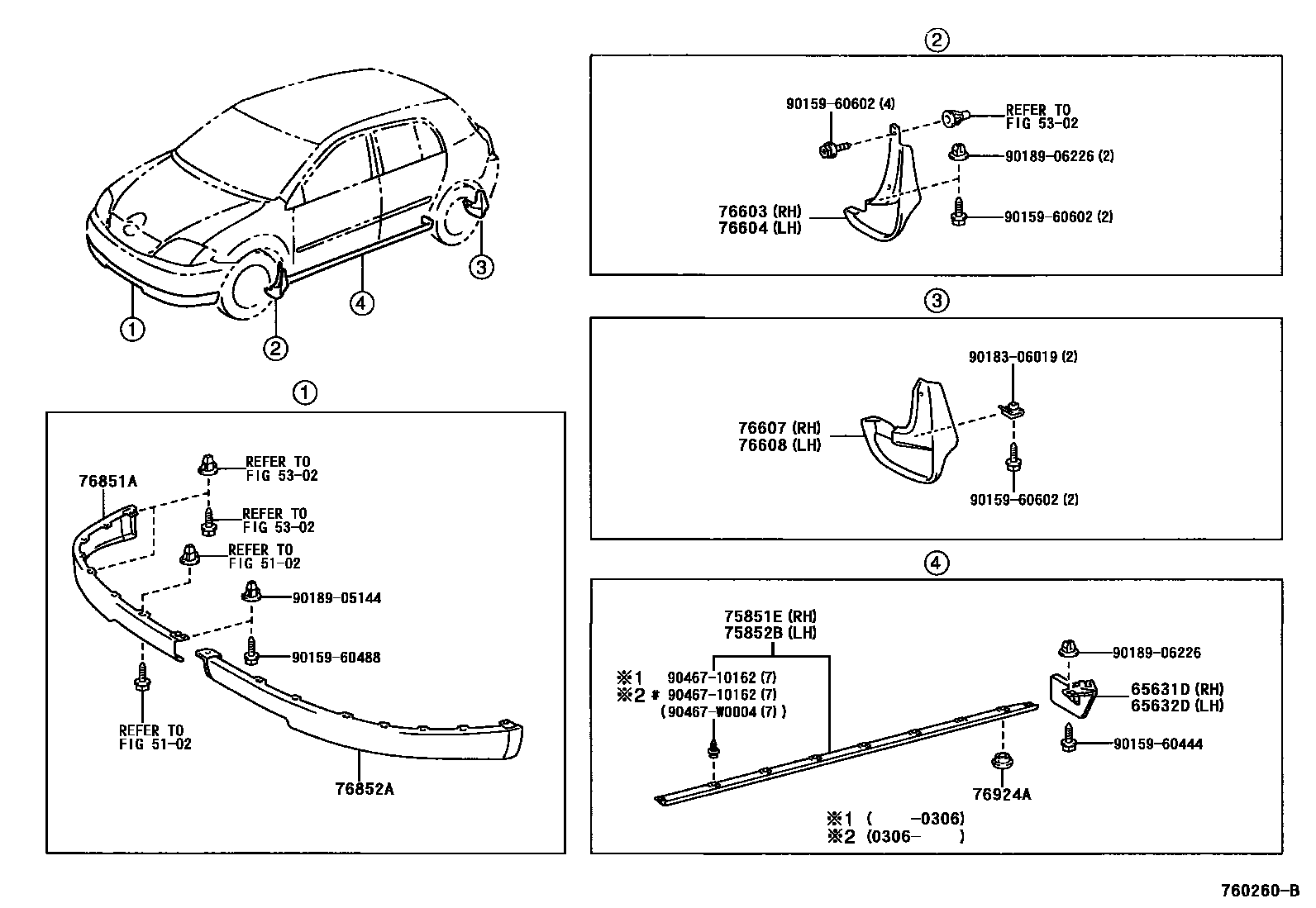

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02020 |
| 65632D | Left rear wheel house front panel | 65632-02020 |
| 75851E | Right body door sill panel protection strip | 75851-02050 |
| 75852B | Left body door sill panel protection strip | 75852-02050 |
| 75868C | No. 2 rear spoiler clip | 75868-33020 |
| 76603 | Right front fender fender sub-assembly | 76621-02120 |
| 76604 | Left front fender fender sub-assembly | 76622-02130 |
| 76607 | Right rear side fender sub-assembly | 76625-02130 · 76625-02160 |
| 76608 | Left rear side fender sub-assembly | 76626-02130 · 76626-02160 |
| 76851A | Right front spoiler cover | 76851-02020 · 76851-02090 · 76851-02901 |
| 76852A | Left front spoiler cover | 76852-02020 · 76852-02080 · 76852-02901 |
| 76897A | Right rear spoiler | 76087-02901 |
| 76898A | Left rear spoiler | 76088-02901 |
| 76901 | Right fender sub-assembly | 76901-02903 · 76901-02904 |
| 76902 | Left fender sub-assembly | 76902-02903 · 76902-02904 |
| 76915F | Right front fender | 76915-02020 |
| 76916F | Left front fender | 76916-02020 |
| 76924A | No. 2 side fender fixings | 76924-52021 |
