Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

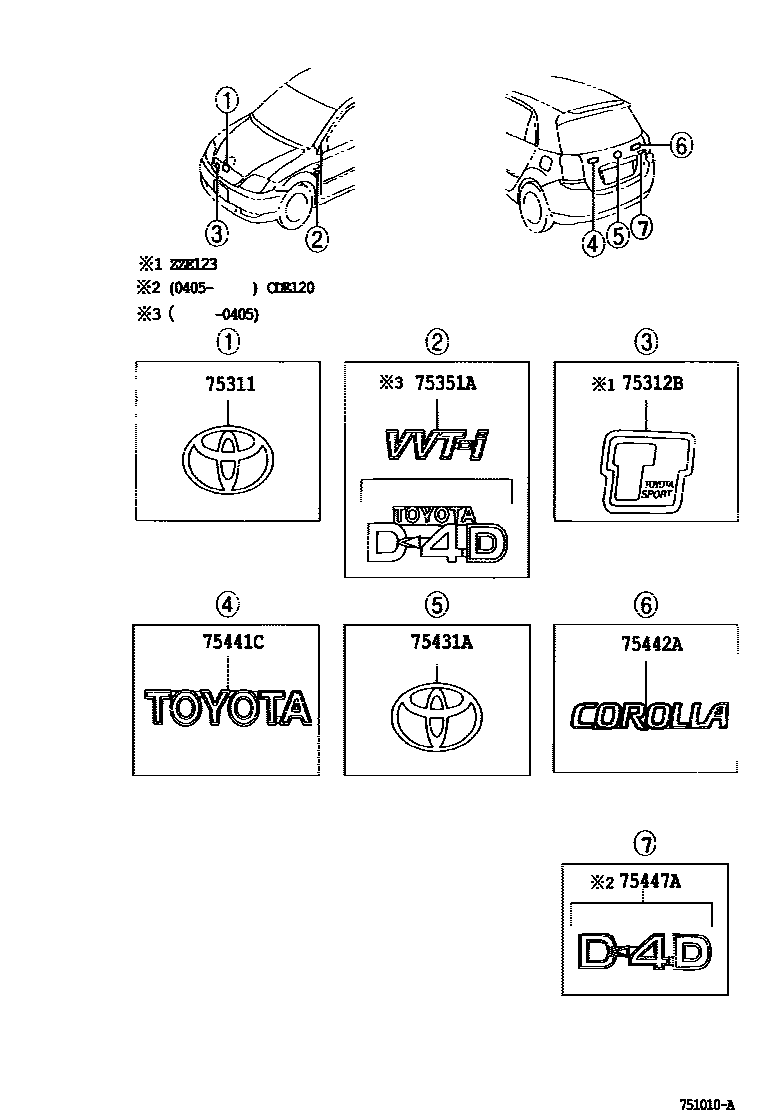

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751010A
丰田徽标和铭牌(车外和车内) — 751010A (200111 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-02100 · 75311-02120 · 75311-02130
75312BRadiator grille number 2 plate75312-02010 · 75312-12280
75351AFront fender label75351-02040 · 75351-02070
75431ANo. 1 sign on back door75431-02030
75441CBack door nameplate75441-02040 · 75441-02050
75442ANo. 2 nameplate on back door75442-02060
75447ANo. 7 nameplate on back door75447-02010
