Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

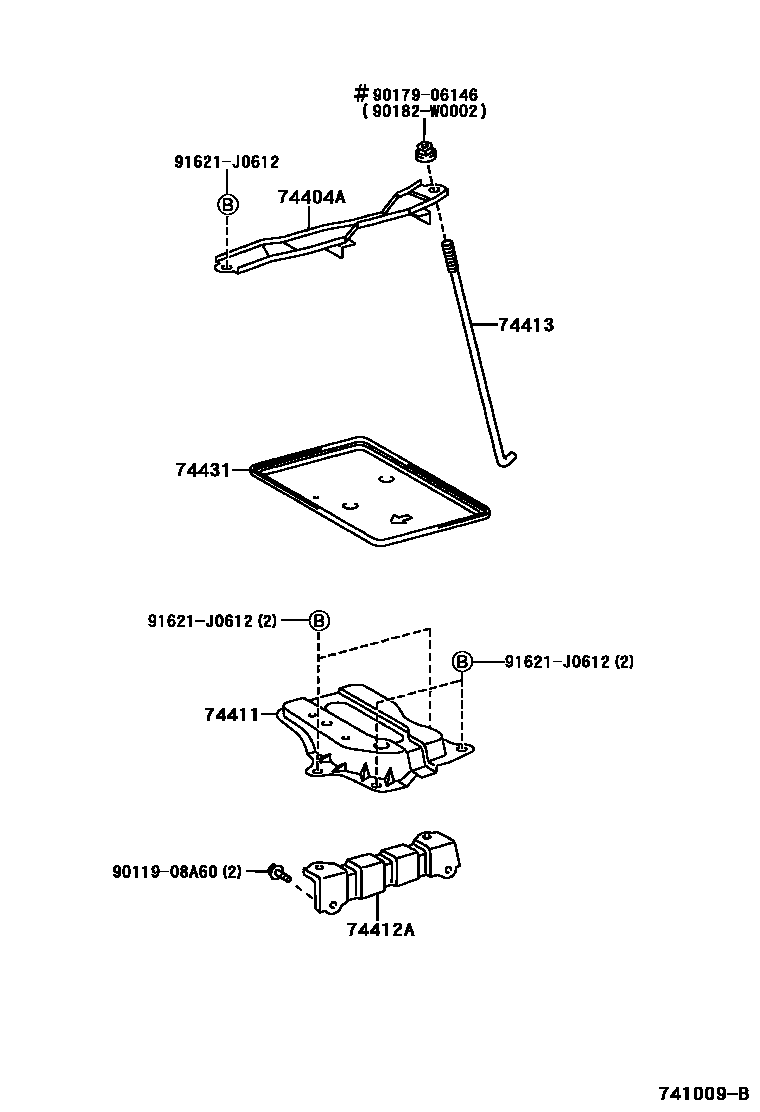

Toyota COROLLA battery holder EPC diagram — 741009B
battery holder — 741009B (200111 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-13040 · 74404-13041 · 74404-13042 · 74404-13043 · 74404-13050 · 74404-13051 · 74404-13052
74411battery holder74411-02020
74412ANo. 2 battery holder74412-02010
74413Battery clamp bolt74451-02012 · 74451-12130
74431battery tray74431-02040 · 74431-02050 · 74431-02051 · 74431-12051
